Price:$260.00

Quantity:


Product Overview

Description

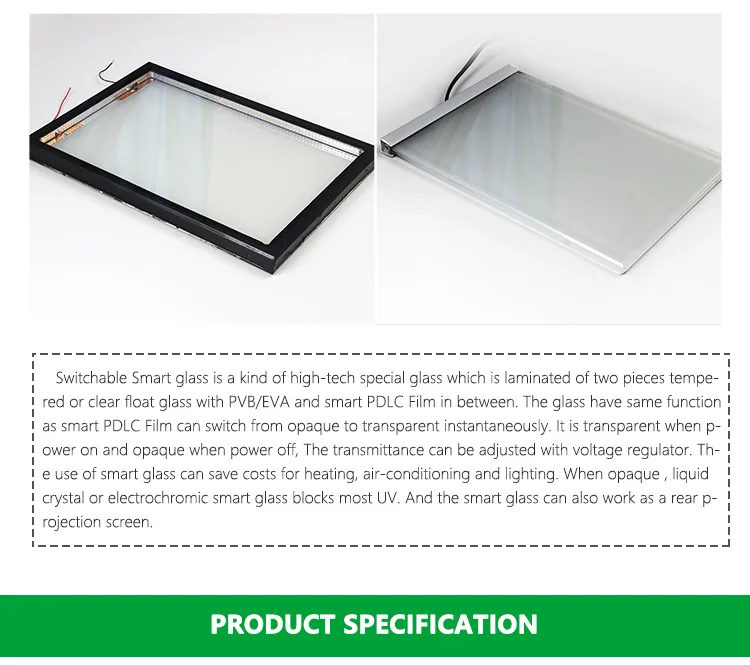

Switchable Smart glass is a kind of high-tech special glass which is laminated of two pieces tempered or clear float glass with PVB/EVA and smart PDLC Film in between.

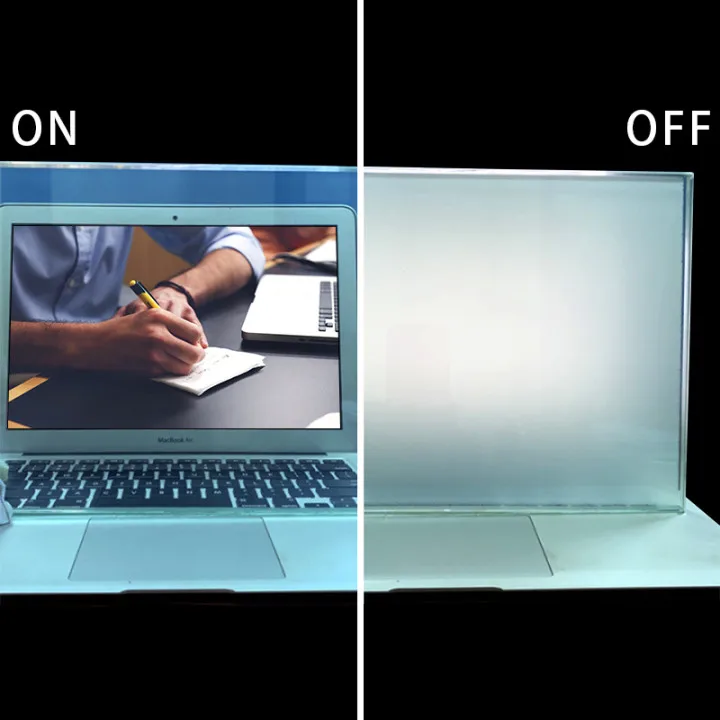

The glass have same function as smart PDLC Film can switch from opaque to transparent instantaneously. It is transparent when power on and opaque when power off, The transmittance can be adjusted with voltage regulator. The use of smart glass can save costs for heating, air-conditioning and lighting. When opaque , liquid crystal or electrochromic smart glass blocks most UV. And the smart glass can also work as a rear projection screen.

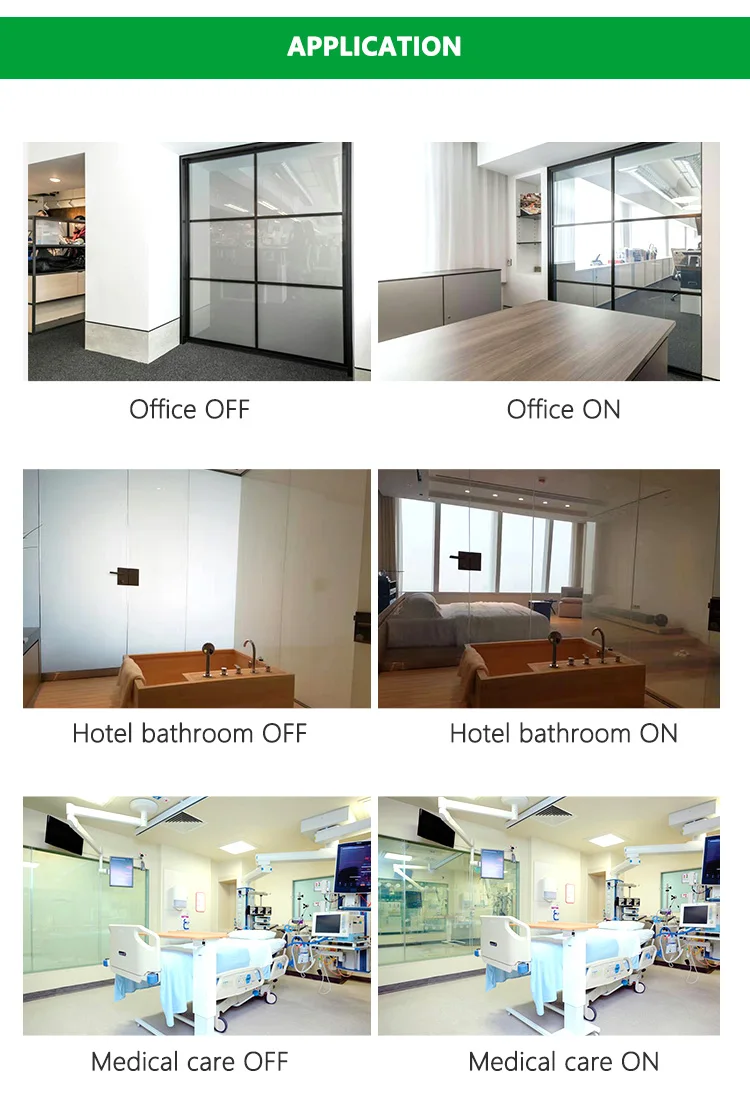

Application






Product Specification


Switchable Smart PDLC Glass Test Result / Description

Status

Data

Remarks








Optics
Parallel Light Transmission
on
> 81%

GB5137.2-2002
off
< 4%
Visible Light Transmission
on
>81%

GB/T 2680-94
off
> 50%

Shading Coefficient
on
0.86

GB/T 2680-94
off
0.67
U.Value
on/off
5.05W/m2•k

Haze
on
< 5%

GB/T 2410-2008
off
> 95%
UV Block
on/off
> 98%
                  /
viewing angle
on
> 160
                  /



Electrical
Power voltage
on
60VAC
multimeter

Response time
on → off
< 200ms
Liquid crystal measuring instrument

off → on
< 45ms
Power consumption
on
< 5W/ M 2
electrical measuring instrument


Environment
Work Temperature
on/off
- 10℃ to + 60℃

Far from heat, chemical, liquid, wet.
Storage Temperature
              /
- 20℃ to + 50℃
Humidity
                /
< 85%


Duribility
Life time
                 /
> 80000 Hours
                   /
Switch time
                 /
> 2 to 5 million
                   /
peel strength
                 /
pass
GD15763.3-2009

Energy
Sound Insulation
                 /
> 35 dB
GB18910.1-2002
Heat Insulation
                 /
> class 2
GB8484-2008

PDLC Glass
Thickness
Size
Length/width/curve tolerance


Clear Glass
5mm/6mm/8mm/10mm+1.5mm (EVA/PDLC Film)+5mm/6mm/8mm/10mm


Max. 1.5*4.2 M





GB15763.3-2009


Tempered glass
5mm/6mm/8mm/10mm+3mm (EVA/PDLC Film)+5mm/6mm/8mm/10mm


Max. 2.1*4.8 M


Our Advantages


1.Professional focus on switchable glass and PDLC Film research, production and marketing.
2.Over 10 years experience, high stable quality, over 20 long term overseas distributors.
3.Fast delivery time.
4.Good after sales services.
5.Warranty




Factory Display


Welcome to Shenzhen VANLONG Technology Co., ltd, We are a supplier focus on switchable privacy glass, smart PDLC film and power supply transformers. As a professional supplier in PDLC field, we have over 8 years experience and our products are welcomed by worldwide customers, which has achieved remarkable social and economic benefits. we set up fine managing and brand credit in fierce market competition.




Packaging & Delivery




FAQ


1. How does Smart Film work?
In “Off State” when no electrical power is applied on the smart film the light is absorbed or scattered and the film looks dark gray or white. In “On State” the light is transmitted and the film looks transparent.

2. What is the product lead time?
Lead time for PDLC Film Glss Products is 5-7 days after received payment.

3. What is the size of your package?
1 piece 500*1000mm glass L120*W52*H60CM

4. What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.

5. Is there a MOQ (Minimum of Quantity)?
1 square meter

6. What is the expected life of your products?
Life expectancy is approximately 10 years or switch >2000000times.
