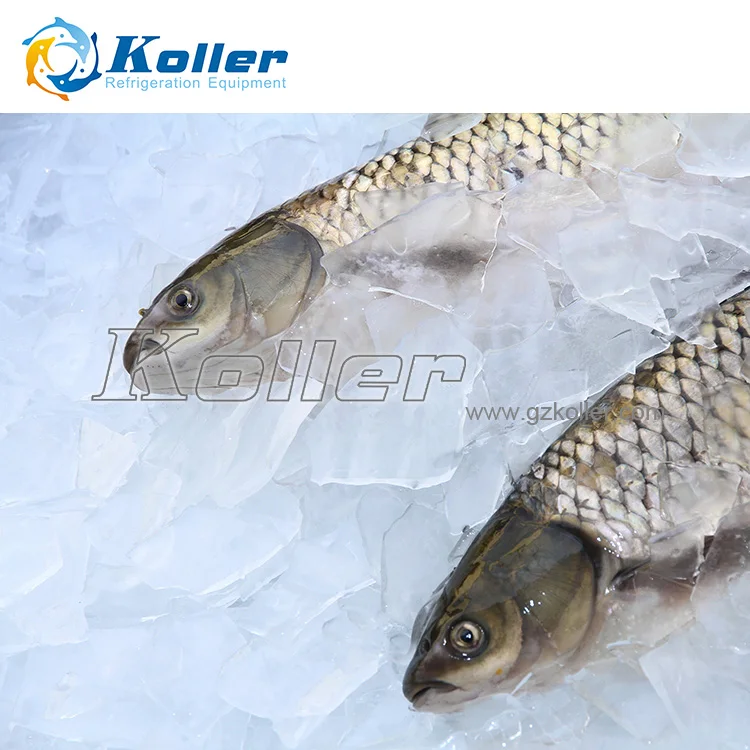

For Fishery Preservation Plate Ice maker (3000 Kg per day)

Product Overview

Description

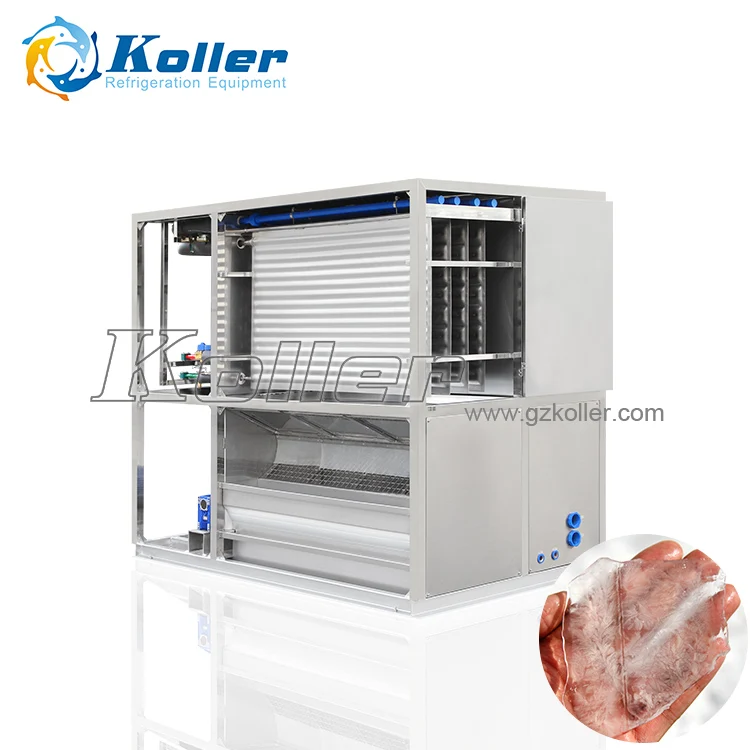

  Plate Ice Machine PM30

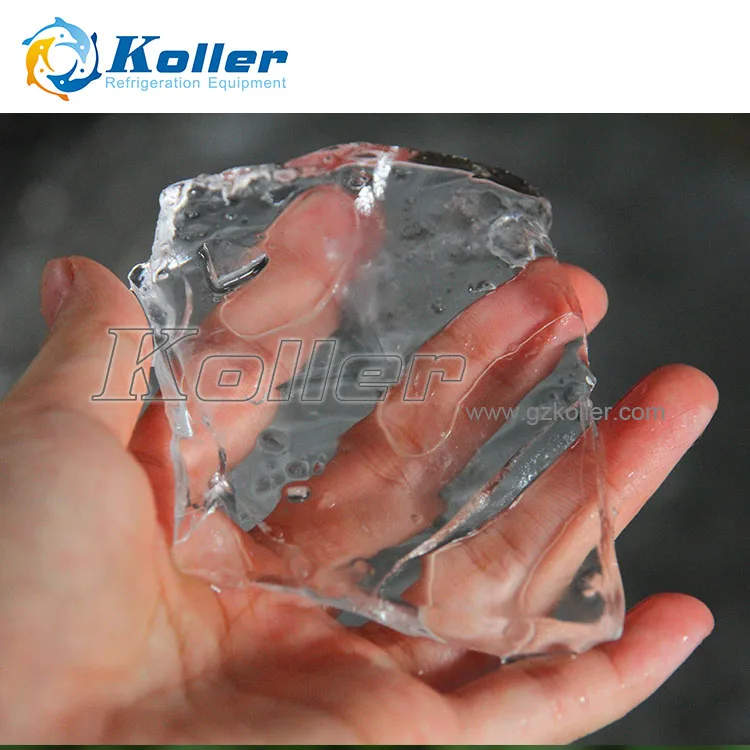

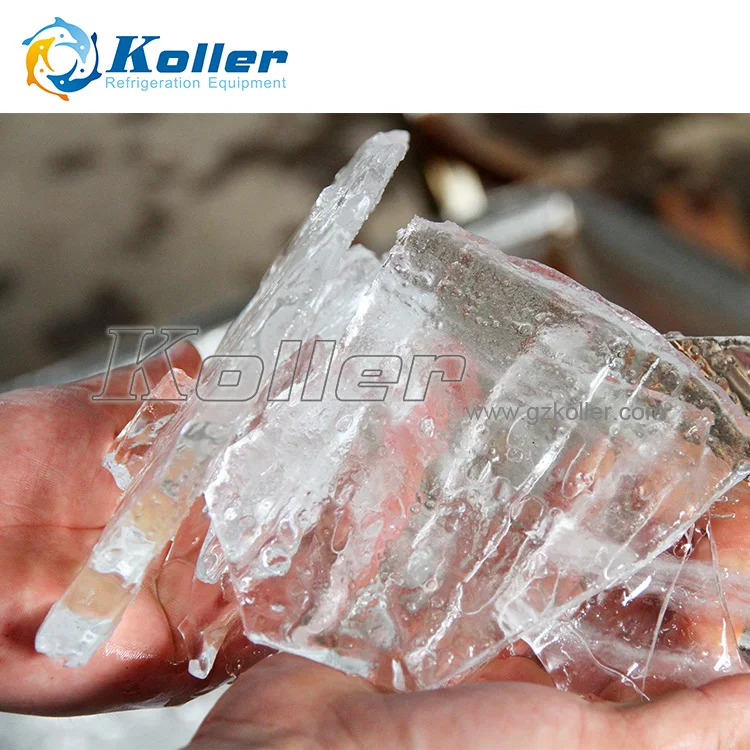

Plate Ice Machine/Commercial Ice Machine/Ice Machine has a daily output from 1 tons to 20tons. The thickness of the ice:5mm to 30mm. It can be extensively applied into supermarkets, quatic production processing, pelagic fishery, vegetable/fruit processing and fresh keeping, meat processing, concrete cooling, chemical industry and so on. This product is controlled by micro computer to supervise its running status and how the machine runs, very easy to install and operate with the text display. This kind of machine has a great advantage in energy saving, its energy-saving index can reach 50~65KW/Ton per hour.







*Main Components for Plate Ice making Machine:

Item	Name of Components	Brand Name	Original Country
1	Compressor	BITZER/CARRIER	Germany/USA
2	Ice Maker Evaporator Grid	KOLLER	China
3	Water cooled condenser	KOLLER
4	Refrigeration components	DANFOSS/CASTAL	Demark/Italy
5	PLC Program control	SIMENS	Germany
6	Electrical components	LG (LS)	South Korea





Plate Ice Making Machine:

Model	Ice-making Capacity	Compressor Power	Motor Power	Voltage	Water Comsuption	Dimension   (mm)			Net Gross
	Tons/24h	KW	KW	V	L/H	Length	Width	Height	Kg
PM10	1	2.51	0.4	380	42	1200	1000	1600	660
PM20	2	5	0.75	380	83	1350	1200	1700	750
PM30	3	7.5	0.75	380	125	1600	1350	1700	1100
PM50	5	15	1.1	380	208	2000	1600	2200	1900
PM100	10	30	2.2	380	417	2500	1800	2480	3100
PM150	15	43	3.7	380	625	2500	2200	2480	3500
PM200	20	59	3.7	380	833	3470	2200	2480	4700



*Supply Power Form:  380V, 50Hz, 3P or 220V, 60Hz, 3P.

*Cooling System:  Water cooled system.

*Installation:

1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



2).Installing by Koller engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.



(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.



(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.



(4) 2~ 3 workers are required to assist the installation for big project.



(5) Any delay due to customer’s reason, it will be charged from the 8^th day, USD100/day for one person as installation fee. Free of charge for one week.



*Guarantee Period:

During 12 months after selling, maintenance and parts free of charge.



*Packing way:

Packed in air bubble film inside, then in plywood case outside.

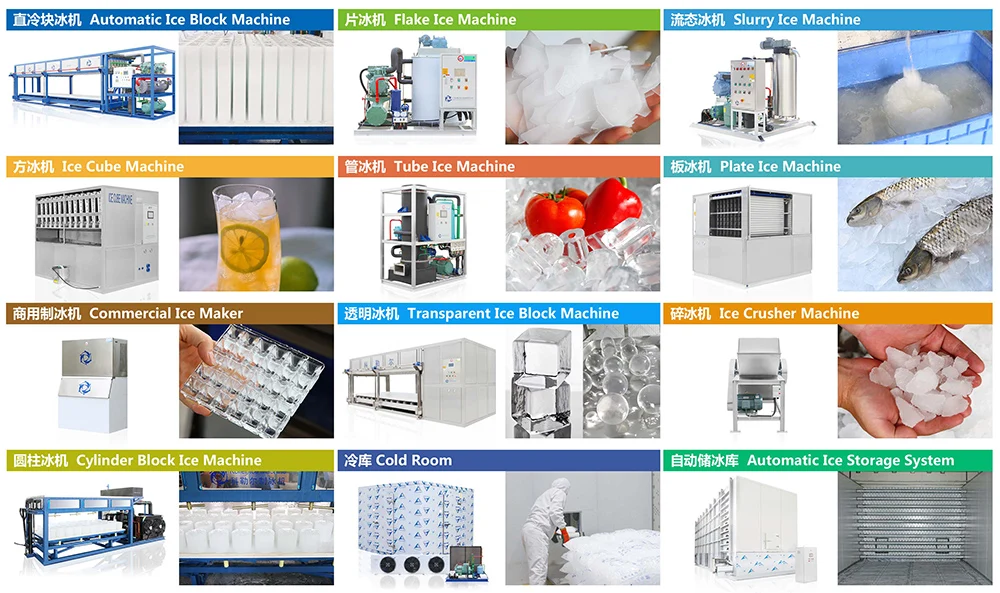

Koller Other products
