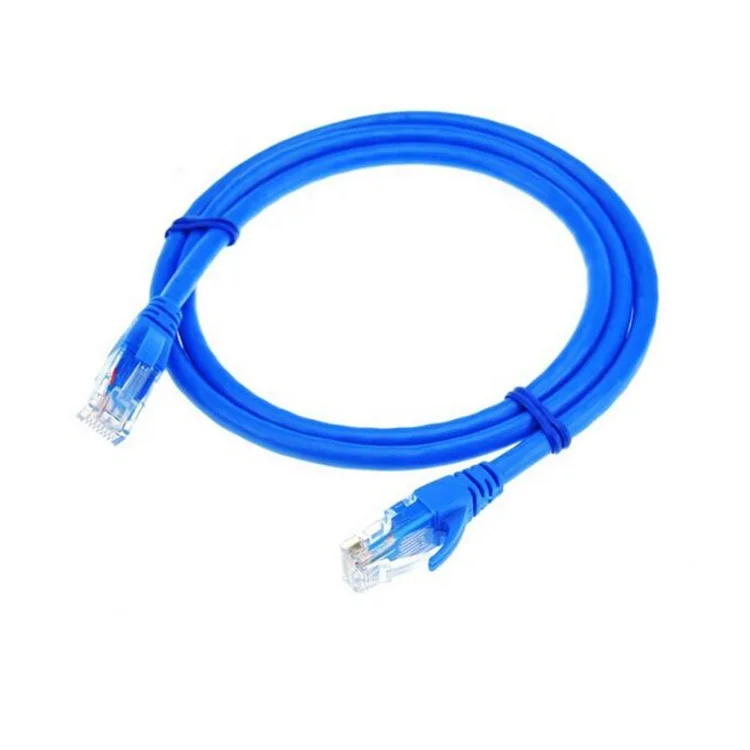

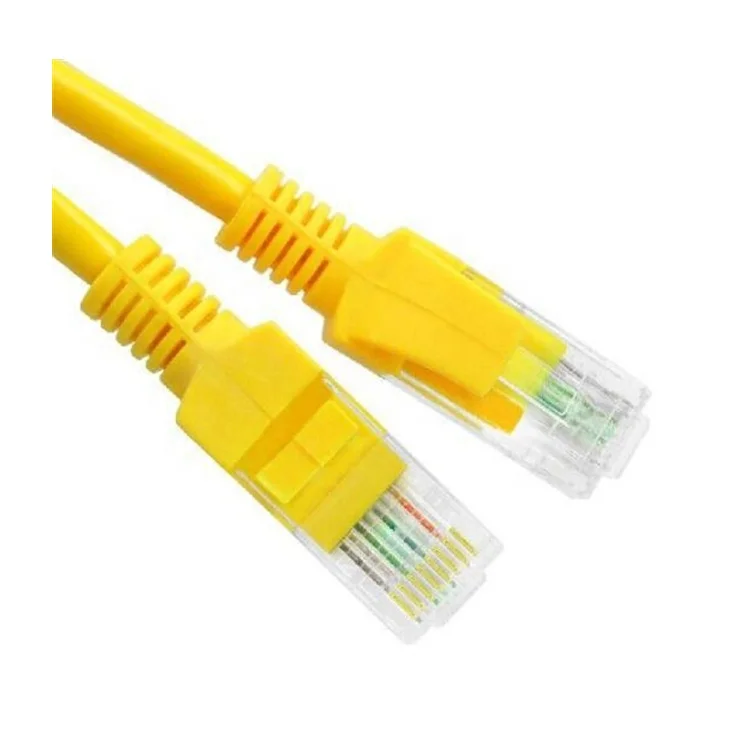

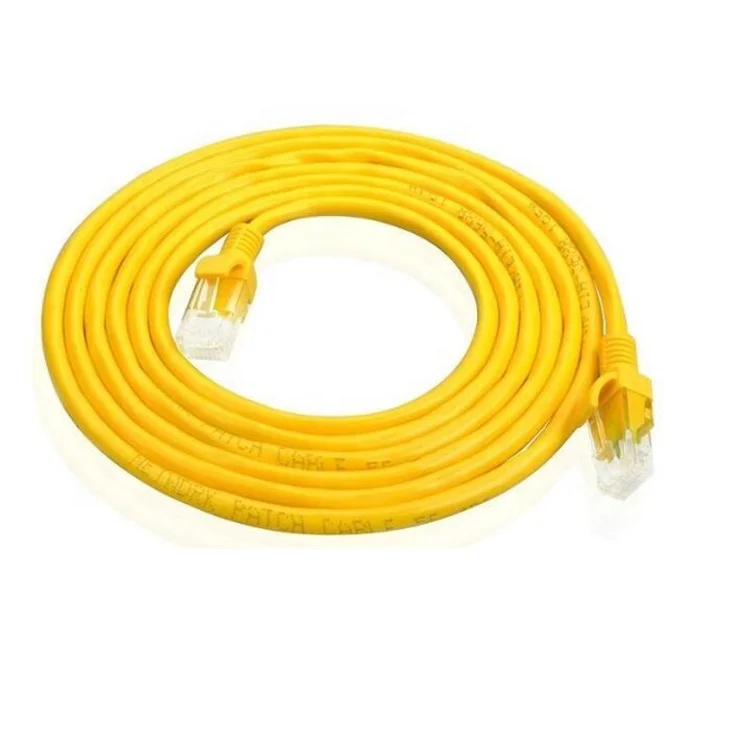

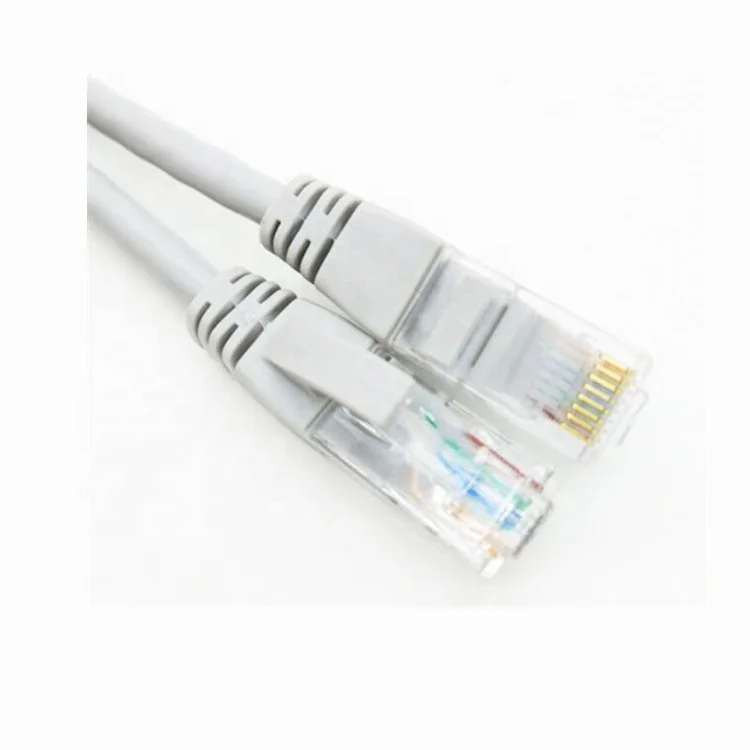

twisted pair patch cord

Specifications:

With RJ45 8P8C Conductor

Rated Temperature:75Degree

Conductor:Stranded bare copper

AWG:24

Insulation:HDPE

Shield:Pe-Tape + Al foil + Pe-Tape

Twisted Pair:Four

Drain Wire:Solid Tinned Copper

Jacket:PVC

Rip Cord:Per request

Electrical Characteristic:

1.0-100.0MHz Impedance (ohms):100 +/- 15

1.0-350.0MHz Delay Skew (ns/100m):<=45

Pair-to-Ground Capacitance Unbalance (pF/100m):<=330

Max.Conductor DC Resistance 20 degree(ohms/km):93.8

Resistance Unbalance(%):<=5

Application:

100 Base-T4

100 Bsdr-TX

100 VG-AnyLAN

155 Mbps ATM

622 Mbps ATM

Packing:

Poly bag,Blister card,gift box.

                                                               568-B Writing

	Pair#	Wire	Pin#
	1-White/Blue	White/Blue	5
		Blue/White	4
	2-White/Orange	White/Orange	1
		Orange/White	2
	3-White/Green	White/Green	3
		Green/White	6
	4-White/Brown	White/Brown	7
		Brown/White	8
	<568-B Diagram

                                                   568-A Wiring

	Pair#	Wire	Pin#
	1-White/Blue	White/Blue	5
		Blue/White	5
	2-White/Green	White/Green	1
		Green/White	2
	3-White/Orange	White/Orange	3
		Orange/White	6
	4-White/Brown	White/Brown	7
		Brown/White	8
	<568-A Diagram

Notes For Wiring Diagrams Above:

1.For Patch cables, 568-B wiring is by far, the most common method.

2.There is no difference in connectivity between 568B and 568A cables. Either wiring should work fine on any system.

3.For a straight through cable, wire both ends identical.

4.For a crossover cable, wire one end 568A and the other end 568B

5.Do not confuse pair numbers with pin numbers. A pair numer is used for reference only (eg:10Base T Ethernet uses pairs 2&3). The pin numbers indicate actual physical locations on the plug and Jack.

A patch cord is always fitted with connectors at both ends. A pigtail is similar to a patch cord and is the informal name given to a cable fitted with a connector at one end and bare wires (or bare fiber) at the other. The non-connectorized end ('the pigtail') is intended to be permanently attached to a component or terminal.

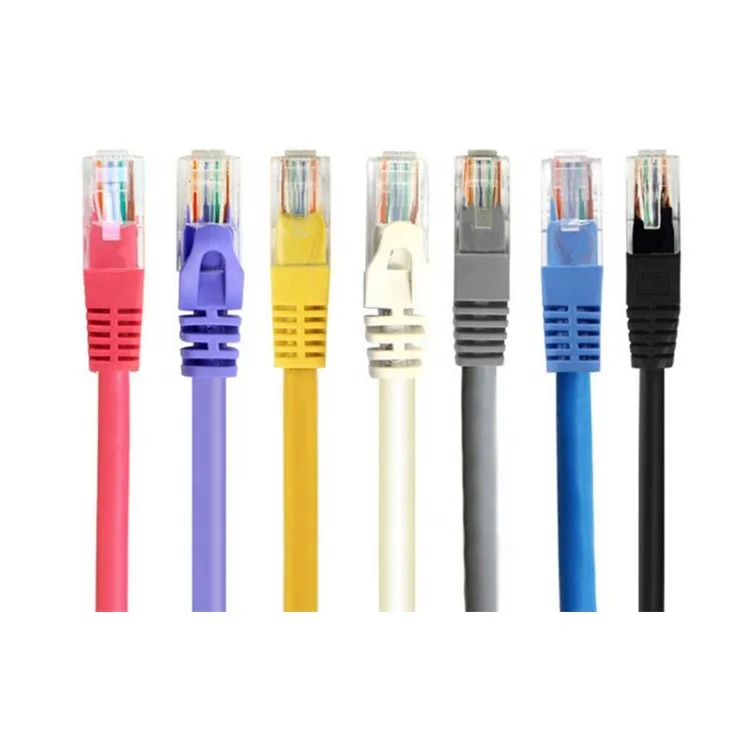

All kinds of Patch Cables are available.

OEM & ODM projects are welcome.

Welcome to inquire on us!

Thank you very much!!!

                 HTP35002

                    HTP11096

                     HTP11097

We have different types of packing.

Please check the follows.

Delivery time is 10-20 days after order, according to orders.
