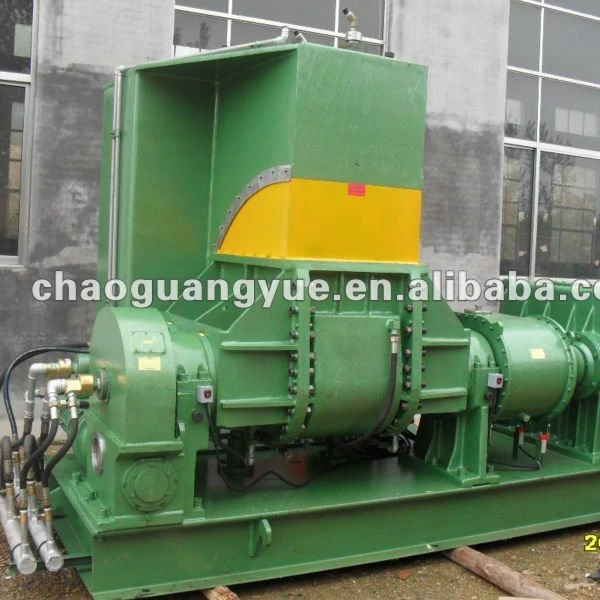

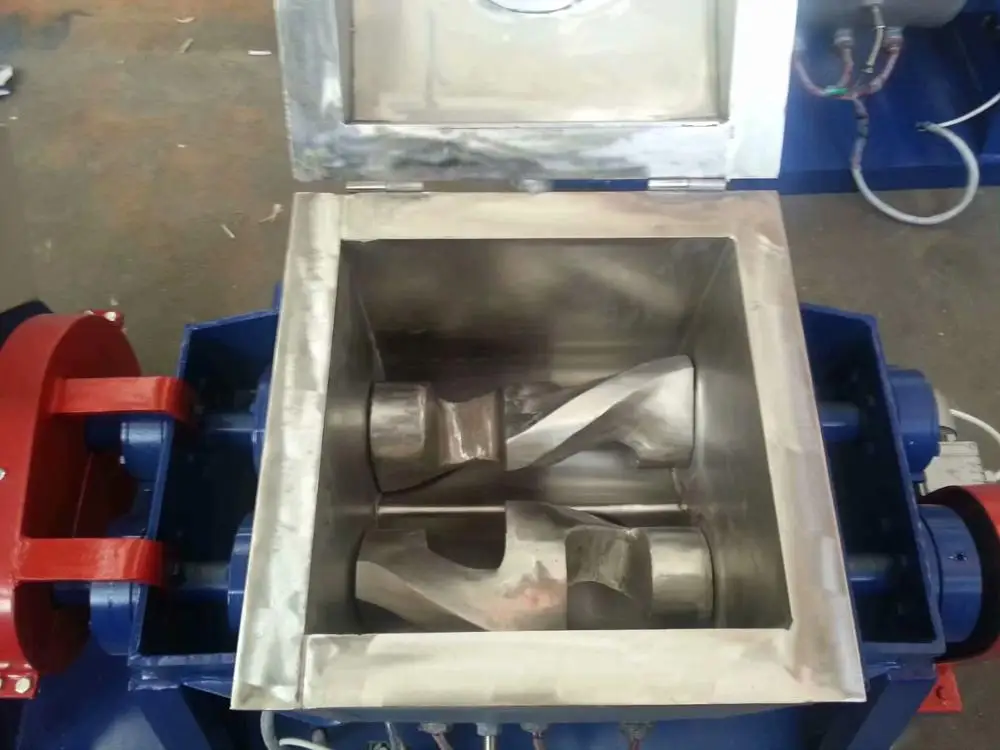

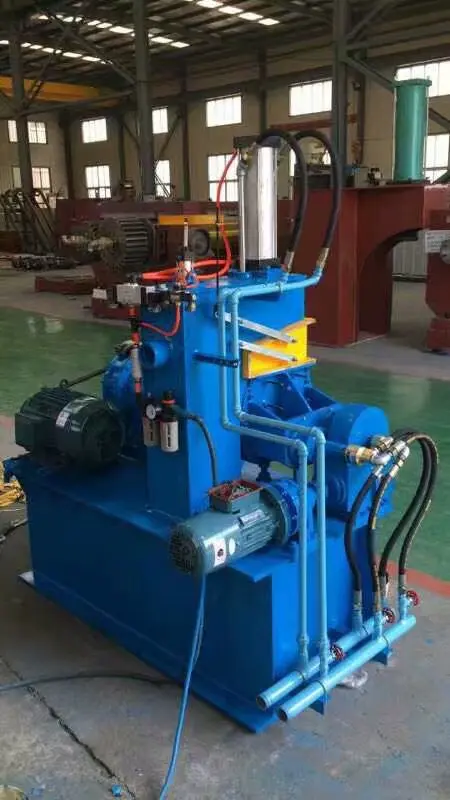

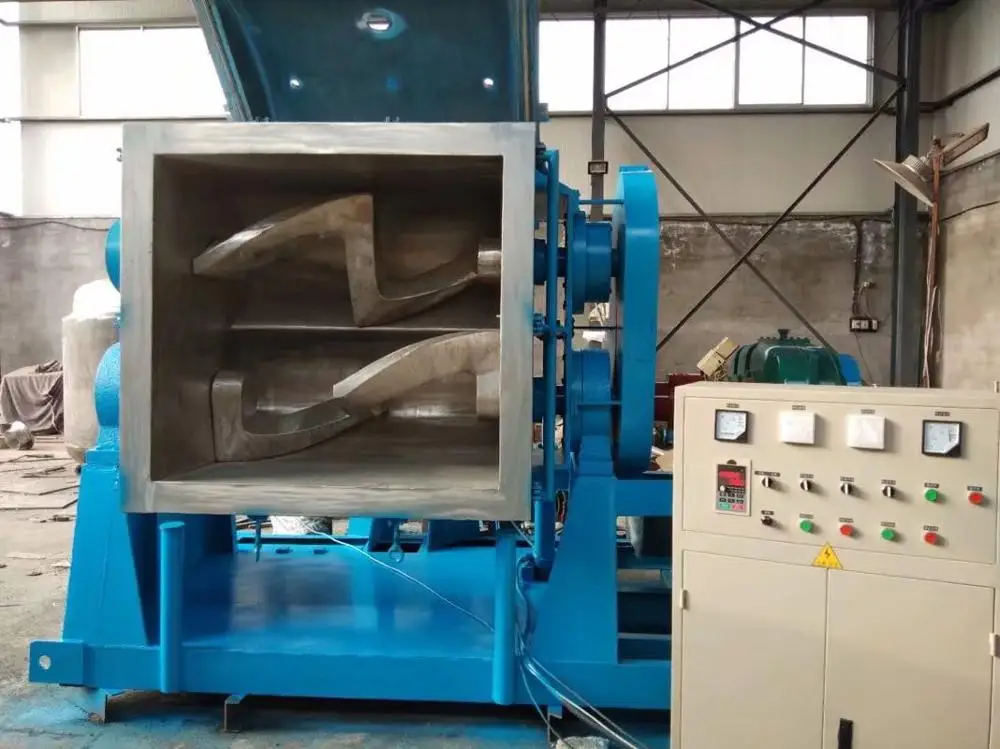

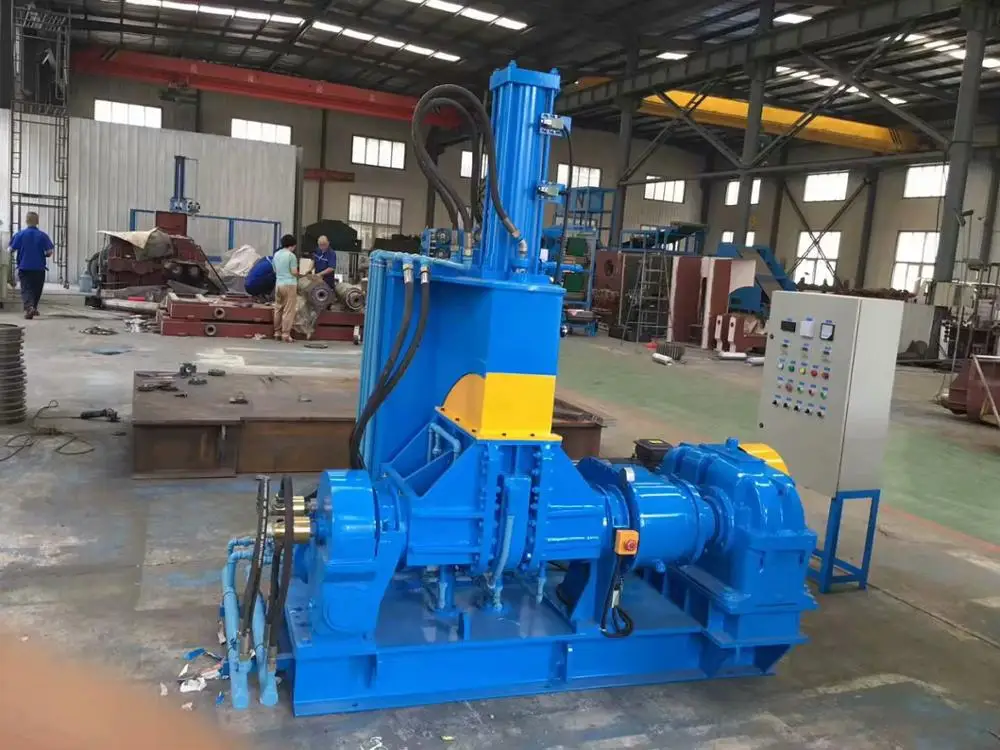

55Liter Plastic Kneader Machine with Electric Heating rubber kneader machine

Product Overview

Description

  Banbury Intensive Kneader

Application:



This intensive mixer has a wide range of applications, including in mixing and refining Raw materials, such as raw rubber, synthetic rubber, resin, asphalt, celluiese, PVC or EVA into even mixed stock. The body and structure of this machine are strong and durable, making it suitable for heavy-duty mixing and refining operations.



Features:







Dust stop device has been specially designed to effectively prevent leakage of raw materials and other ingredients. Long product life, simple operation, Good results, easy maintenance, convenient replacing of worn-out parts, ideal Mixing equipment for heavy duty usage.



Two types of discharge door included: The Drop door type and the slide door type. This model is the drop door type.





 parameters



Parameters	VERSION
	X(S)N-35/30	X(S)N-55/30	X(S)N-75/30	X(S)N-110
Net chamber volume(L)	75	125	175	250
Working volume	35	55	75	110
Front/back rotor friction ratio	1.22	1:1.22	1:1.22	1.22
Power (kw)	55	75	110	160
Main motor rotation speed	985	985	985	985
Turn angle	140	140	140	140
Size	3200*1900*2950	3750*1950*3050	3760*2143*30500	3930*3000*3660
Weight(kg)	6500	7800	10000	16000
