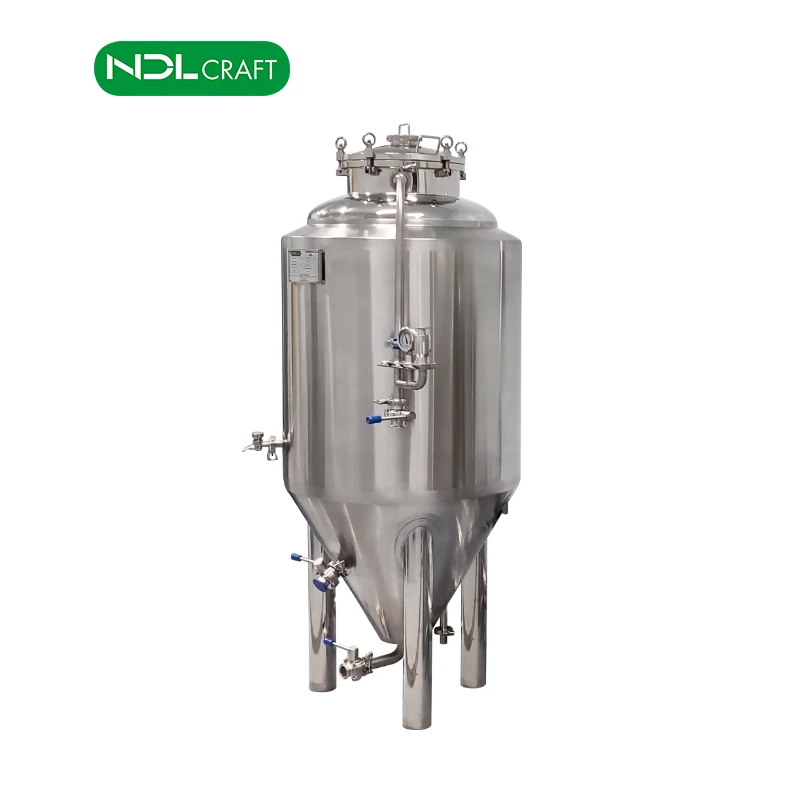

200L beer fermentation tank 200L beer brewing supplies 200L micro brewery system 200L mini brewery
Company Information

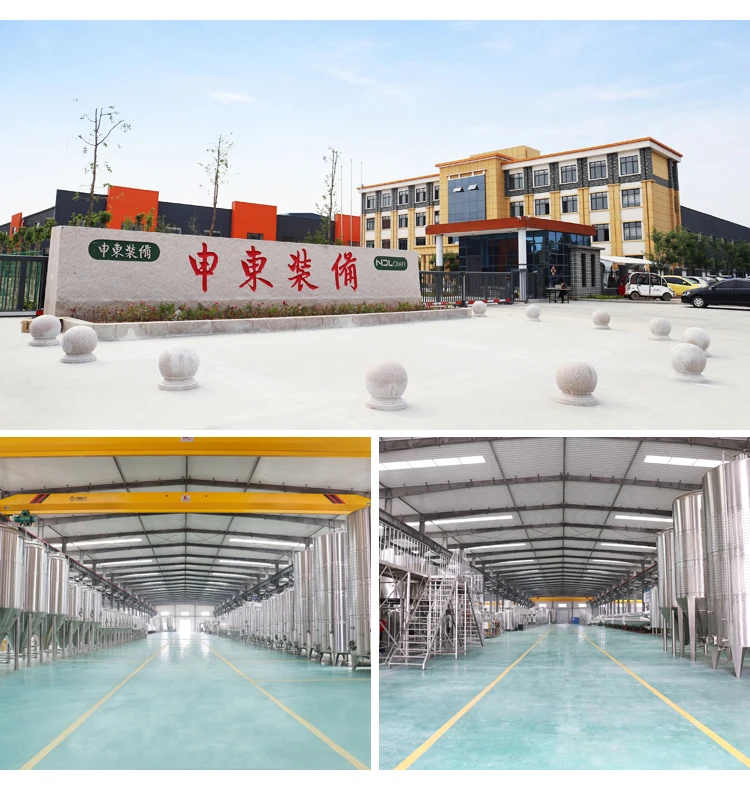

NDL Craft was established in 2011. Company has won the "China excellent science and technology innovation enterprise" "quality qualified product of national definitive testing" and "quality credit AAA enterprise”, etc...The company passed the ISO9001:2000 international quality management system certification, CE certification, DI, DII pressure vessels certification, 15 patents.We have a first-class scientific research and development personnel, first-class production technology, professional production and technical personnel, advanced processing equipment, established a perfect after-sales service and security system, with good ability of equipment supply and services.Company provides turnkey project, perfect after-sales service system, warmly welcome guests from all over the world.

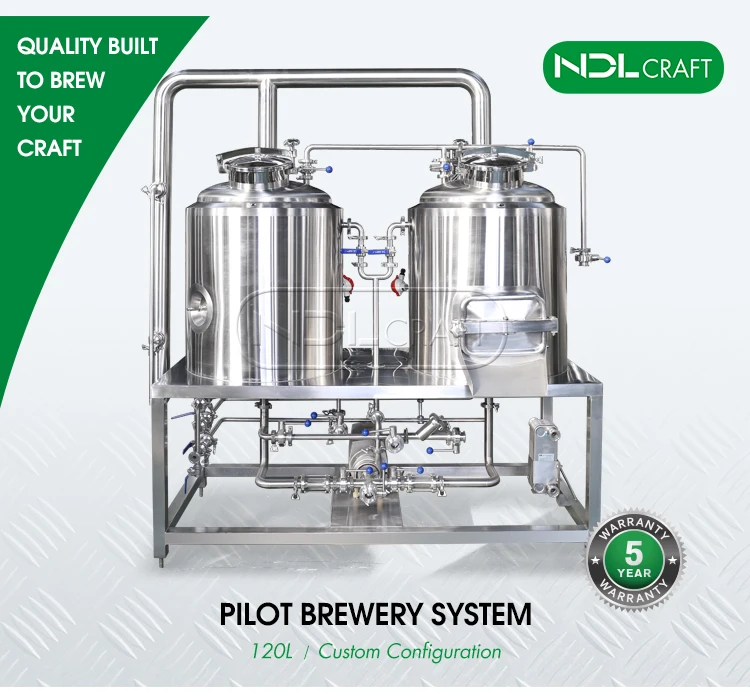

Home Brewing System
System Advantages
1. Easy to operate: include all the kits to start to brew, offer instruction manual. 2. Easy to clean:Equip with CIP system and spray cleaning ball. 3. Compact: floor space only 2-3 sq.m. 4. Movable: Equip with wheels 5. Lw price:super quality with competitive price, adopt the SUS304 as material, CE certificate and ISO certificate. 6. Beer:Can brew all kinds of beer, such as barley beer, wheat beer, bight beer, black beer, ect. 7. Warranty:Main machine 3 years' warranty, auxiliary equipment one year's warranty, all life service. 8. Technology:Fermentation-Double jacket conical fermenter simultaneous brewing, perfect welding.
Configuration List
-Malt mill: 80KG/H.
-Brewhouse: one vessel: Mash tun/Lauter tun/boiling tank.
-Fermentation tank: 2x50L, 60° cone, working pressure: 0.15Mpa.
-Ice water tank: 60L.
-Chiller
-Control panel: PID.
Micro Brewing System

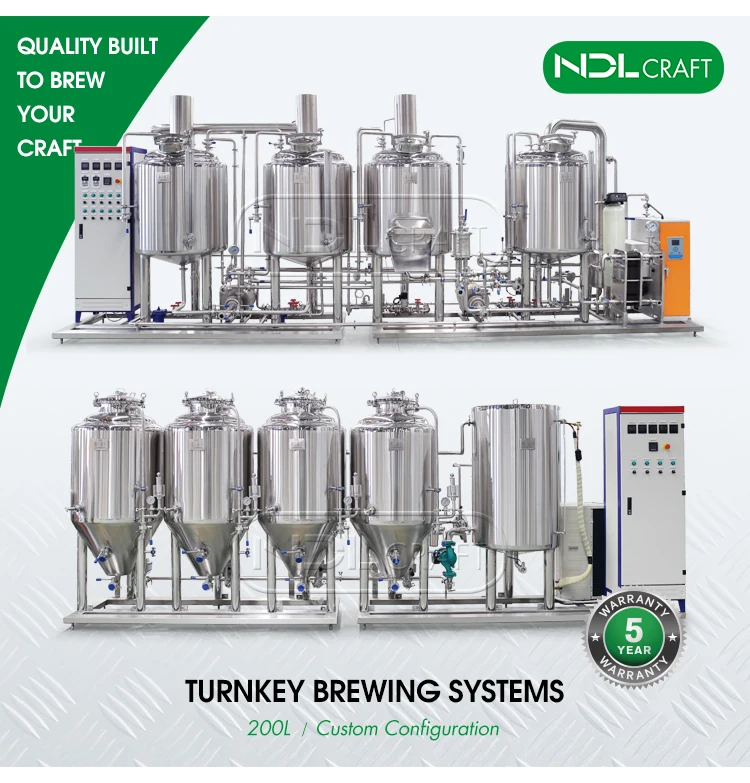

200L Brewhouse Can Be Combined in Different Way:

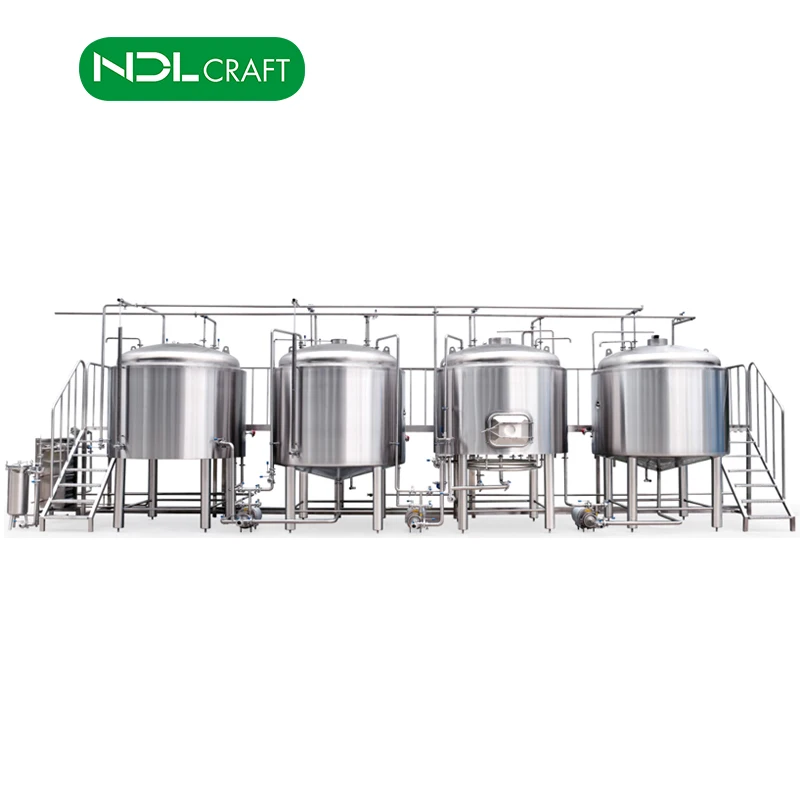

A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks is dedicated to performing a single process, and is designed differently than similar vessel used for performing multiple processes.
Four-vessel systems offer the highest throughput and the most versatility. With proper vessel sizing, well laid out hard piping, and well-designed controls these brewhouses can be extremely large and only require one person to operate it. The ability to make more beer with less labor input, paired with gains in efficiency and quality control make the four-vessel brewhouse a worth while investment for breweries that intend to produce a lot of beer.
The alternative to a four-vessel production based brewhouse with dedicated process tanks, is two and three vessel systems with tanks that preform multiple processes. These combination tanks can be a more affordable way to start a brewery, they take up less floor space, and depending on your production goals, they might be able to last your business a very long time.

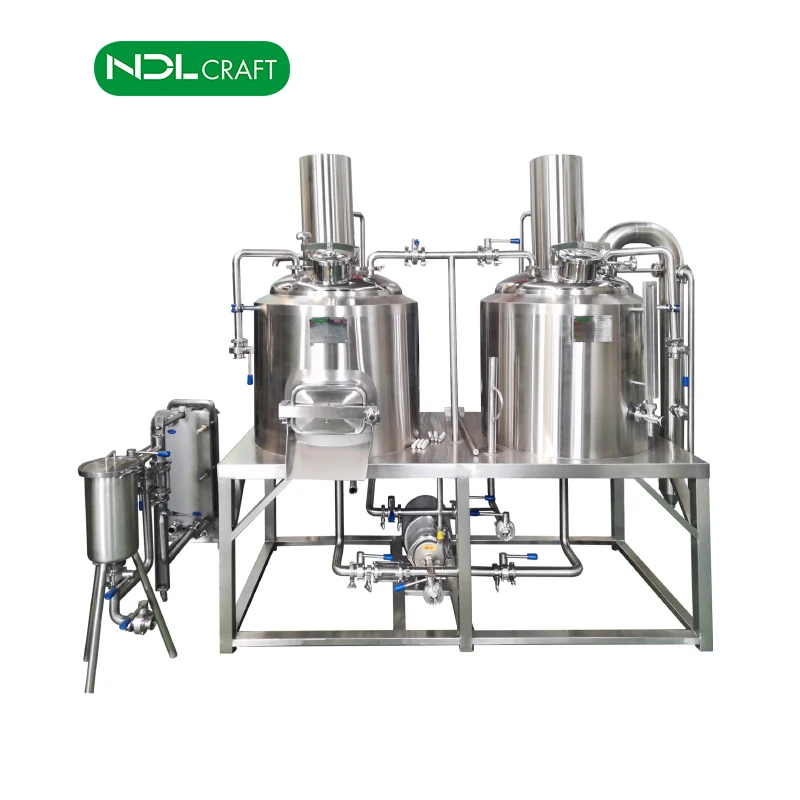

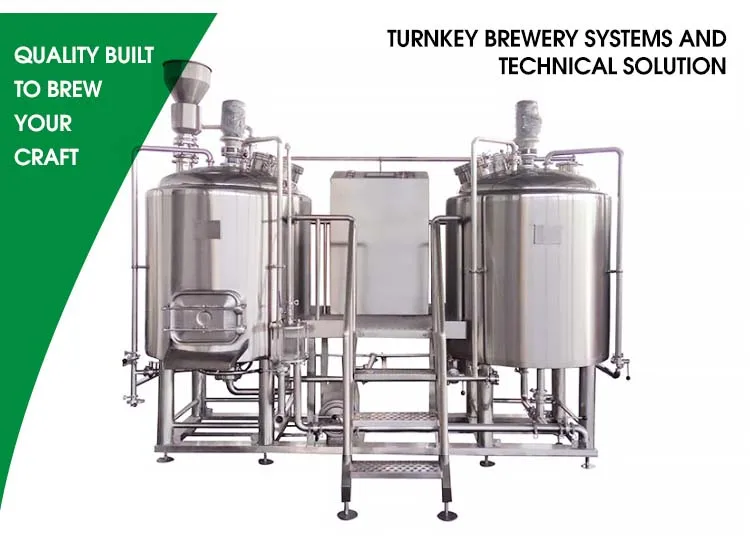

A typical two-vessel
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out. Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.

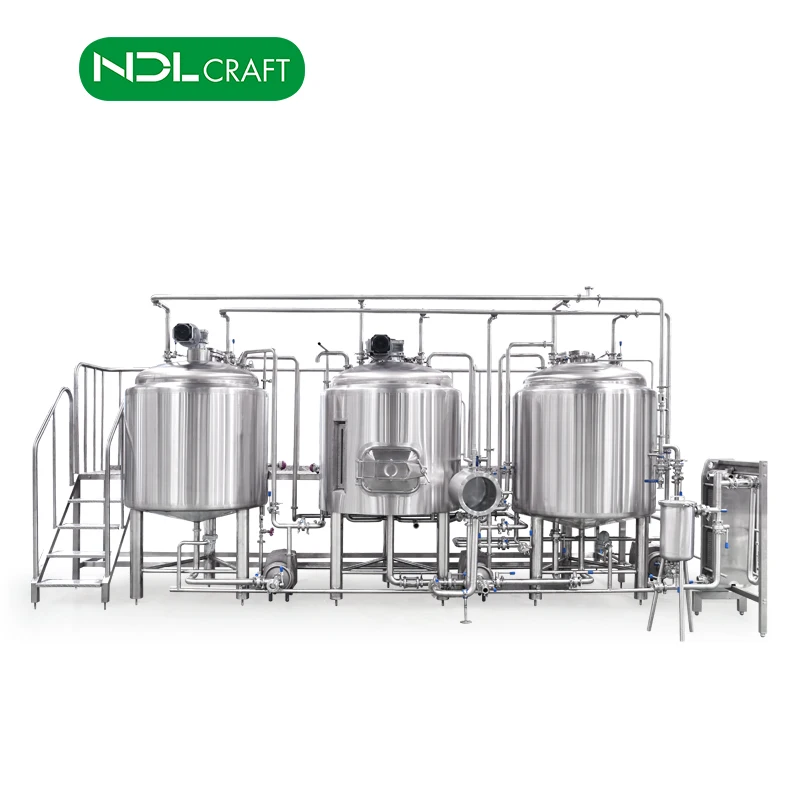

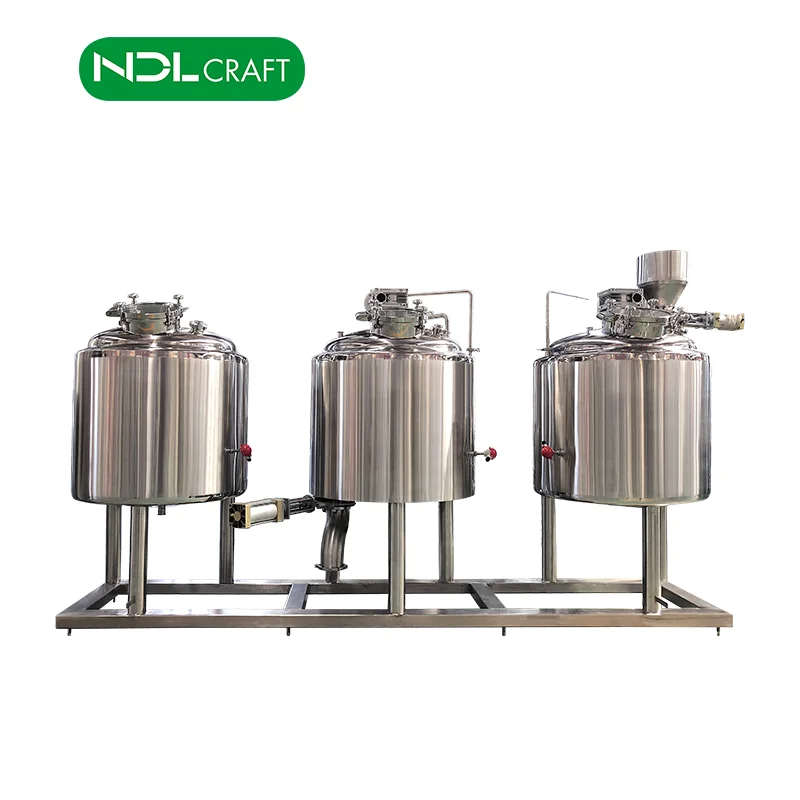

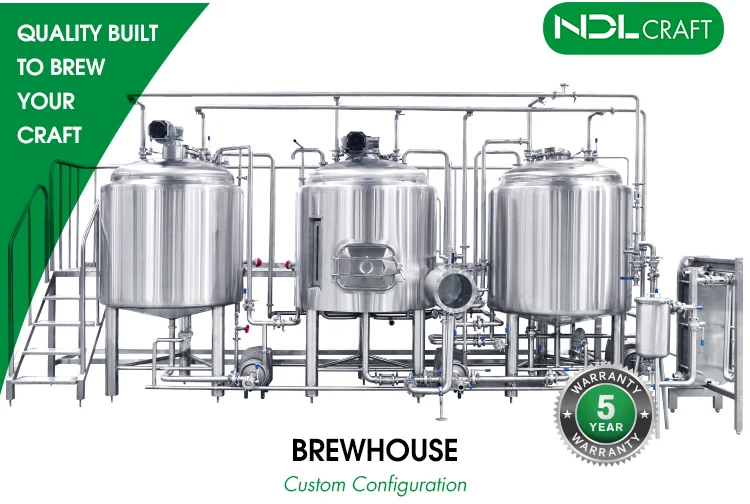

A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example, a medium sized brewery with a focus on heavily hopped beers might choose to go with a combination Mash Lauter Tun, a dedicated Kettle, and a dedicated Whirlpool. Whereas, someone focusing on lagers might go with a dedicated Mash Tun, dedicated Lauter Tun, and a combination Kettle/Whirlpool. Three-vessel systems don’t have the same output and versatility as four-vessel systems, but they will still out perform a two-vessel system and provide increased efficiency.
-Layout: Send us your building floor plan, or the sketch, or tell me the size(length, width, height), we will offer an equipment footprint according to your idea.
=Design Drawings: We will offer design drawings of each tank based on the equipment layout.
-3D effective sketch: We can make 3D effective sketch to help you have a more intuitive experience.
2. After-sales -We can provide weekly production report to le you know the production progress and production details.
-We will do equipment test and test report available for you.
-Providing equipment installation, debugging, and personnel training service.
-Main machine guarantee for three years; auxiliary machine and electronic components will have one year warranty; lifetime maintenance and technical service.
Trade Shows
Certifications
We have established an ERP management system and have passed quality audits for internationally recognized certifications.
ISO 9001: Certification for the Quality Management System
ISO 14001: Certification for the Environmental Management System
ISO 18001: Certification for the Occupational Healthland Safety Management System
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
