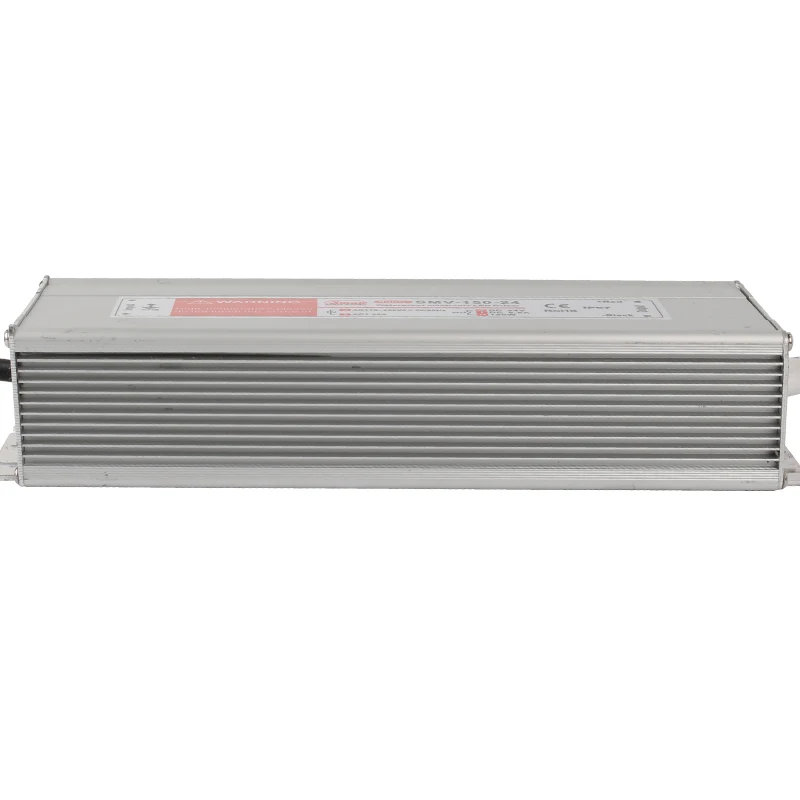

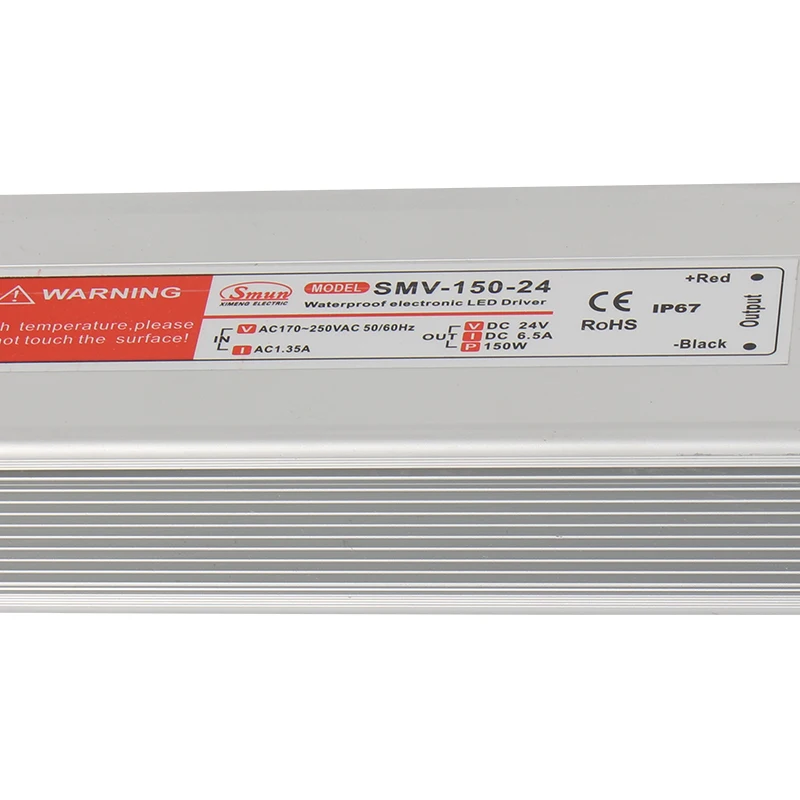

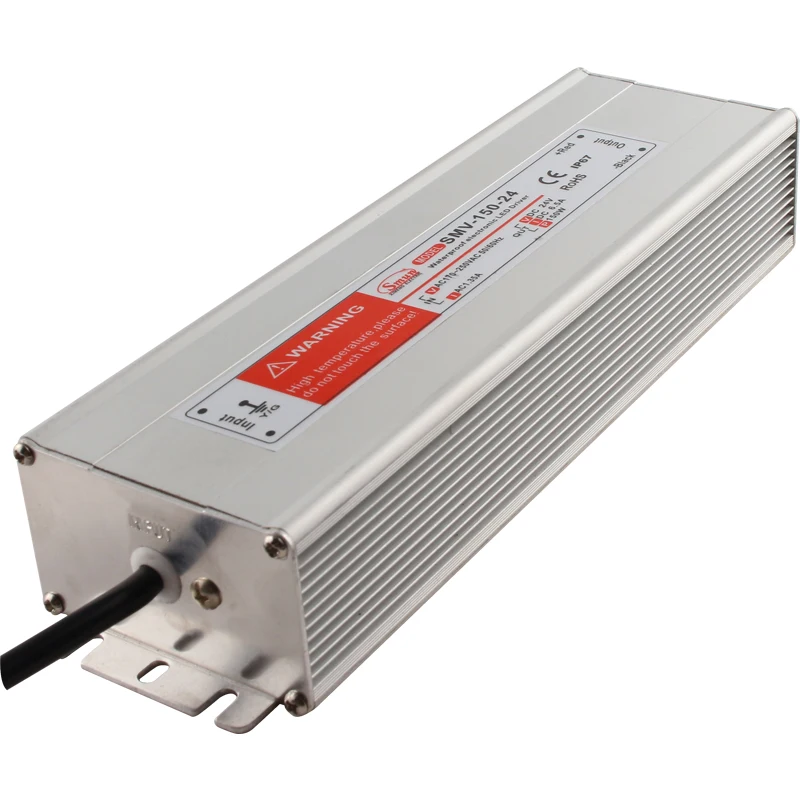

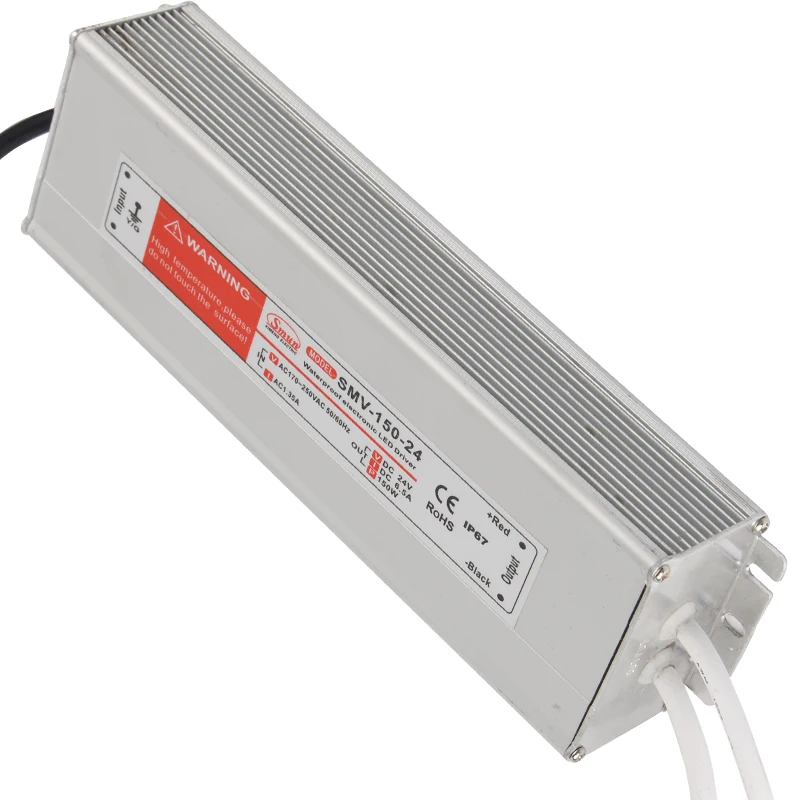

SMUN SMV 150 24 150W 24VDC 6.25A Single Output Waterproof LED Driver Outdoor SMPS
- Category: >>>
- Supplier: Zhejiang Ximeng Electronic Technology Co. Ltd.
Share on (611072305):
Product Overview
Description
150W 24V 6.25A Single Output IP67 LED Power Supply
Features
· 1. Constant voltage power supply
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage/over temp
· 4. 170~264VAC input range
· 5. Cooling by free air convection
· 6. Fully encapsulated with IP67 level
· 7. 100% full load burn-in test
· 8. 2 years warranty
Product Description
| Model | SMV-150-12 | SMV-150-15 | SMV-150-24 | SMV-150-48 | |
| Output | DC output Voltage | 12V | 15V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Rated Current | 12.5A | 10A | 6.25A | 3.1A | |
| Related Power | 150w | 150w | 150w | 150w | |
| Wave&Noise | 50mVp-p | 50mVp-p | 50mVp-p | 100mVp-p | |
| Set up,rise,hold up time | 200ms 100ms 30ms | ||||
| Input | Voltage Range | 170-264VAC 47-63HZ | |||
| Input Current | 1.2A/230VAC | ||||
| Efficiency | 80% | 82% | 84% | 86% | |
| AC inrush current | Cold start current 36A /230VAC | ||||
| Leakage current | <1mA/240VAC | ||||
| Protection | Overload | Related output power 105-135% start overload protection | |||
| Protection type: hiccup mode, recovery after restart power | |||||
| Over voltage | Reted output power 135-150% start over voltage protection | ||||
| Protection type: hiccup mode, recovery after restart power | |||||
| Over temperature | When temp of transistor inner is over 150, start over temp protection | ||||
| pretect mode:cutoff output,auto-recover after temperature become normal | |||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | |||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||
| Withstand vibration | 10-500Hz,2G 10min/Ccle, period for 60min, each axes | ||||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA | |||
| Isolation resistance | I/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC | ||||
| Standard | Safety standard | Fit UL1012 IP67 | |||
| EMC standard | Fit EN55022 CLASSA | ||||

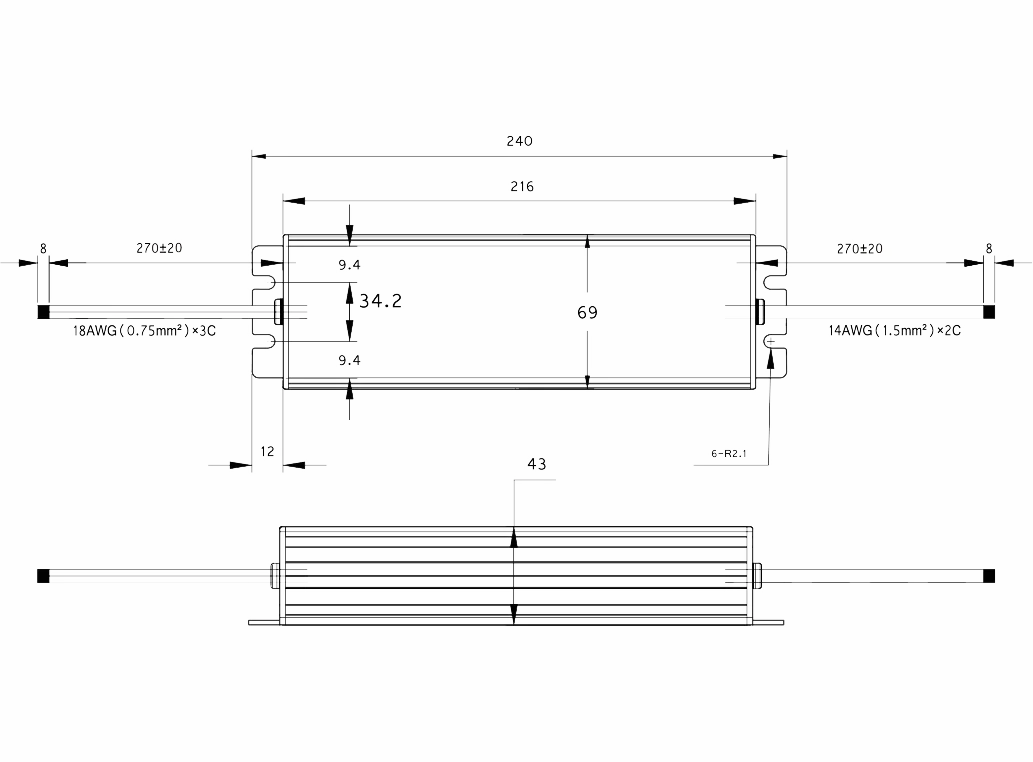

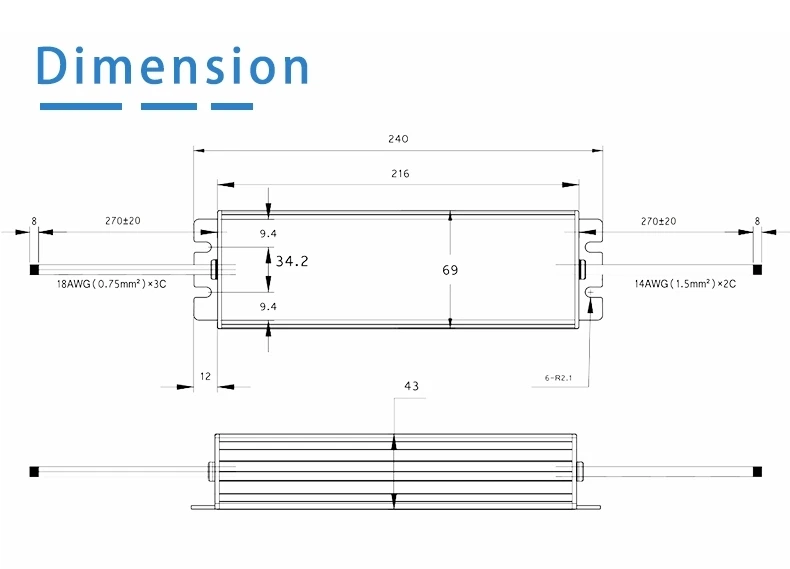

| Size | size | L222*W68*H43mm | |||
| Package | 1.2kg, 20 pcs/24kg | ||||
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 C of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation. | |||||
