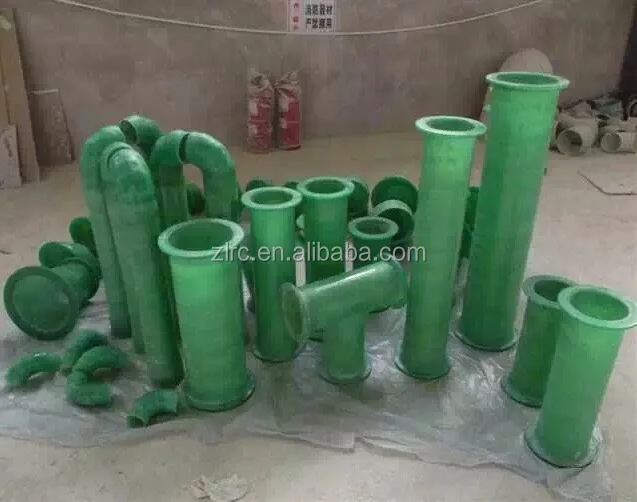

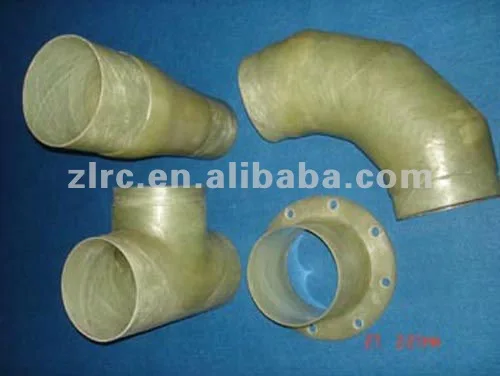

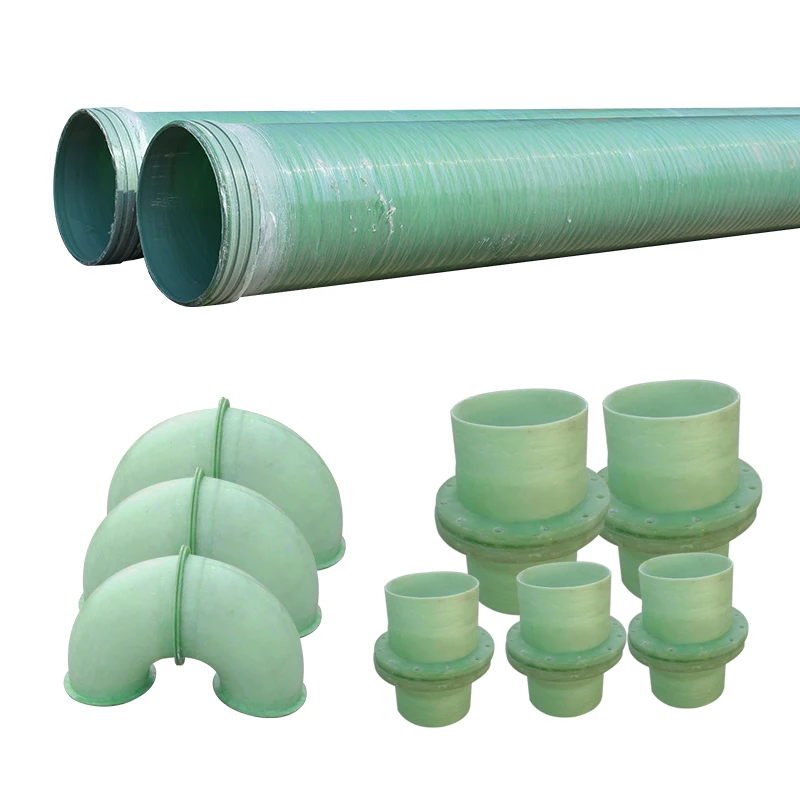

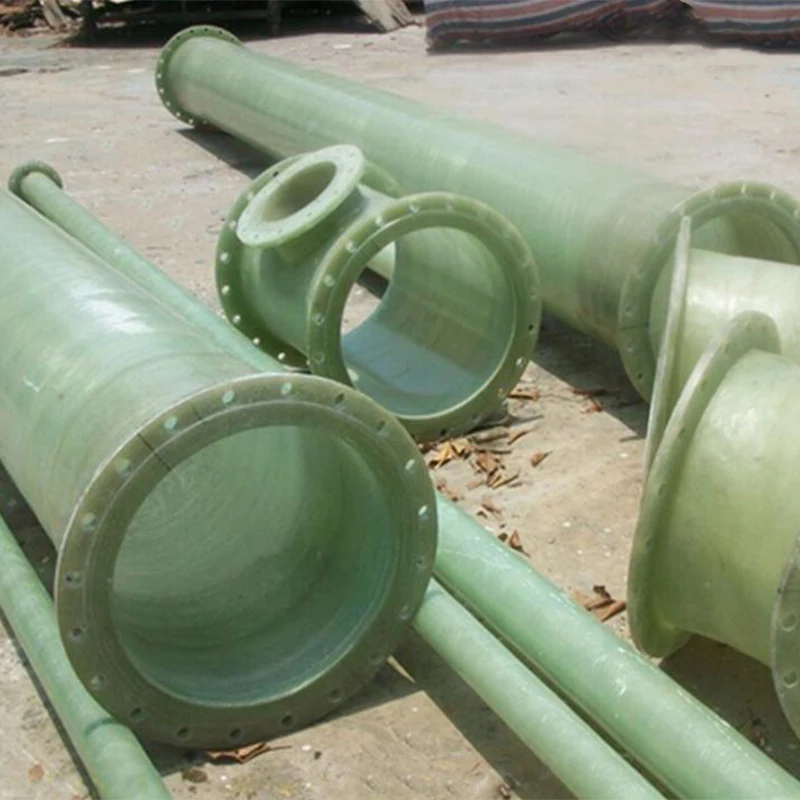

FRP pipe and fittings frp elbow

Product Overview

Description

FRP GRP pipe:

Characteristic:

— Light weight, high strength, and convenient transportation and installation.
— Excellent corrosion resistant, it can be used under the condition of seawater environment for long time.
— Good low temperature resistant, it can be used under the condition of -45°C-120°C for long time.
— Smooth inner surface, its roughness coefficient is 0.0084, good conveying, and no fouling, no secondary pollution, decrease the cost of the running & maintenance.
— Fire retardant, it meets IMOA.753(18) Level-3 fire resistance class.

Specification:

—Diameter:DN25~DN4000
—Pressure:0.25Mpa~2.5Mpa
—Temperature:-45°C~120°C
—Length of single pipe: DN<250 ,L=6m ;DN≥12m ;the length can also be made according to the requirement of the user.

Connection way:
Connection way can adopt screw connection, spigot and socket connection, flange connection, plain end butt connection, sleeve connection, etc connection way.

Application:
FRP pipe can be used for every kind of pipeline system of ocean engineering and ship, such as: fire protection water supply system, brine water supply pipeline, cooling water, potable water pipeline, process pipeline, ballast piping, lio loading & unloading pipeline, ship’s bottom sewage pipeline, sprinkler system, freshwater pipeline, sanitation water supply pipeline, board water drainage pipeline, depth-measuring pipe, vent pipeline, water drainage pipe and cable protection pipe etc.
