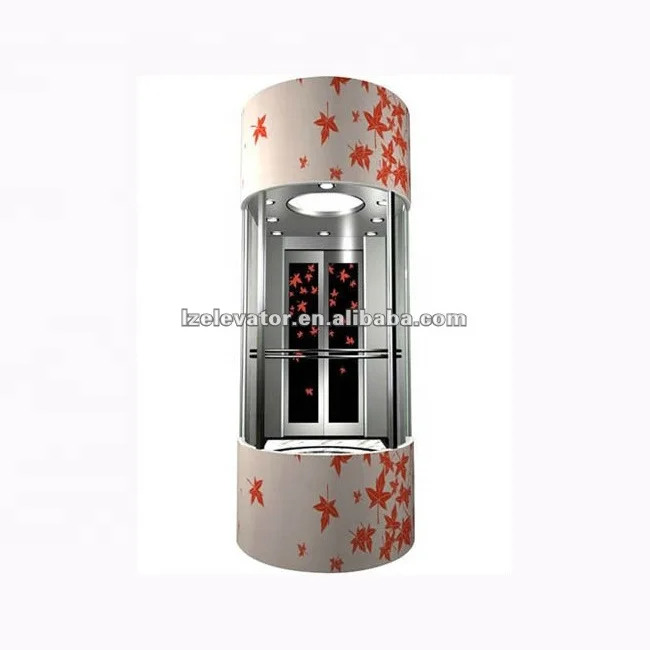

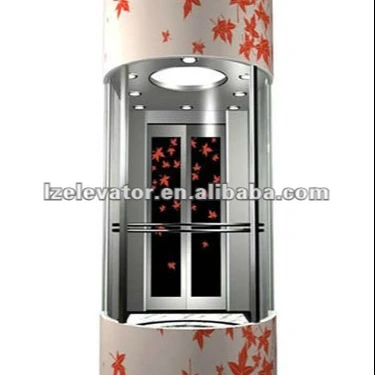

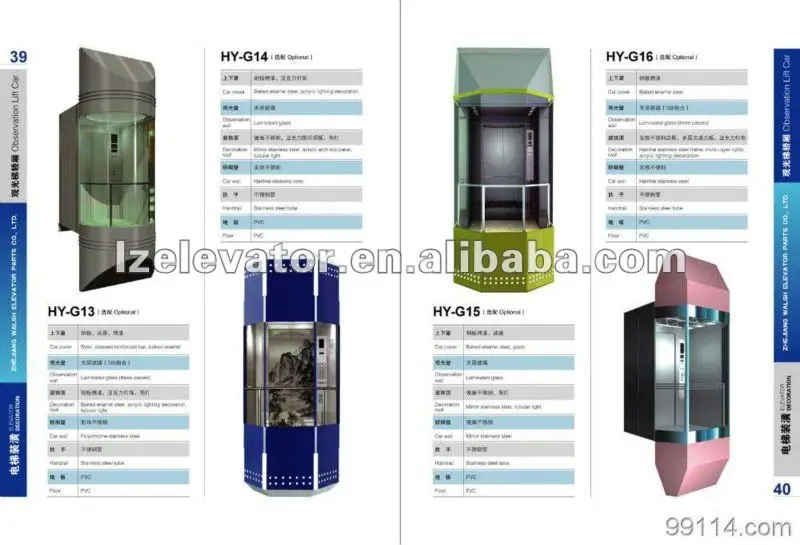

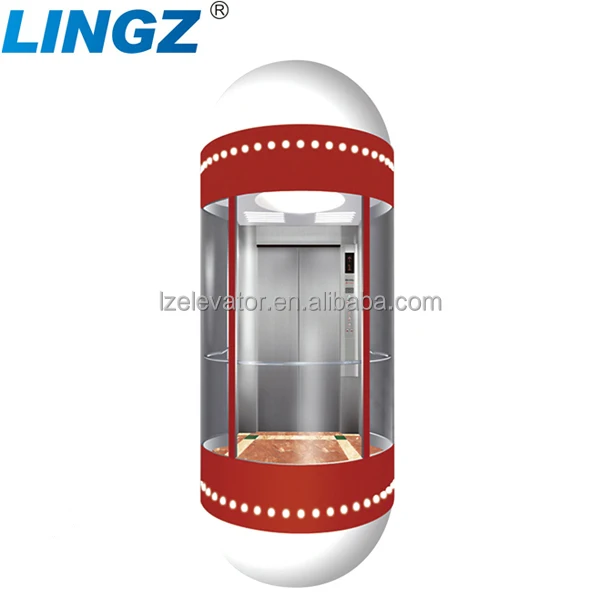

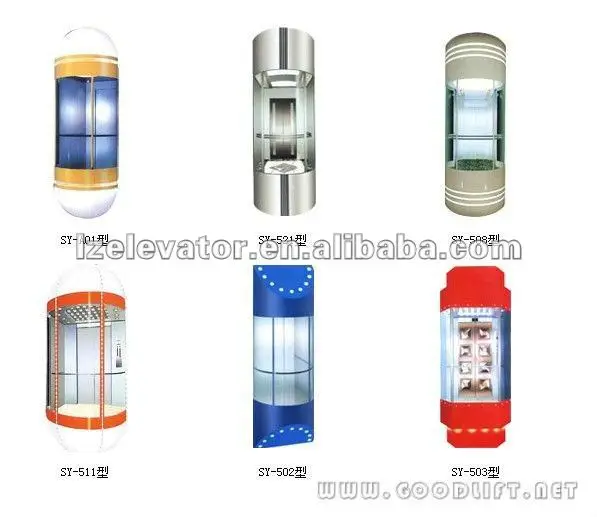

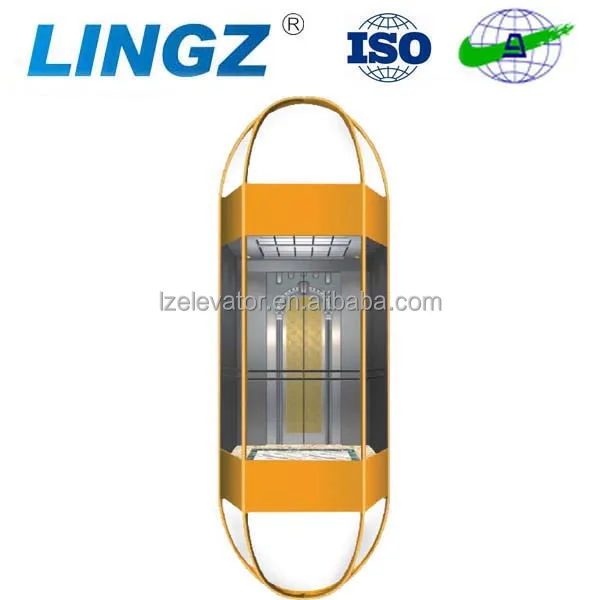

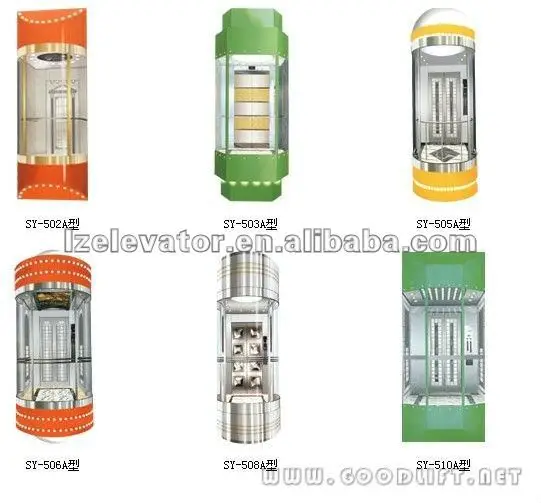

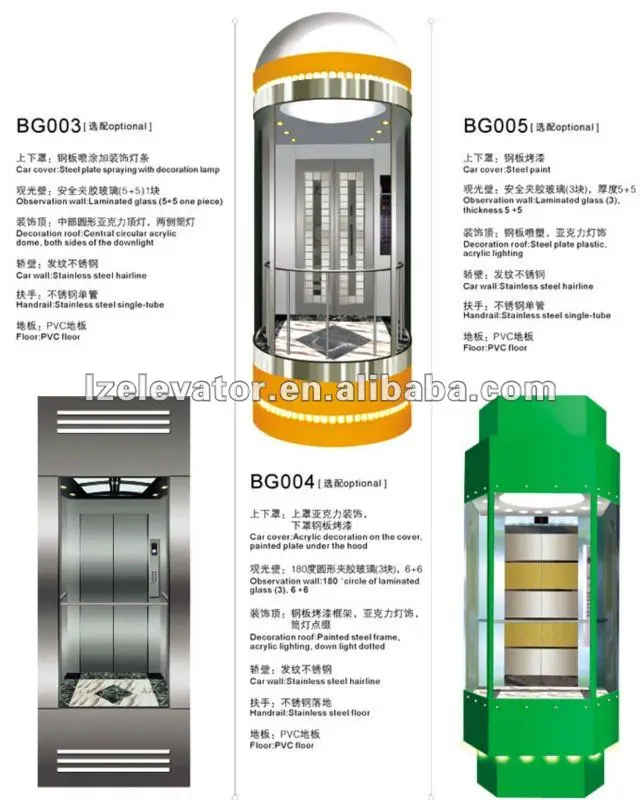

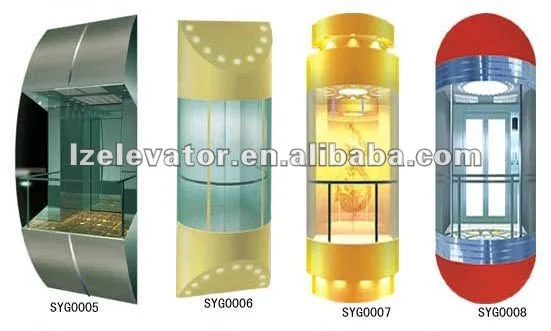

Glass elevator without machine room

Product Overview

Description

Observation elevator specifications

1.Observation elevator specifications

Rated speed (m/s)	Rated load		Car specification	Net hoistway size				Machine room net size			Net opening size
	Load (kg)	passenger	Net car size	single	parallel	depth	depth	single	Parallel	Depth	width	Height
			Width*depth	width	width			width	width		700	2100
1.0	630	8	1100*1600	2100	4450	2055	1155	2100	4450	3700	800	2100
1.5	800	10	1300*1700	2300	4850	2155	1155	2300	4850	3900	900	2100
1.75	1000	13	1400*1800	2300	4850	2255	1150	2300	4850	4000	900	2100
2.0 2.5	1000	13	1400*1800	2300	4850	2255	1150	2300	4850	4000	900	2100
3.0	1000	13	1400*1800	2300	4850	2255	1150	2300	4850	4000	900	2100

2.Car size inside reference

Car   Net   Size   Inside	Capacity   load(kg)	Width(mm)	Depth(mm)	Car   net area inside m2	This Is For Four Reference Only
	1600	1700	2100	≤3.56
	1250	1600	2000	≤2.90
	1000	1400	1800	≤2.40
	800	1200	1700	≤2.00
	630	1100	1600	≤1.66

3.Observation elevator type choose

Rate   speed(m/s)	capacity   load(kg)	With   machine room	No   machine room
1.0	630	yes	yes
1.0	800	yes	yes
1.0	1000	yes	yes
1.0	1250	yes	yes
1.0	1600	yes	yes
1.5	630	yes	no
1.5	800	yes	yes
1.5	1000	yes	yes
1.5	1250	yes	no
1.75	800	yes	yes
1.75	1000	yes	yes
1.75	1250	yes	no
1.75	1600	yes	no



About us

1. LINGZ serial observation elevator is a passenger and observation as one the further needs of the people designed. Offcer may take the stairs down to watch the process of building out the scenery,enjoy the comforts brought by modern equipment.


2. LINGZ serial observation elevator has the britht and spacious observation sight and exquisite model.It brings about the marvelous and extraordinary charm to the constructions, extends the visual space of the lifts and prolongs the originally narrow lift space.


3. LINGZ serial observation elevator adopts the novel,fully computerized and modularized variable frequence speed control(VVVF)technology.It merges with the date network system and modularized structure.It utilizes the most efficient self-inspection program to produce the smooth lift running,accurate leveing with fine effectiveness and flexibility.It adds a smart scenery for the modern metropolis.In hotels,shopping malls,office buildings,hotels and other large construction sites more and more widely adopted.

The advantageous performances of observation elevator

1.Energy saving

It uses 32-bit PLC or computer control systems and AC variable frequency transformer technology,not only performance,fully functional and reliable but also with the same speed compare to standard AC voltage regulation,saving about 30% of electricity,elevator operation is very smooth and comfortable.

2.Noble and elegant

Process useing the latest technology,the best decoration material,combined with elegant color with innovative designs to creat the era of instant beauty.

3.Cozy and smooth

Designed by computer the ideal speed curve,according to the human body to adapt to the requirements to the desired state.AC motor vector control through precise adjustment to the lift runs very smooth and comfortable.

4.Safe and reliable

The advanced PLC or 32-digit micro-computer control technology cosiders the trouble possibilities of the elevators under any conditions to the greatest extent.It sets various anti-fault devices and emergency facilities,the most advanced variable frequency lift door machine systems as well.

Functions list of observation elevator

• with/without drive operation


• Automatic return to the base landing


• Automatic landing


• Call cancel when begin reverse-running


• Cage door opening when elevator arrives the floor where there is a hall call


• Door opening / closing call indication


• Indication in the cage when hall calling


• Self-Learning of shaft data


• Full load non-stop operation


• Overload alarm, Car Operating panel display: “OL”


• Alarming device


• In-car and m/r inter talk device


• Light and fan auto-control


• Elevator Locking Device


• Door closing time auto delaying


• False-call canceling


• Emergency Light


• Driven over current protection


• Door opening / closing time-limited protection


• Rope sliding protection


• Door Nudging


• Trouble self-diagnosis and memory


• Over speed falling protection


• Top/Bottom landing overpass protection


• Inspection Operation


• Floor display


• Light curtain protection with mechanical safety edge


• Fireman’s return switch
