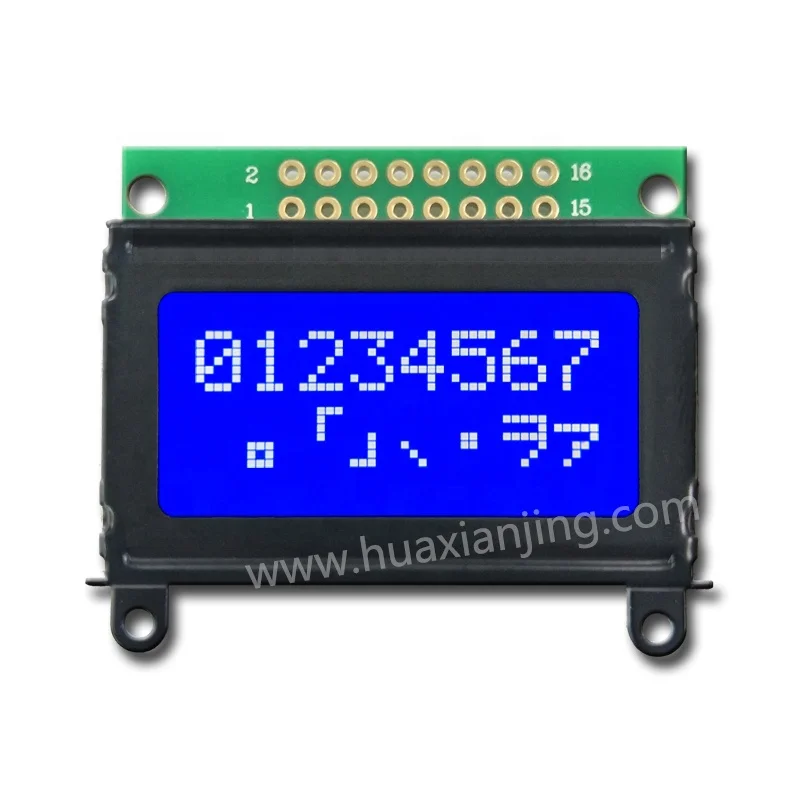

small display module 8x2 LCD module with AIP31066 16 Pin
- Category: >>>
- Supplier: Hua Xian Jing Display Limited
Share on (614664501):
Product Overview
Description
Product Description
Module No.: | HSM0802C-1 |
Display Type: | 8 Characters x 2 Lines |
Encapsulation: | COB |
Outline Size: | 40 x 35.65 x12.5 mm |
Viewing Area: | 30 x 14 mm |
Screen Color: | Yellow-Green/Blue/Gray |
Backlight Color: | Yellow-Green/Green/White/Blue/Orange/Red |
Backlight:: | Side LED |
Driver IC: | AIP31066 |
Connector: | Conductive Silicon Rubber |
Pin Number: | 16 |
Interface: | 8-bit MPU interface |
Driver Condition: | 1/16 Duty,1/5 Bias |
Viewing Direction: | 6 O’Clock |
Operating Voltage: | 5V/3.3V |
Operating Temperature: | -20～+70℃ |
Storage Temperature: | -30～+80℃ |

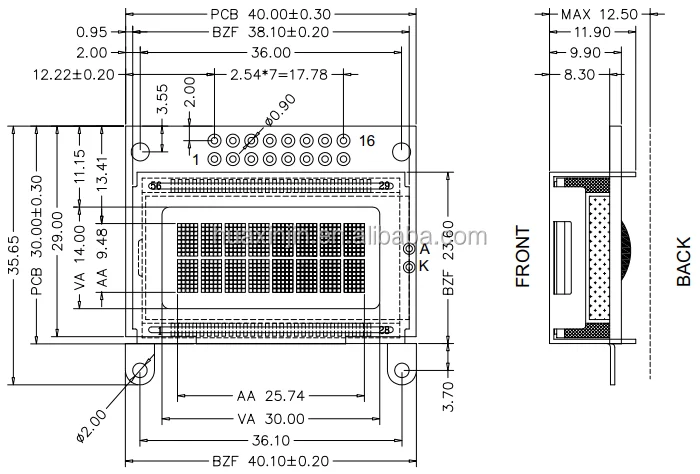

Mechanical Diagram

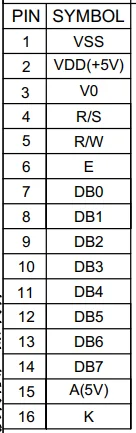

Interface Pin Description:

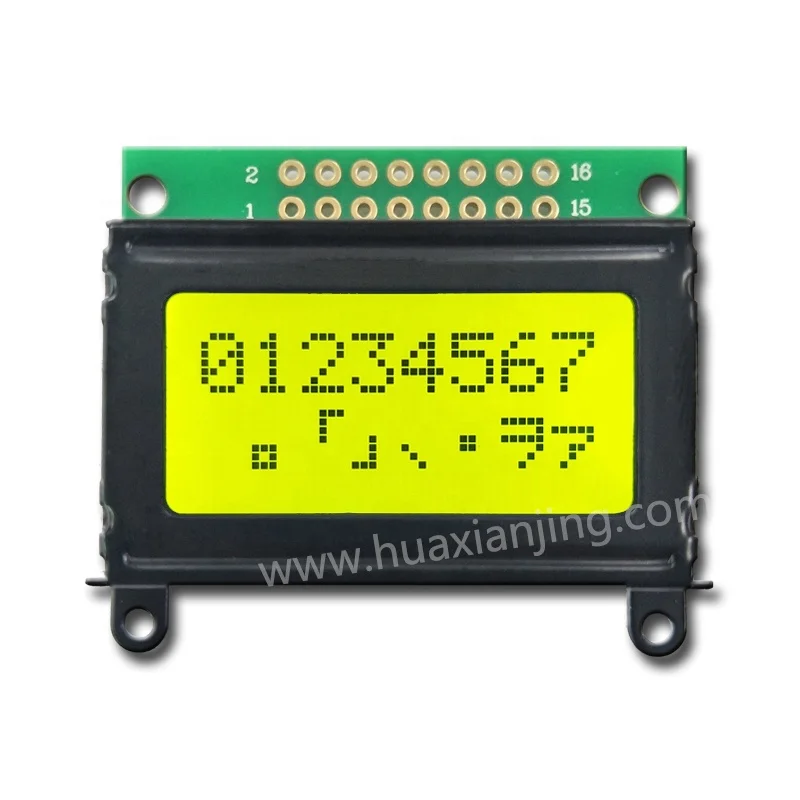

Details Images
Company Introduction
HUA XIAN JING Display Limited was established in 2008.We are specialized in R&D,production and sales of LCD panel,LCD module,COG LCD,TFT LCD, resistive & capacitive touch panel products,OLED and backlight.
In line with quality management standardization,the company sets up quality management system in accordance with ISO international quality management system.
Huaxianjing has 10,000 square meters of workshop.Its total investment is up to USD 5 million.We have 800 employees,15 R&D staff and 40 QC personnel.
In line with quality management standardization,the company sets up quality management system in accordance with ISO international quality management system.
Our Advantages
1.High Quality. | ISO,RoHS and CE compliant.Every products are strictly checked by our quality control department before shipment. |
2. Reasonable price. | A favorable factory price offer will be quoted on the basic of parameters which you provide to us,hope it could show you our sincerity and bring a good long-term business relationship with you in near future. |
3.Best Service. | We provide best pre-sale and after-sales service to you |
4.Custom Design | can specially meet your needs. |
5.Fast Delivery, | about 30 days for lead time. |
6.Sample | Samples available on request. |
7.MOQ | Small MOQ orders can be negotiated. |
Warranty:
We will do our best to exceed our customers expectations through our total commitment to quality.We carefully test the goods before shipment,make sure that all products are working well and then sent out.Our goal is to be your long term partner from initial demand through final after sales.Whatever your needs are,whenever you needs are,we are there.
Remarks:
Our company specialize in manufacturing all kinds of LCD display panels and modules,such as TN,HTN,STN,FSTN,DFSTN LCD display,COB,COG,TFT and OLED.Warmly welcome customization enquiry.
We will do our best to exceed our customers expectations through our total commitment to quality.We carefully test the goods before shipment,make sure that all products are working well and then sent out.Our goal is to be your long term partner from initial demand through final after sales.Whatever your needs are,whenever you needs are,we are there.
Remarks:
Our company specialize in manufacturing all kinds of LCD display panels and modules,such as TN,HTN,STN,FSTN,DFSTN LCD display,COB,COG,TFT and OLED.Warmly welcome customization enquiry.
Packing&Shipping
Sample of packing
(1) Packed the LCM in air bubble bag/film.
(2) Put the above together into carton box.
(3) Seal the carton by tape.
(2) Put the above together into carton box.
(3) Seal the carton by tape.
Mass production packing
FAQ
Q1.How long can I get the components ?
A :Quantity less than 100 pcs will be shipped within 2 days. 5-15 working days for OEM/ODM orders. And it will take another 3-5 days to reach you by DHL, UPS, FEDEX,TNT... etc
Q2.What is the warranty of your products?
A :We provide one year Warranty.Generally,customers send the broken lcd back to us, we will assume the shipping costs,and send customers a new lcd.
Q3.What is your minimum order?
A: Different lcd have different MOQ.In general,total amount need exceed 250$ for every time.Sample also is acceptable.
Q4.What payment methods and payment terms do you have?
A :Trade assurance,HSBC,TT (Bank transfer),Western Union,Paypal,etc.
100% payment before shipment.
If OEM/ODM order,30% deposit before production and 70% balance before shipment.
Q5.Free sample?
A :1-2 pcs sameples free,more samples need customers to pay.
A :Quantity less than 100 pcs will be shipped within 2 days. 5-15 working days for OEM/ODM orders. And it will take another 3-5 days to reach you by DHL, UPS, FEDEX,TNT... etc
Q2.What is the warranty of your products?
A :We provide one year Warranty.Generally,customers send the broken lcd back to us, we will assume the shipping costs,and send customers a new lcd.
Q3.What is your minimum order?
A: Different lcd have different MOQ.In general,total amount need exceed 250$ for every time.Sample also is acceptable.
Q4.What payment methods and payment terms do you have?
A :Trade assurance,HSBC,TT (Bank transfer),Western Union,Paypal,etc.
100% payment before shipment.
If OEM/ODM order,30% deposit before production and 70% balance before shipment.
Q5.Free sample?
A :1-2 pcs sameples free,more samples need customers to pay.
