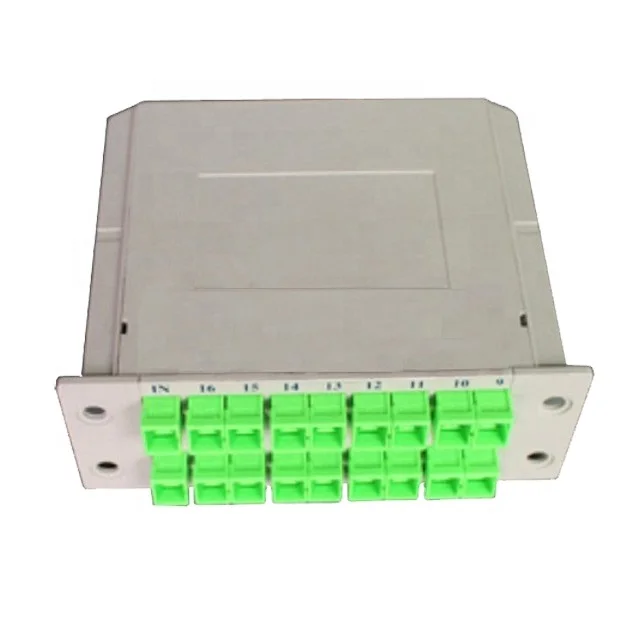

Optical Splitter in LGX Box type

Product Overview

Description

Features

1) 1X4, 1x8,1x16 configurations available

2) 2x4,2x8,2x16 configurations available

3) Telcordia GR-1209 &GR-1221 qualified

4) Low insertion low, PDL, back reflection

5) High uniformity 6) Compact package

7) Used for splitter installation, safe and easy

8) Mainly used in cross-connection cabinet, ODF unit

9) Compatible with connection modules

10) Modular structure, easy for operation, construction and maintenance

11) Convenient to carry out splitting on modules by existing ODF equipment and reduce network construction cost

12) Secure protective device for radius curvature of fibers



Main Application

PON-FTTX networks

CATV networks Outside plant equipment

DWDM and CWDM systems



Technical Specification

Input @0.9mm fiber pigtail, output optic ribbon fan-out pigtail

Mainly used in optic fiber DP, optic splice closure and other mini termination box



Operating   wavelength		1260~1650nm
Fiber type		ITU G652.D/G657.A or customer specify
Port configuration		1x2	2x2	1x4	2x4	1x8	2x8	1x16	2x16	1x32	2x32	1x64
Insertion loss(dB)	Typ.	3.7	3.8	6.8	7.4	10	10.8	13	14.2	16	17	19.5
	Max	4	4.2	7.2	7.8	10.5	11.2	13.5	14.6	16.9	17.5	21
Uniformity (dB)	Max	0.4	0.8	0.6	1.4	0.8	1.5	1.2	2	1.5	2.5	2.5
PDL(dB)	Max	0.2	0.2	0.2	0.2	0.3	0.4	0.3	0.4	0.3	0.4	0.4
W/L dependent loss (dB)	Max	0.3	0.5	0.3	0.5	0.3	0.5	0.5	0.5	0.5	0.5	0.5
Temp.dependent loss (dB)	Max	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
(-45~+85°C)
Return loss (dB)		≥50
Directivity (dB)		≥55
Operating temperature (°C)		-40 ~+85
Storage temperature (°C)		-40 ~+85
