Electric vibratory hammer DZJ150 is suitable to drive and extract piles for different geological situation except the hard rock layer. For example, pre-made concrete pile, cast-in-place concrete pile, concrete expanded bore pile, lime pile, stone column. Beside, it's widely used in cofferdam, trestle work, offshore working platform, and also wind mill single pile or group pile.
Main Features With more than 30 years' experience and improvement, the quality of Yongan electirc vibratory piling hammers is ensured with following features: 1, Shock-proof motor 2, Reducer casing 3, FAG bearing, 3 layers combination, very stable and won't crack during working 4, Simens, Schneider brands for electric components 5, Italian brand for hydraulic oil pump 6, Improved magnetic oil stain deposit system 7, Noise proof design with rubber pad on and under the spring 8, Normal frequency and variable frequency system Zero current start mode, it solves the problem of load start, lower requirement for the power generator. Frequency change model could adjust according to defferent soil layer frequency. It can save time, energy and cost.
Specification for Electric Vibro Hammer DZJ150
Motor Power
150kw
Eccentric Moment
1120Nm
Driving Force
0-1140kn
Speed
0-960r/m
Amplitude
0-13.5mm
Max Line Pull
450kn
Size
2200*1500*3300MM
Weight
8700kg
Delivery time
20 days
Generator Power
350kw
Crane capacity
80T

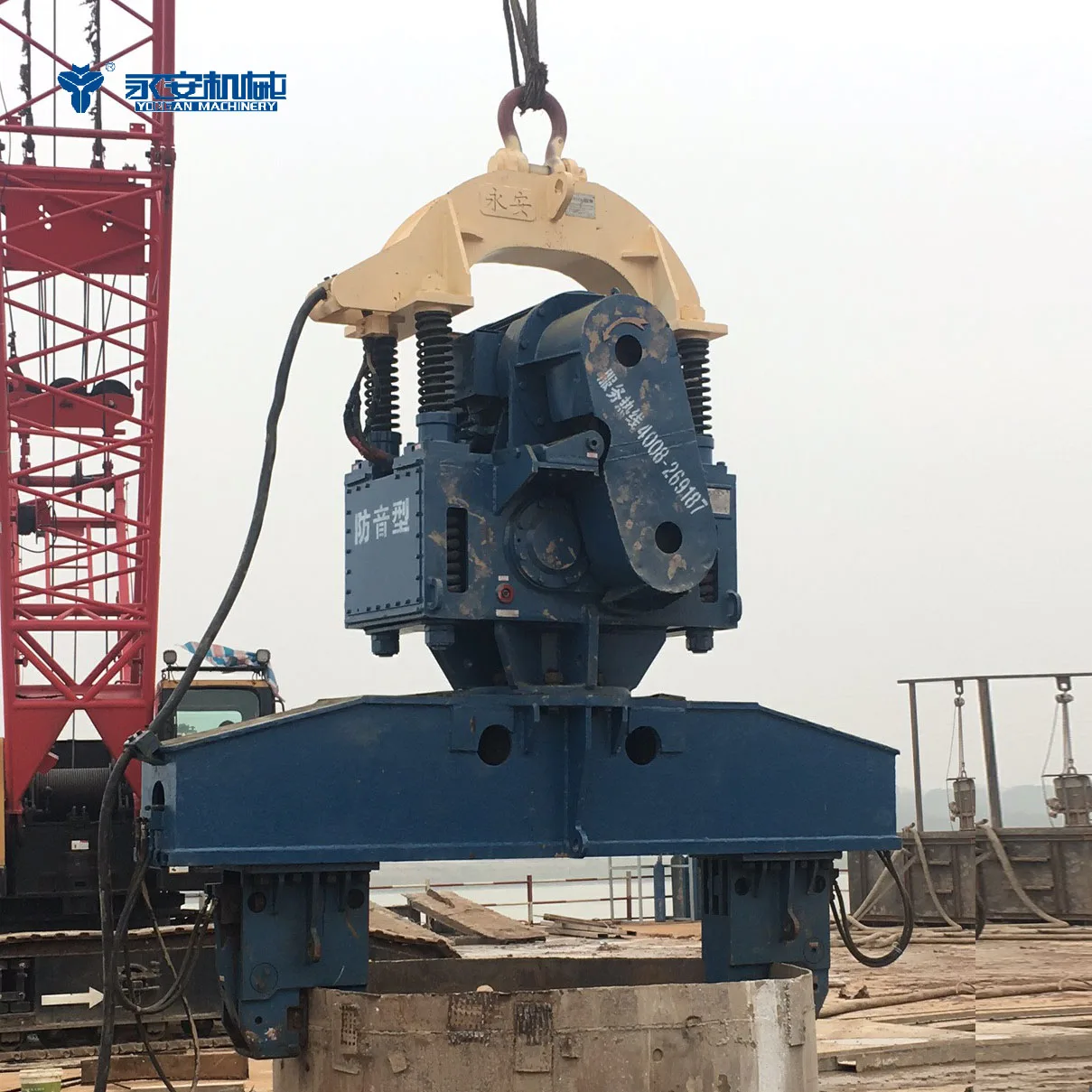

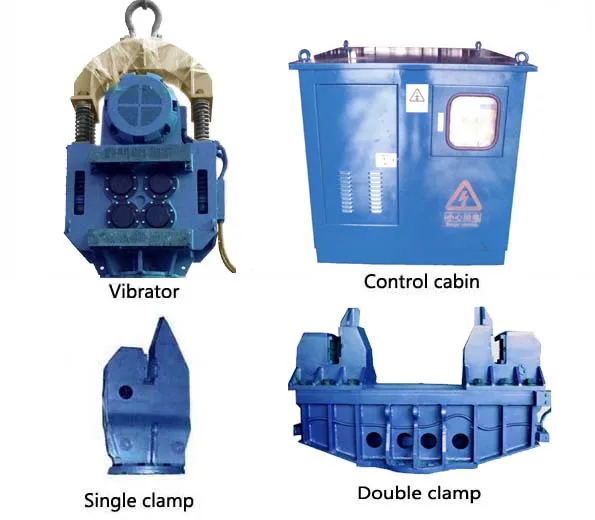

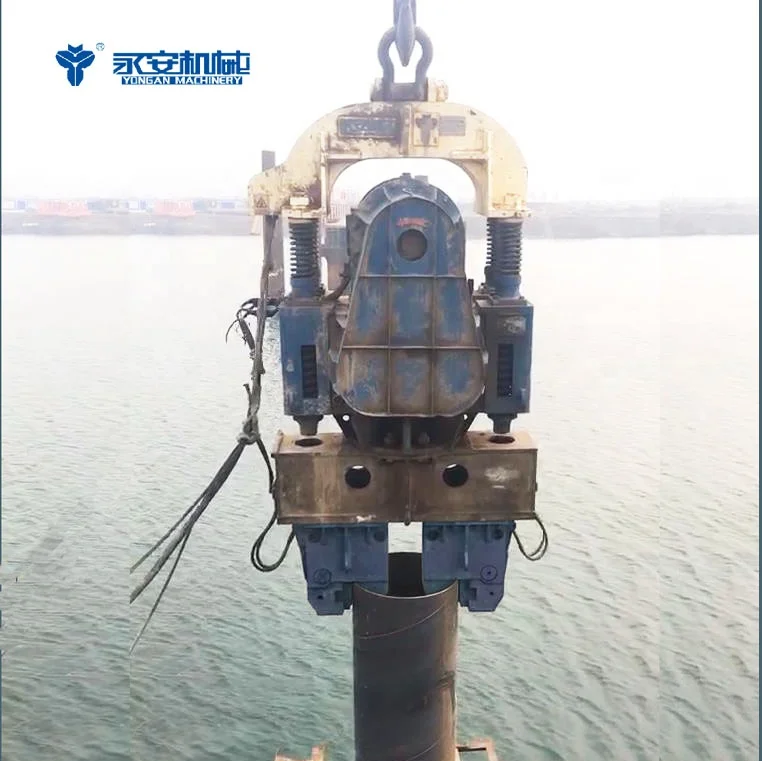

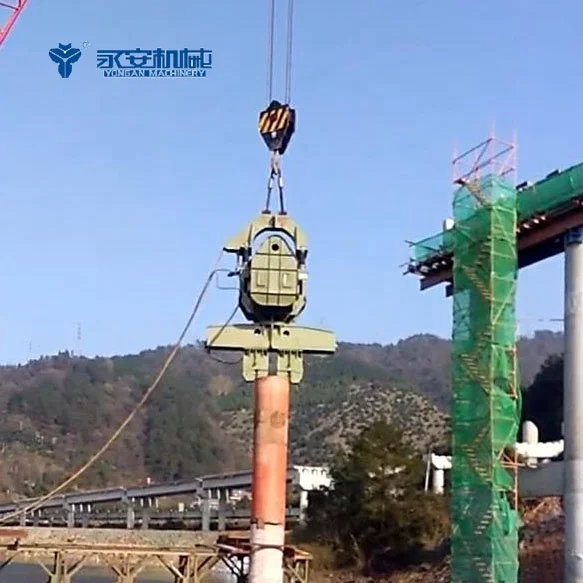

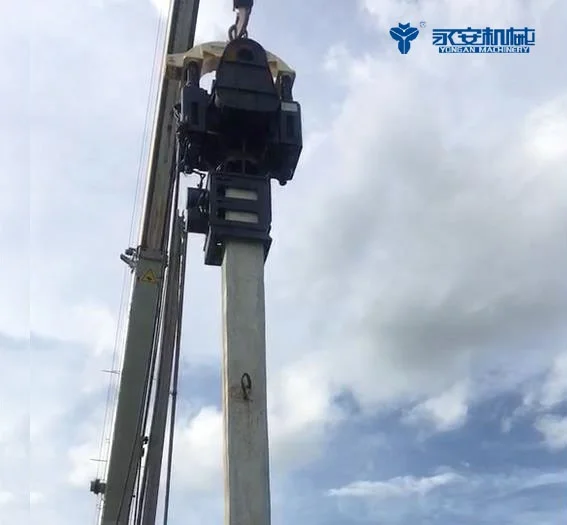

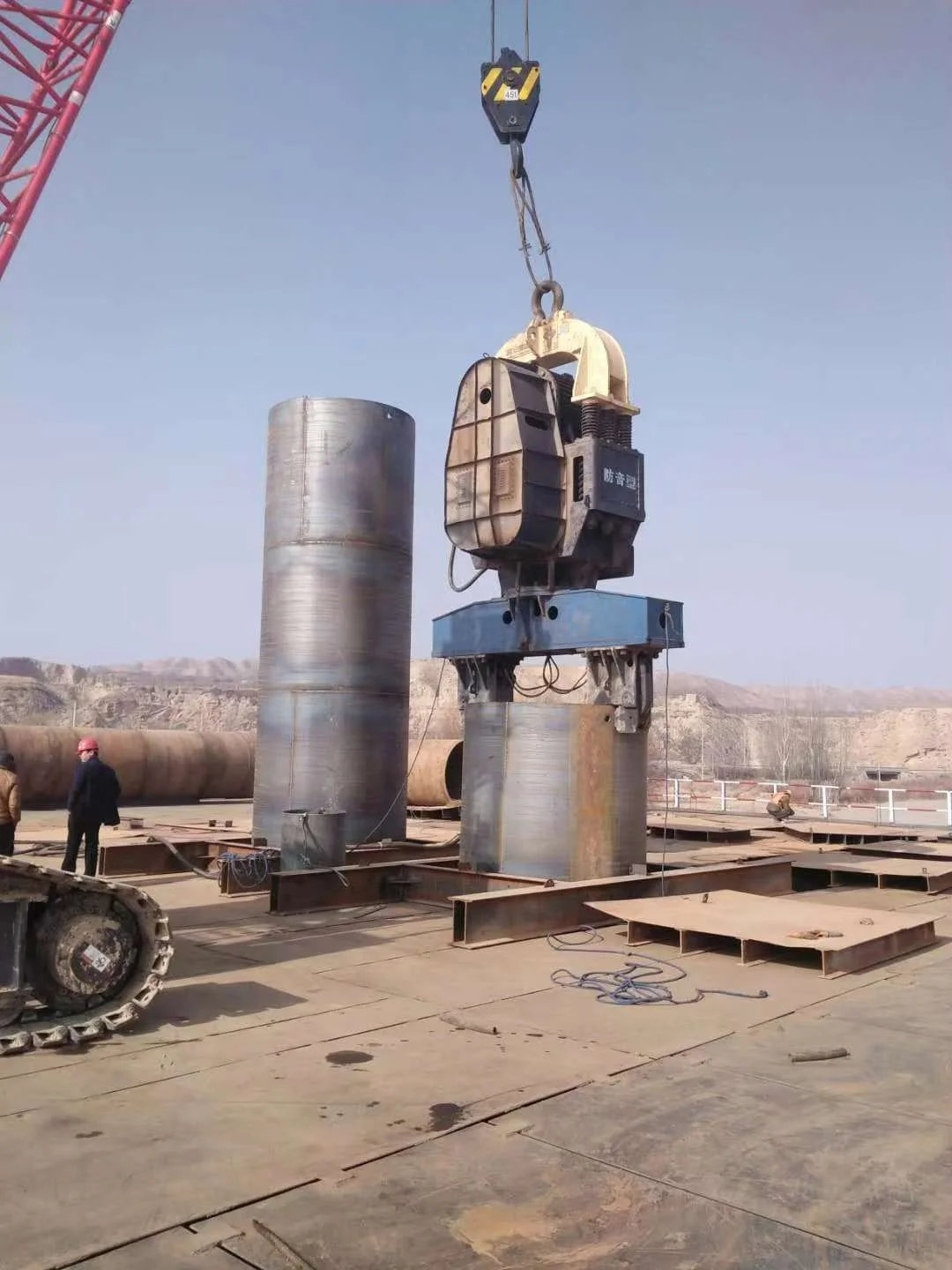

Detailed Image
Company Introduce
Yongan Machinery Co., Ltd is one of the most professional vibratory hammer manu facturers in China and was established in 1985. After 30 years of development, it becomes the leading company in vibratory hammers industry.
The company has been always devoted to the technological innovation and development of new products including DZJ series vibratory hammers and side grip vibro hammer for excavator. Our products had been applied in more than 300 large projects (such as Hongkong-Zhuhai-Macao Bridge, Zhoudai Oversea Bridge, Shenzhen-Zhongshan Bridge, Russia Ketch Bridge, Nigeria Dangote Oil Refinery Project, Bangladesh Payra Bridge) and won prizes and praises for good quality and excellent performance.
With powerful technical support, we successfully put new model DZJ-600 vibratory hammers, YC-80, YC-110 hydraulic impact hammer and Talos series side grip vibro into the market, creating a new big capacity record in China. Hydraulic vibro hammer YZ-400 is the largest hydraulic vibro hammer in China. YC-110 with impact energy 1870knm became the largest impact hammer in China. And we are also the first successful manufacturer for side grip vibro hammer. In the over 30 years, we have been devoting for providing reliable, professional and efficient piling equipment for the market.
