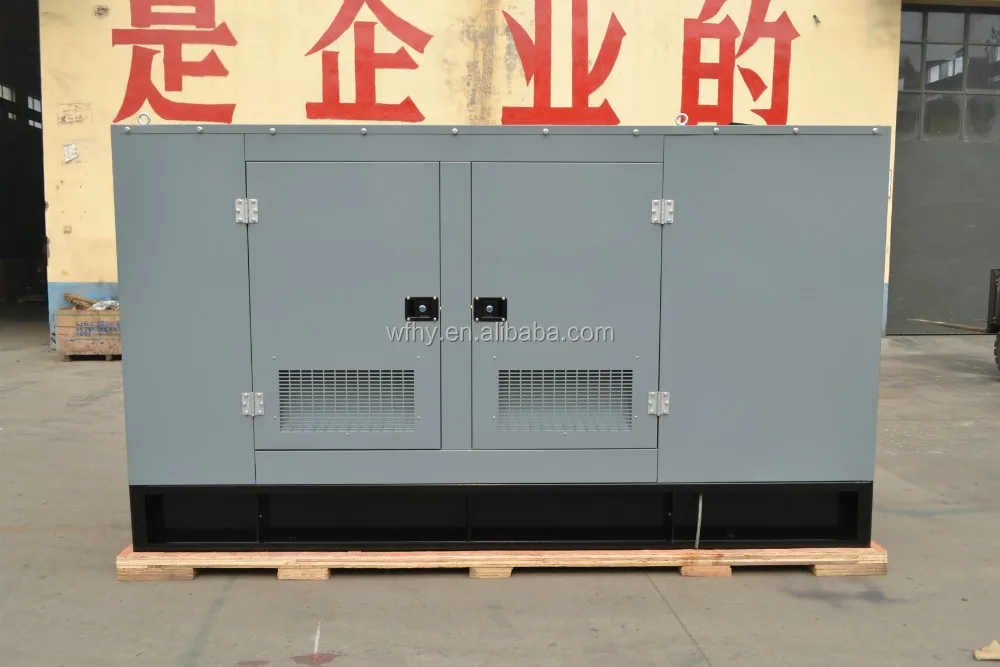

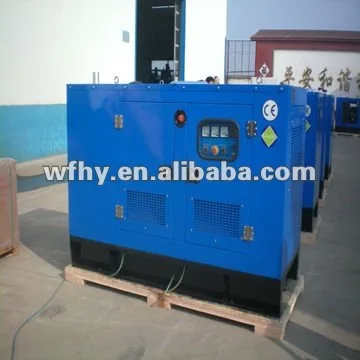

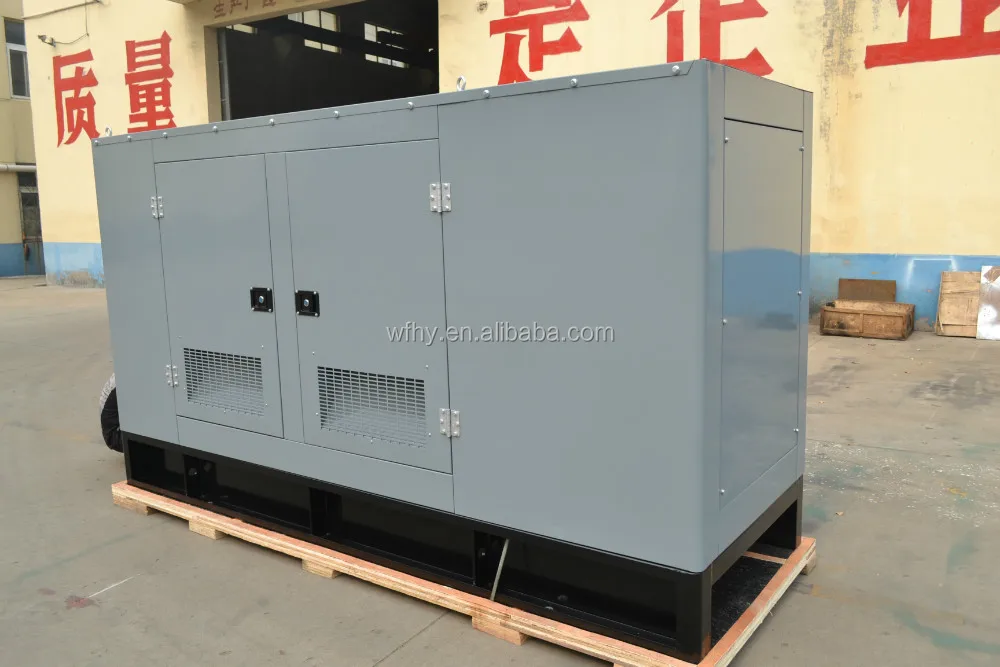

10KW to 500KW Diesel Generator With CE&BV Certification

Product Overview

Description









GENERATOR SPECIFICATION



* Powered by heavy duty industrial diesel engine, Cummins/Deutz/Perkins or China brand engines

* Radiator 40°C max, fans are driven by belt, with safety guard

* 12//24V DC start motor and storage battery

* Brushless, self-excited, IP22/23, insulation H alternator

* Absorber to reduce vibration

* Dry type air filter, fuel filter, oil filter

* Main line circuit breaker

* Control system: Key start control panel as standard, digital auto start or ATS system is optional

* 8 hours operation base fuel tank

* High efficient muffler to reduce noise

* Ripple flex exhaust pipe, exhaust siphon and flange etc.

* Genset type: open type or soundproof/silent type, or trailer type

* Maintenance and operation manual, quality certificate, etc.

* Rigorous testing must be done before delivery, including 50% load, 75% load, 100% load,110% and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

* Certificate: ISO9001:2000, CE (ESC/070119), BV





Genset model	HF40GF
Prime power  (KW/KVA)	40/50
Standby power  (KW/KVA)	44/55
Frequency & voltage	230/400V, 50HZ
No. of  Phase	3
Genset type	Silent/Sound proof
Reference Dimension & Weight (W*H, mm)/KGS	2550*1100*1800,1200KGS
DIESEL ENGINE
Engine brand & Model	HUAFA, HFR4105ZD
Rated output	56KW
Rated Speed	1500RPM
Engine Type	Four stork, in-line water cooled
No. of cylinder	4
Bore*stroke	105*125mm
Aspiration method	Trubocharged
Governor	Mechanical
Starting method	Electric starting
Cooling method	Forced water cooled
Lubrication method	Pressure & splash lubricating
Fuel consumption	250g/kw.h
ALTERNATOR
Alternator brand & model	Stamford/Leroy Somer/China reputed alternator
Type	Brushless & self-excited
No. of phase	3
Volatage	230/400v
Frequency	50HZ
Power Factor	0.8
Insulation Grade	H
Protection Grade	IP22/23
Altitude	≤1000m



GENERATOR CONFIGRATION

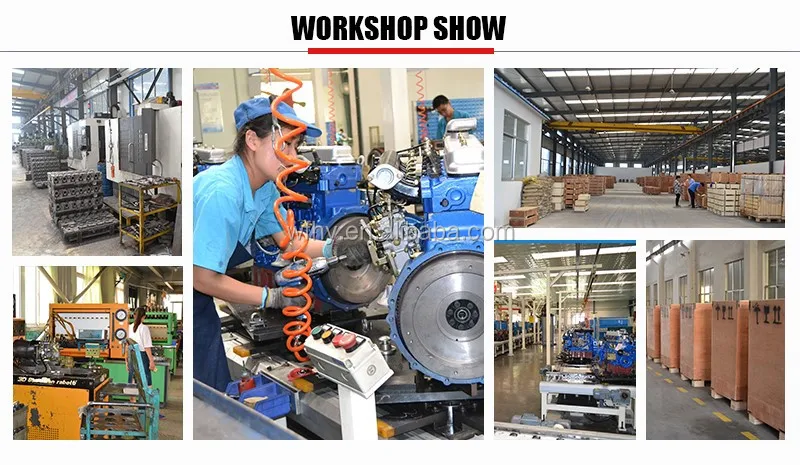

GENERATOR PRODUCTION LINE
