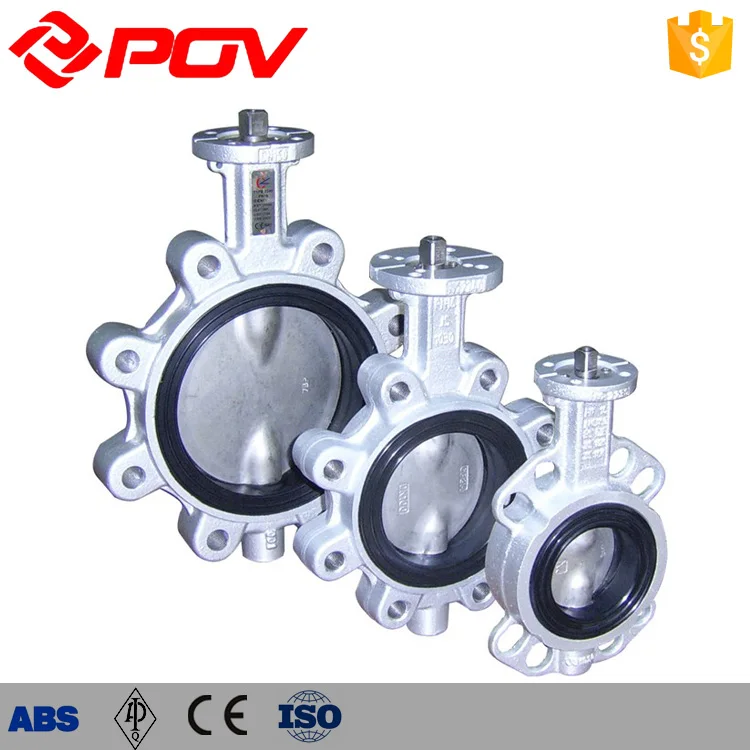

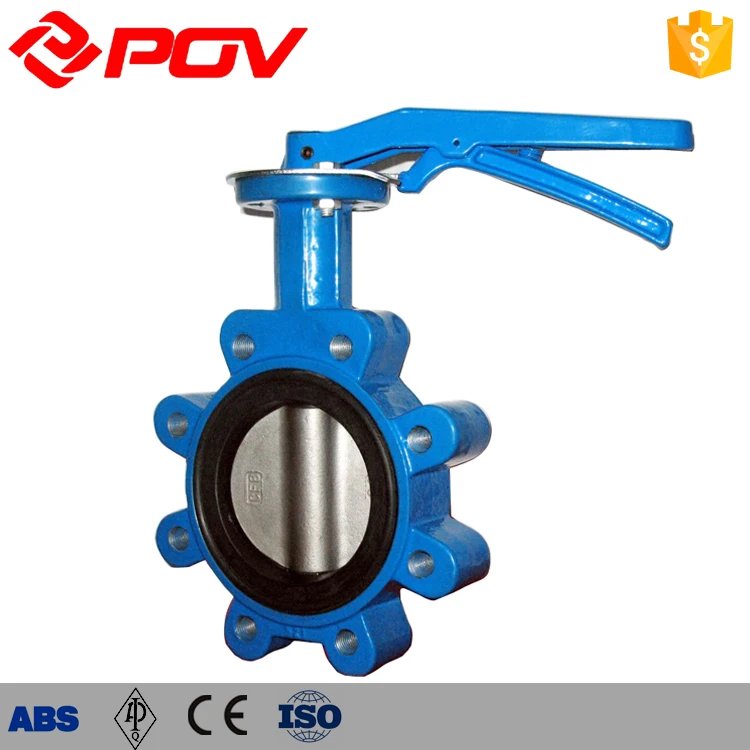

Wafer type(semi lug) butterfly valve

Product Overview

Description

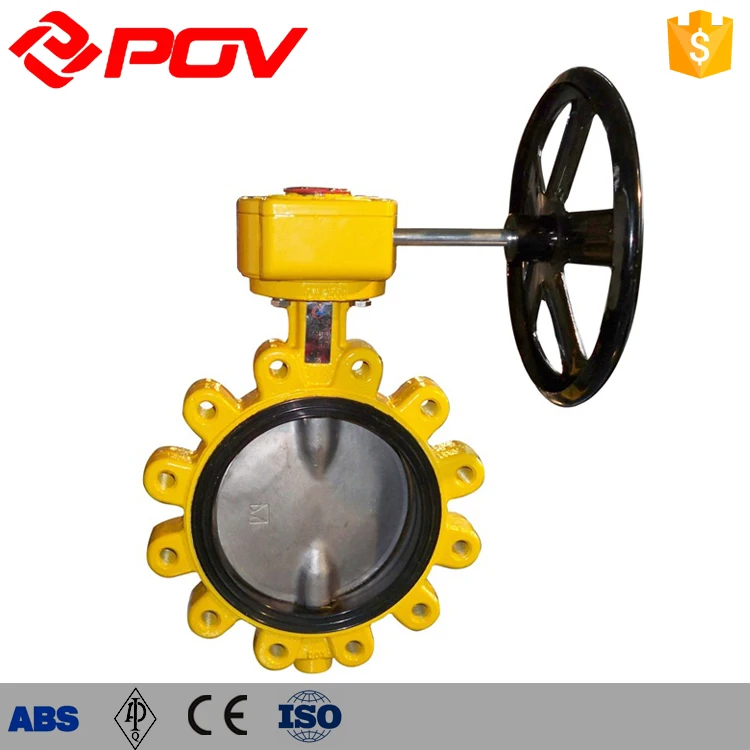

   Wafer type(semi-lug) butterfly valve



Connection : Wafer type semi-lug

 Seat material:NBR, PTFE, EPDM

Disc material:ss304,ss316,wcb

Nominal pressure:1.0-1.6MPa

Nominal diameter:DN25-600

NBR: -30~80°C

EPDM: -30~120°C

PTFE:-30~150°C



Can be widely used in petroleum,chemical industry,light industry,papermaking industrial,pharmaceutical,car automatic control system on a remote concentrated or local control.

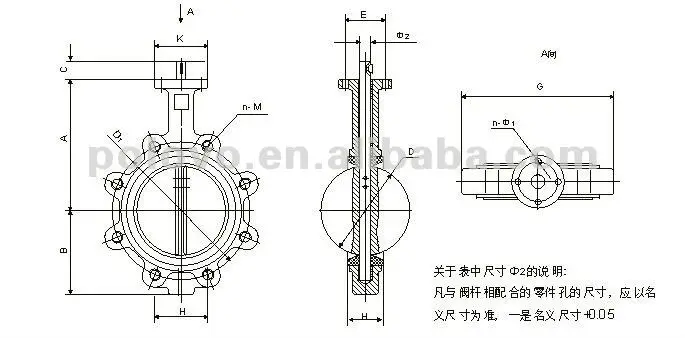

                                                                           Outline drawing

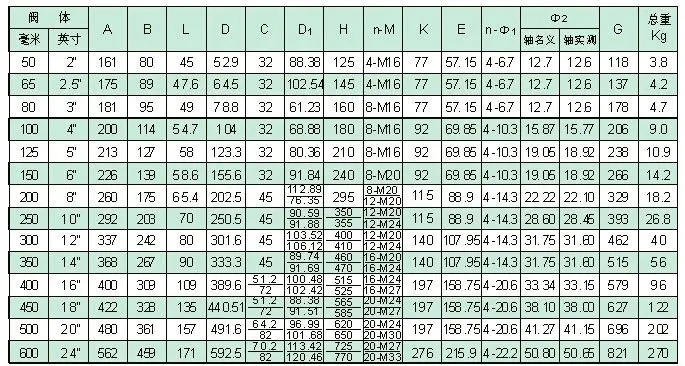

LT-LUG type Butterfly Valve Drawing Size & Weight

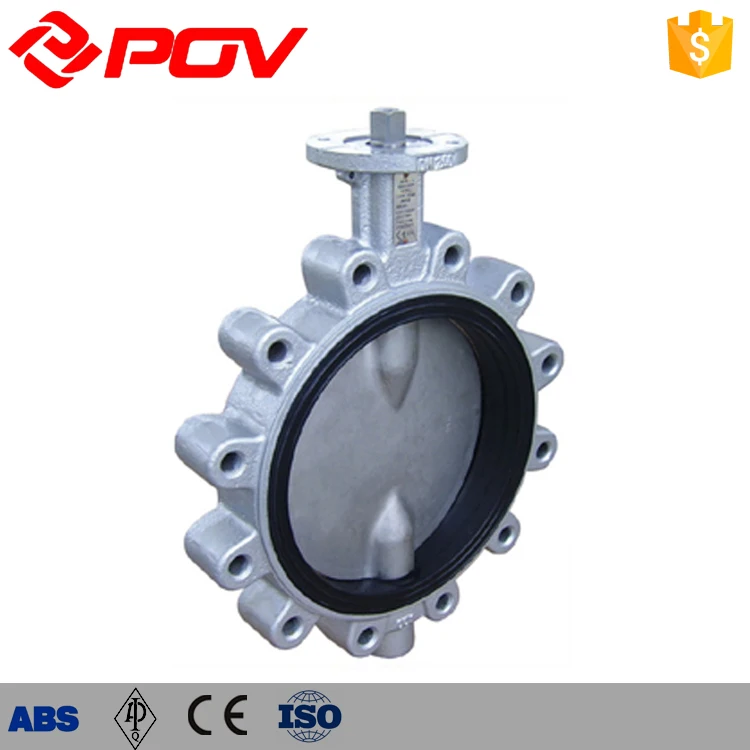

Wafer type semi-lug cs butterfly valve
