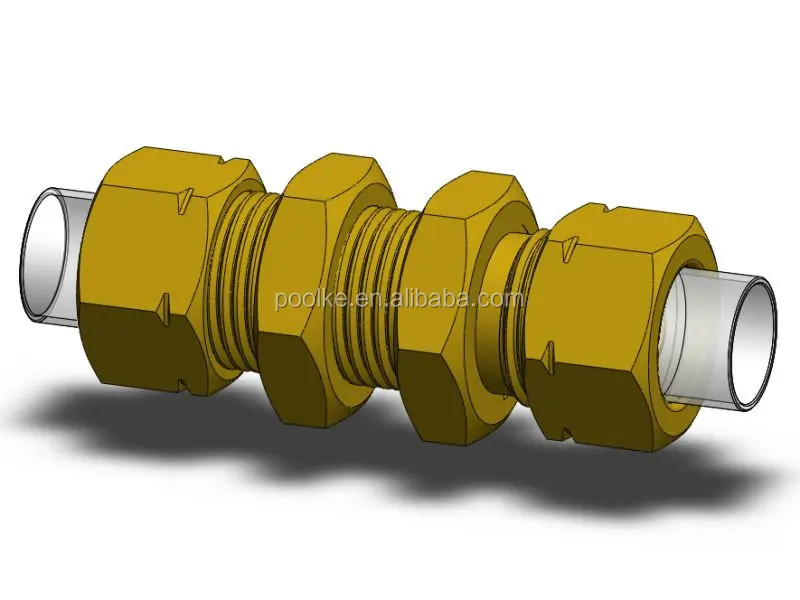

compression fittings CN Series

Product Overview

Description

CN Series compression fittings:

Maximum working pressure:                   5.0MPa

Negative pressure performance:               −100kPa

Working temperature range  (Nylon sleeve):-40°C~ +80°C



Applicabletube :

Polyurethane tube ,Nylon tube, Flexible fluorocarbon resin bilayer tube, Polybutene tube, Flame-resistant tube, Antistatic tube, Polyolefine resin tube, Fluorocarbon resin tube, Polyurethane processed tube

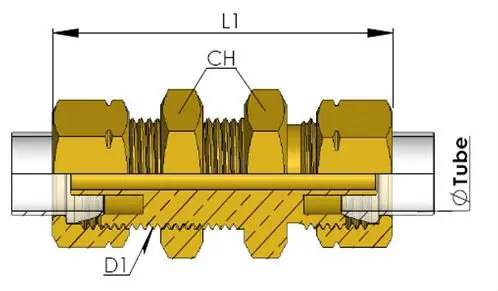

PART.NO		L1	CH	D1
Info	tube
CN M	4*2	43	10
	6*4	45	14
	8*5	47	17
	8*6	47	17
	10*6.5	48	17
	10*8	48	17
	12*8	49	19
	12*9	49	19
