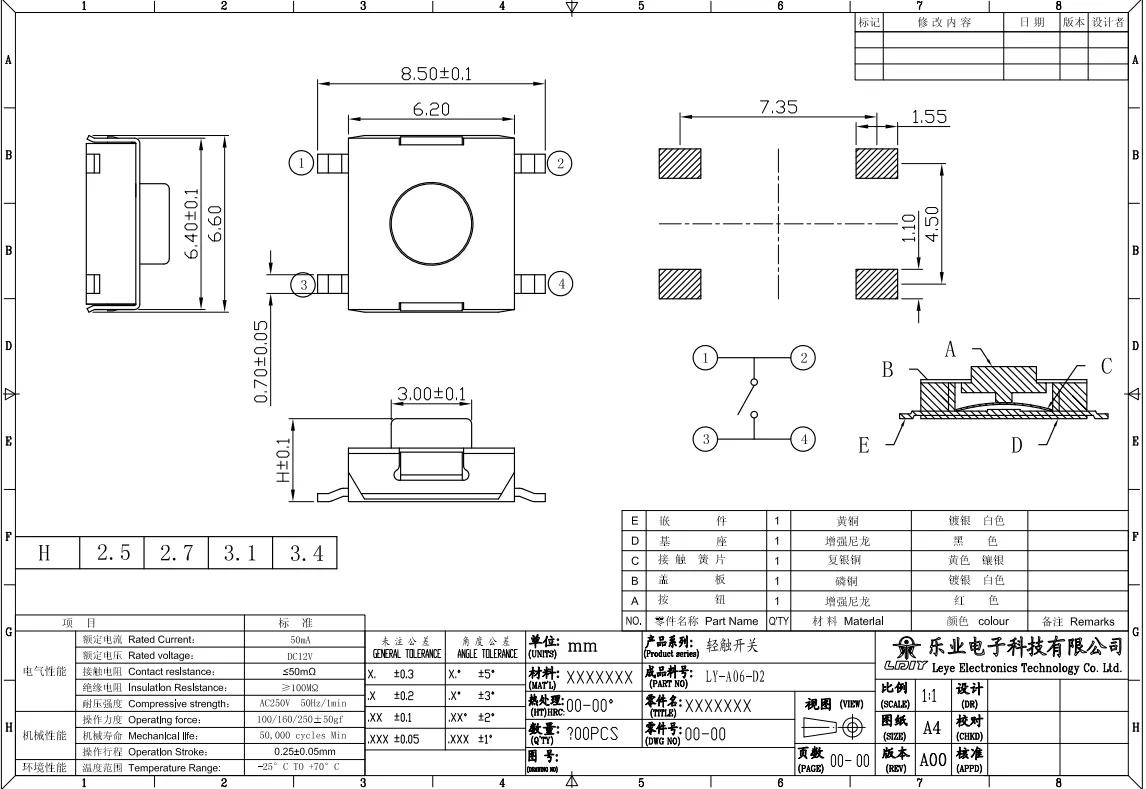

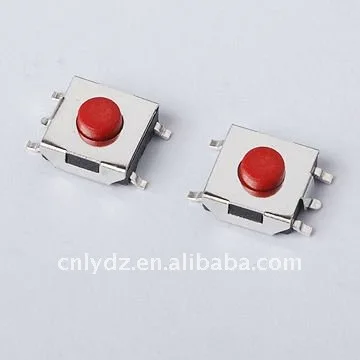

smd micro switch tact switch push botton switch 6.2*6.2*3.5mm red botton
smd micro switch tact switch push botton switch 6.2*6.2*3.5mm red botton
smd micro switch tact switch push botton switch 6.2*6.2*3.5mm red botton
smd micro switch tact switch push botton switch 6.2*6.2*3.5mm red botton

smd micro switch tact switch push botton switch 6.2*6.2*3.5mm red botton

Share on (616729614):


Price:

Quantity:


Product Overview

Description



Rated Current
50mA
Rated Voltage
12V
Contact Resistance
≤100mΩ Max
Insulation Resistance
≥100mΩ  100V DC
Compressive Strength
AC250V  50Hz/1min
Mechanical Life
50000 cycles min
Operating Stroke
0.25±0.05mm
Operating Force
160gf/260gf±50gf
Temperature Range
-25℃~+70℃
