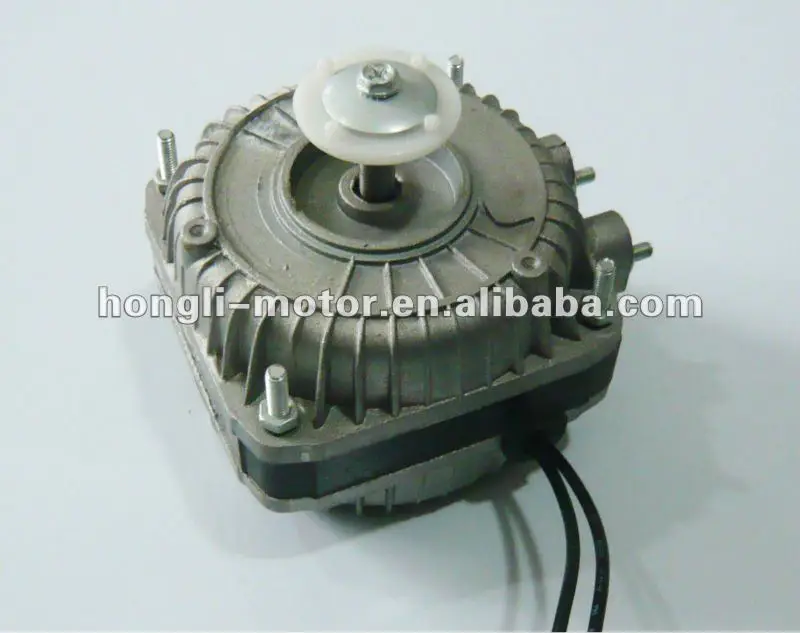

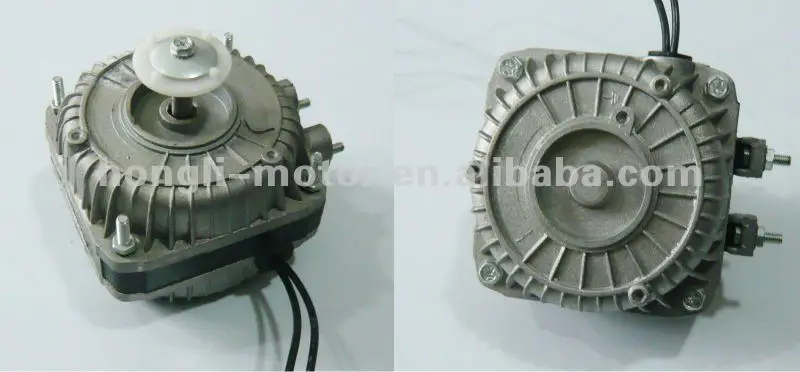

Запасные части hvacr для двигателя вентилятора холодильника 10 Вт

Product Overview

Description





Model:HLZ82-A

Instruction

Protection class:IP42/IP44;

Insulation class:B;

Environment temperature:-40^oC to +60^oC;



Application:This type is widely used in radiators,evaporators and other refridgration equipment.

Character:It has good starting,smooth operation,big power,low noise,long life.



Specification

Model	Output Power	Voltage	Frequency	Current	Speed	A	B	C	D	Fan Size	Backet Size
HLZ82-20E	10/35W	110V	60Hz	0.6A	1550RPM	20	45	49	89	230mm	84mm
HLZ82-20D	10/40W	220V	50/60Hz	0.3A	1300RPM	20	45	49	89	230mm	84mm

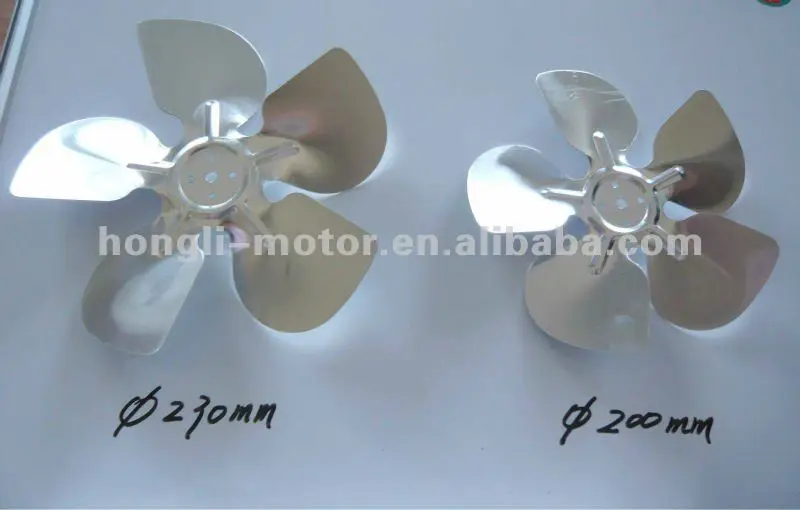

FAN

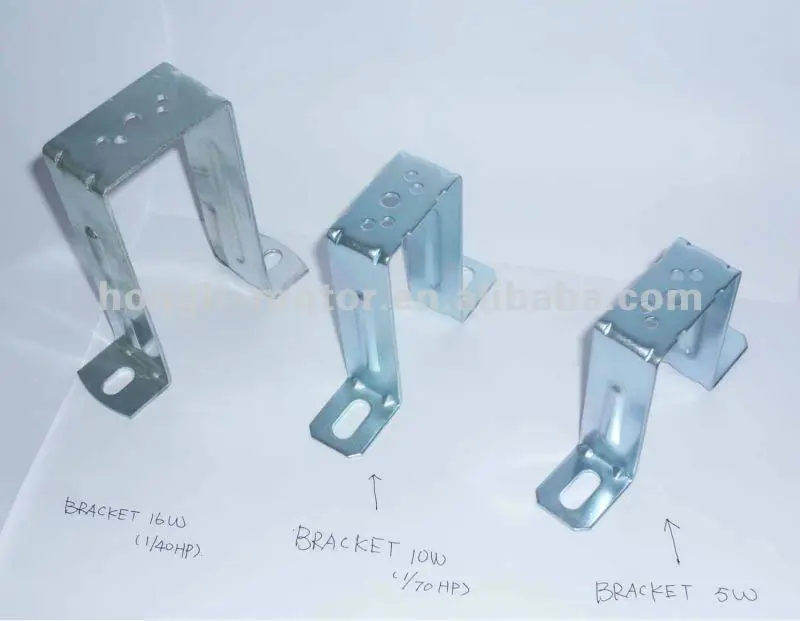

Bracket:
