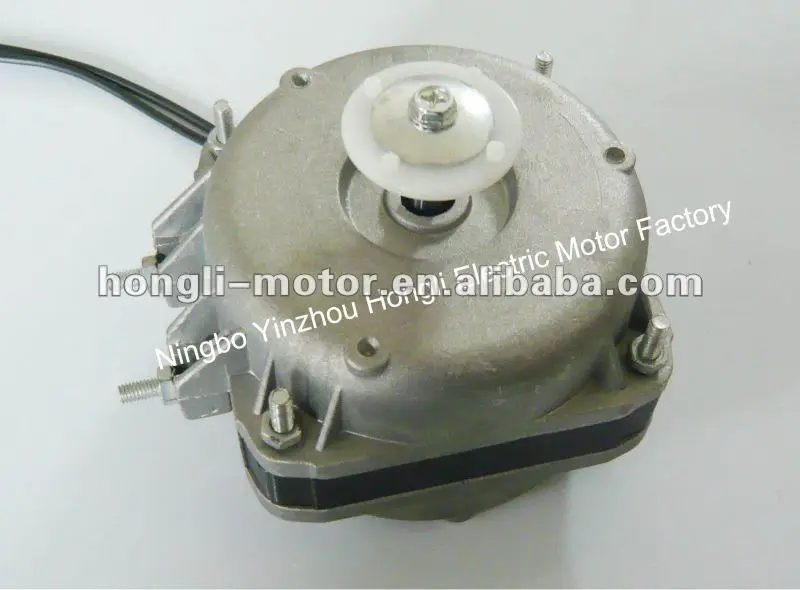

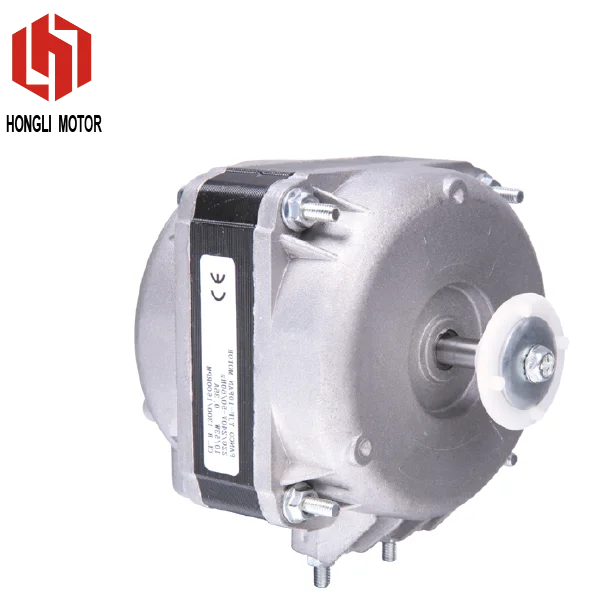

refrigerator 16 watt fan motor

Product Overview

Description

Model:HLZ82-E

Instruction

Protection class:IP42/IP44;

Insulation class:B;

Environment temperature:-40^oC to +60^oC;



Application:This type is widely used in radiators, evaporators and other refridgration equipments.

Character:It has good starting,smooth operation,big power,low noise,long life.



Specification

Model	Power	Voltage	Frequency	Current	Speed	A	B	C	D	Fan Size	Bracket Size
HLZ8225E/E	16/50W	110V	60Hz	0.75A	1550RPM	25	45	49	94	250mm	110mm
HLZ8225D/E	16/55W	220V	50/60Hz	0.40A	1300RPM	25	45	49	94	250mm	110mm

PS:1)Bearing:oil bearing or ball bearing;

2)Fan guard, mounting ring and aluminum mounting bracket available.
