Automatic rolling shutter door opener rollup door operator

Product Overview

Description

Automatic rolling shutter door opener rollup door operator













Power supply	AC 220V~240V /50~60Hz
Output torque	6N.M/7N.M/8N.M
Opening speed	0.15~0.2m/s
General working time	44s
Max. lift weight	35kg
Power of transformer	100VA
Limit switch	Electronic or Mechanical limit switch
remote control	12V 23A/433.92 MHz
Range of remote control	30m~50m
Item	ER1002







 Features:

Auto close mode

the opener can be programmed to automatically close approximately thirty seconds after the door has opened. A photoelectric beam must be installed if this mode selected.

Security code store

up to 20 different transmitters can be stored in the non-volatile memory.

 Hopping Code Technology

The transmitter generates a random encrypted access code from over 4.29 billion possible combinations. The receiver recognises the encryption sequence and rejects any access code it has already received. It is able to foil any code breaking techniques used to gain unauthorised access. In addition, each transmitter has a unique serial number - so no two transmitters are alike.

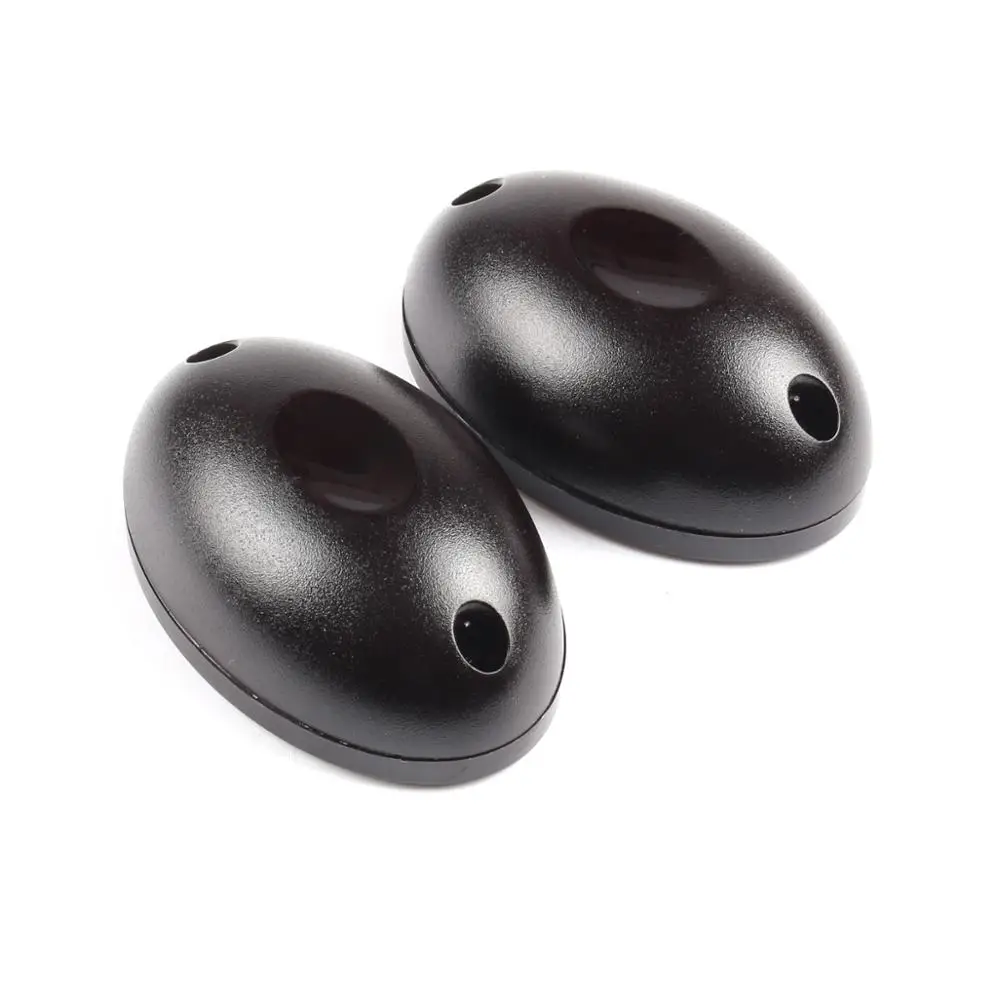

Photo Electric (PE) Beam (Optional)

Input for a photo electric beam to be connected for extra safety protection and use of the auto close mode.

Manual Operation

A gentle pull on the string handle disengages the opener to allow the door to move manually. By pulling on the string handle again, the opener is re-engaged

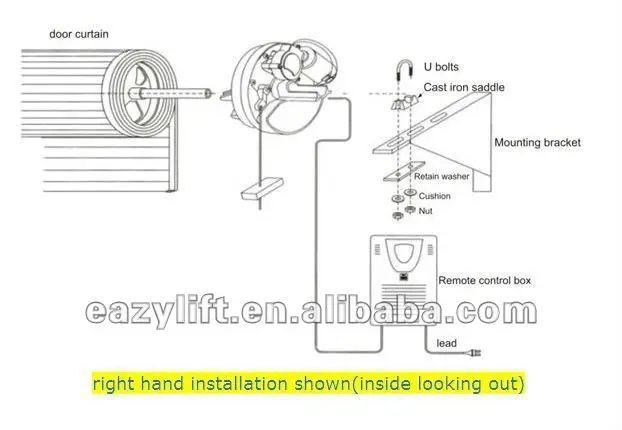

The unit can be mounted right or left hand side of you door



Other Accessories:









PACKAGE CONTENTS:

Controller and Motor
2 x Key Ring Remote Control (4 channels)
U Bracket and Screws
Instruction Manual
