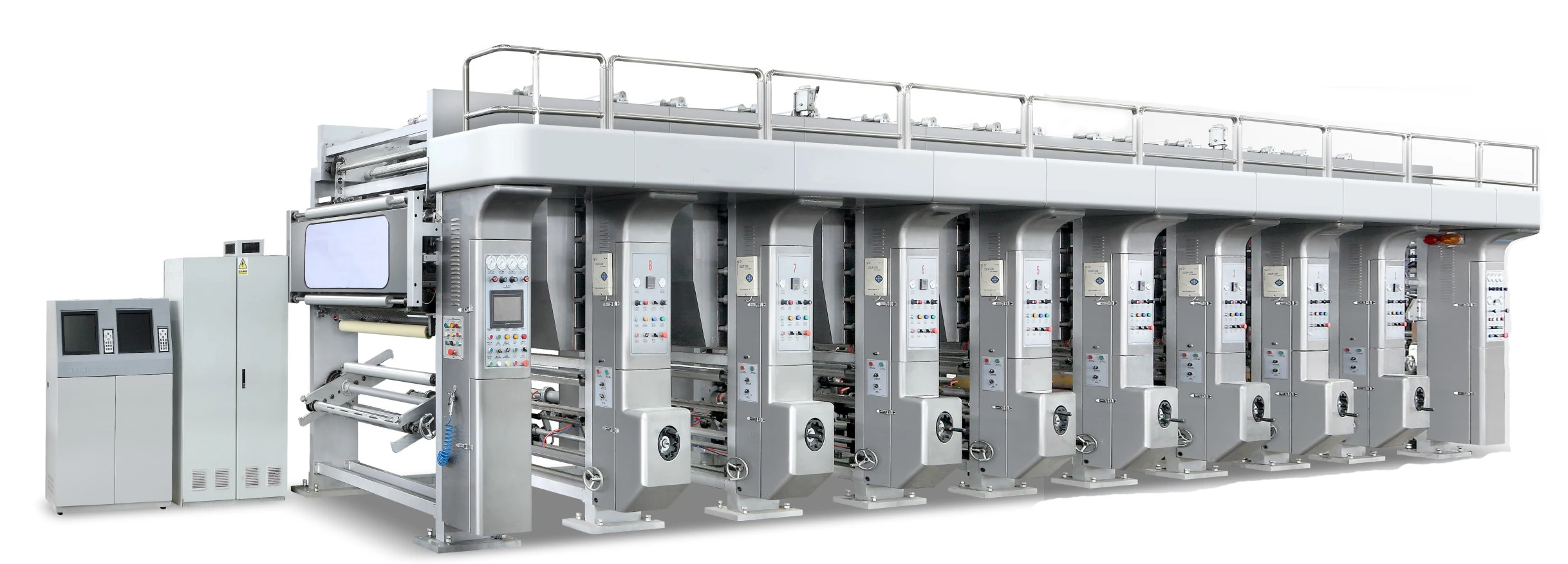

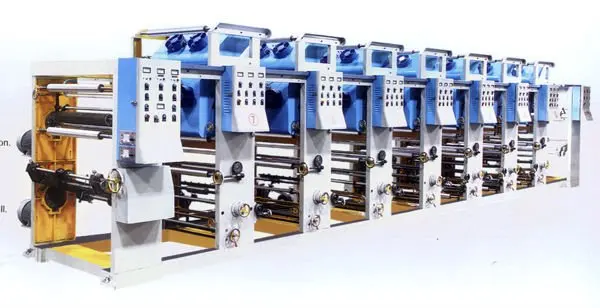

High Speed Roto Gravure Printing Machine

Product Overview

Description

This machine is used for printing on cellophane, BOPP, PET, PVC, PE, aluminum foil and web, with good printing performance for multi-color continuous printing.
1. The whole machine is fixed by permutation combination, according to the customers' requirements, the color unit can be increased or decreased and the cover printing mechanism can be added as well.
2. The traction and rewinding adopt frequency inverter and synchronous speed regulation.
3. Automatically rectifying controlled by separate micro-processor. It can adjust the flashed deviation quickly and precisely.
4. General shaft style installment.
5. Display of flashed deviation, comprehensive deviation correcting system and super-difference alarming function.
6. Dual photoelectrical checking improves the whole checking and speed adjustment.
7. Automatic tension control, Rewinding and discharging traction with full automatic tension controller and magnetic powder brake and clutch.
8. The winding adopts frequency inverter traction, while the pressing roller
adopts pneumatic components to control.
9. Printing roller and discharging traction pressing roller are both adopted with pneumatic unit to control.
10. Pneumatic pressure shifting blade.
11. Automatic ink circulating system.
12. Air expansion shaft.
13. Unwinding and rewinding are both dual working units to meet non-stop roll-change.

14. Diesel oil air-stove system is available for stove heating.

15. Special versions upon requests.
