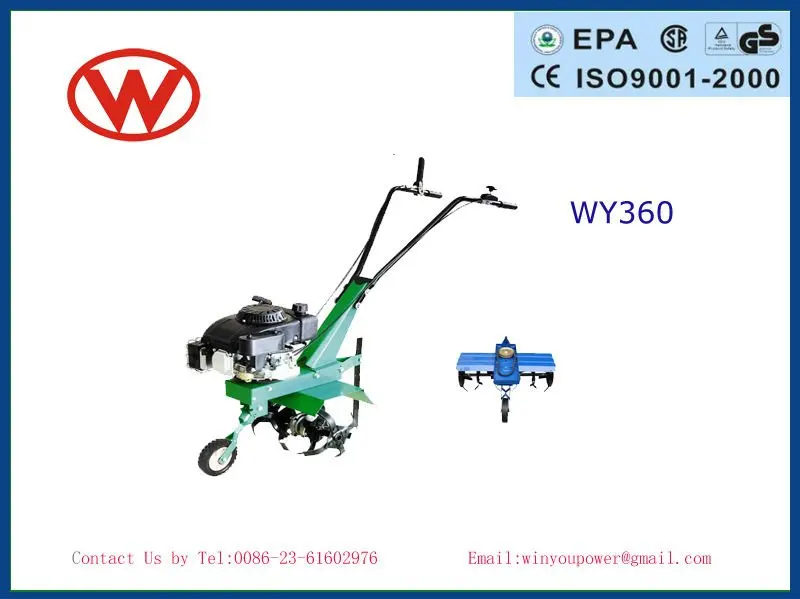

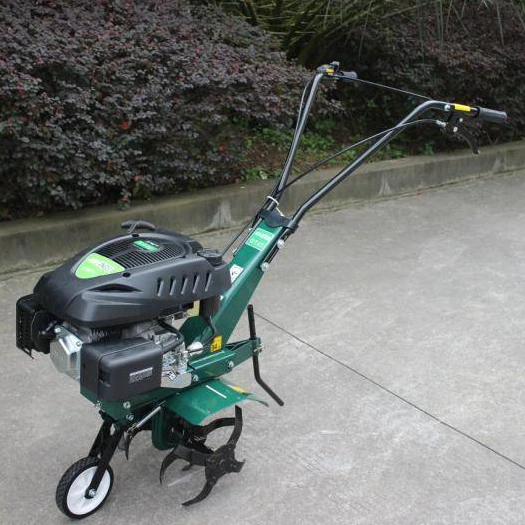

Gardening tillage machine/cultivator WY360 with v shaft engine 5.5Hp

Product Overview

Description

Techinical Data:

	Model	WY360	WY400	WY500
	Tilling Scope(mm)	360	550	800-1000
	Tilling Depth (mm)	200	150-250	150-300
	Transmission Type	Belt	Gear	Belt
	Transmission Oil(L)	0.2	0.6	0.95
	Wheel Type	/	/	3.5-6
	Gear Shifting	0,1	0,1	0,1,2,-1
	Gear Speed (rpm)	128	139	0/82/113/61
Gasoline Engine	Engine Model	WY1P65FV	WY1P70FV	WY170F
	Engine Type	4-stroke ,25″ inclinded single -clinder,air-cooled
	Displacement (ml)	139	173	212
	BorexStroke (mm)	65x42	70x45	70x56
	Compression Ratio	8.0:1	8.5:1	8.5:1
	Theoritical Maximum Output Power	4.0kw/3600rpm	4.3kw/3600rpm	5.2kw/3600rpm
	Rated Output Power	2.5kw/3600rpm	3.0kw/3600rpm	4.2kw/3600rpm
	Horse Power (Hp)	5hp	6hp	7hp
	Max Torque	6.8N.m/3000rpm	9.0N.m/3000rpm	11.5N.m/3000rpm
	Ignition System	Non-contact transistorized Mangneto(TCL)
	Start Mode	Recoil Start		Recoil Start /Electric Start
	Air-cleaner	Semi-dry type	Semi-dry type	Semi-dry type /oil bath type
	Fuel Tank Capacity (L)	1.8	0.6	3.6
	Oil Capacity (L)	0.6	1.8	0.6
	Fuel Comsuption	≤420g/kw.h	≤395g/kw.h	≤395g/kw.h
Packing Detail	Dimension(mm)	700x390x700	695x545x580	840x540x660
	N/G.W (KG)	34/36	32/35	73/84

  Show Details





Company Introduction







We are a specialized factory to supply gasoline engines,diesel engines,gasoline tillers,diesel tillers,gasoline water pumps,diesel water pumps,gasoline Generators and grass cutters etc . Please visit our websites at







www. winyoupower.com             //cqweiyou.en.alibaba.com/
Why you should choose us :
1.10 years of manufacturing expenrience in the field of general machineries
2.Professional engineers and test equipments to ensure the quality of each machine
3. Factory direct selling at competitive prices
4. OEM service is available
5. Fast and efficient delivery service
6. Strictly quality control system







COMPANY INTRODUCTION :
Chongqing Winyou Power Co,.Ltd is one of the leading professional manufacturer of general machineris including engines(gas and diesel),power tillers (gas/diesel),water pumps(gas/diesel),generaters and grass cutters as well as other agricultural machines. Our products sell well in 30 countries of the world,including America,Europ,Africa,Midle East,Southeast Asia etc,enjoy a good reputation domestic and overseas .
