Stainless Steel Automatic Chocolate Coating Machine for Chocolate Making Enrobing Line

1. Magazine feeder:

To simplify the feeding of biscuits or wafers etc to the enrobing wire mesh.

2. Granular sprinkler:

To sprinkle sesame or peanut granular on the enrobing products.

3. Decorator:

To decorate zigzags of different color on the surface of the enrobing products

Technical Parameters:

More details of enrober:

• Wiremesh Width: 600/800/900/1000/1200mm. Length of enrober: 2000mm, height: 1800mm.


• made of SUS304 stainless steel(except motor, electrical parts, blower and outside of mass tank etc),


• The mass tank can be pulled out for easy cleaning.

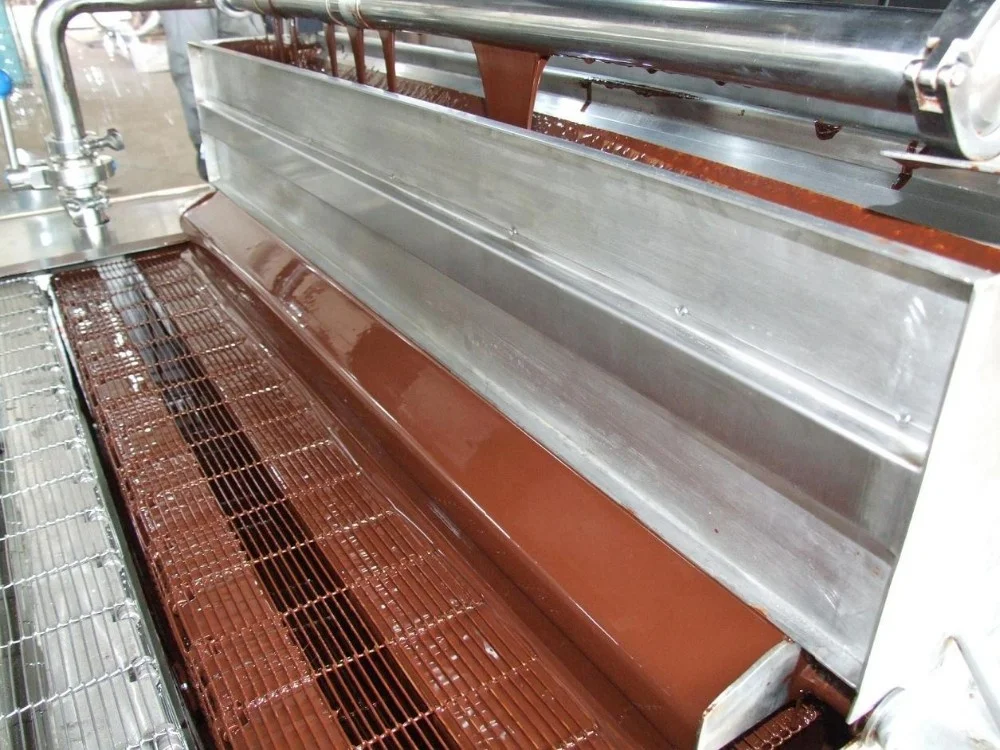

• Coating system: One top curtain for top coating and one bottom coating, separately contrlled for top coating and bottom coating.


• Blower: one sets blower system to blow redundant chocolate and made surface smooth,


• one vibrating device: to move away redunant chocolate.


• one de-tailer system: to take away tails on products when transfer from enrober to cooling tunnel.


• SEW or Nord motor, Schneider/Omron/Delta etc imported brand electrics.


• speed of conveyor belt: 3~6m/min. or made accoding to requirements.


• Voltage: 380V/50HZ/3Phase, or made according to customer’s requirement.

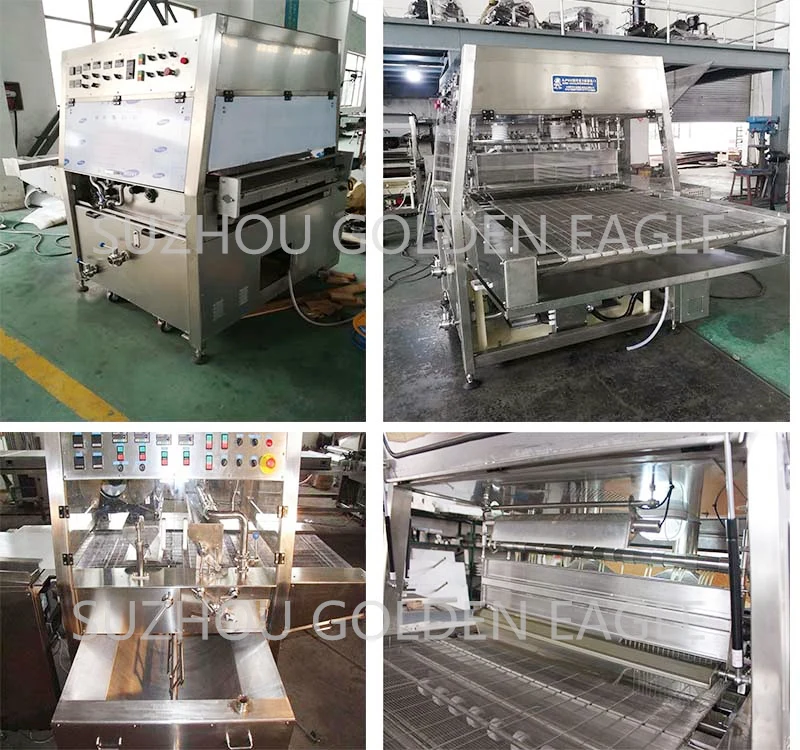

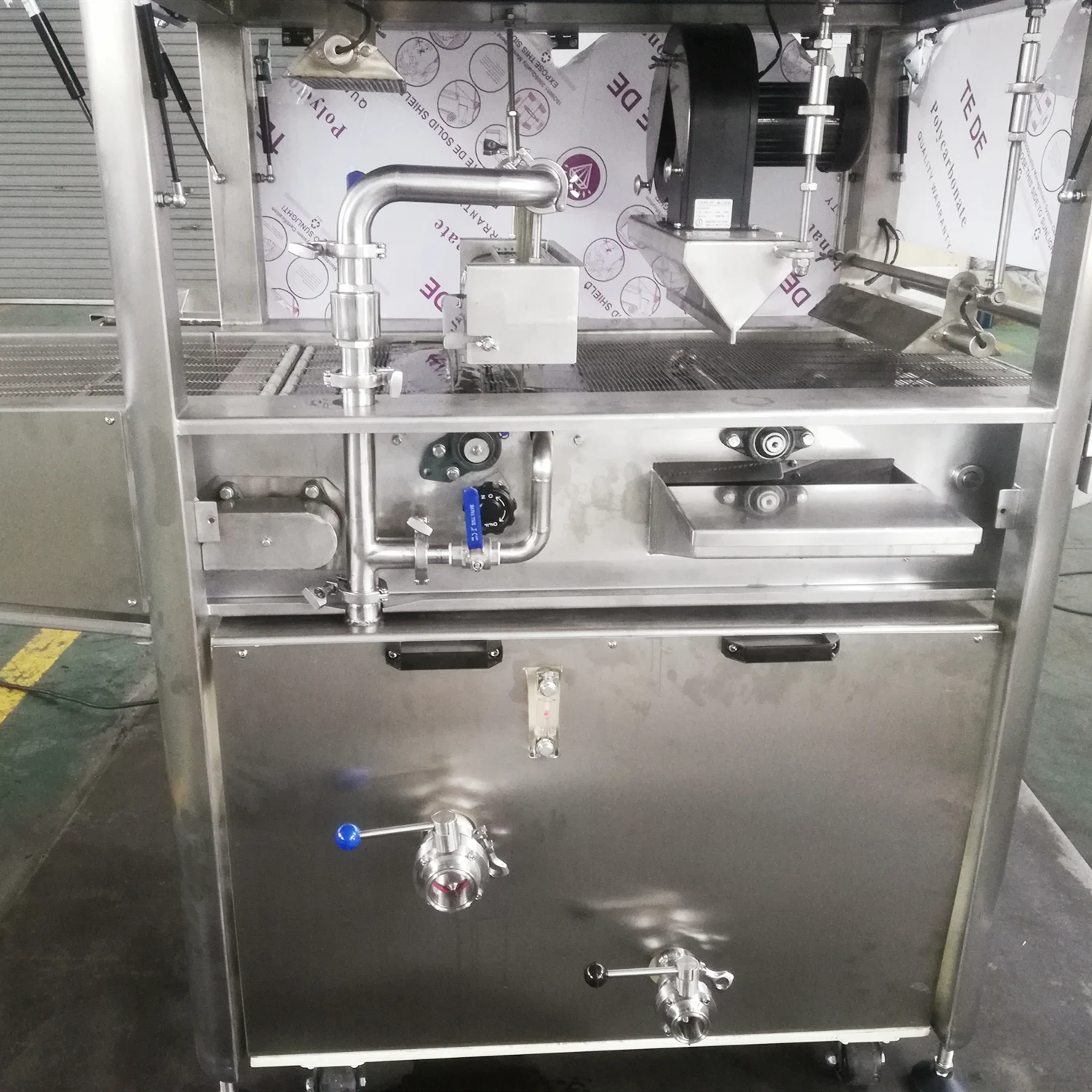

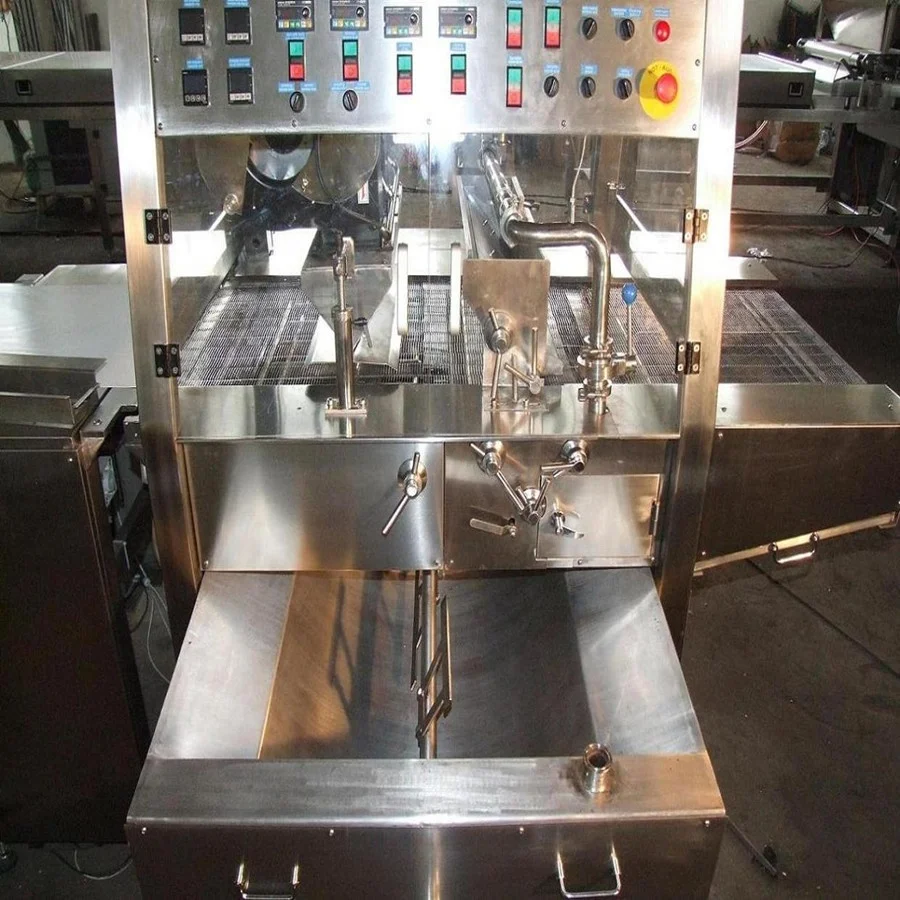

Photos of enrober:

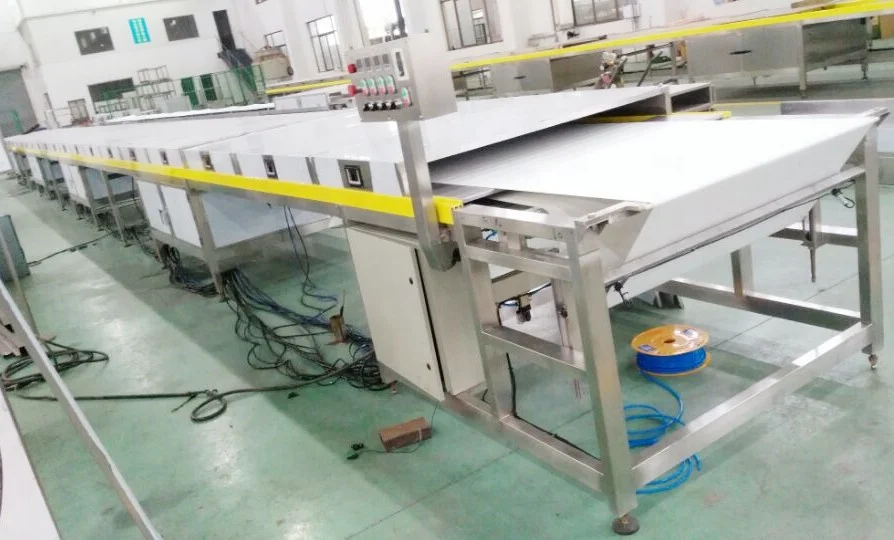

 More details of cooling tunnel:

• Width of conveyor belt: 600/800/900/1000/1200mm.


• Will be matched to the ENROBER, only contact part is made of SUS304 stainless steel. The insulation cover is made of 30mm stainless steel sandwich plate.


• The cover is with gas spring to open the covers.


• speed of conveyor belt: 3~6m/min, or made according to requirements.


• There is temperature sensor; temperature can be controlled by temperature controller.


• There are pneumatic rectifying belt devices in front and back rack.


• Customer prepares connecting parts(tube) by themselves according to actual distance. R22A refrigerant.


• Voltage: 380V/50HZ/3Phase.


• Components:

Main motor and electrics: SEW or Nord motor, Schneider/Omron/Delta etc imported brand electrics.

Belt: PU belt 1.2mm, with belt pneumatic rectifying device

Refrigeration unit: Copeland compressor.

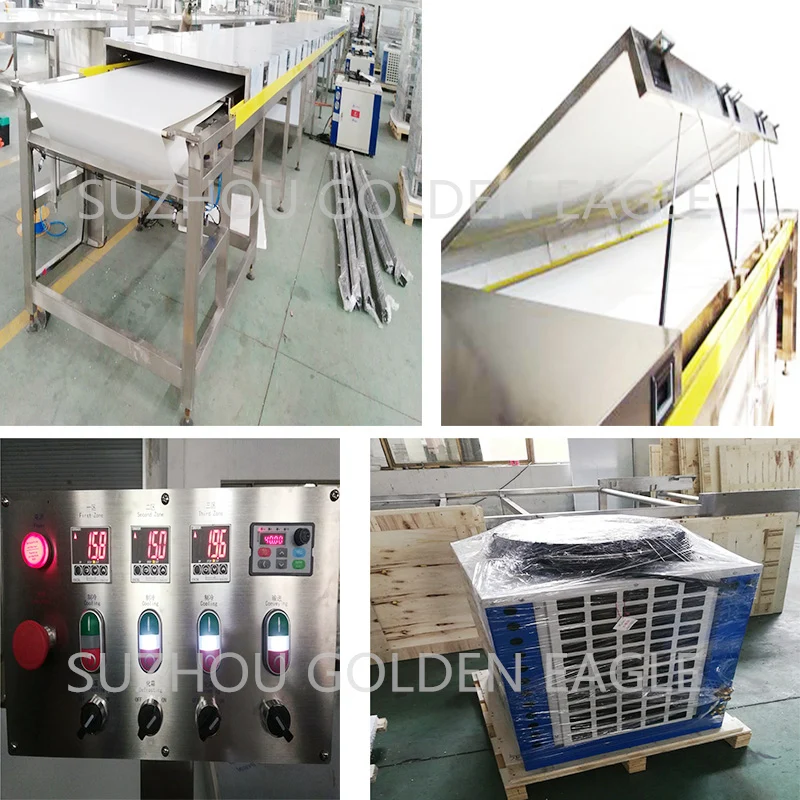

Photos of cooling tunnel:

Pre-sales service:

* Inquiry and consulting support.

* Sample testing support. You can send material to our fatory for testing.,

* View our Factory.

After-sales service:

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Video calls are available for installation.
