KG920B Portable DTH Drilling Rig and Portable DTH Drilling Machine and Portable DTH Equipment for Sale
- Category: >>>
- Supplier: Zhengzhou Qugong Machinery Equipment Co. Ltd.
Share on (617984607):
Product Overview
Description
KG920B Portable DTH Drilling Rig and Portable DTH Drilling Machine and Portable DTH Equipment for Sale
Portable DTH Drilling Machine specifications
| Model | KG920B |
| Rock rigidity | f=6-20 |
| Dia. Of Hole | φ80-115mm |
| Drilling depth | 25m |
| Rotation speed | 107RPM |
| Rotation torque | 1400Nm |
| Lifting capacity | 15000N |
| Feeding method | Oil cylinder&chain |
| Feeding distance | 3000mm |
| Traveling speed | 0-1.8KM/H |
| Climb ability | 30° |
| Ground clearance | 290mm |
| Total Weight | 4000KG |
| Dimension (mm) | 4400X2200*2050 |
| Sliding carriage pitch angle | UP:5° DOWN:135° |
| Sliding carriage swing angle | L.:100° R.:45° |
| Drill boom(arm) pitch angle | UP:25° DOWN:50° |
| Drill boom(arm) swing angle | L.:44° R.:45° |
| Carriage Compensation | 900mm |
| Engine | YC4D80(58KW 2400r/min) |
| Drill rod specification | φ64*2000mm |
| Working pressure | 1.0-1.7 Mpa |
| Air consumption | 9-16 M3/min |

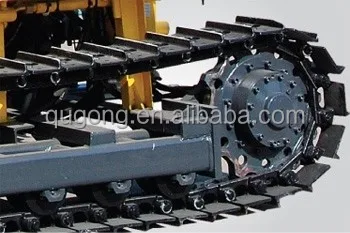

Portable DTH Drilling Machine details pictures:
Portable DTH Drilling Machine accessories:

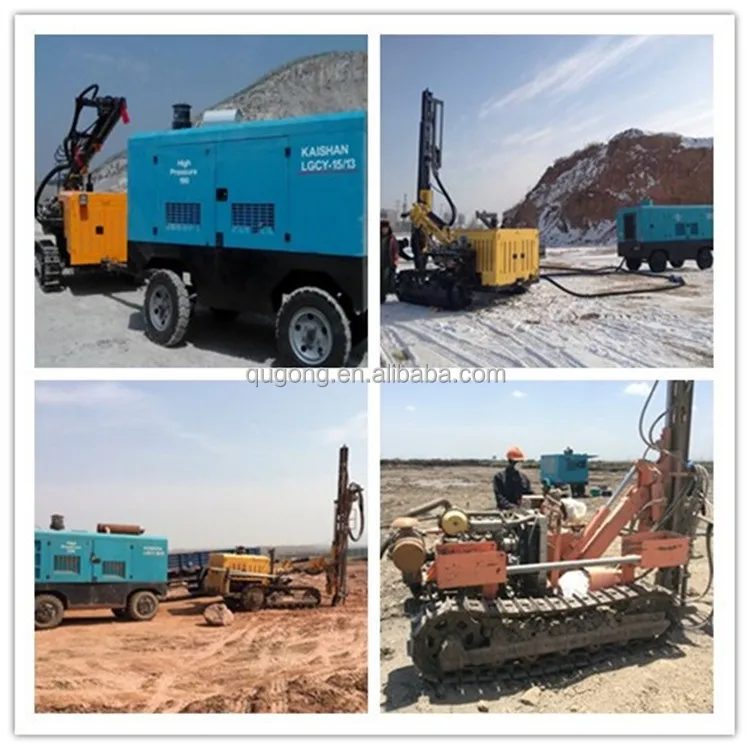

Portable DTH Drilling Machine working:

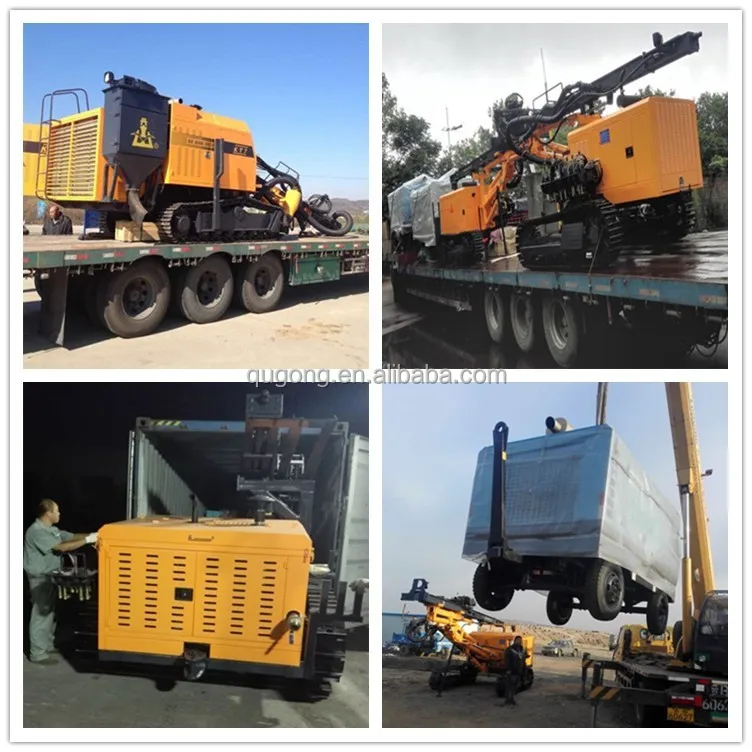

Portable DTH Drilling Machine shipment:

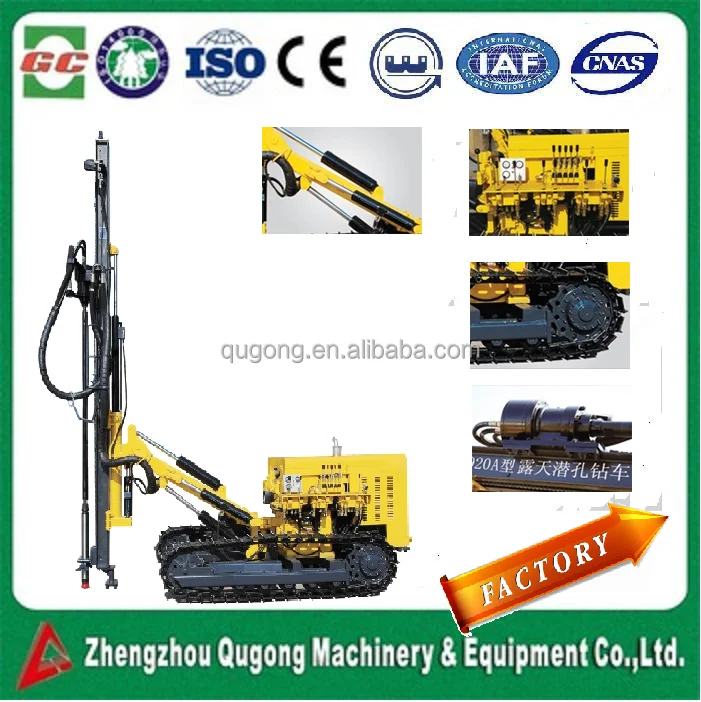

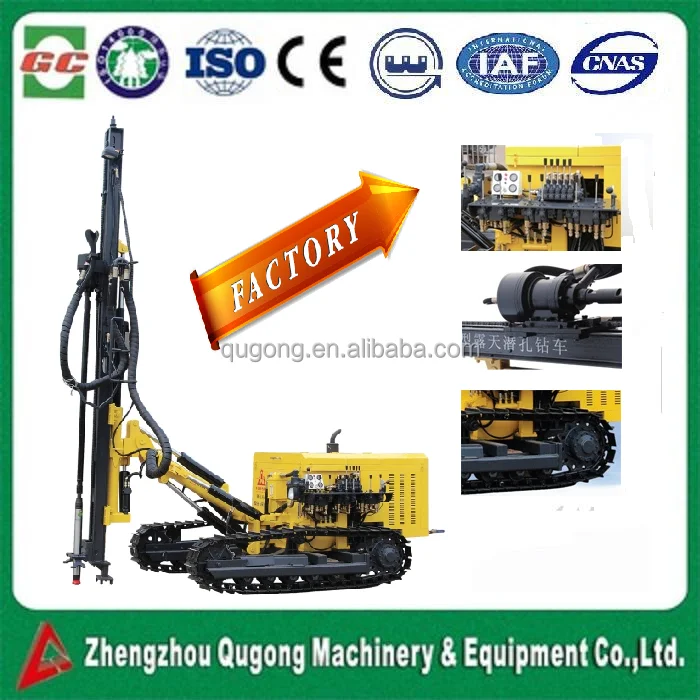

Portable DTH Drilling Machine overview:
Portable DTH Drilling Machine customer and workshop:
Portable DTH Drilling Machine Quality Guarantee Terms:
Quality Guarantee Terms: Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
Portable DTH Drilling Machine certificates:
