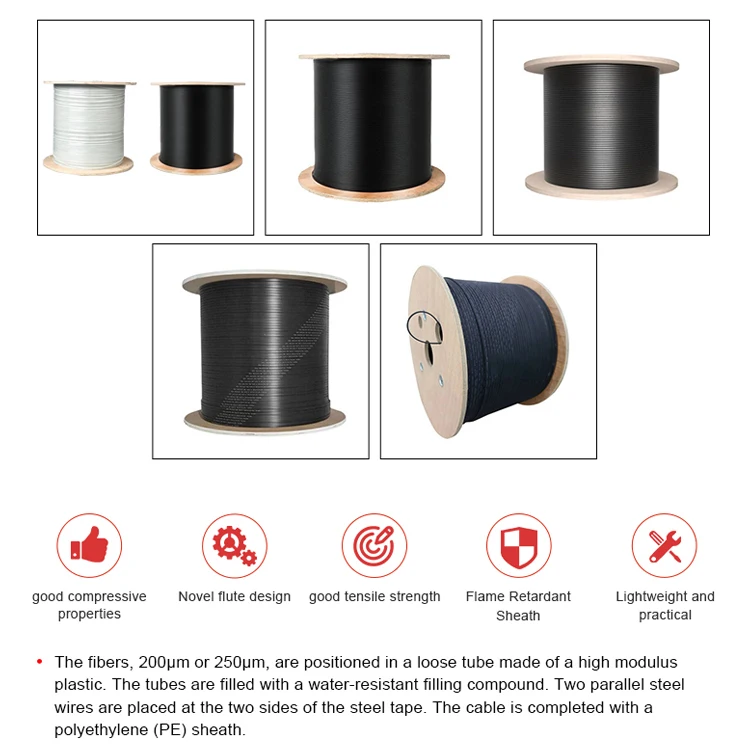

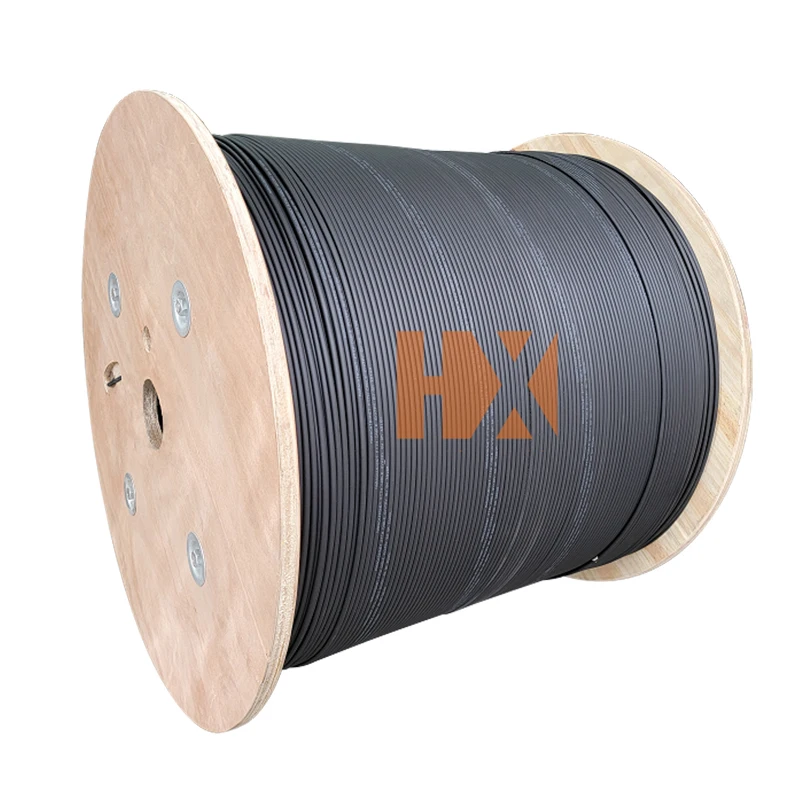

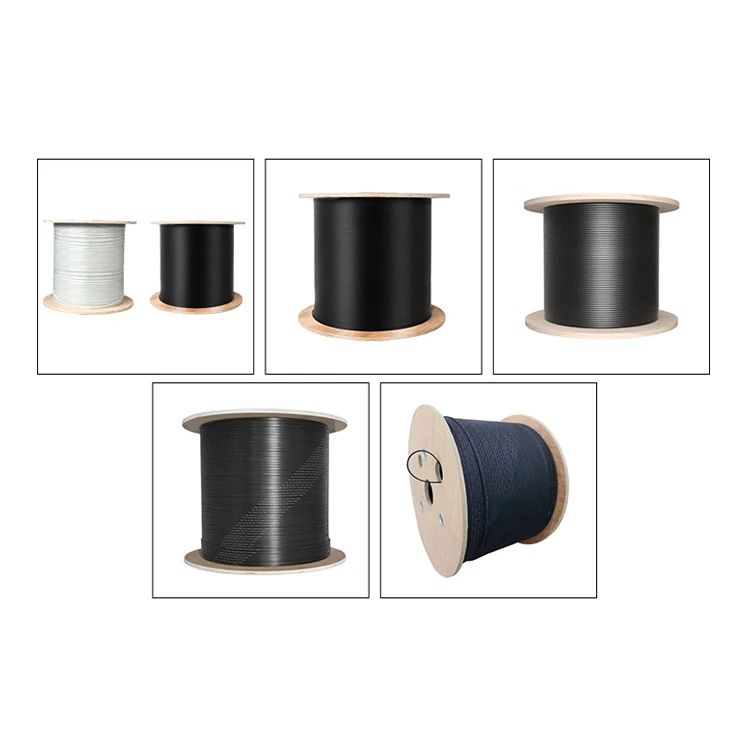

1 2 core single mode/multimode fiber optic GYXTPY ftth cable
- Category: >>>
- Supplier: Shenzhen Hanxin Communication Optical Fiber Cable Co. Ltd.
Share on (618012776):
Product Overview
Description
Products Description
Product Information

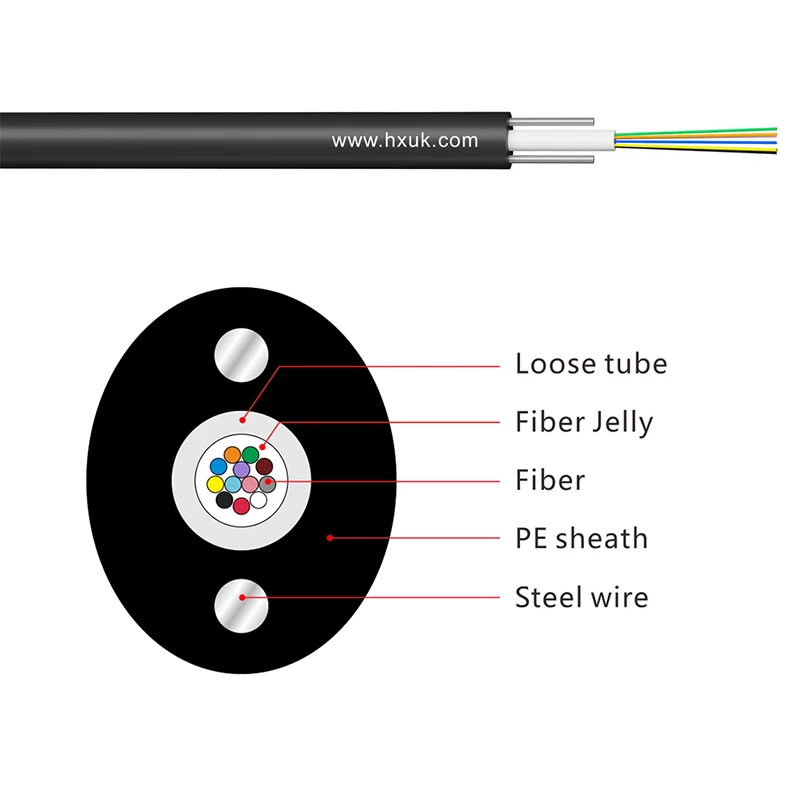

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·Inexpensive and can reduce operating costs
·Two parallel steel wires ensure tensile strength
·Small diameter, light weight and friendly installation
·Long delivery length
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·Inexpensive and can reduce operating costs
·Two parallel steel wires ensure tensile strength
·Small diameter, light weight and friendly installation
·Long delivery length
Optical Characteristics：
G.652 | G.655 | 50/125μm | 62.5/125μm | |||
Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | |||
(+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
@1310nm | ≤0.36dB/km | |||||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | ||||
Bandwidth (Class A) | @850 | ≥500MHZ·km | ≥500MHZ·km | |||
@1300 | ≥1000MHZ·km | ≥600MHZ·km | ||||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
Technical Parameters：
Cable Type | Bending Radius Static/Dynamic | ||||||
Fiber Count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance Long/Short Term | Bending Radius Static/Dynamic | mm | |
mm | Kg/km | Long/Short Term | N/100m | mm | 20D/10D | ||
N | 20D/10D | ||||||
GYXTPY | 1～2 | 4×5 | 34 | 250/500 | 300/1000 | 15D/30D | 20D/10D |
GYXTPY | 3～6 | 4.2×5.2 | 38 | 250/500 | 300/1000 | 15D/30D | 20D/10D |
GYXTPY | 7～12 | 4.5×5.5 | 43 | 250/500 | 300/1000 | 15D/30D | 20D/10D |
