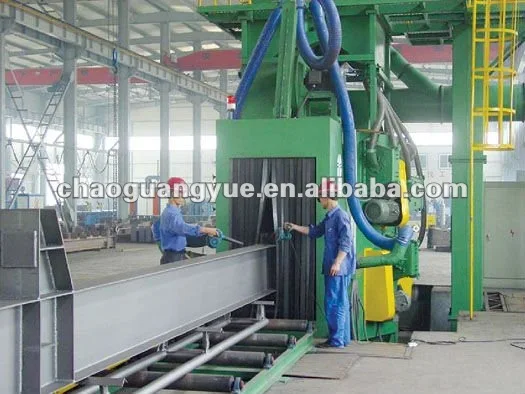

Q378 steel shot making machine /H section steel and structure shot blast cleaning machine

Product Overview

Description

 Q378 steel shot making machine/ H scetion steel and structure shot blast cleaning machine





1.Name:  Shot blast cleaning machine



2. Use

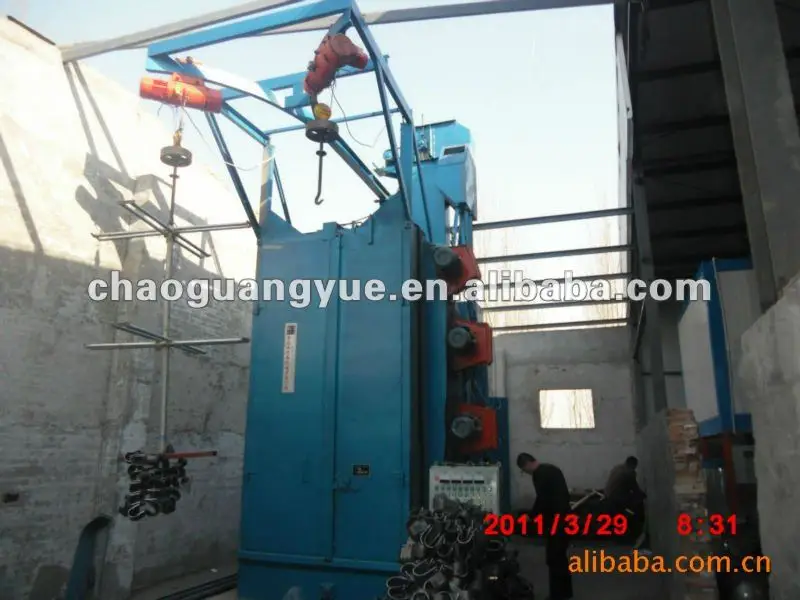

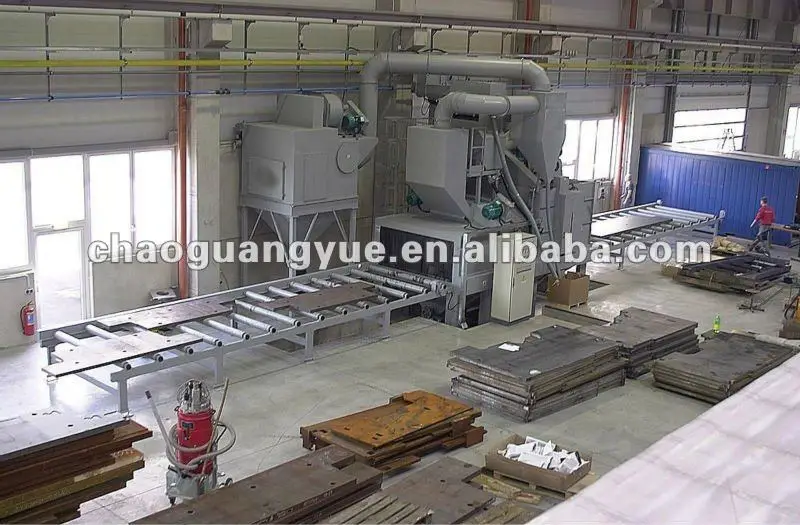

Q378 series is used for surface cleaning, dust removing, and surface intensification of each kind of middle and small scale casting, forging and job. It is suitable for different production scale, can be stand-alone use and many units can also be used in conjunction with the continuous conveyor components, composing the production of clean-up lines.



3. Feature



1. no-pit, no change of track, compact structure

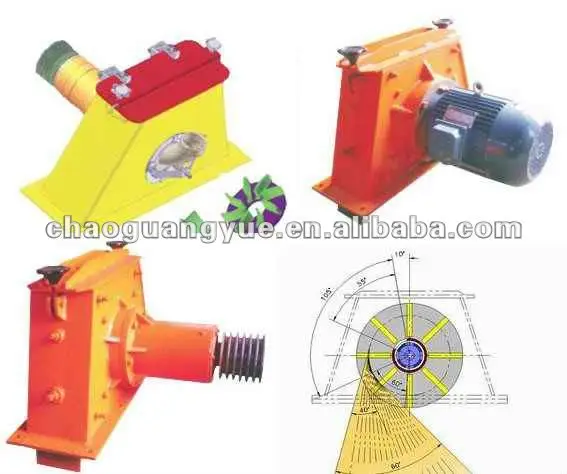

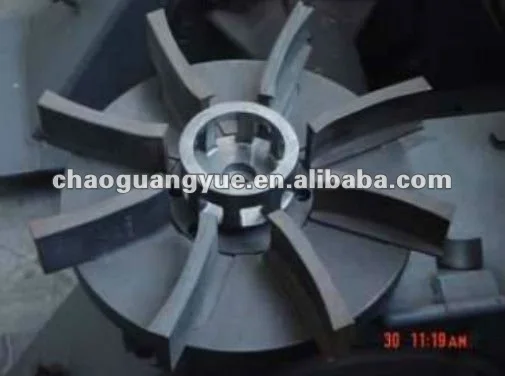

2. High impeller blasting volume



3. High cleaning efficiency, large effective space



4. No-pit form, has no special demand on structure of work piece



5. Suitable for machinery manufacture and foundry industry



6. With dust-collection device and separation device, can be operated easily and also with good condition



7. Convenient maintainance.



4.Certification: CE,SGS,ISO9001



5. Technical Data





No.	Model  Item		Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
1	Width of workpiece	mm	800	1200	1500	2000	2500	3000	4000
2	Size of inlet opening	mm	800*1600	1200*400	1500*400	2000*400	2500*800	3000*800	4000*400
3	Length of workpiece	mm	1200-12000	1200-6000	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
4	Roller speed	m/min	0.5-4	0.5-4	0.5-5	0.5-4	0.5-4.5	0.5-4	2-8
5	Thickness of plate	mm	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-110
6	Abrasive flow rate	kg/min	8*120	4*250	4*250	6*250	6*250	6*360	8*360
7	Abrasive initial fill	kg	4000	4000	4000	4500	4500	8000	11000
8	Adjusting height of rolling brush	mm	400	200	350	450	600	850	900
9	Ventilation capacity	m3/h	22000	17560	19000	19550	27758	28050	38000
10	Total power (no dust collector)	kw	90	78.3	113.6	156.6	224.55	204.8	293.6
