Product Overview
Description
Product Description

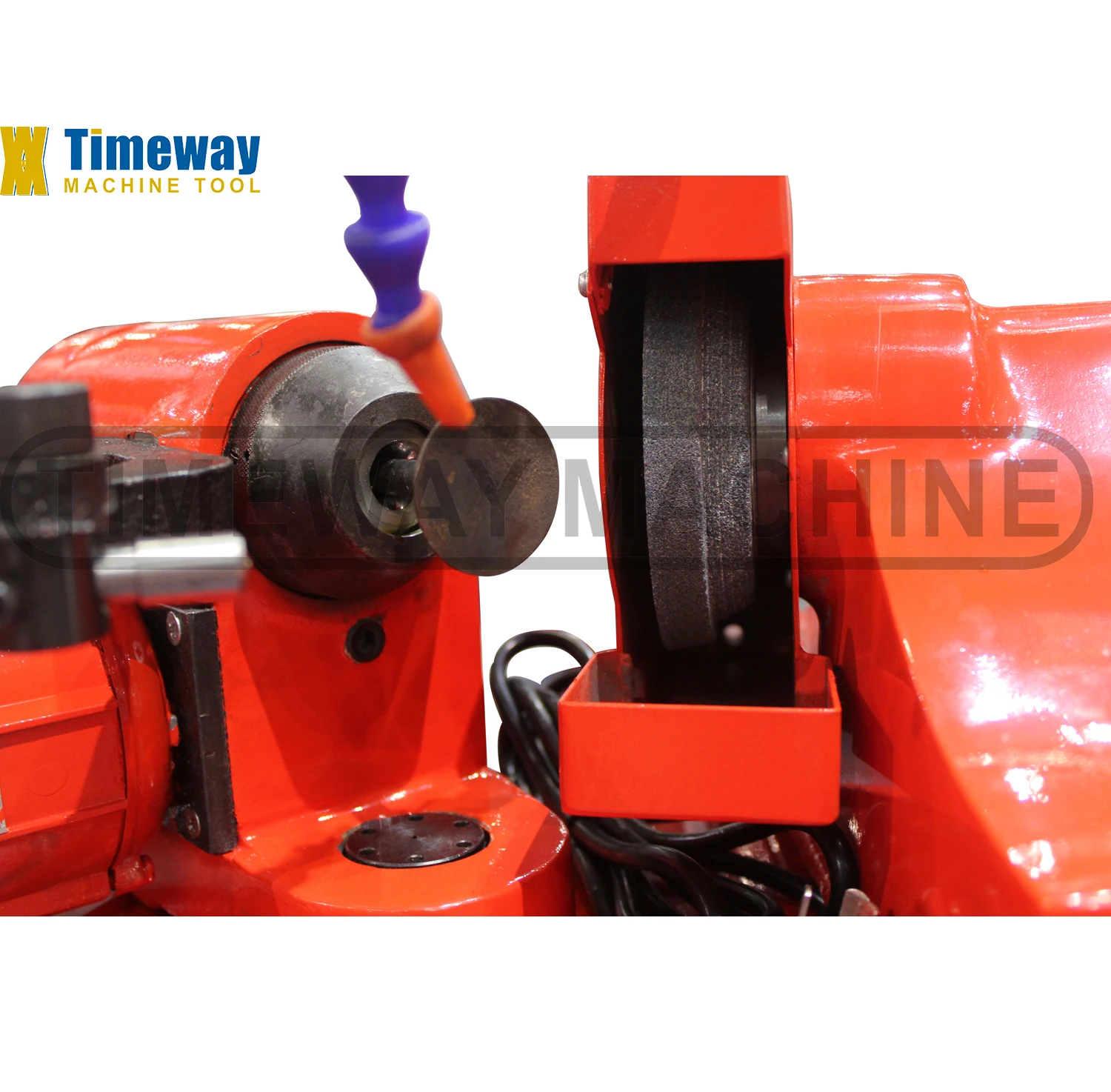

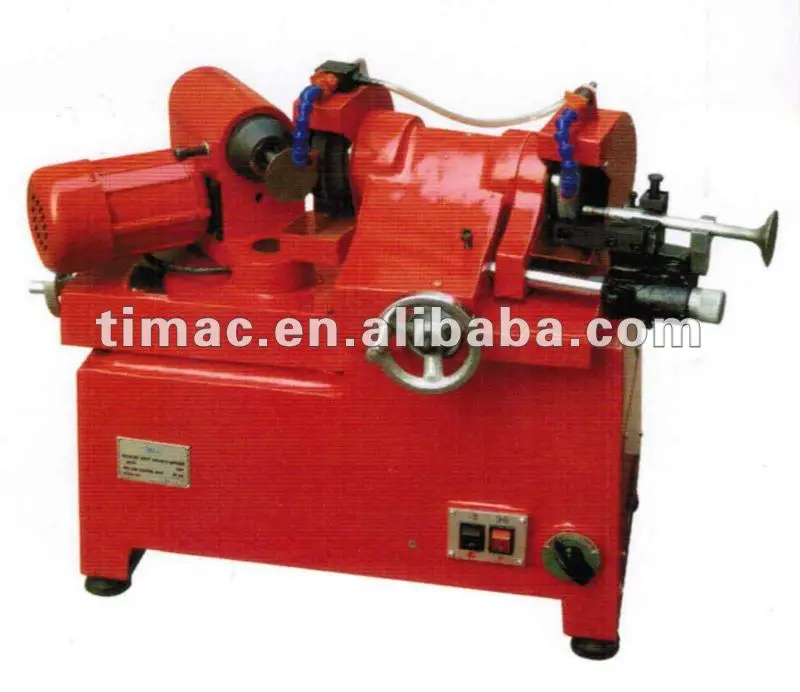

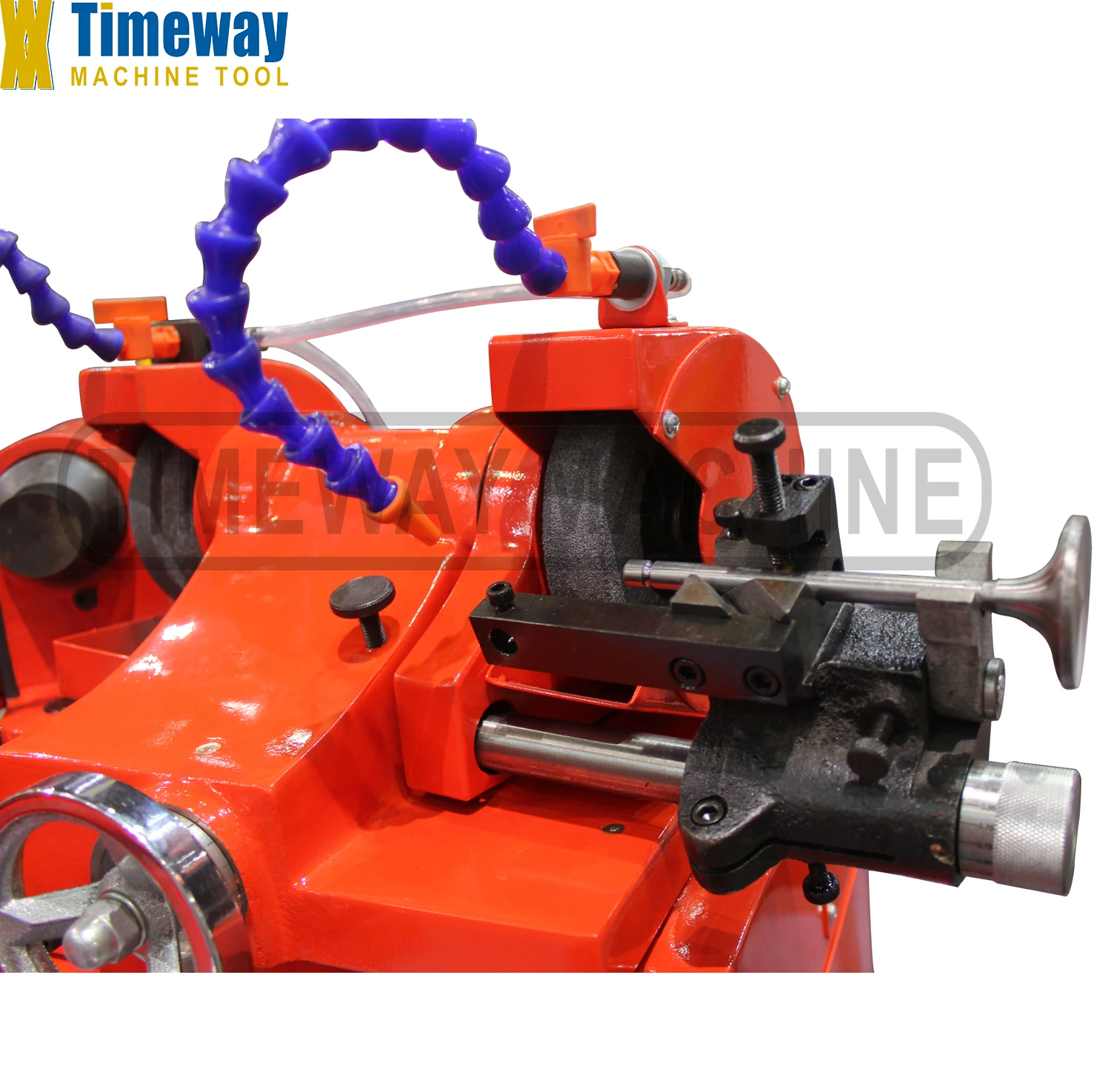

valve grinding machine
Features:
1. This machine is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible operation and easy use.
2. The parts are ground with high surface finish and accuracy.
2. The parts are ground with high surface finish and accuracy.
Specification
Specification | Unit | VR90 |
Max. dia. of valves to be ground | mm | 90 |
Dia. of valve stems to be gripped (standard accessories) | mm | 6-16 |
Dia. of valve stems to be gripped (special accessories) | mm | 4-7 |
Dia. of valve stems to be gripped (special accessories) | mm | 12-18 |
Angles of valves to be ground | (°) | 25-60 |
Longitudinal movement of geared head | mm | 120 |
Transverse movement of grinding wheel head | mm | 95 |
Max. cutting depth of ground valve | mm | 0.025 |
Grinding wheel spindle speed | rpm | 4500 |
Geared head spindle speed | rpm | 125 |
Motor output for geared head | kw | 0.09 |
Weight | kg | 120 |
Overall dimensions (LXWXH) | cm | 68x60x60 |
