The die cutting machines special equipments of diecutting and creasing a wide range of materials,such as cardboard,corrugated board,plastic and leather.They are applicable to the fields of printing,packaging,decoration and plastic industries.The machines have been acceptable for the customers from home and abroad,due to their outstanding features,high quality and good service.
* Sliding bearings are made of high quality alloy cooper,thus to get effect of anti-frietion and shake reducing.
* Flywheel is with big moment of force and large pressure.
* High strength due to one piece casting by using top-ranking material for machine body.
* Single plate electromagnetic clutch is sensitive and reliable.
* With functions of single,continuous and opening dweel operation,dwell range is adjustable.
* Operating position is reasonably arranged,moving-bed can be opened to its optimum.
* Central lubrication system guarantees fine lubrication and reduce friction. * Safety system is reliable.
Technical Parameters:
Model
Max.Rule
Area
Working
speed
Max Rule
Length
Motor
power
Weight
Overall
Dimension
ML-930
930*670MM
20±2
(strokes/min)
<25m
4kw
3000kg
1680*1680*1640mm
ML750
750*520MM
25±2
(strokes/min)
<15m
5.5kw
1900kg
1260*1400*1280mm
ML1040
1040*720mm
23±2
(strokes/min)
<30m
4Kw
3500kg
1760×2000×1750mm
ML1100
1100*800MM
20±2
(strokes/min)
<35m
5.5kw
4500kg
2020*2010*1900mm
ML1200
1200*800MM
18±2
(strokes/min)
<35m
4kw
5000kg
2050*2150*1900mm
ML1300
1300*920mm
15±2
(strokes/min)
<40m
7.5
6200kg
2600*2100*1950mm
ML1400
1400*1000MM
15±2
(strokes/min)
<45m
7.5kw
6500kg
2600*2100*1950mm
ML1500
1500*1050MM
14±2
(strokes/min)
<45m
7.5kw
7000kg
2650*2100*2000mm
ML1600
1600*1250MM
16±2
(strokes/min)
<43m
11kw
11800kg
2170*2560*2080mm
ML1800
1800*1280MM
13±2
(strokes/min)
<60m
11kw
14000kg
2980*2300*2500mm

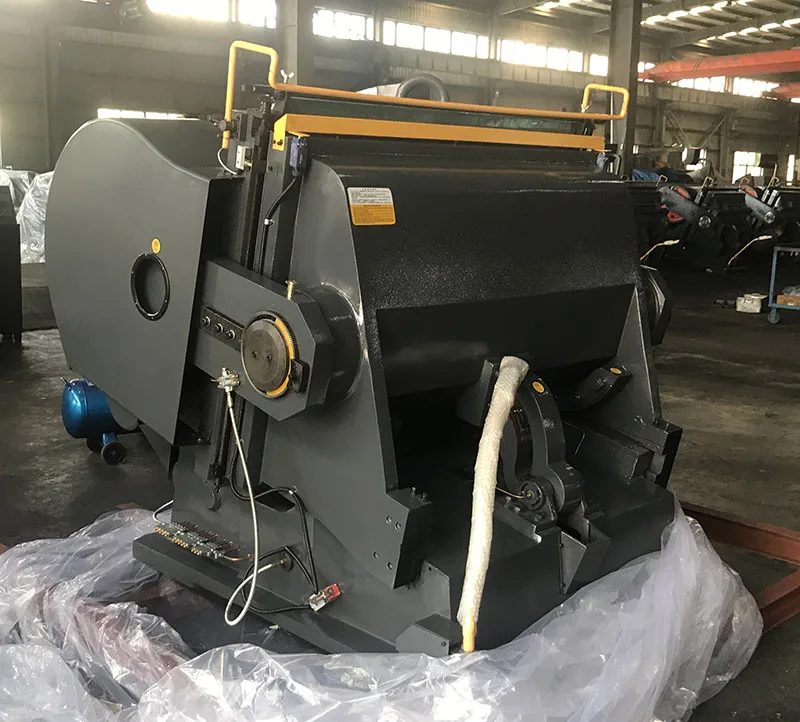

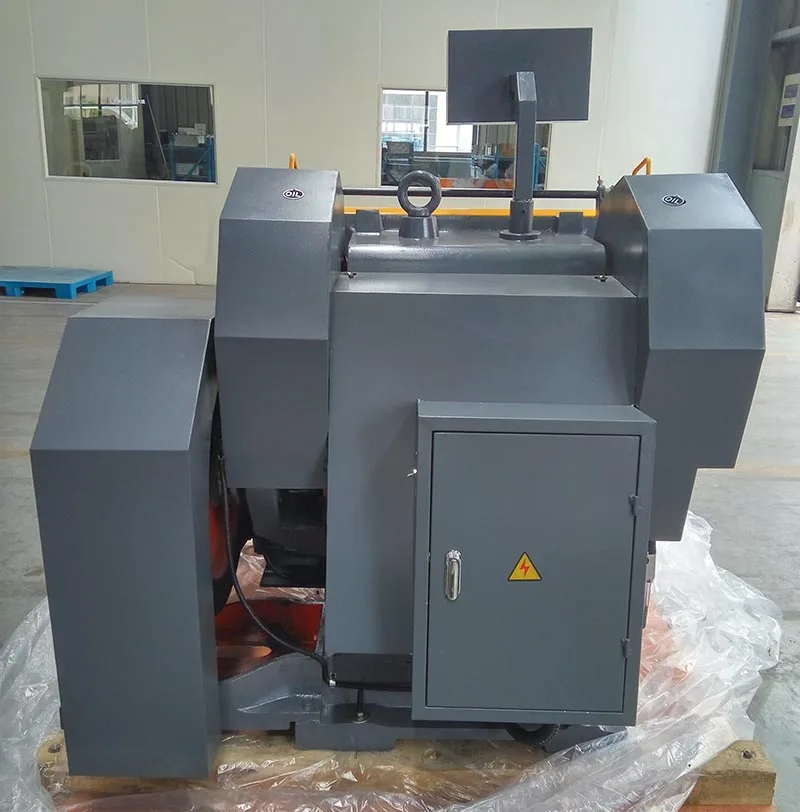

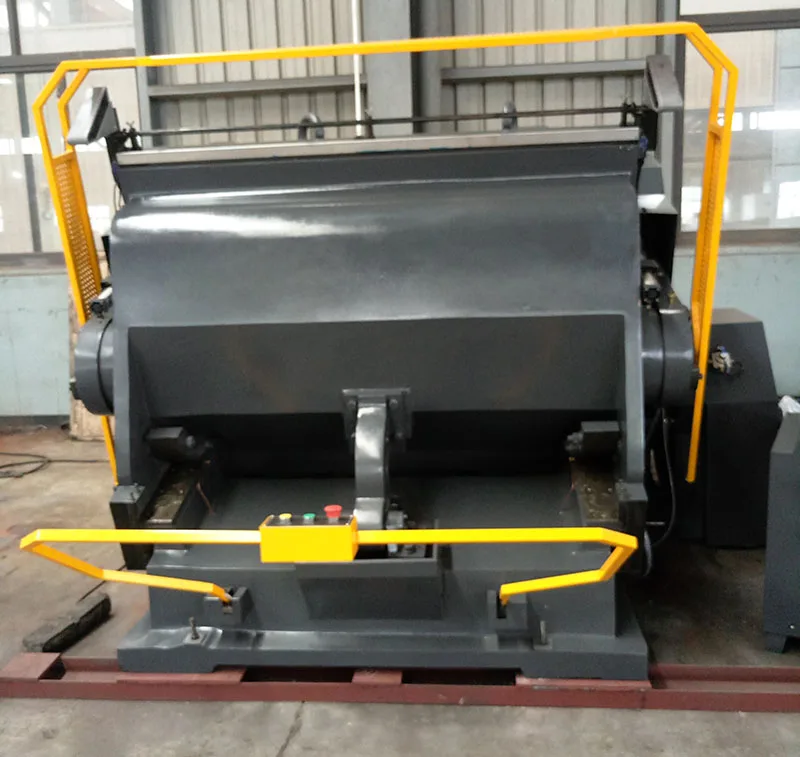

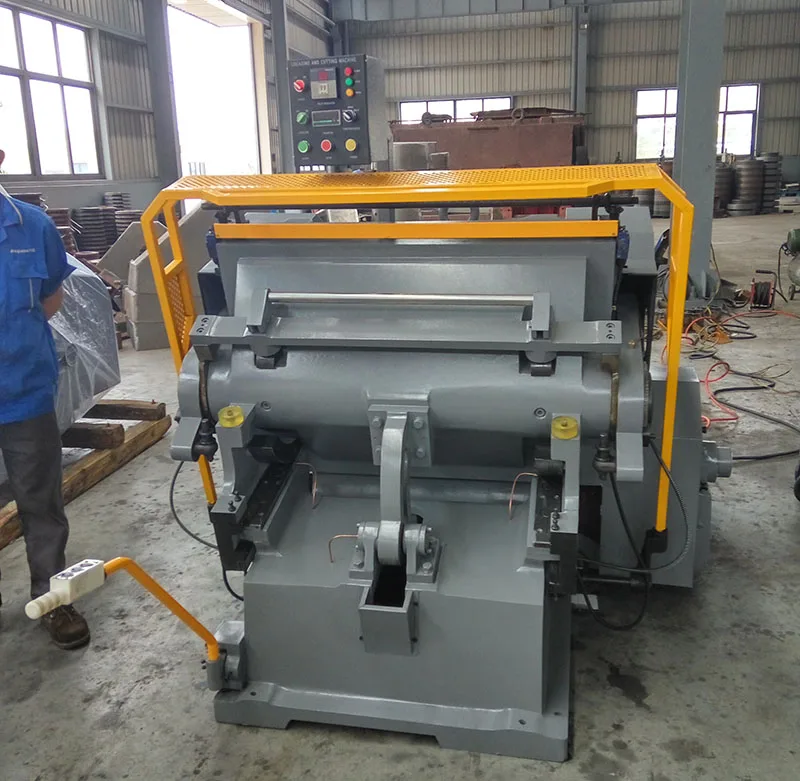

Detailed Images
Packaging & Shipping
Our Exhibition
Company Information
FAQ
1. Q: Are you a factory or trading company? A: We are manufacturer,and also on stop solution for paper printing and packaging machines.
2. Q: what’s the delivery time ? A: Normal production time 25-35 days, but base on different period.
3. Q: Do you have CE Certificate?
A: yes, All machine have CE.
4. Q: Do you have any working machine for us to visit? A: Yes,We have running machine to show.
5. Q: How is the warranty of the machine? A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
6. Q:Is it safe on the payment for me as we are the first cooperation? A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
7. Q: How about installation?
A: We can send engineer to help install the machine, but the charge should afford by you, and we also can take details installation video to you.
