Product Overview
Description
Product Description
Simple Production Line Introduction
QT3-20 , QT3-15, QTY3-20 paver block machine,it has pressure system with hydro-cylinder.The lifting speed fast and the pressure function is well.It could be fully automatic or semi automatic production line as per clients needs. Full line including PLD800 Batching machine, Pan Mixer, Blet conveyor, QT3-20, QT3-15, QTY3-20 block machine, Stack machine, and Molds and so on.
QT3-20 , QT3-15, QTY3-20 paver block machine,it has pressure system with hydro-cylinder.The lifting speed fast and the pressure function is well.It could be fully automatic or semi automatic production line as per clients needs. Full line including PLD800 Batching machine, Pan Mixer, Blet conveyor, QT3-20, QT3-15, QTY3-20 block machine, Stack machine, and Molds and so on.
Specifications of QT3-20 , QT3-15 machine | ||||||
Main machine size | 4000x4000x2700mm | |||||
Pallet size | 700x600mm | |||||
Total electric power | 42.7kw | |||||
Total weight | 5 ton | |||||
Vibration force | 60kn | |||||
Molding cycl2 | 20-30 seconds | |||||
Rated pressure | 15-30Mpa | |||||
Material Consumption | 60-80 ton/day | |||||
Electric Consumption | 38kw.h/day | |||||
Water Consumption | 3.5ton/day | |||||
Worker | 4-5 person | |||||
Capacity of QT3-20 , QT3-15 main machine | ||||||
Size(L*W*H) | QTY/Mould(pcs) | QTY/Hour(pcs) | QTY/8Hour(pcs) | |||
390x240x190mm | 2 | 240 | 1920 | |||
390x190x190mm | 3 | 360 | 2880 | |||
390x140x190mm | 4 | 480 | 3840 | |||
Main Features
The advantage of Molding Machine,
1- Automatic with Siemens PLC control system and Touch-operating Panel, Double Delta frequency converters, use less labor.
2-Hydraulic transmission,mechanical vibration, and hydraulic pressing and forming are adopted
3- Adopting the advanced forced material-feeding & distributing device, More durable.
4- It could make many kinds of color-faced pavement tiles, color-faced grass-planting bricks and curb bricks, as well hollow blocks and interlocking wall bricks by changing different molds.
5- Quality Insurance:
PLC and Motors from Siemens Brand, Hydraulic from Germany Brand Yk.Switches from Siemens or CHTN.
Molds are made of Manganese steel, long lifetime.
6- Certificate: ISO quality control, CE (MD+LVD).- European Quality.
The advantage of Molding Machine,
1- Automatic with Siemens PLC control system and Touch-operating Panel, Double Delta frequency converters, use less labor.
2-Hydraulic transmission,mechanical vibration, and hydraulic pressing and forming are adopted
3- Adopting the advanced forced material-feeding & distributing device, More durable.
4- It could make many kinds of color-faced pavement tiles, color-faced grass-planting bricks and curb bricks, as well hollow blocks and interlocking wall bricks by changing different molds.
5- Quality Insurance:
PLC and Motors from Siemens Brand, Hydraulic from Germany Brand Yk.Switches from Siemens or CHTN.
Molds are made of Manganese steel, long lifetime.
6- Certificate: ISO quality control, CE (MD+LVD).- European Quality.
Detailed Images

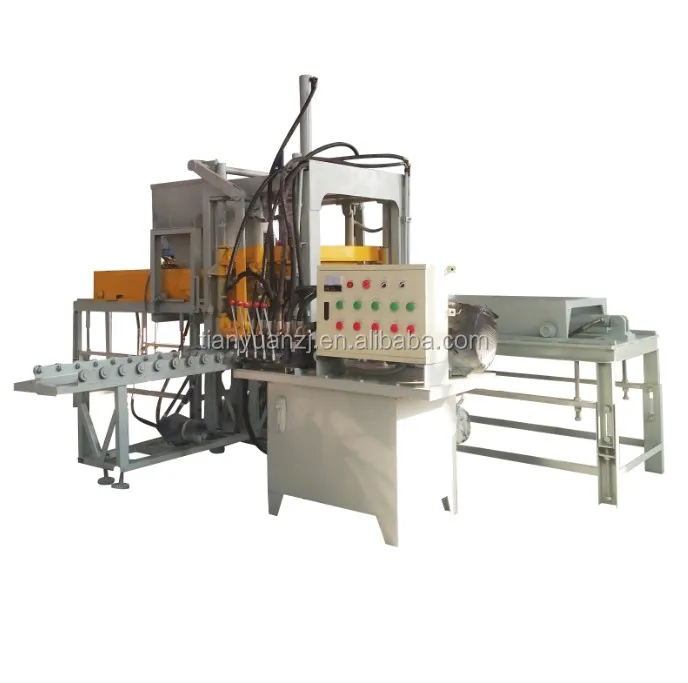

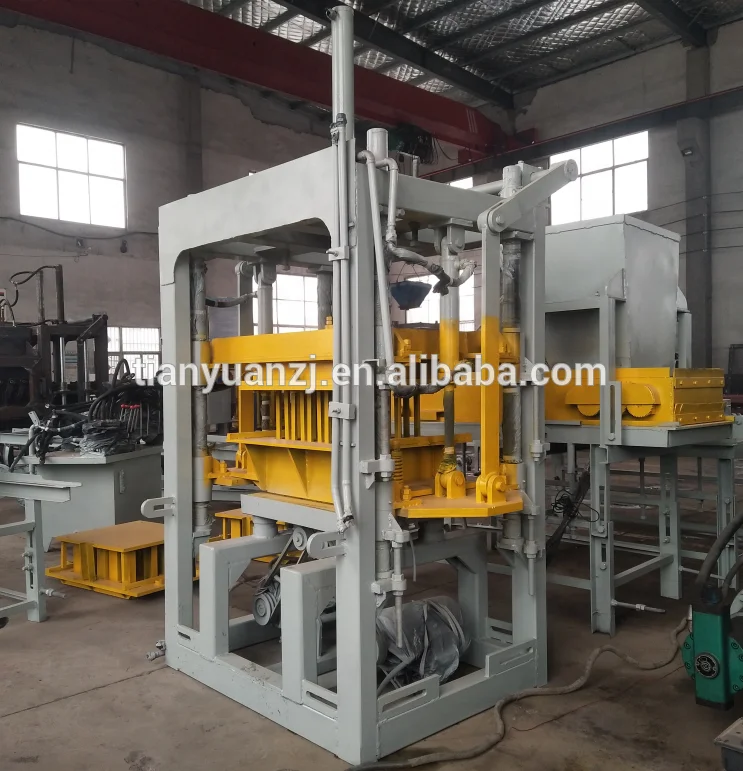

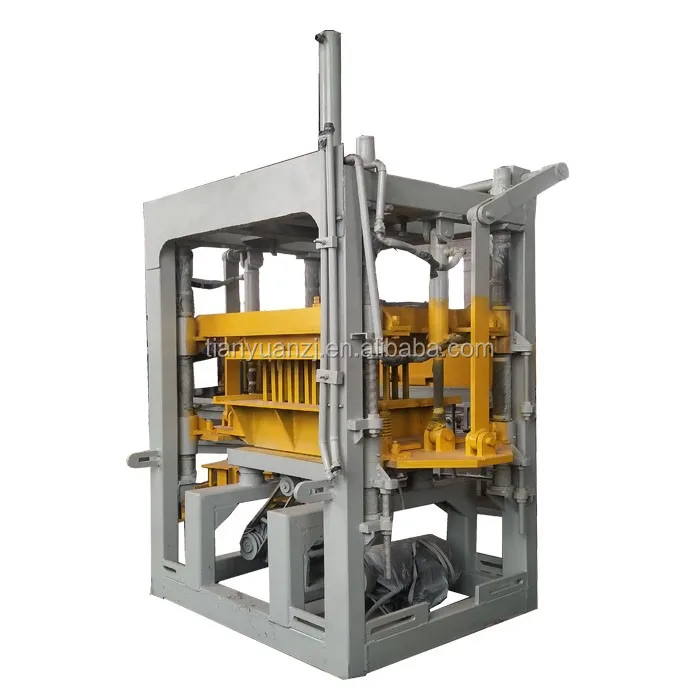

Main press machine

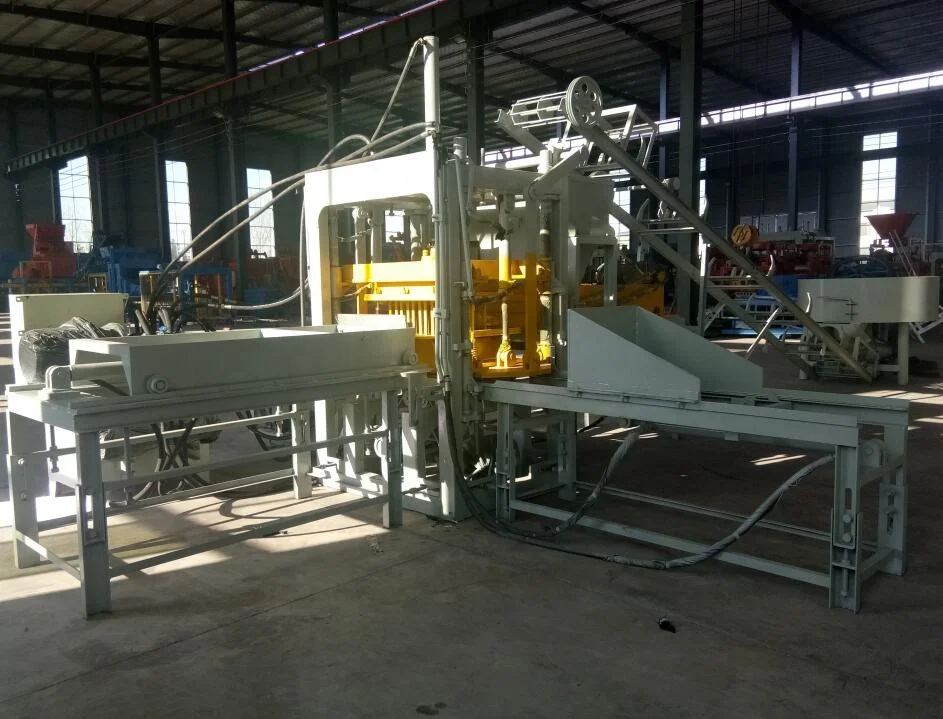

Name: QT3-20 paver brick machine
Brand: Tianyuan brand
Original: China
It is the newest design automatic block machine .Its pressure system with hydro-cylinder.The lifting speed fast and the pressure
function is well.
Brand: Tianyuan brand
Original: China
It is the newest design automatic block machine .Its pressure system with hydro-cylinder.The lifting speed fast and the pressure
function is well.

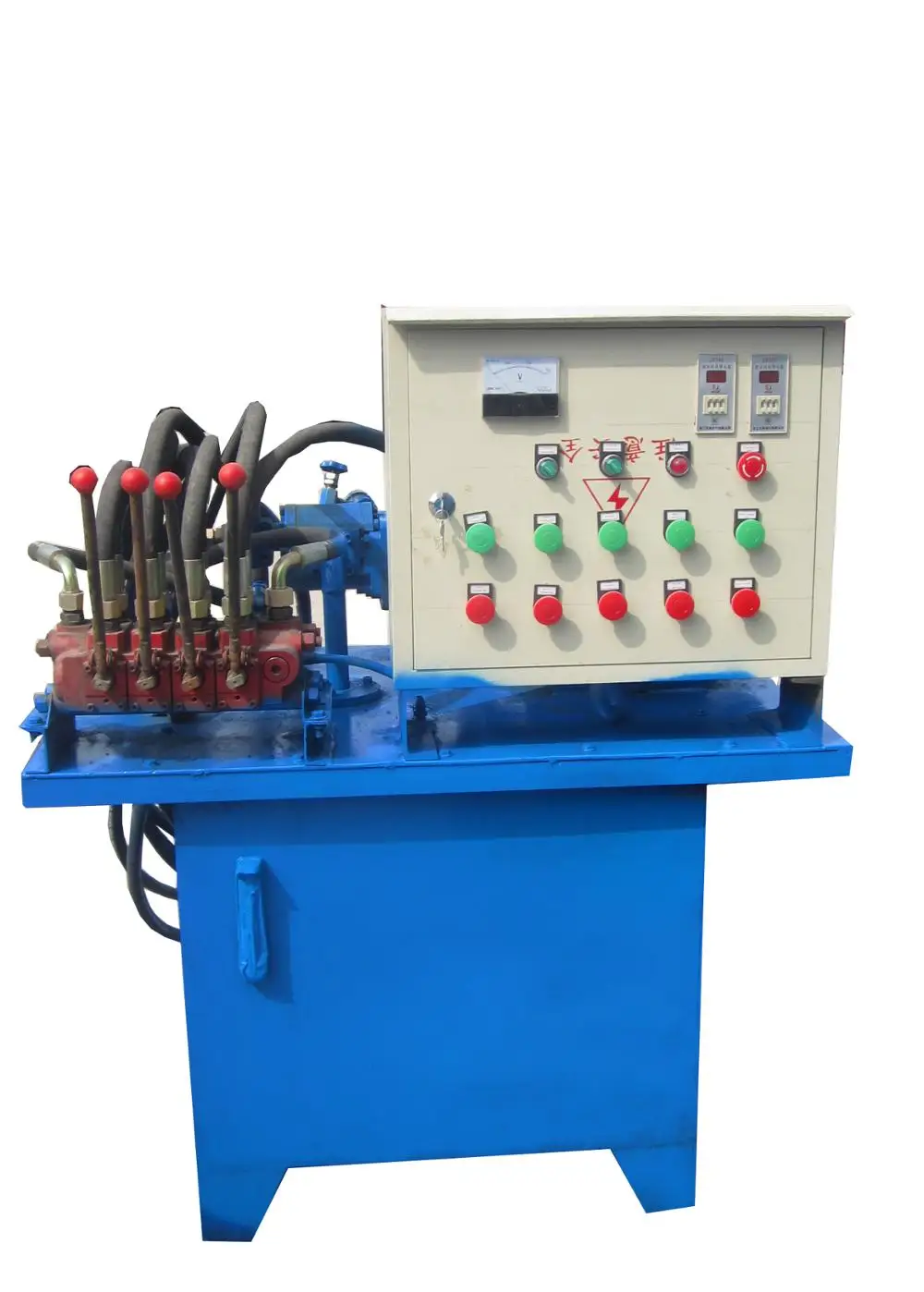

Hydraulic system- Semi model
Name: Hydraulic unit (11kw)
Brand : Pump YK brand
Origin: China , Japan
This unit supply hydraulic pressure to the main machine to ensure the bricks blocks with high density.
For semi machine, the electric box installed on the hydrauic unit.
The handles to control the running parts, such as up mold, down mold, material feeder, color feeder, pallet feeder.
This machine easy install and operation.
PLC box- Automatic model
Name: PLC control(for autoamtic use)
Brand: DELTA
Original: China
Ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
For semi, no PLC control, the running parts controlled by handles.
Brand: DELTA
Original: China
Ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
For semi, no PLC control, the running parts controlled by handles.
Pan mixer (1.5m/500L)
Name: Pan concrete mixer
Brand: Tianyuan brand
Original: China
1.Please first start the mixer, then feeding materials later.
2. Easy feeding, easy control.
Brand: Tianyuan brand
Original: China
1.Please first start the mixer, then feeding materials later.
2. Easy feeding, easy control.
3. Durable Long life
4: motor power 11kw.
5: reducer control.
Belt Conveyor(6m/1.1kw)
It will transport the mixed materials into material hopper for making bricks.
Easy install and operation.
Molds
Name: Brick Mold
Brand: Tianyuan Brand
Original: China
All the molds can make as your design, and one machine can make different kinds blocks/bricks only by changing moulds
Brand: Tianyuan Brand
Original: China
All the molds can make as your design, and one machine can make different kinds blocks/bricks only by changing moulds
Molds are carbon heated, more durable..
Automatic stacker (optional)
Name: Stack machine
Brand: Tianyuan brand
Original: China
1.Use frequency conversion technology enables the stacker to move up and down very smoothly , greatly protect the wet blocks.
2.Motor connected with speed reducer,to make power,and drive the gear moving, thereby lead the system to move.
Brand: Tianyuan brand
Original: China
1.Use frequency conversion technology enables the stacker to move up and down very smoothly , greatly protect the wet blocks.
2.Motor connected with speed reducer,to make power,and drive the gear moving, thereby lead the system to move.
Batching machine (optional)
Name: PLD800 Batching Machine
Brand: Tianyuan Brand
Original: China
1.Weighting accuracy is guaranteed by the high-precision weighing sensor, and the warp ratio is within ±1%.
2.The electronic weighing, microcomputer control, digital display, wired remote control operation
Brand: Tianyuan Brand
Original: China
1.Weighting accuracy is guaranteed by the high-precision weighing sensor, and the warp ratio is within ±1%.
2.The electronic weighing, microcomputer control, digital display, wired remote control operation
