HF MF 13.56MHz ISO14443A RFID Lift access control system, Prepaid Access Control System

Product Overview

Description

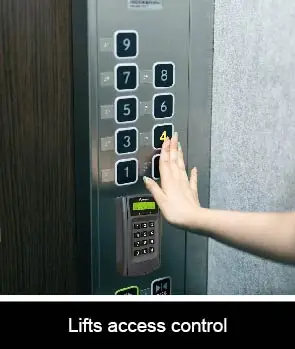

Lift access control system





Introduction

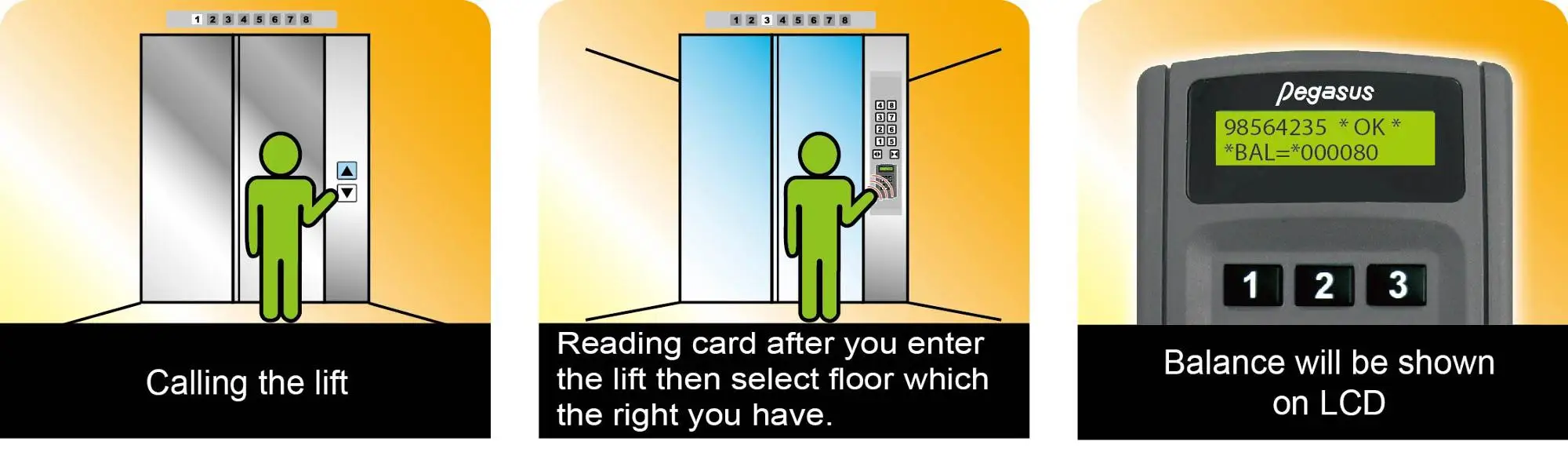

• This system is designed to pay elevator usage fees by contactless prepaid smartcard.
  Supporting on-line or standalone operation.


• The card dispensing software defines and stores the ID number, building number,
  expiry date, prepaid amount and accessible floors into the card.


• Supports access control for maximum 40 floors.


• The controller would alarm when the value is less than 15 units by error sound.


• Supports user card enrollment from controller operation or software upload.


• Prepaid card is locked with specific key to increase security of data.


• For easy different project management, the key can be specified according to request.



System configuration





Ordering information

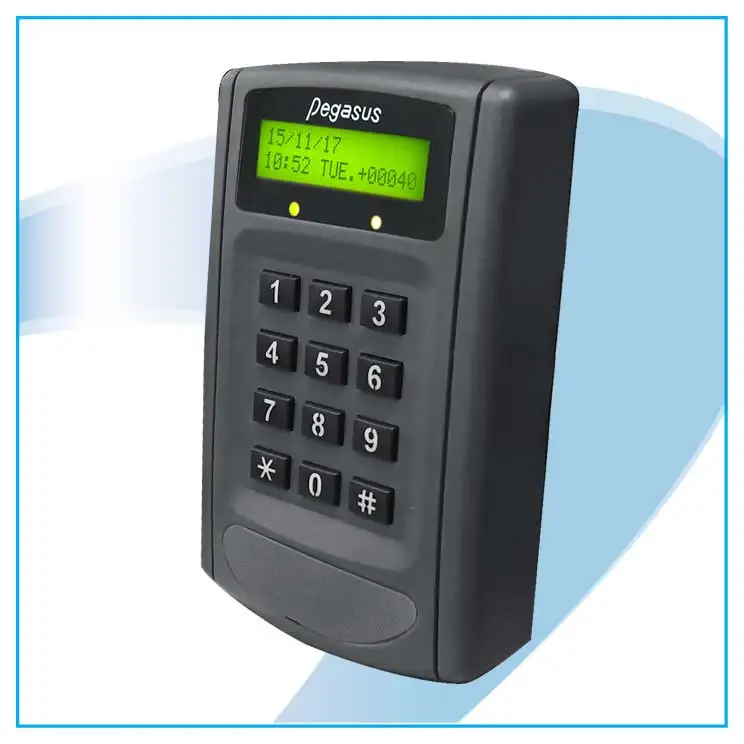

PP-6750VL/M1R5-FLV: Elevator access controller
PUA-310V-0M2R2Y4: 13.56MHz dispenser(RS-232 interface)
PUA-310V-0M2U2Y4: 13.56MHz dispenser(USB interface)
PG-OUTMOD-8: 8 floors relay box
POM-24: 24 floors relay box
PCT-R2R5: RS-232/RS485 Converter
PC-T100: TCP/IP Converter
PCT-UR5: USB/RS485 Converter
PSA-ADV-E-FLV: Elevator payment system software













We reserve the right to change the specification without prior notice or obligation!
