High quality Low price High Speed 45 Degree GD 900 Linear and Circular Chamfering machines
- Category: Chamfering Machines >>>
- Supplier: Dongguan Qiandao Precision Machinery Manufacture Co. Ltd.
Share on (62000089251):
Product Overview
Description

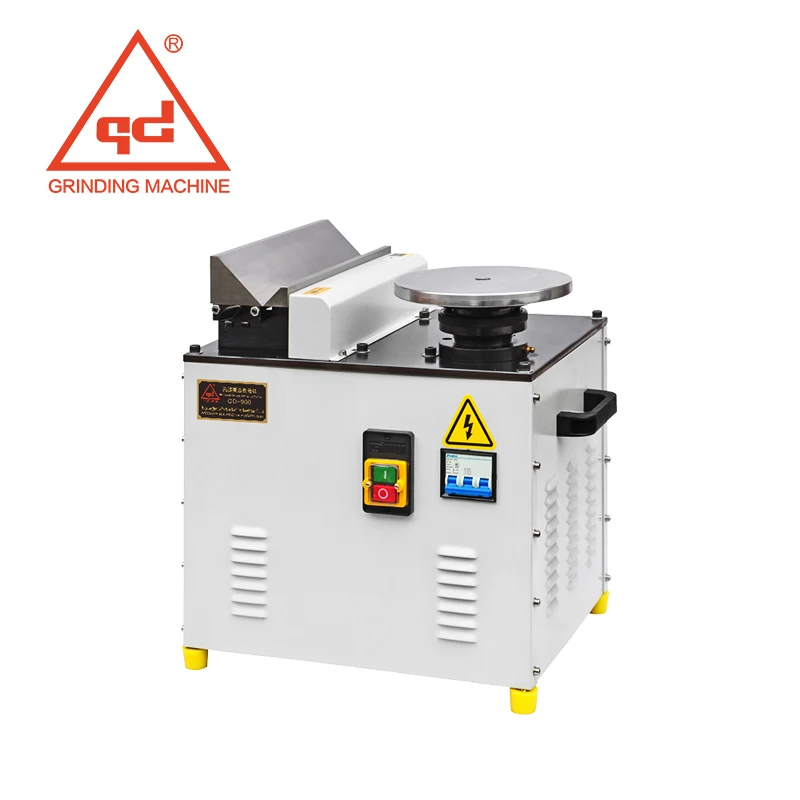

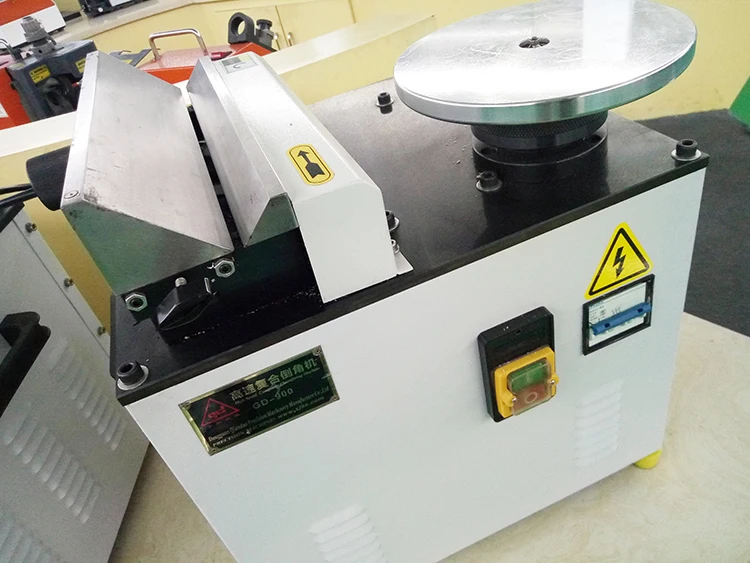

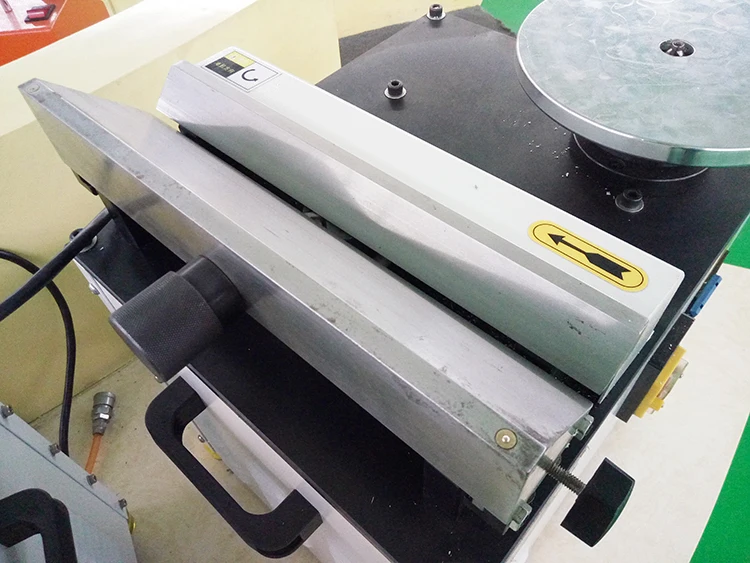

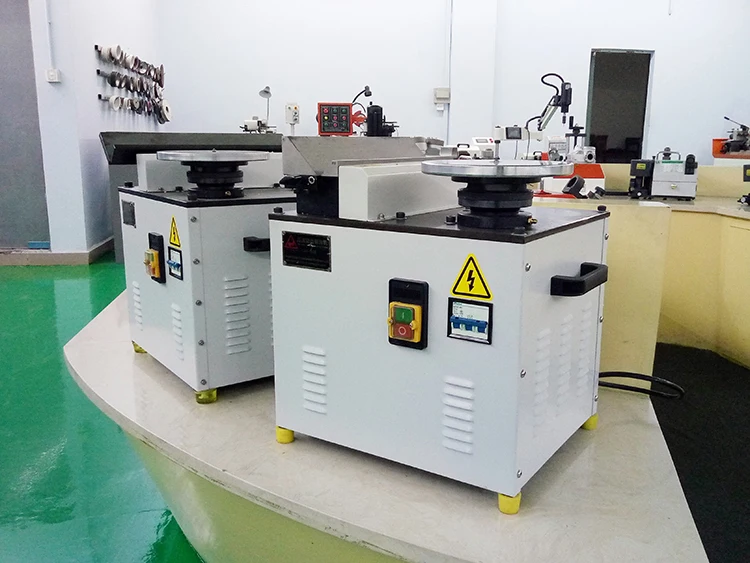

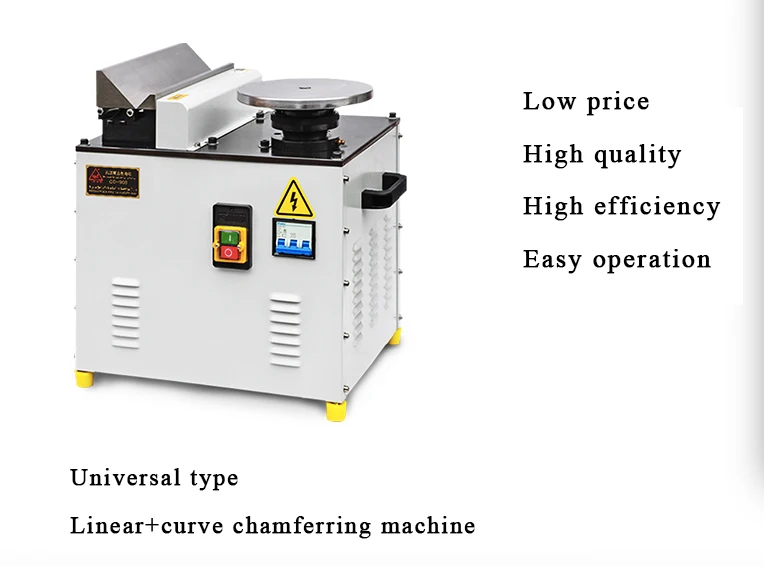

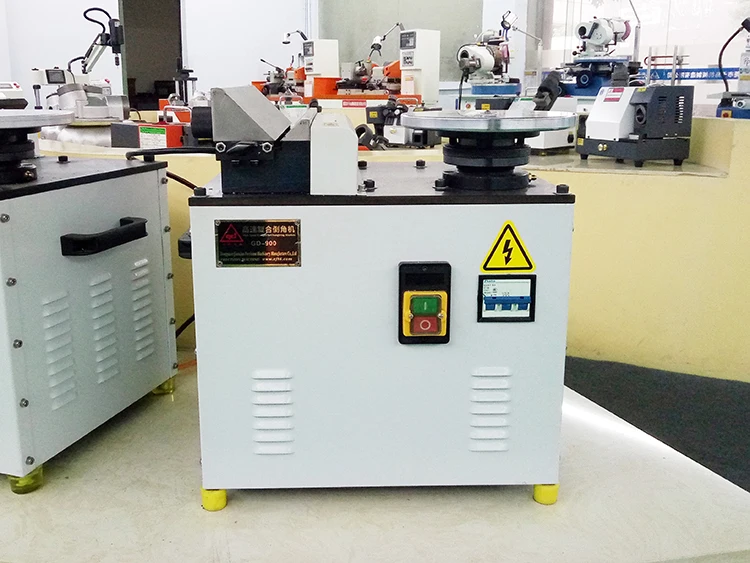

High quality Low price High Speed 45 Degree GD-900 Linear and Circular Chamfering machines
Product Description
Product description
High-speed multifunctional chamfering machine is an auxiliary mechanical equipment developed by our company based on the application of foreign technologies. This machine uses high-quality components, the machine is equipped with a powerful motor of a well-known brand, has advanced design, reliable and stable characteristics, highly efficient, easy to operate (manual support), which saves installation time of gripping appliences, performs highly effective chamfering, suitable for serial processing of products.
Features
1. One machine performs the chamfering of straight, arc-shaped, as well as non-standard curved bevel.
2. The chamfering speed reaches 10,000 rpm. High surface finish quality.
3. The machine is equipped with an imported indexable inserts (rhombus and square shapes), the replacement of which is very convenient. It is suitable for chamfering and removing burrs from products made of carbon and stainless steel, copper, aluminum alloys, cermets, plastics, etc. Chamfering parameters are adjustable 0-3mm. These parameters are very accurate, resulting in a smooth surface.
4. The machine can only chamfer C angle, can not do radius one.
Specifications
Power: 1.1kw, 380V
Depth: 0~3mm
Speed: 8800rpm
Bevel angle: 900: 45°/ 900H: 1-45°
Net weight: 900: 68kg/ 900H: 66kg
Mechanical Maintenance and maintenance:
The machine should be regularly checked and maintained in accordance with the following:
1. Clean after work, clean up the remains of iron on the machine, keep the machine clean.
2. Check the tightness of the belt, adjust if necessary.
3. Always check whether all parts is fastening with screws, avoid them being loose.
4. Every six months put lubricating oil on arbor and bearing parts.
Company Information
FAQ
1.Q: What is your MOQ of this item?
A: Our MOQ is one set.
2.Q: What is the delivery time?
A:It will take 5~7 days if the goods are in stock, and 15-30days if the goods out of stock, depends on your order quantities.
3.Q: Is it all right to make our own brand name?
A: OEM is acceptable.
4.Q: Where is your Loading Port?
A: Shenzhen / Guangzhou ,China port.
5.Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in drill bit grinder, end mill re-sharpener, screw tap re-sharpener, lathe tool grinder, saw blade re-sharpener, chamfer, universal cutter grinder, tapping machine and electrical tapping machine more than 10 years.
6.Q:How many exhibitions will you participate in every year?
A: As last year we took part in 10~20 exhibitions, which include 3 exhibitions in oversea.
7.Can you provide the CE certification?
A: Yes, we can provide CE certification for our products.
Welcome to visit our factory ~
