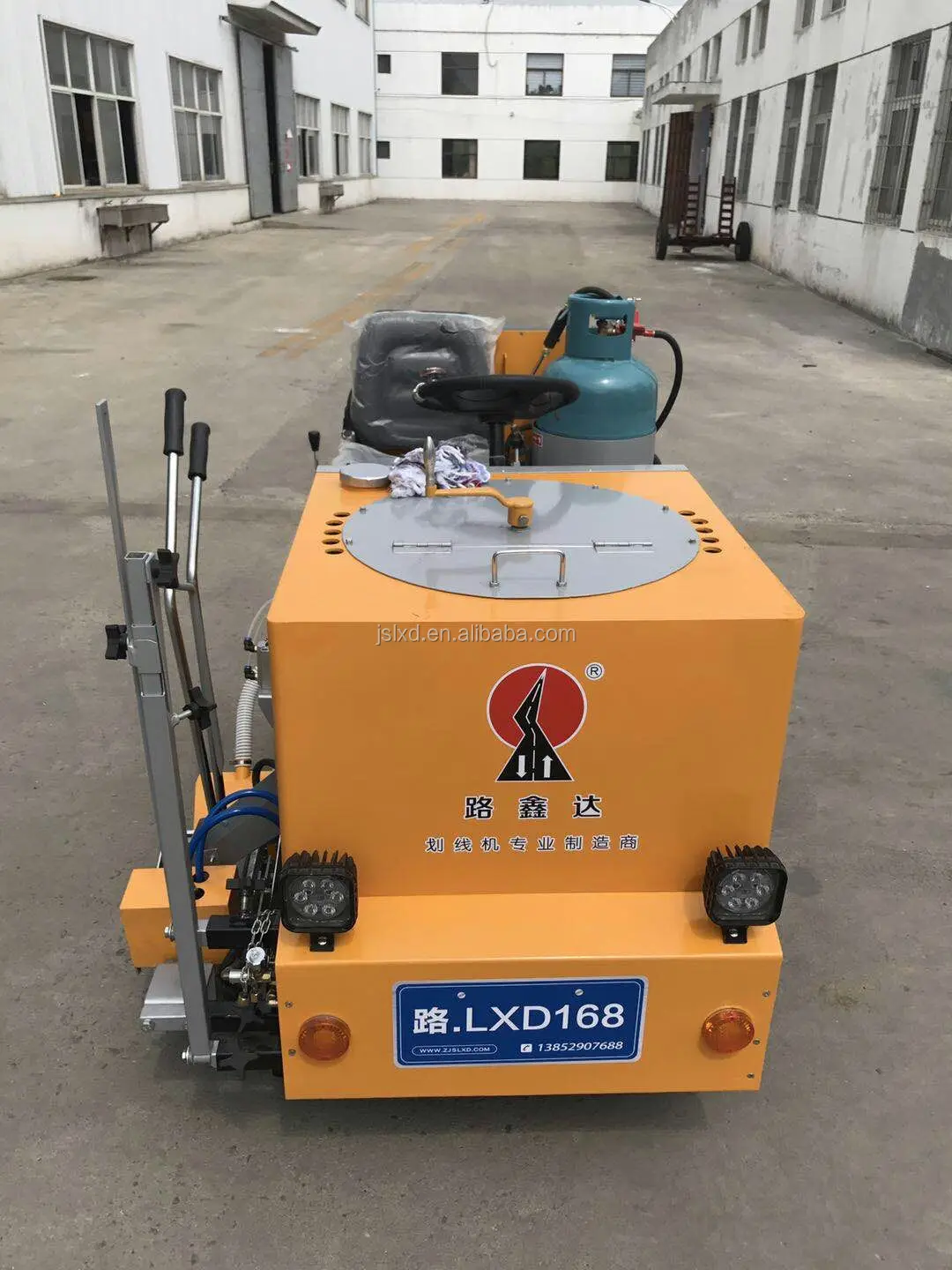

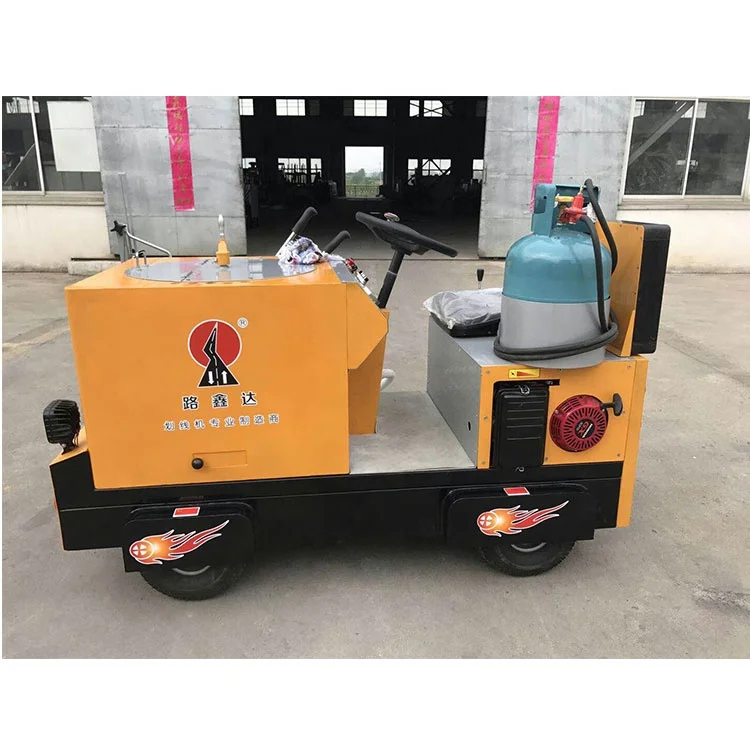

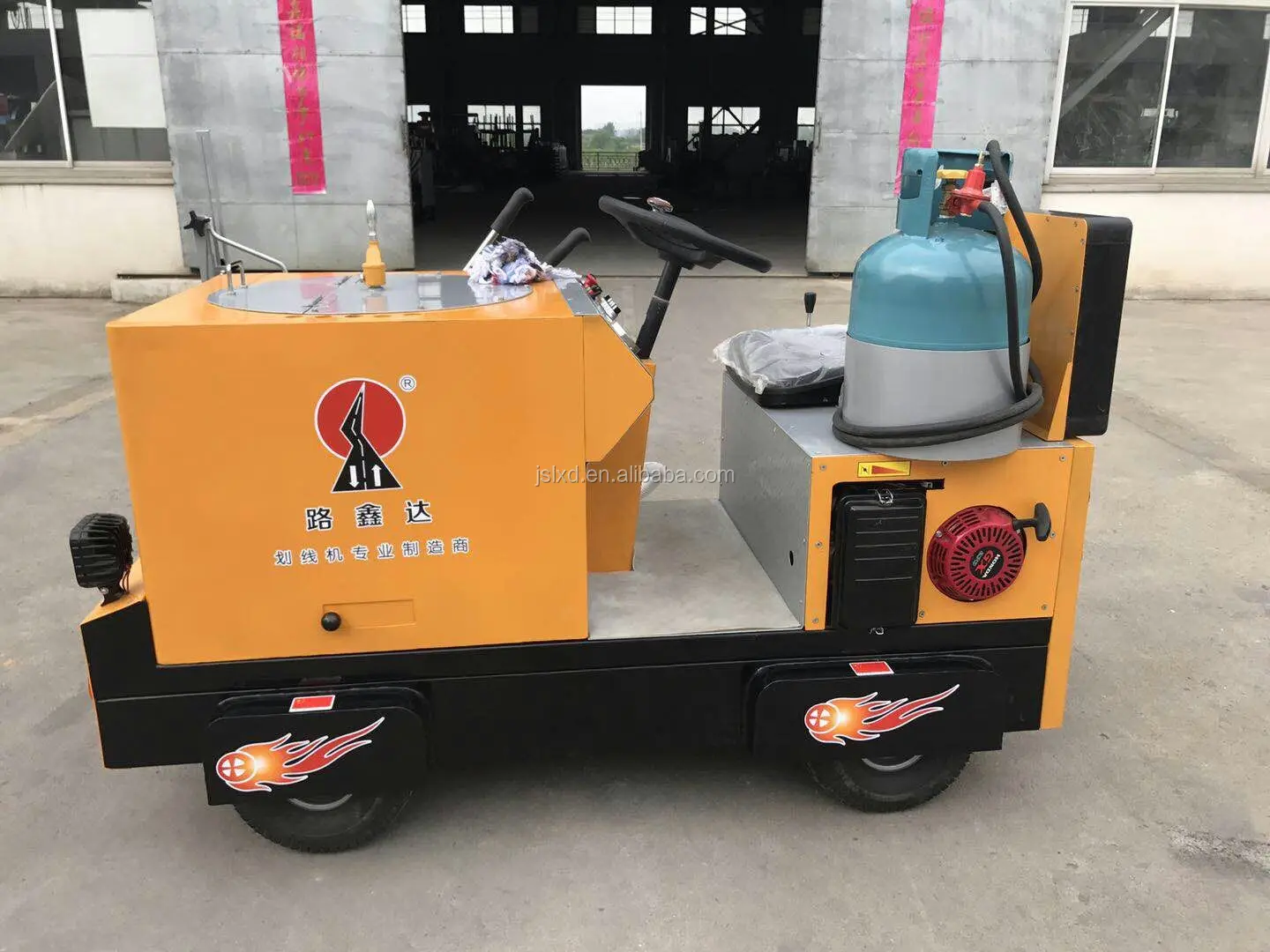

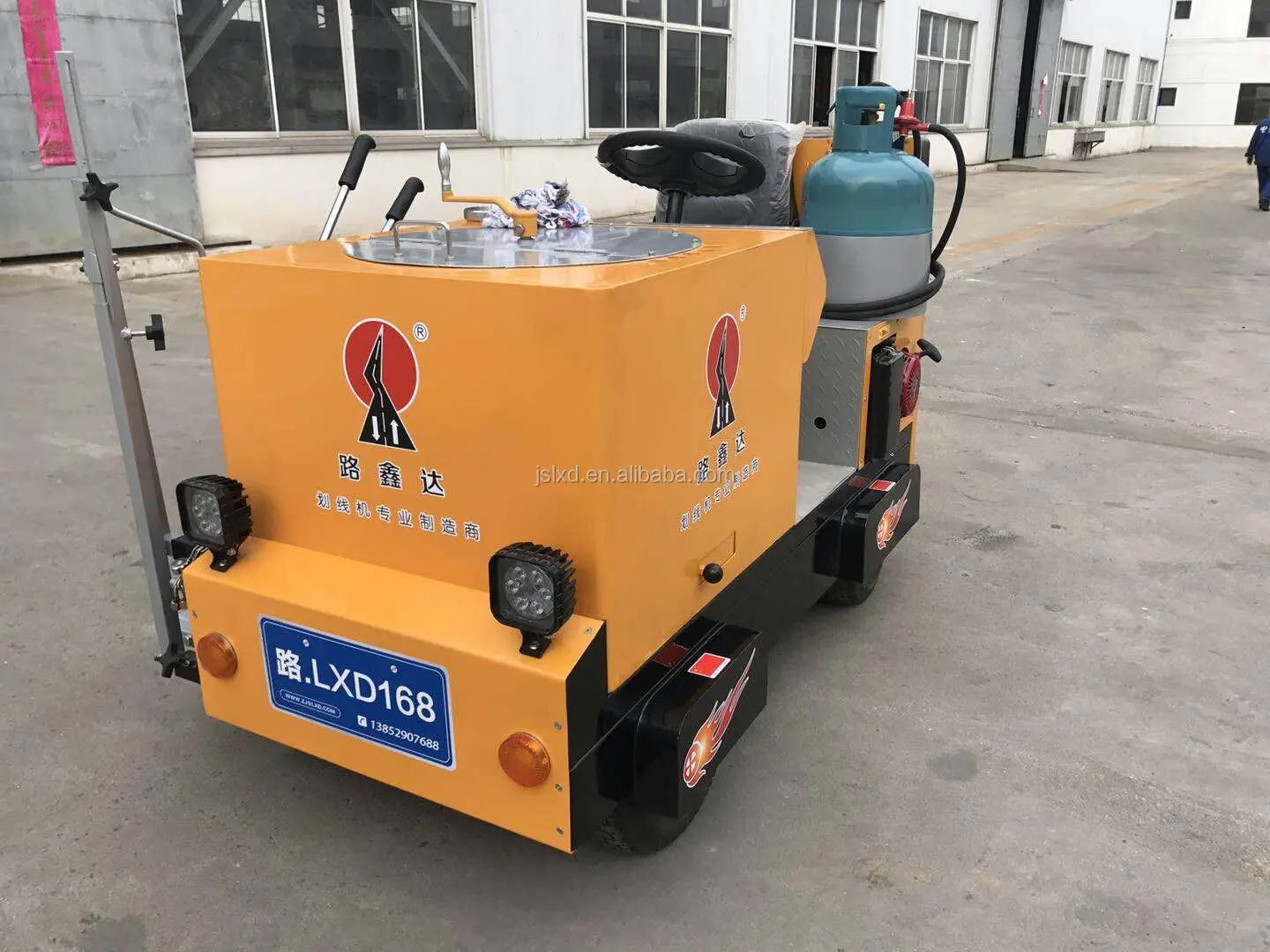

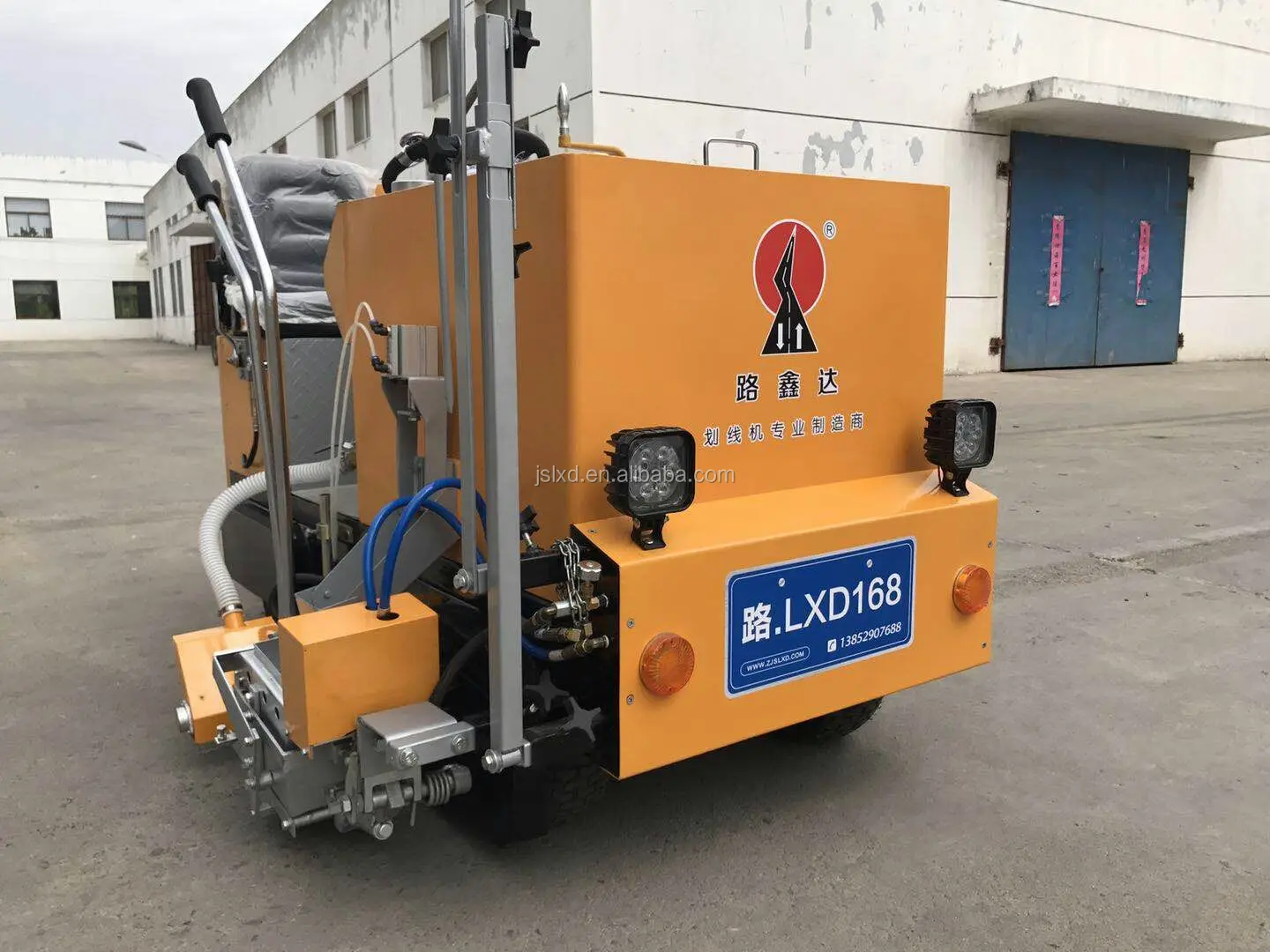

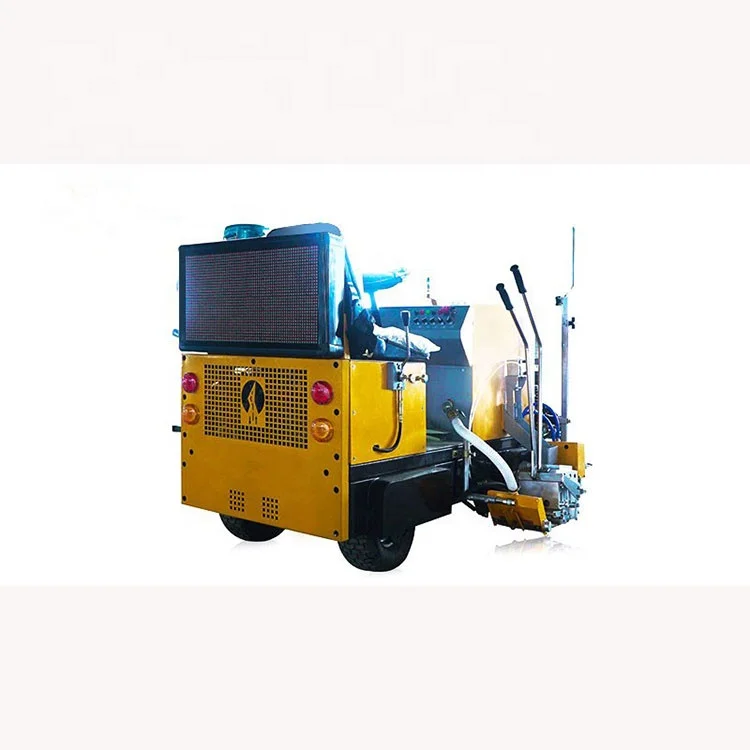

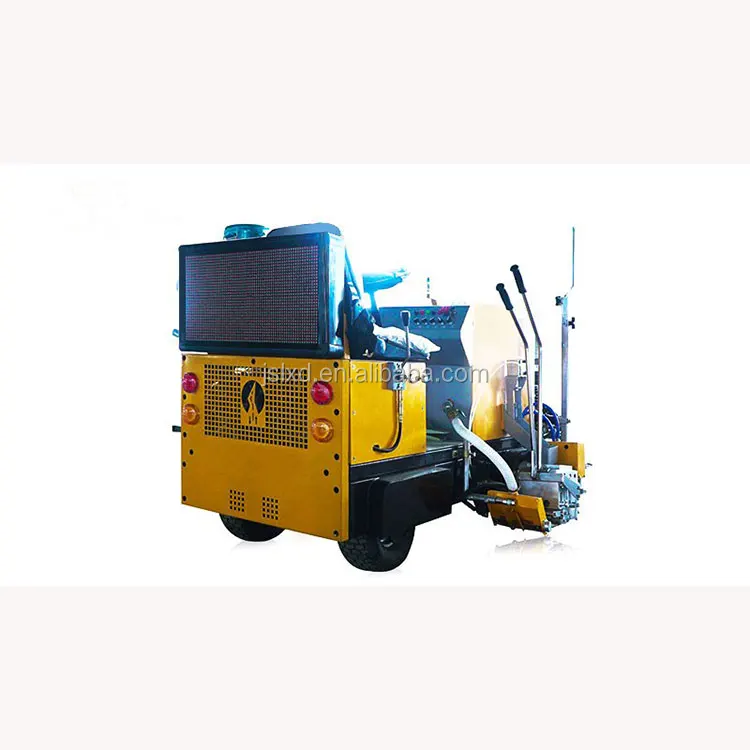

LXD168 driving type multi functional road marking machine

Specification

LXD168 driving type multi-functional thermoplastic(convex) road marking machine is a Practical and multifunctional equipment,it has high level of automation,high safety coefficient,it can help reduce labour intensity,imporve efficiency of construction. According to customers’ requirement,the machine can be applied to Hot melt spraying, Hot melt extrusion, hot melt vibrating and Hot-melt scraping etc. by just replace some parts.

Engine:

Honda GX270(LPG)

 heat method:

 Vehicle Control System:

CPU computer board imported from Siemens

Work pattern:

dual mode(flat line and rib line)

driving system:

LPG power,hydraulic drive,infinitely variable speeds

compressor:

imported air compressor,

working pressure:

pressure of blast pump : 0.4—0.6kg

paint tank capacity :

0.1413m³(can accommodate about 225kg paint)

beads box capacity:

0—15km/h

working speed:

40°

maximum gradeability:

0-10mm

rib line height:

50-450mm(optional)

line width:

High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line

 vehicle wheel:

2 front wheel and 2rear-wheel,Duralon material,15×6.00—6NHS

lamp:

LED Lighting lamp,caution light,turn light,control panel display lamp

Size:

1900mm×1220mm×1300mm(not include pointer)

pointer length:

2m(extension-type)

weight:

570kg
