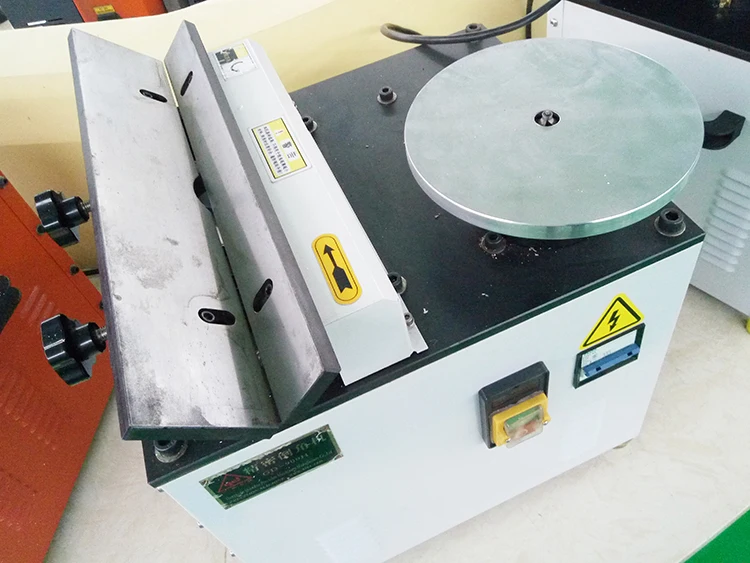

High-speed multifunctional chamfering machine is an auxiliary mechanical equipment developed by our company based on the application of foreign technologies. This machine uses high-quality components, the machine is equipped with a powerful motor of a well-known brand, has advanced design, reliable and stable characteristics, highly efficient, easy to operate (manual support), which saves installation time of gripping appliences, performs highly effective chamfering, suitable for serial processing of products.
Features
1. One machine performs the chamfering of straight, arc-shaped, as well as non-standard curved bevel.

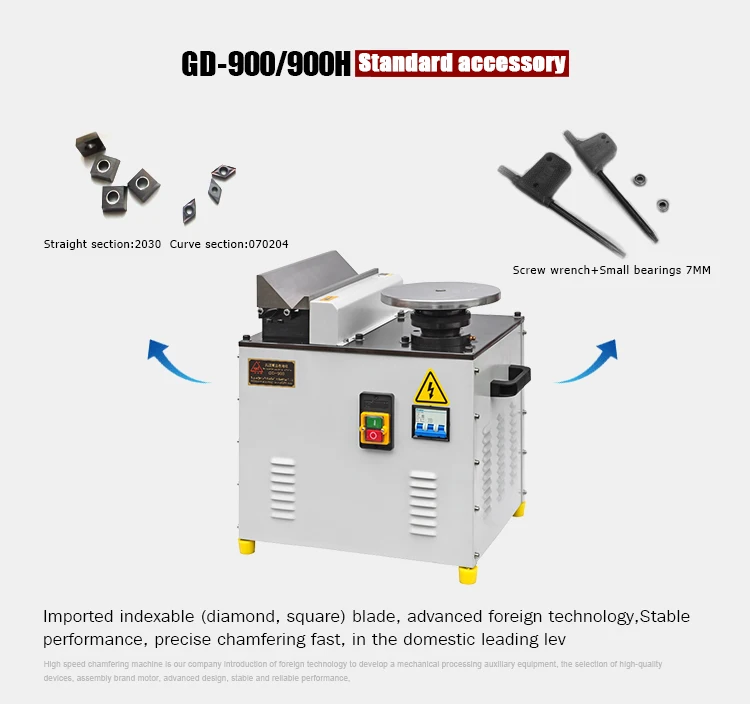

2. The chamfering speed reaches 10,000 rpm. High surface finish quality. 3. The machine is equipped with an imported indexable inserts (rhombus and square shapes), the replacement of which is very convenient. It is suitable for chamfering and removing burrs from products made of carbon and stainless steel, copper, aluminum alloys, cermets, plastics, etc. Chamfering parameters are adjustable 0-3mm. These parameters are very accurate, resulting in a smooth surface.
4. The machine can only chamfer C angle, can not do radius one.
The machine should be regularly checked and maintained in accordance with the following:
1. Clean after work, clean up the remains of iron on the machine, keep the machine clean. 2. Check the tightness of the belt, adjust if necessary. 3. Always check whether all parts is fastening with screws, avoid them being loose. 4. Every six months put lubricating oil on arbor and bearing parts.
