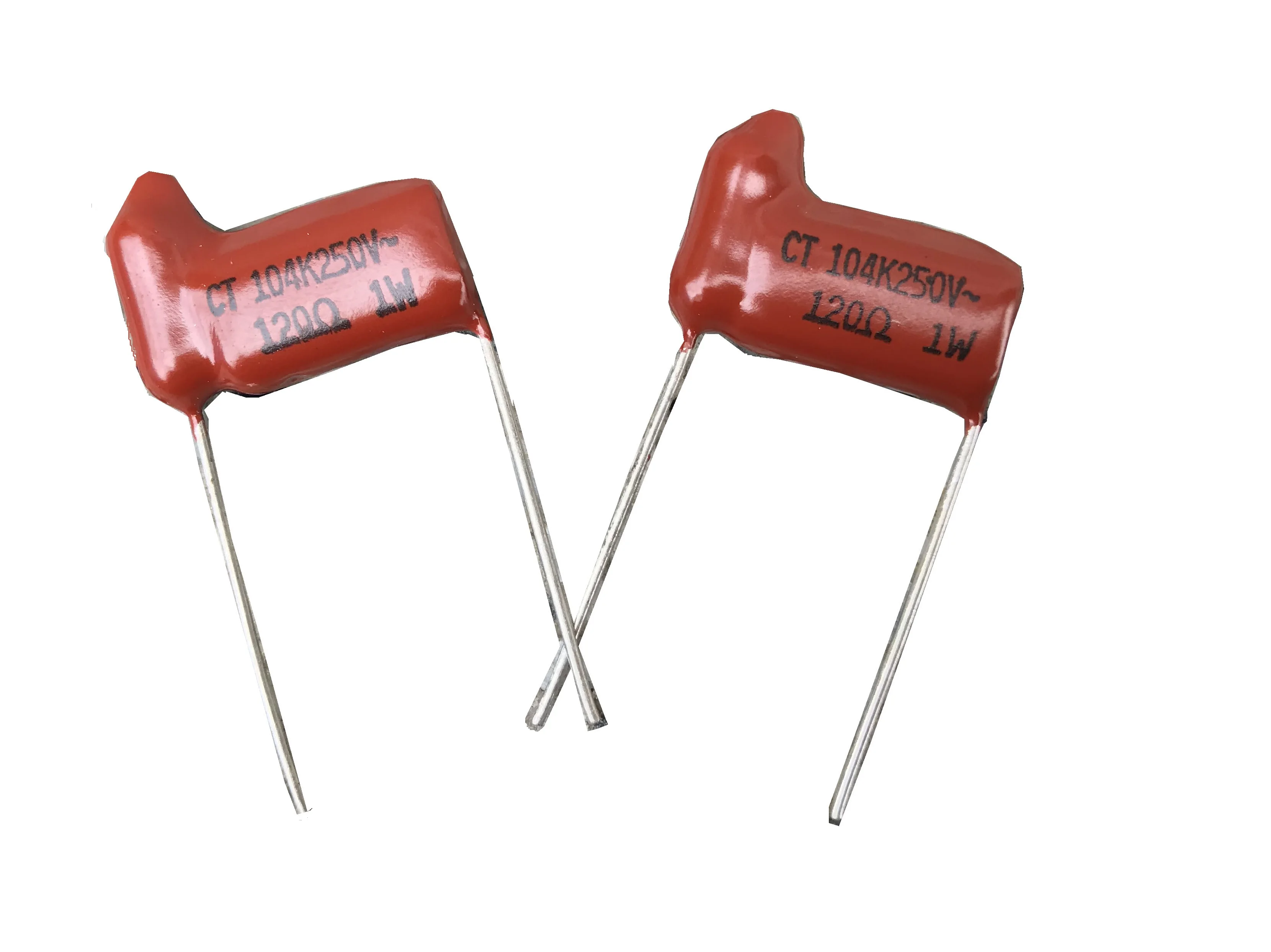

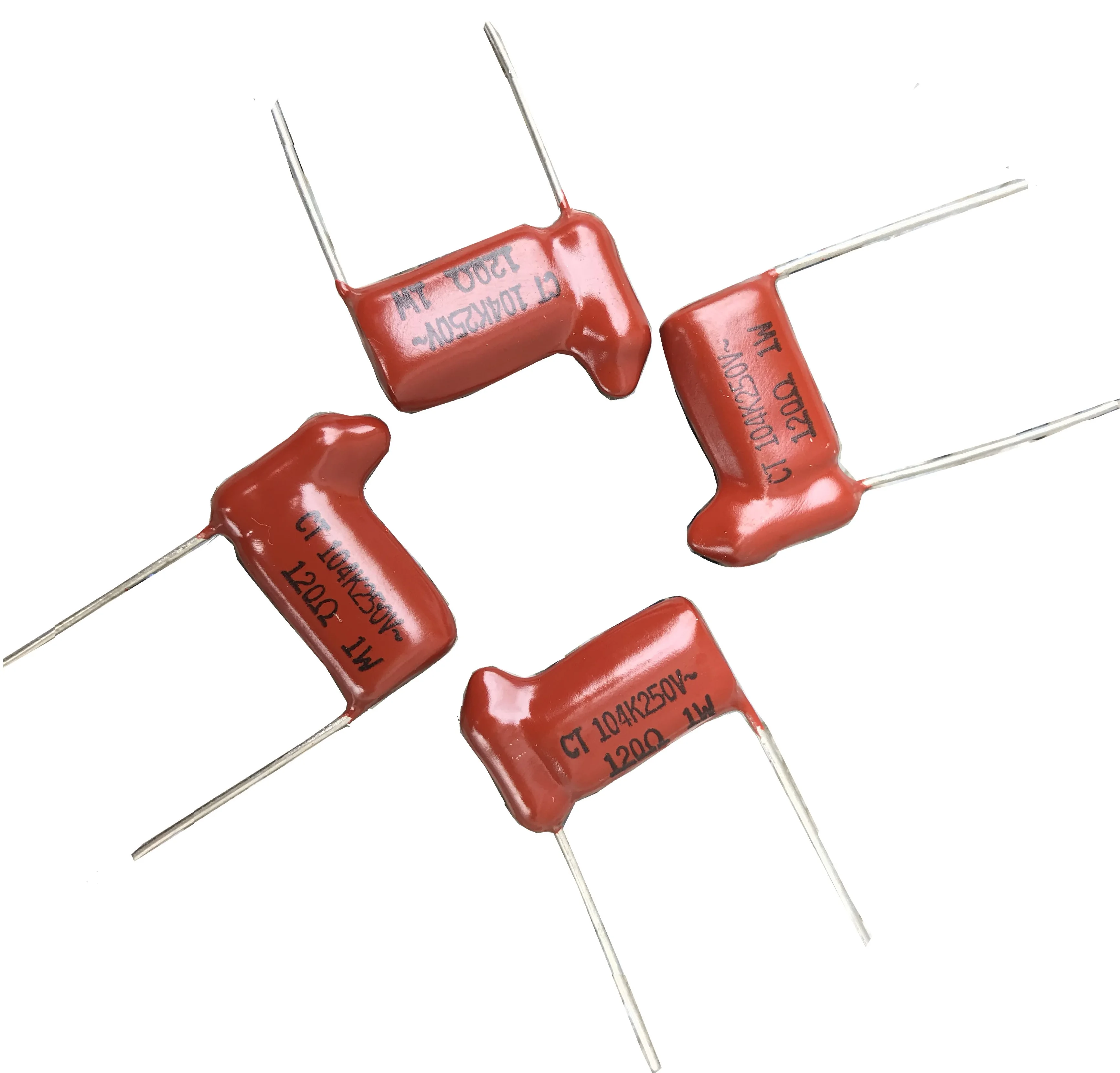

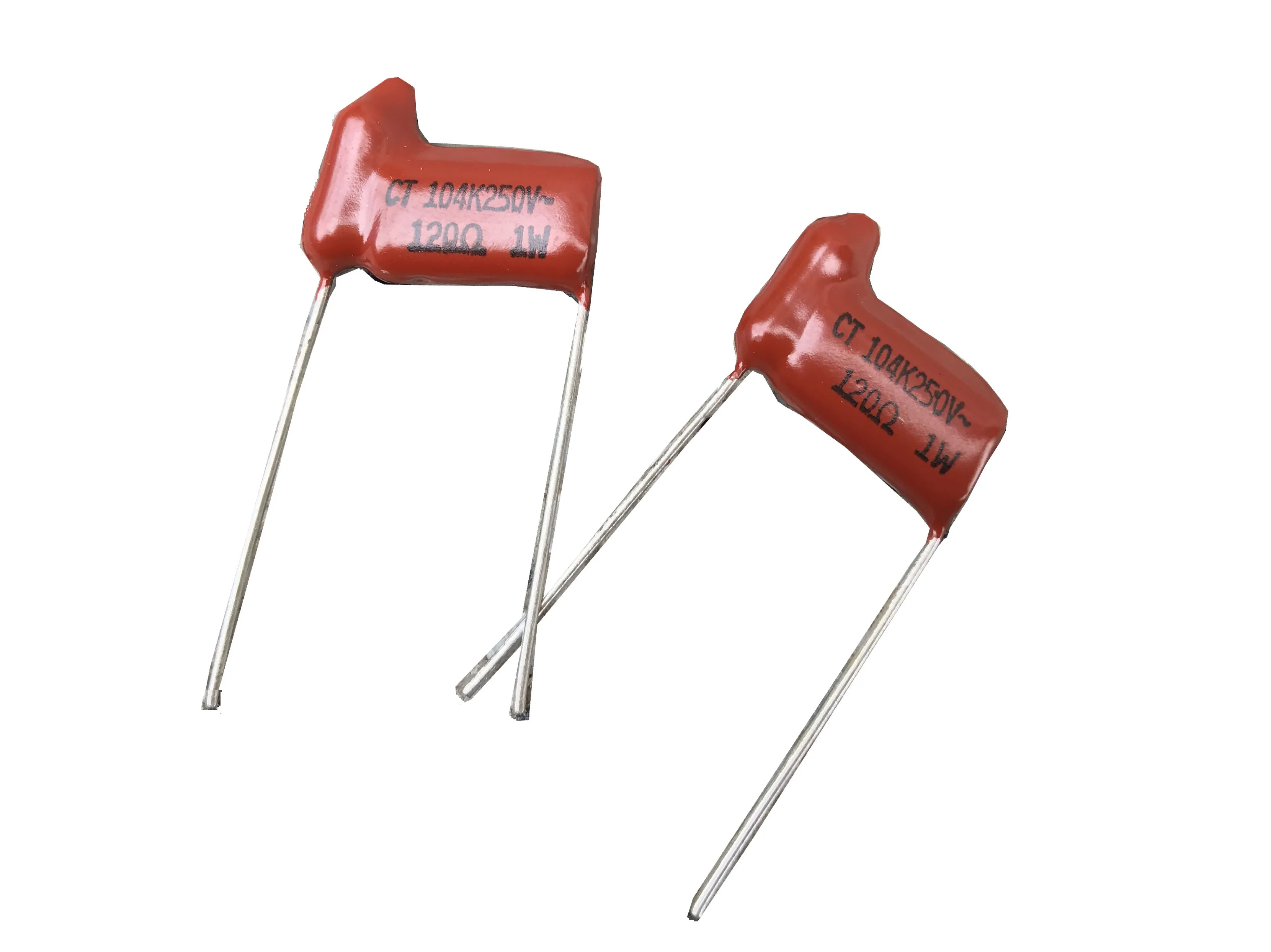

Конденсатор искрового убийца

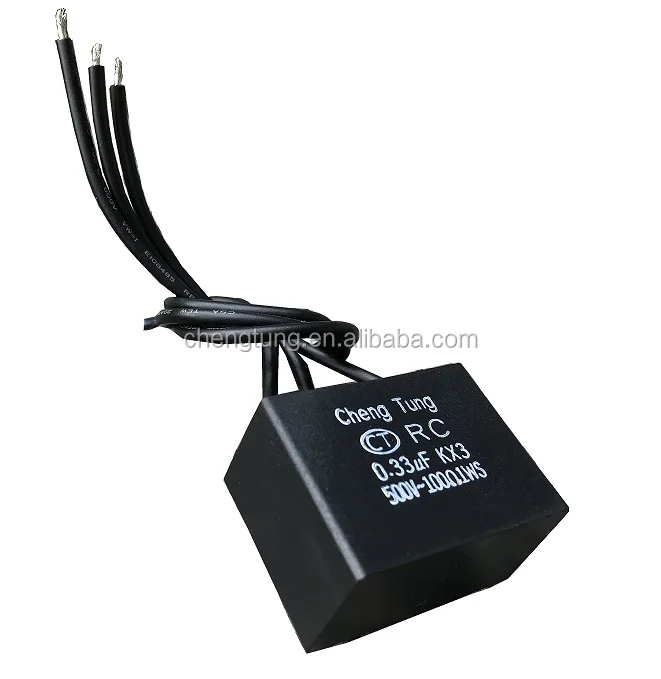

TYPE: RC

FEATURES

 APPLICATIONS

•


  There is ability of good anti-pulse





•


  Safety protection function





•


  Integration design makes higher reliability and less assembly




• Protection for contacts from noise during switching operations of equipment


• Electrical noise protection of semiconductor equipment during the control of triacs , thyristors , motors , welder , ets

SPECIFICATIONS

  Dielectric

  Metal Polypropylene film

  Resistor

  Metal oxide film

  Coating

   Encapsulated in flame retardant

  (UL94V-0) plastic case and epoxy resin end seal.

  Leads

  Radial leads of tinned wire

  Climatic Catalogue

  40 / 100 / 21

  Capacitance versus Rated Voltage  (U_R)

250V / 300V.AC,(50/60Hz)  0.0047uF ~ 1uF

  Capacitance Tolerance

   J = ± 5%  K = ±10%  M = ± 20%

 Resistance and Power

10 ~ 470 ohms , 1/4,1/2,1, 2 watt

  Voltage Proof

  T-T  WV × 1.6  1min

  T-C  WV × 2+1000VAC  1min

  Insulation Resistance

C<=0.33uF  IR>=15,000MΩ

C>0.33uF  IR>=50,000MΩ / uF
