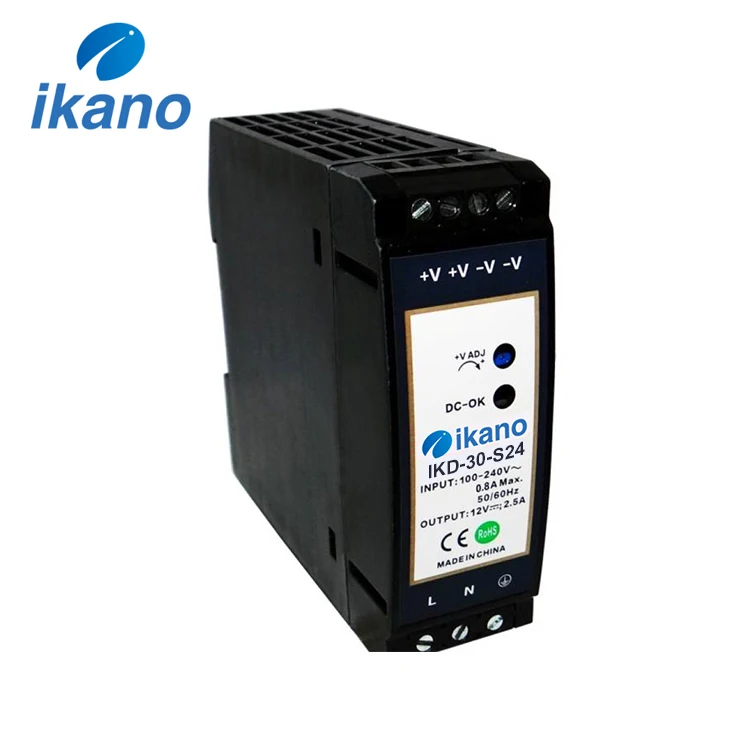

30w/24v din rail industrial power supply
- Category: >>>
- Supplier: IKANO INTERNATIONAL CO. LTD.
Share on (62000432467):
Product Overview
Description
Product Description
Product Description
| IKD-30-S12 | IKA-30-S24 | |||
| OUTPUT | DC Output | 12V | 24V | |
| Rated Current | 2.5A | 1.25A | ||
| Current Range Note 1 | 0~2.5A | 0~1.25A | ||
| Ripple and Noise Note 2 | 10<Ta≤50℃ | ≤50mV | ||
| -20≤Ta≤10℃ | ≤100mV | |||
| Voltage ADJ. Range | 12~14V | 24~28V | ||
| Voltage Accuracy | ±1.0% | |||
| Line Regulation | ±0.5% | |||
| Load Regulation | ±1.0% | |||
| Set-up Time | <1500mS(230Vac input, Full load) | |||
| Hold up Time | ≥20mS(230Vac input, Full load) | |||
| Temperature Coefficient | ±0.03%/℃ | |||
| Overshoot and Undershoot | <5.0% | |||
| INPUT | Voltage Range | 90Vac~264Vac | ||
| Frequency Range | 47Hz~63Hz | |||
| Power Factor (typical) | / | |||
| Efficiency ( Typical) | 83%(230Vac input, Full load) | 85%(230Vac input, Full load) | ||
| AC Current (max.) | <0.8A | |||
| Inrush Current (Typical) | <45A/230Vac Cold start | <50A/230Vac Cold start | ||

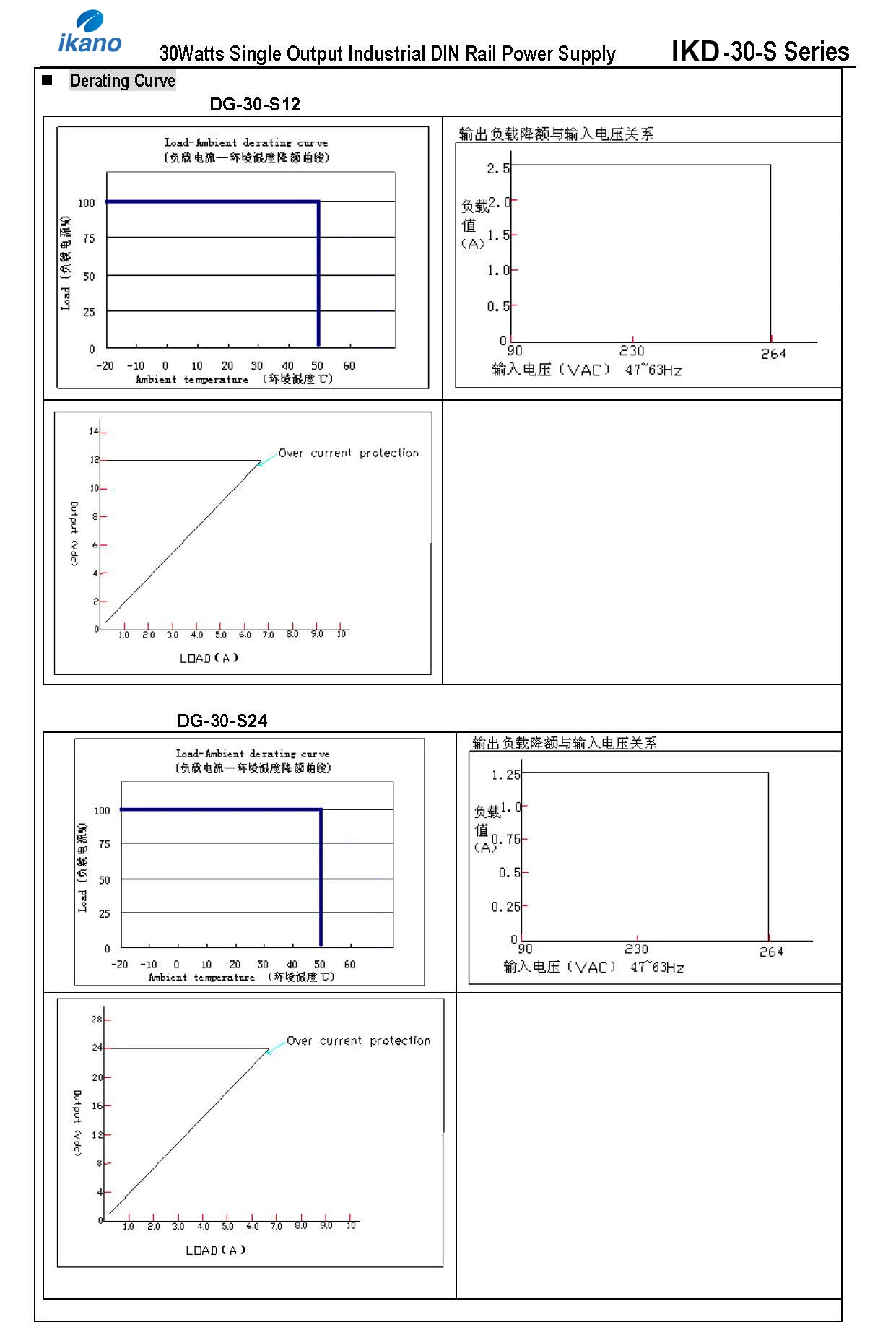

| PROTECTION | Over Load | 120%~150% of rated current, Hiccup mode, auto recovery | ||
| Over voltage | 15.4~16.8V | 28.8~31.2V | ||
| Protection type: Shut down ,power supply will restart again | ||||
| Over temperature | / | |||
| Short Circuit | Long-term mode, auto recovery | |||
| ENVIRONMENT | Operating amb. Temp. & Hum. | -20℃~50℃; 20%~90%RH No condensing | ||
| Storage Temp. & Hum. | -40℃~85℃; 5%~95%RH No condensing | |||
| SAFETY &EMC Note 3 | Safety Standards | meet GB4943/EN60950 | ||
| Withstand Voltage | Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVac≤ 10mA. | |||
| Leakage Current | Input—output: ≤0.25mA Input—PG: ≤3.5mA | |||
| Isolation Resistance | Primary-Secondary: >10M ohms .Primary-PG: >10M ohms. Secondary-PG: >10M ohms | |||
| EMC Emission | Compliance to EN55022, EN55024, Class B | |||
| Harmonic Current | Compliance to EN61000-3-2, CLASS A | |||
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024 light industry level | |||
| OTHERS | MTBF (MIL-HDBK-217F) | More than 300,000Hrs (25℃, Full load) | ||

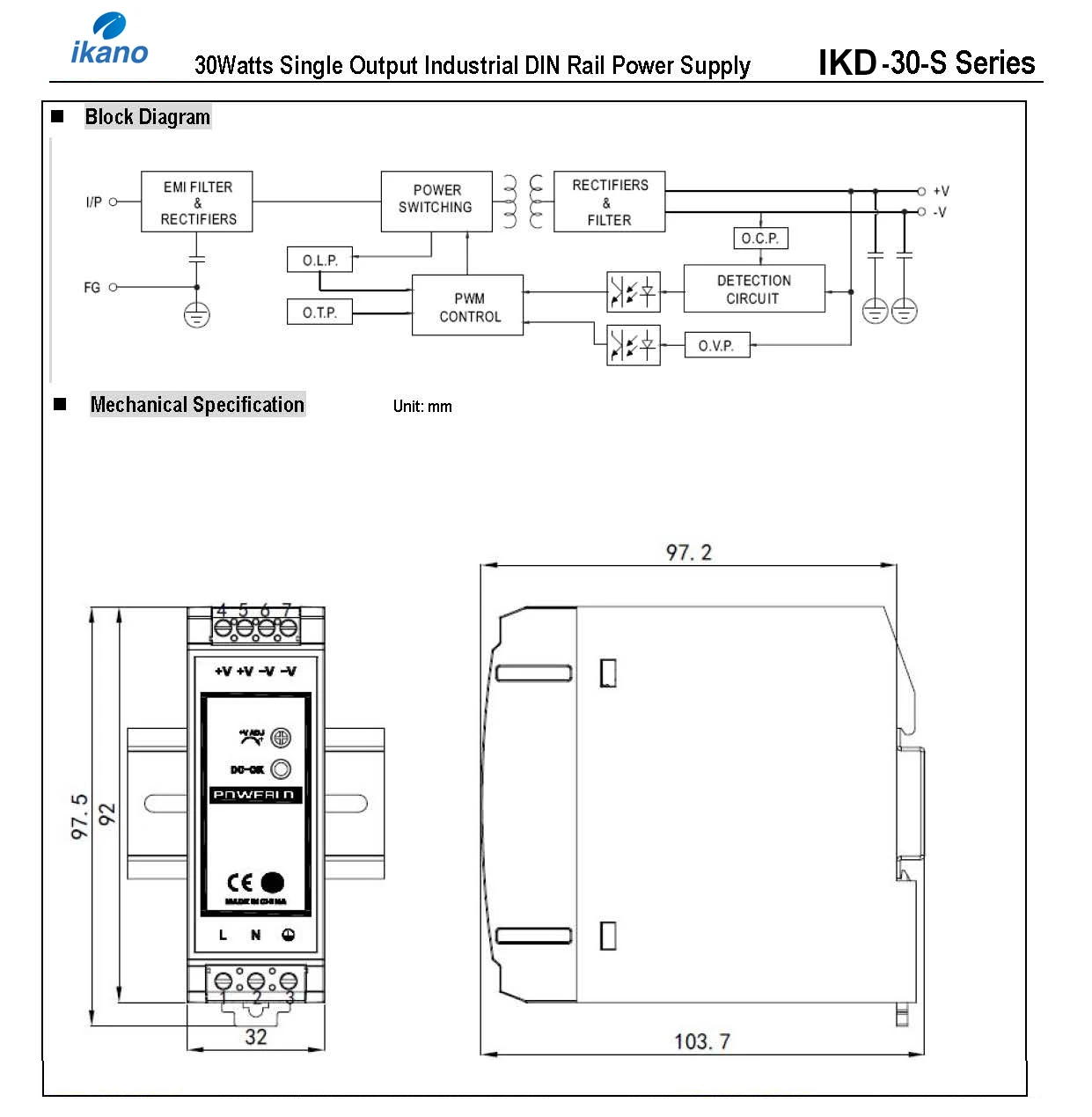

| Dimension | 32*92*103.7mm(W*H*D) | |||
| Packing | ||||
| Cooling method | Cooling by free air convection | |||
Product Details
Product Details

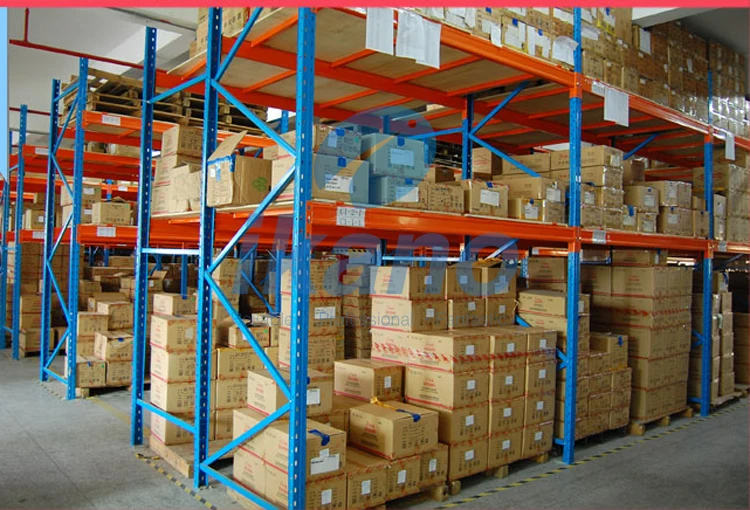

Packing & Delivery
