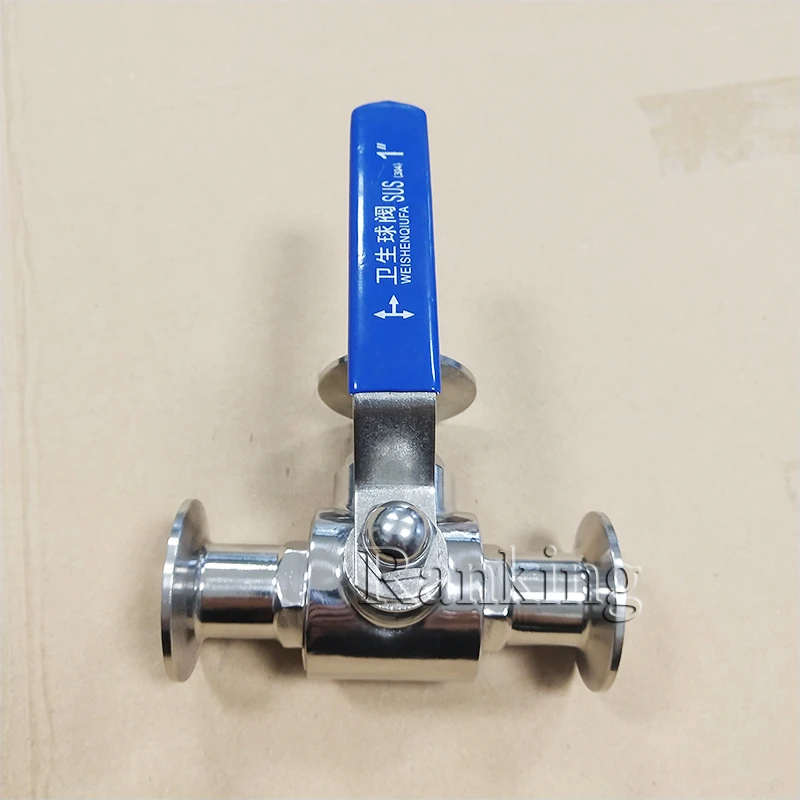

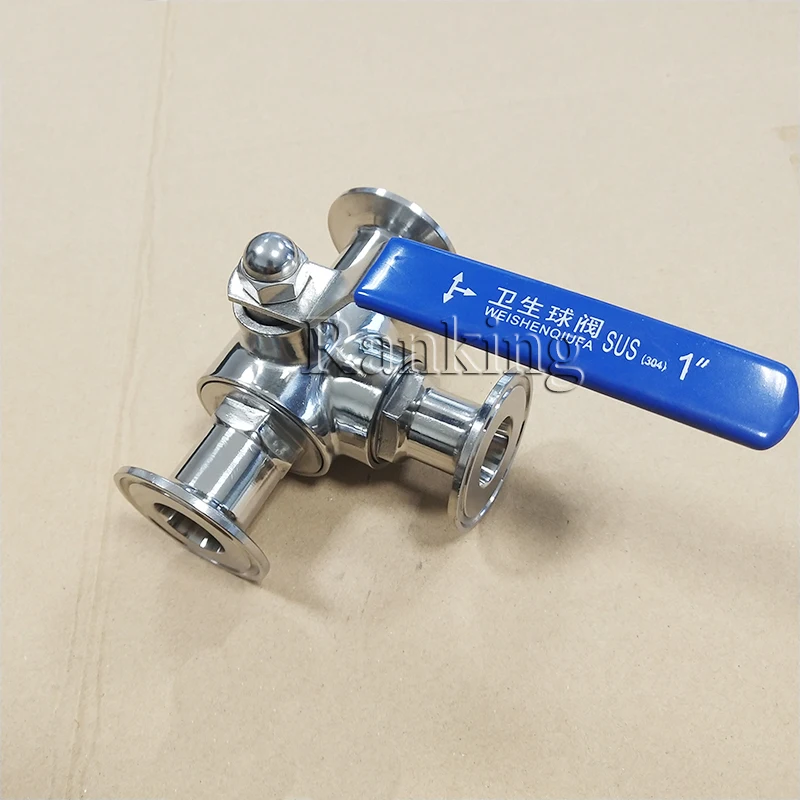

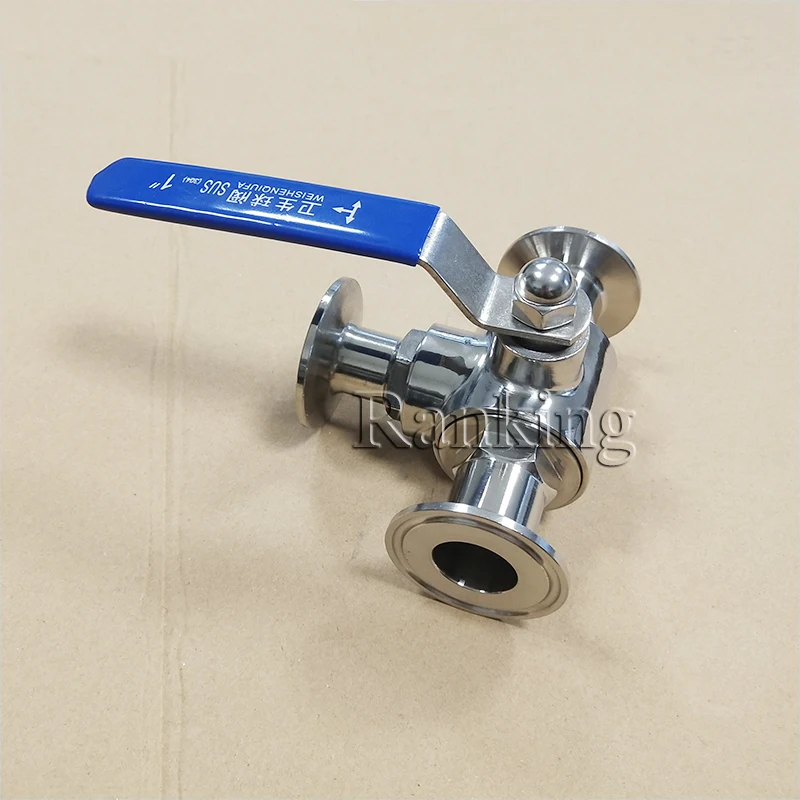

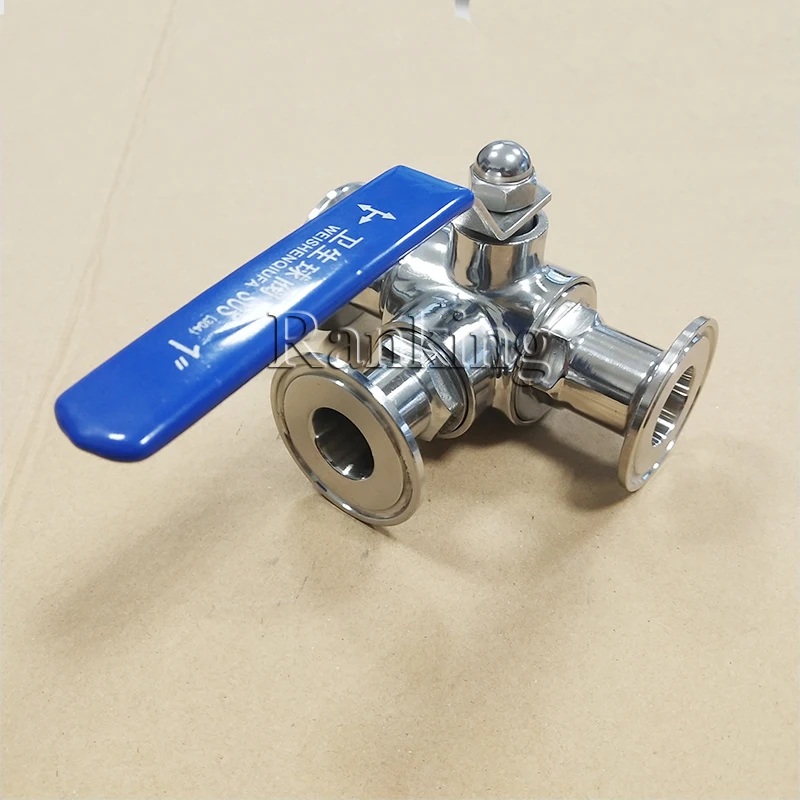

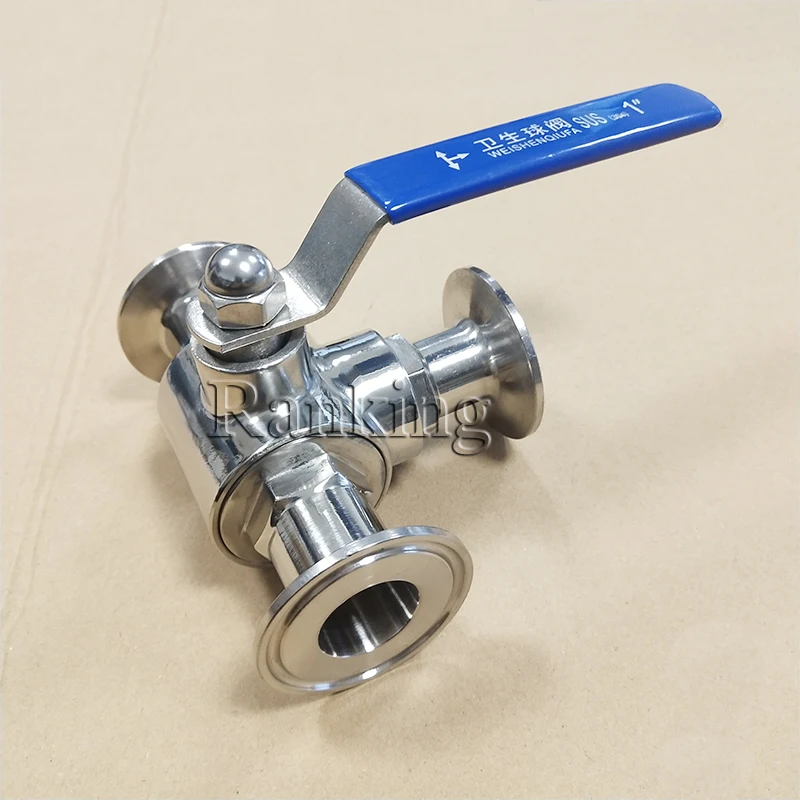

high quality 1 inch stainless steel 304 sanitary three way quick clamp ball valve
- Category: >>>
- Supplier: Wenzhou Ranking Imp.& Exp. Co. Ltd.
Share on (62000438858):
Product Overview
Description
1'' Food Grade Stainless steel 304/316L 3 Way Manual tri clamp Ball Valve
SanitaryStainless Steel Three Way Ball Valve
Pneumatic tri-clamp Ball Valve SanitaryStainless Steel Three Way Ball Valve
Application
This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage processing, pharmaceutical and chemical industry area.
Work principle
With the 90°rotary handle, drive the precise manufacturing ball body which with through cavity, turn on or off, so that can control the medium flow.
Design features
Easily disassemble without special tools
Small operating torque
Valve can be replaced in any connections, and the length will not change.
Technlcal Data
| Material | Contact with the product parts | SS316L,SS304 |
| Non contact product parts | SS304 | |
| Sealing material | Standard | P T F E |
| Pressure | Working pressure | 0~10bar |
| Temperature | Working temperature | -20~+130℃ |
| Sterilization temperature | 150℃≤30min | |
| Surface treatment | Internal surface finish | Ra0.4~0.8μm |
| External surface finish | Ra0.8~1.6μm | |
| Connection | clamp, weld, male and female end | |
| Standards | 3A,DIN,SMS,IDF,RJT,ISO | |
| Specification | 3/4"-4 1/4", DN20-DN100 | |
