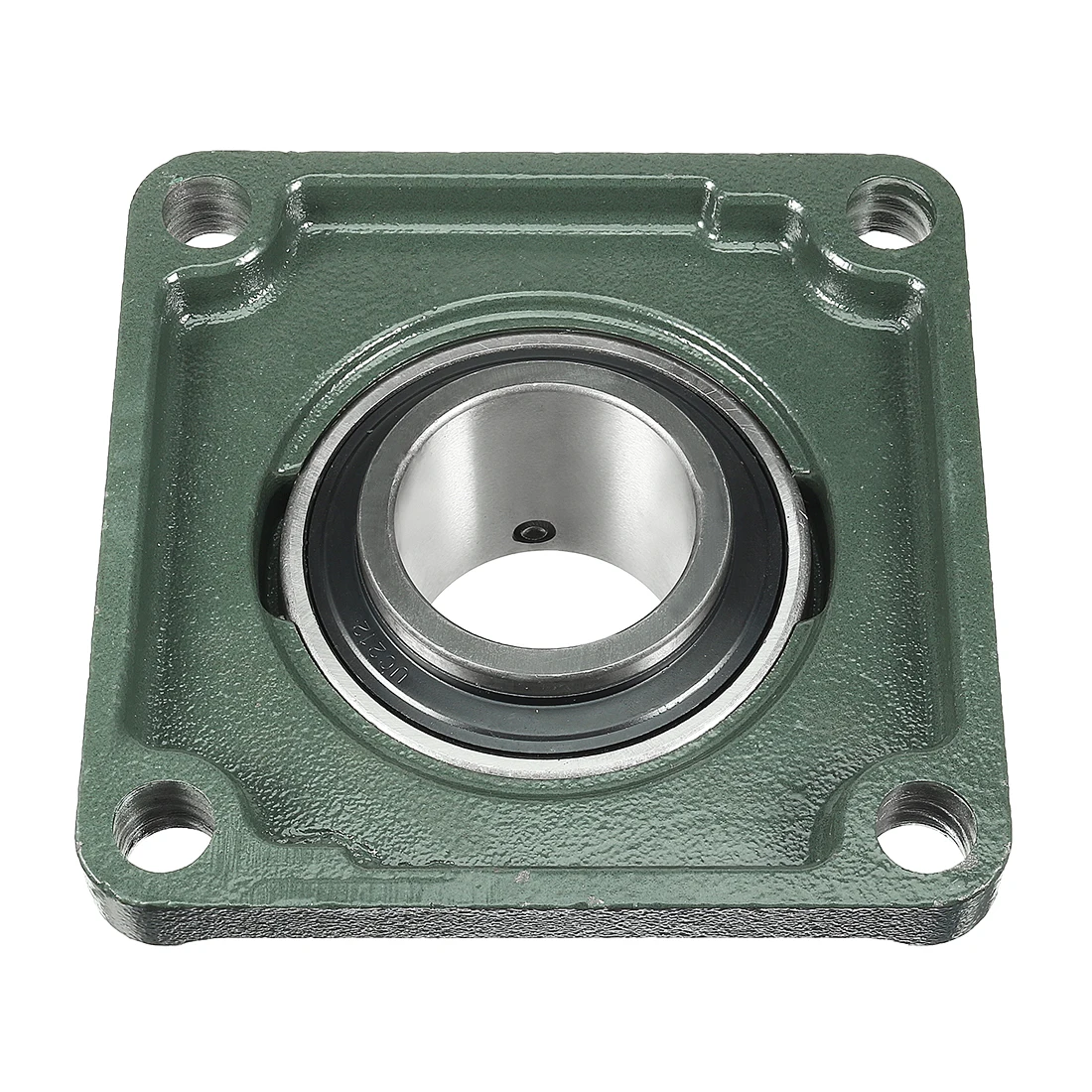

UCF212 4 Bolts Flange Bearing Unit With Wider Inner Ring Insert Bearing Set Screw Locking and Square Flange Housing
- Category: >>>
- Supplier: Shanghai Chenghui Bearing Co. Ltd.
Share on (62000724660):
Product Overview
Description
UCF212 4 Bolts Flange Bearing Unit
With Wider Inner Ring Insert Bearing Set Screw Locking and Square Flange Housing
Product Features
- Housing: Gray Cast Iron HT200
- Bearing Insert: Chrome Steel
- Bearing Seal: Standard Nitrile Rubber protected with Slinger
- Slinger: Sheet Steel
- Grease Nipple: Carbon Steel - Clear Zinc Plated
- Set Screw: Carbon Steel - Oxided Black
- Grease: Chevron SRI-2
- Working Temperature range: -20°C to +90°C ( -4°F to + 248°F )

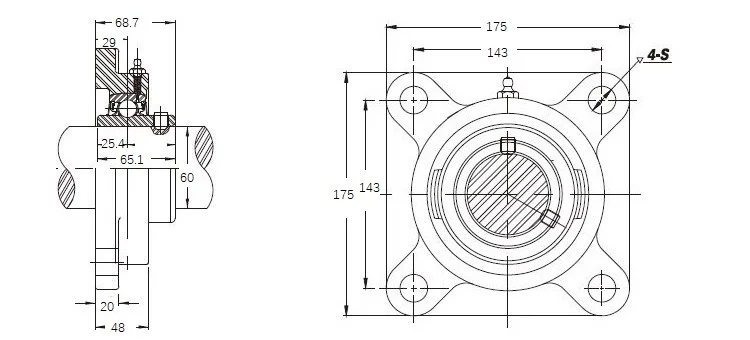

Specifications
d - bore | 60 mm |
| a | 175 mm |
| e | 143 mm |
| i | 60 mm |
| Shaft Fastening | Set Grub Screws |
| Set Grub Screw | M16 |
| Bearing No | SUC212 |
| Housing No | SF212 |
| Weight | 4.4 kg |
UCF200 Series 4 Bolt Flange Units
| Designation | Shaft | Dimensions | Weight | |||||||||
| d | a | e | i | g | l | S | Z | Bi | n | ds | (kg) | |
| UCF201 | 12 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 | 0.65 |
| UCF202 | 15 | 0.64 | ||||||||||
| UCF203 | 17 | 0.64 | ||||||||||
| UCF204 | 20 | 0.63 | ||||||||||
| UCF205 | 25 | 95 | 70 | 16 | 14 | 27 | 12 | 35.7 | 34 | 14.3 | M10 | 0.82 |
| UCF206 | 30 | 108 | 83 | 18 | 14 | 31 | 12 | 40.2 | 38.1 | 15.9 | M10 | 1.1 |
| UCF207 | 35 | 117 | 92 | 19 | 16 | 34 | 14 | 44.4 | 42.9 | 17.5 | M12 | 1.5 |
| UCF208 | 40 | 130 | 102 | 21 | 16 | 36 | 16 | 51.2 | 49.2 | 19 | M14 | 1.9 |
| UCF209 | 45 | 137 | 105 | 22 | 18 | 38 | 16 | 52.2 | 49.2 | 19 | M14 | 2.3 |
| UCF210 | 50 | 143 | 111 | 22 | 18 | 40 | 16 | 54.6 | 51.6 | 19 | M14 | 2.5 |
| UCF211 | 55 | 162 | 130 | 25 | 20 | 43 | 19 | 58.4 | 55.6 | 22.2 | M16 | 3.4 |
| UCF212 | 60 | 175 | 143 | 29 | 20 | 48 | 19 | 68.7 | 65.1 | 25.4 | M16 | 4.4 |
Packing & Delivery

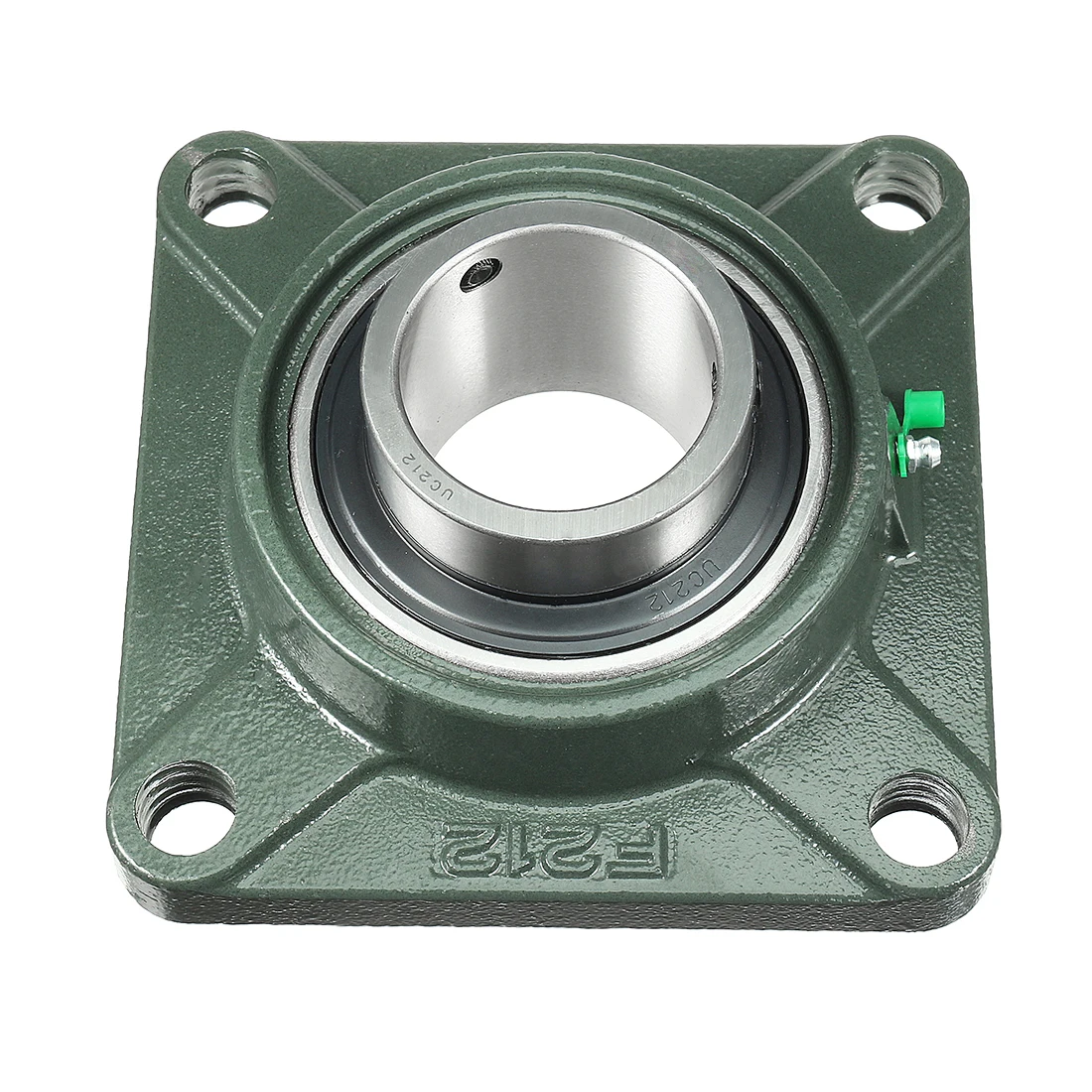

4 Bolt Flange Bearing Unit - Green Color
