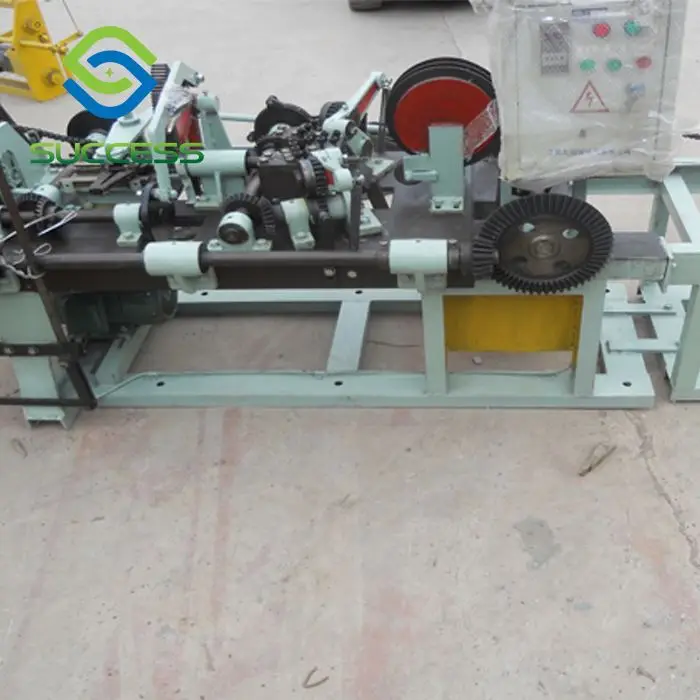

Factory Fully Automatic Barbed Wire Making Machine for Single/Double Stands for High Tensile

Product Overview

Description

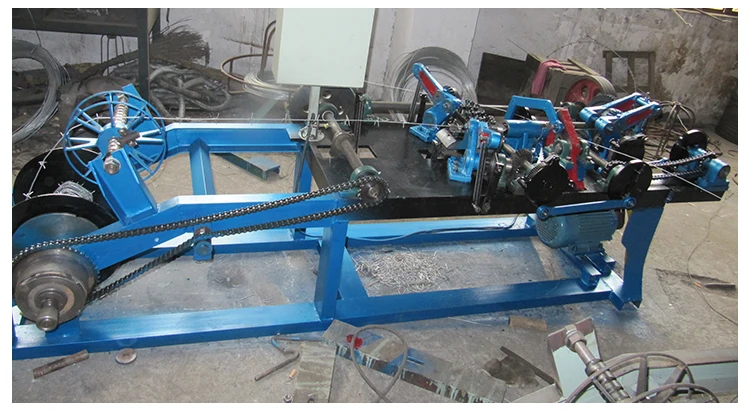

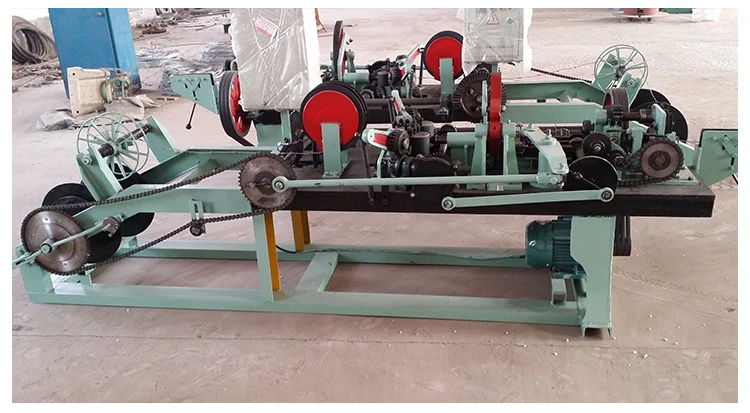

Factory Fully Automatic Barbed Wire Machine

Barbed Wire Making Machinery For making 2-strand 4 barbed points barbed wire, high speed in output, reach to 33 linear meters / minute around 140kgs / per hour.

Easy operate and maintenance. Same machine for making different wire materials, including stainless steel wires.

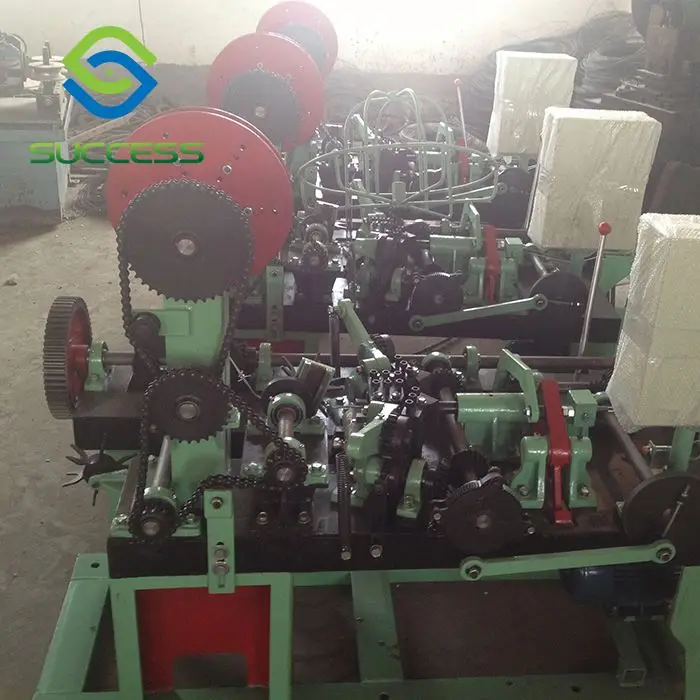

The machine is compose of spool wire and twist wire two parts. And the machine is fitted with four disks for wire rewinding.

The machine is coordination of various components,gentle movement.

Barbed Wire Making Machine Types

Single Strand Barbed Wire

Double Strand Double Twisted Barbed Wire

Double Strand Common Twisted Barbed Wire

Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.

General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.

Barbed Wire Making Machine Materials

1.Electric galvanized wire

2.Hot dipped galvanized wire

3.PVC Coated wire

4.Stainless steel wire

Motor	2.2kw
Rated output	50kg/h
Weight	1200kg
Overall Dimension	1900mmx1300mmx980mm

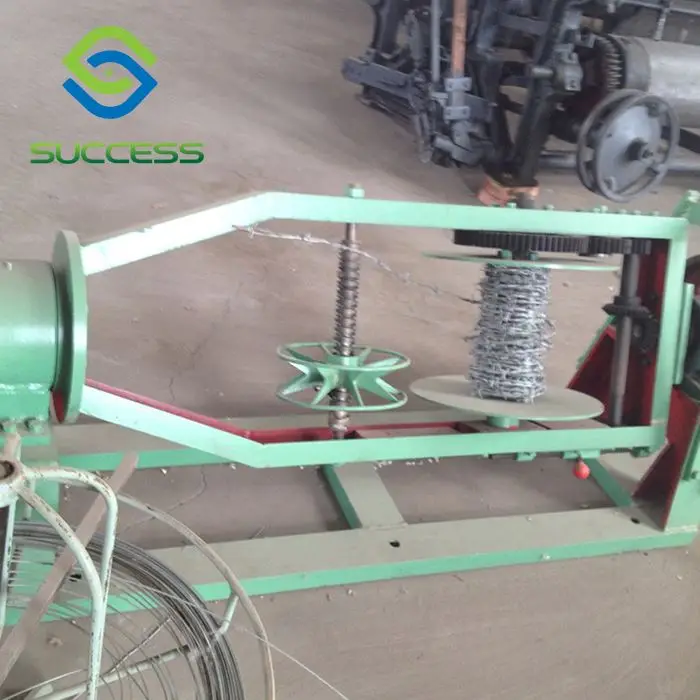

Wire collection part size	1300mmx800mmx700mm
Barb pitch spacing	As required
Twist	4,6
Strand Diameter	1.6-2.6mm
Wire Diameter	1.6-2.2mm
Rotating Speed of Drive shaft	357r/min

Widely used in military field, Prisons, Detention houses, Government Buildings, National Security Facilities.

Fencing of Residences, Villa Wall and Windows, Express Way, Railway, National Border Lines.

Guarantee and After-sale Service

1.Warranty: One Year.

2.Enough spare parts of machines could be supplied.

3.Factory Own Designing and Inspection Team.

4.All machines were tested and adjusted before delivery.

5.Engineers available to service machinery overseas: Worker-training, installation etc.

6.24 hours technical support by e-mail or calling service.
