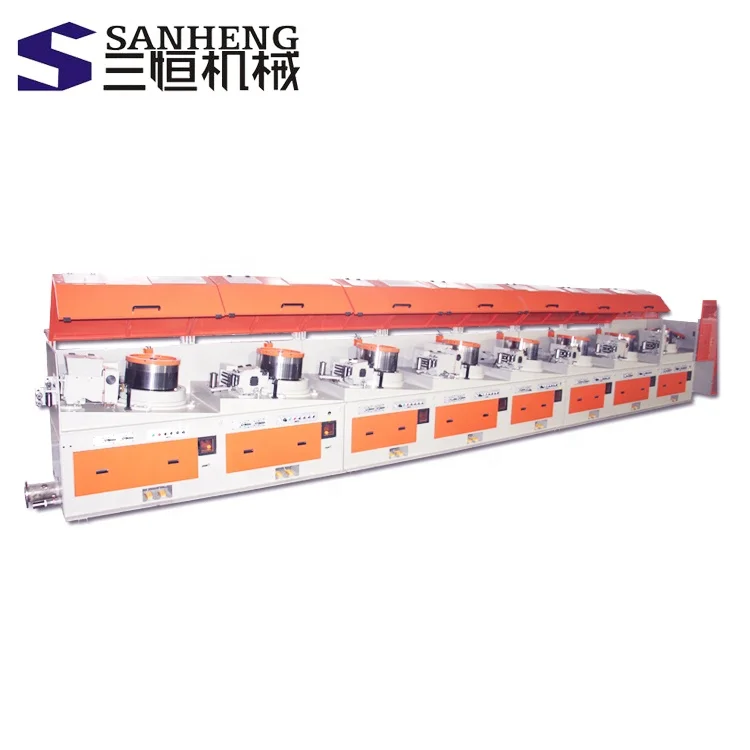

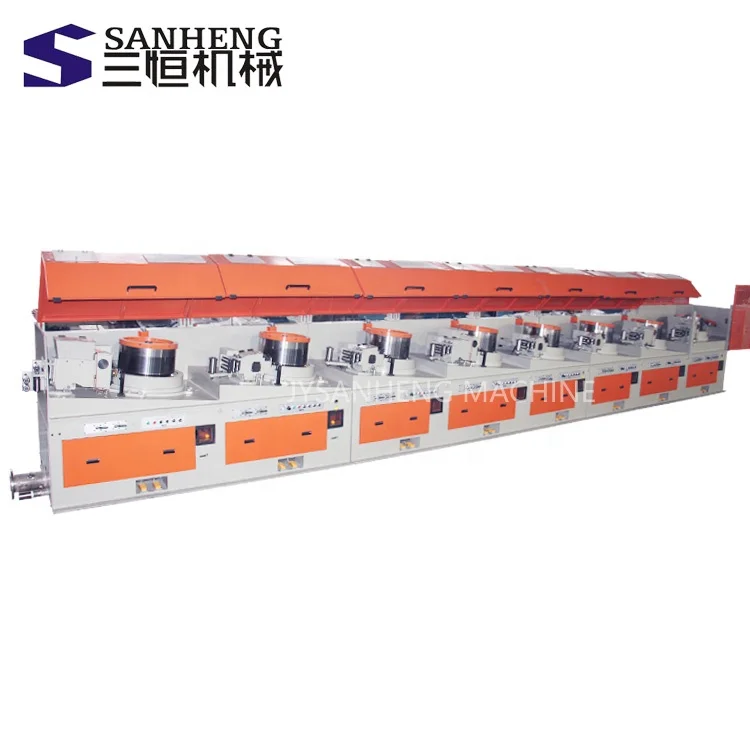

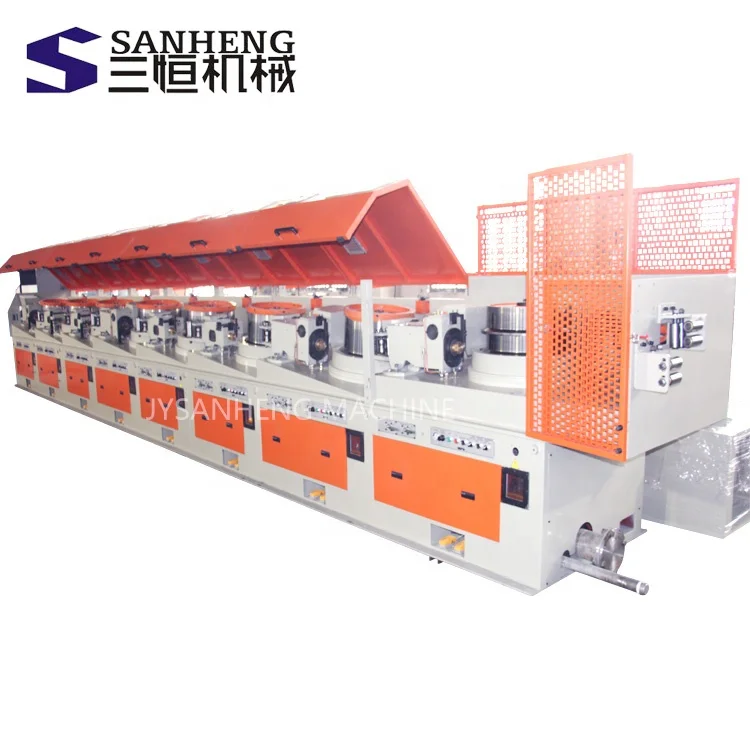

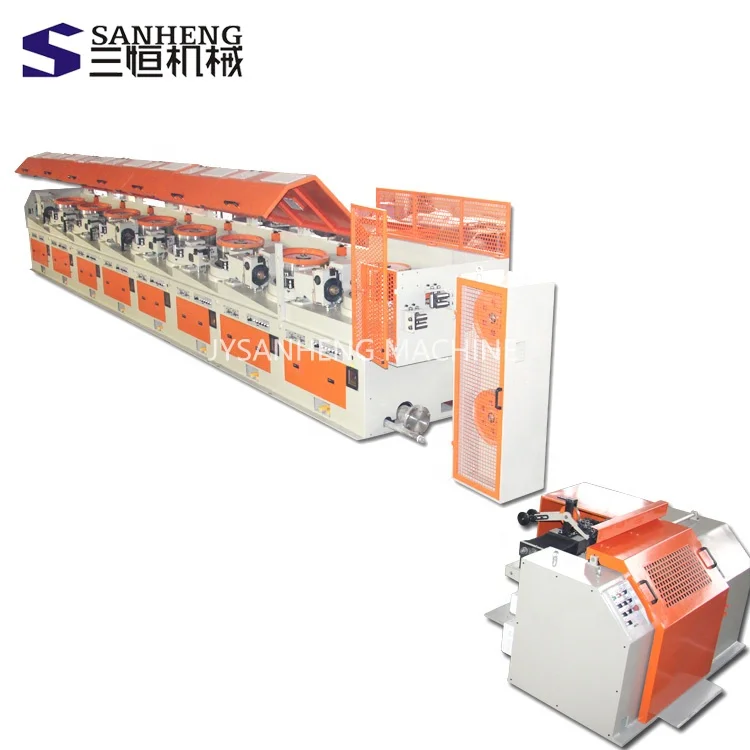

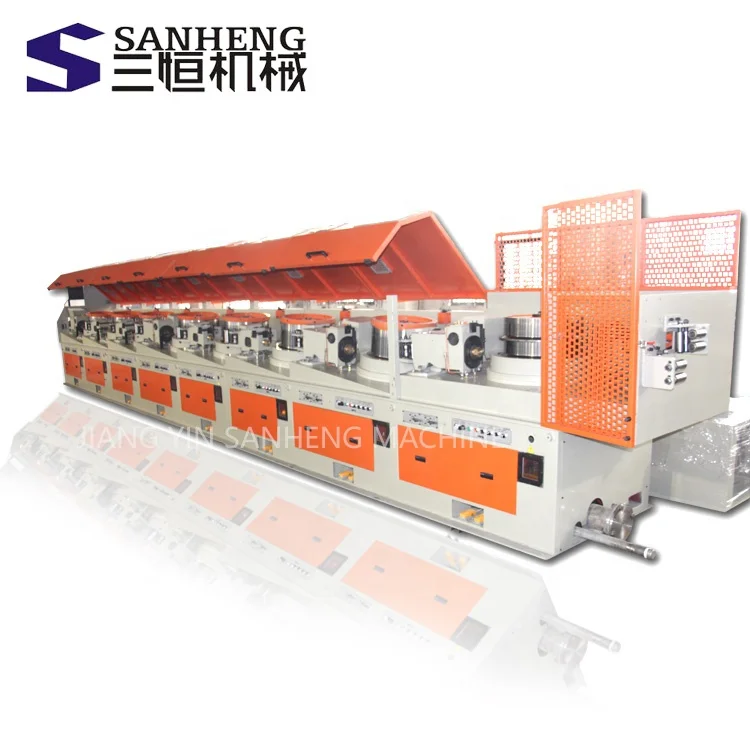

Iron Steel Wire Straight Line Wire Drawing Machine For Drawing Wire Machinary

Product Overview

Description

Products sprcification



Name	LZ8/560 straight line wire drawing machine
Drawing type	LZ8/560
Block	Diameter:Φ560 ;  Material:ZG45 steel ,surface coated by WC
Motor power	8×22
Inlet wire diameter	Max  Φ6.5
Outlet wire diameter	Min   Φ1.6
Average compression	28.70%
Nomal drawing speed	15m/s
Logical control	PLC (SIEMENS)
Inlet Wire strength	≤700
Drawing material	medium carbon wire
Block cooling	Helix "Narrow-gap" water cooling;  Forced Air Cooling.
Die box	Direct water cooling
Cooling water pressure	0.2~0.3Mpa
Pneumatic system	Air pressure≥0.5Mpa
Stop time	Normal stop≤50s,EMG stop≤5s



1.How about our quality ?

We continuously develop and improve our products and are widely used in many fields such as industrial, technical, medical and aerospace. Quality is at the world's leading level



2.How about the price ?

Very low price, don’t worry about it, All fees you pay will be used on your machine. The price depends on your expectations of the machine.



3.How about our service?

Once we get your inquiry for our products, we will make offer within one hour ,and for reply you any doubt at any time



4.How about the brand of electric parts of machine?

We use famous brand as following

Siemens / HD motor

Siemens /ABB / Inovance inverter

Siemens/ Inovance touch screen

Schneider low voltage electric. etc.



5.How about packaging?

1.Plastic wrap with dryer agent
2.Plywood box with plastic wrap and dryer agent
3.Carton with plastic wrap and dryer agent
4.SEA , TRAIN , AIR according to clients requirement



6.How about the delivery?

We promise that we provide wire machine, mold, brushed powder machine test operation service in the workshop, and then free shipping, you carefully check and then ship



7.How about delivery time?

It is 30 days. According to your specific requirements for the machine.



8.How about the after service?

When the machine has a problem,  the Engineers available to service machinery overseas



9.How to prove what you said?

If you are convenient, you can visit our factory at any time, and when you visit us, you will see the running machine in our factory.



10.Where is our factory?

No.520 Yungu Road, Changshou, Zhouzhuang Town,Jiangyin,214424 China

Our company is only 32 minutes away from ShuoFang International Airport in southern Jiangsu, we can pick you up when you come to this airport



11.How about the invitation letter?

We will do that according to your request , and give you invitation letter in one week.



12.Please provide following information if you want to directly quotation:

1. Wire Material:

2. Inlet Wire Diameter range:

3. Outlet wire Diameter range:

4. Where and what does the wire use for:
