- ZTE ZXHN F601 GPON ONU 1xGE
Product Overview
Description

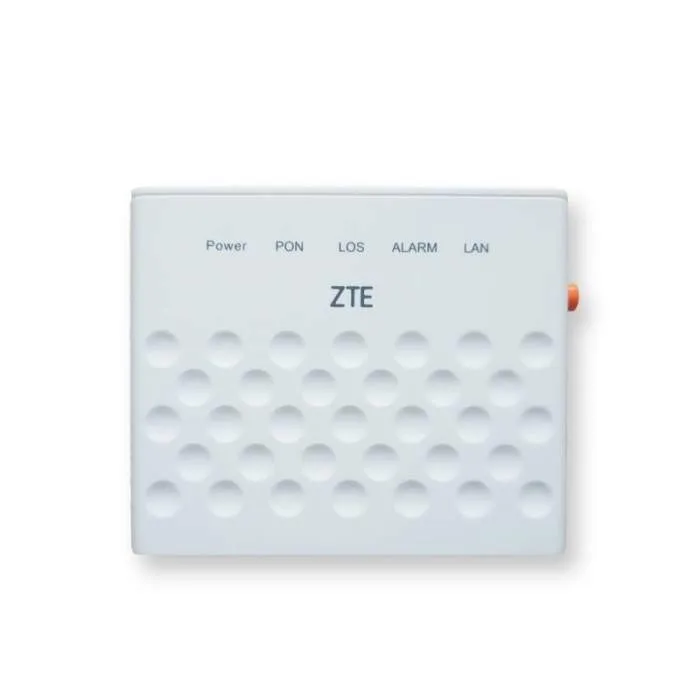

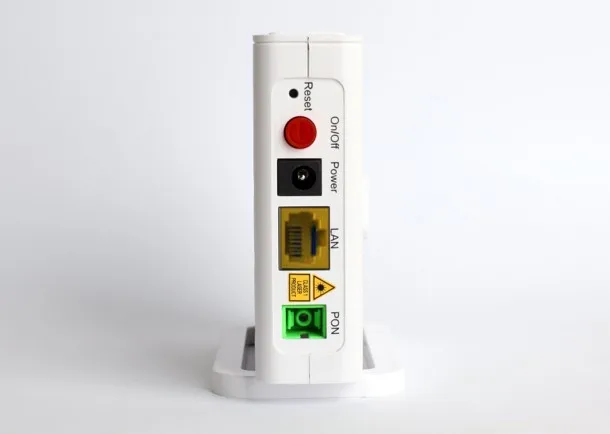

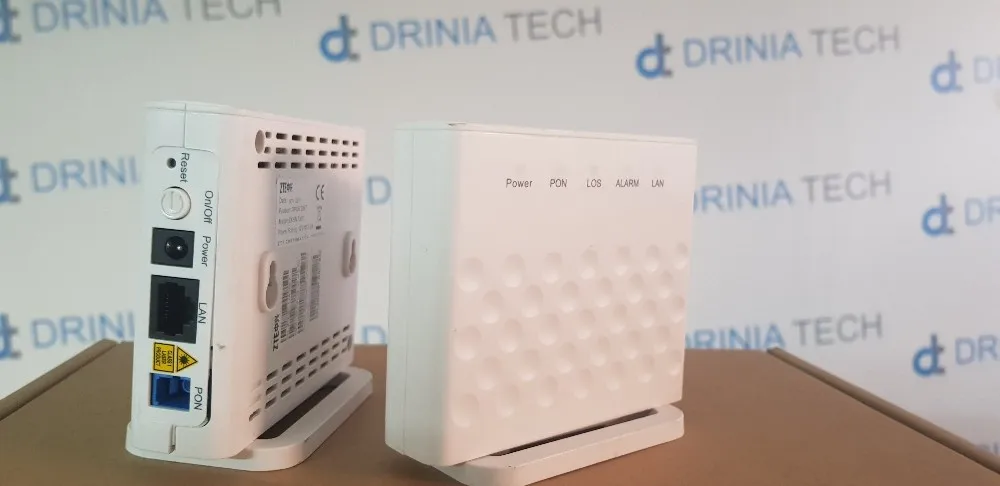

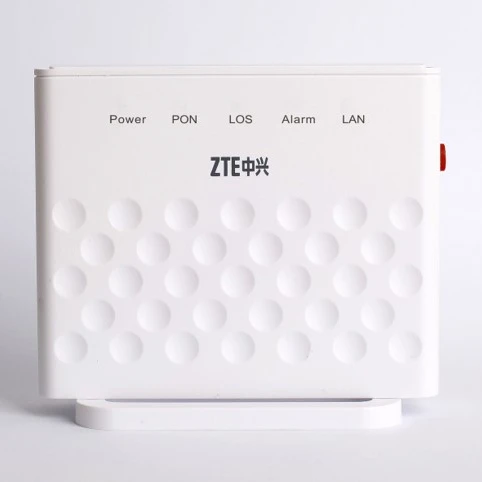

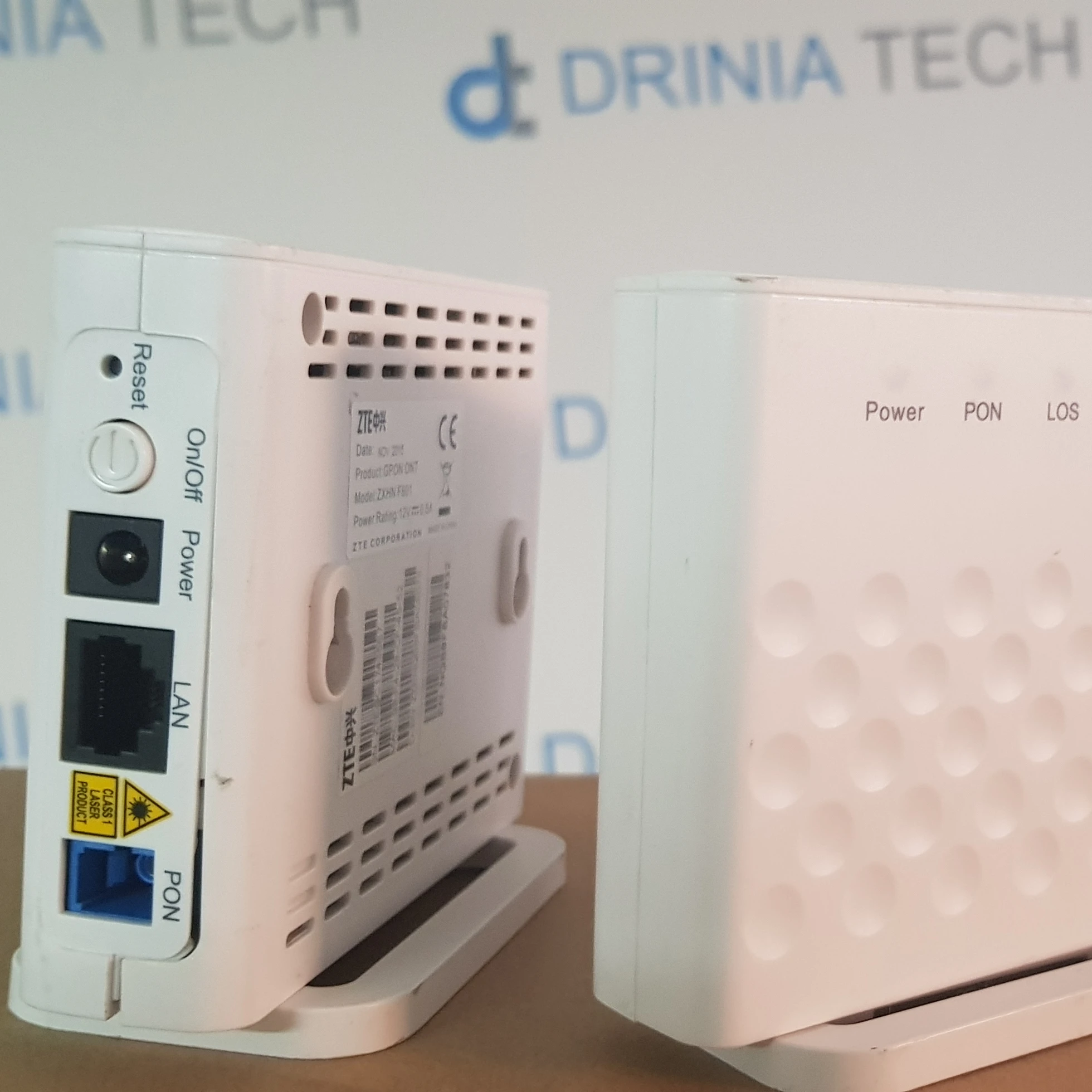

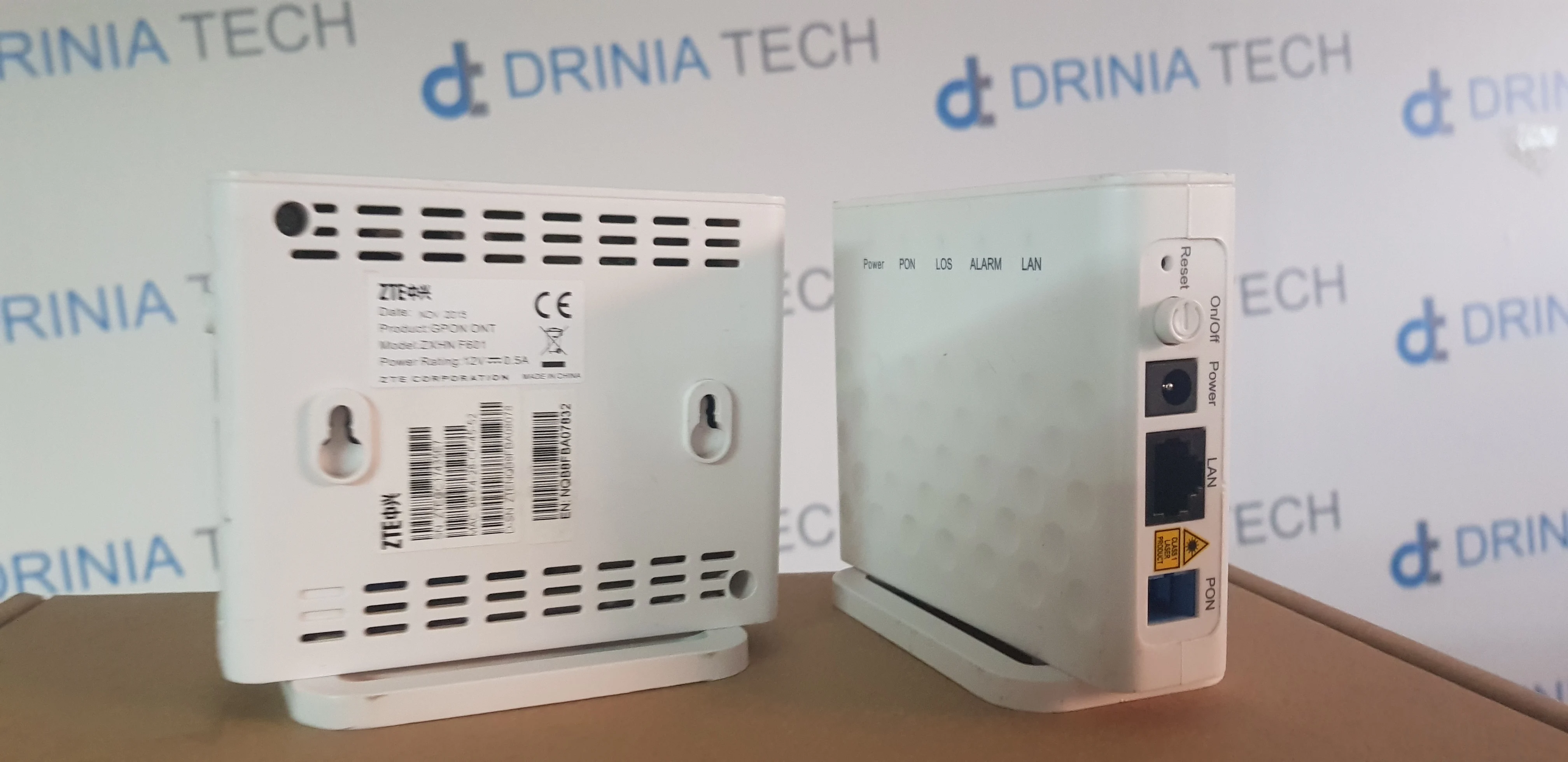

ZXHN F601
GPON Interface
ZXHN F601 is a GPON Optical Network Terminal designed for FTTH scenario. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage.
GPON Interface
- Optical port: 1 x GPON interface (SC/PC or SC/APC)
- Transmission Distance: 0 ~ 20km
- Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface
- 1 x10/100/1000Base-T
- Half/full duplex; Auto MDI/MDIX; Auto negotiation
Product Details
Optical Module
- Wavelength: Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
- Wavelength: Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
- Receiving Sensitivity: -28dBm
- Transmitting Optical Power: 0.5~5dBm
- Transmitting Optical Power: 0.5~5dBm
Pysical Performance
- Power consumption: <6W
- Dimensions: 110mm(W) x 90mm(H) x 53mm(D)
- Working temperature: 0oC ~ 40oC
- Working humidity: 5% ~ 95%
- Weight: about 190g
- Power supply: 12V DC

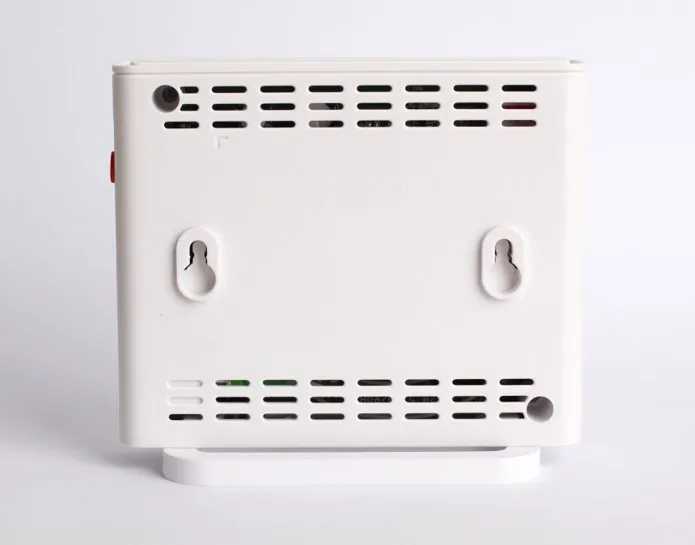

- Mounting mode: Desktop/Wall mounting
- Dimensions: 110mm(W) x 90mm(H) x 53mm(D)
- Working temperature: 0oC ~ 40oC
- Working humidity: 5% ~ 95%
- Weight: about 190g
- Power supply: 12V DC
- Mounting mode: Desktop/Wall mounting
Main Function
- Supported service: Internet, IPTV
- GPON: 8 T-CONTs, 32 GEM Ports
- VLAN: 802.1Q, 802.1P, 802.1ad
- MAC address table: 256
- Multicast: IGMP v1/v2 Snooping
- Multicast group per user port: 256
- QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
- Management: local web management, OMCI
- Supported service: Internet, IPTV
- GPON: 8 T-CONTs, 32 GEM Ports
- VLAN: 802.1Q, 802.1P, 802.1ad
- MAC address table: 256
- Multicast: IGMP v1/v2 Snooping
- Multicast group per user port: 256
- QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping
- Management: local web management, OMCI
Packing & Delivery
Packing
The ONU can be packed in ways according to customer needs:
Bulk: ONU with or without accessories is wrapped in plastic bag, and put in bulk boxes or palletized for economical transport.
Individually boxed: Each ONU is wrapped in plastic bag, and packaged individually in a new blank paper box along with accessories as desired: ONU + PSU + UTP
Delivery
Shipping way:
-By air;
-By sea;
-Or express (UPS, DHL, Fedex...)
