Huawei HG8012H

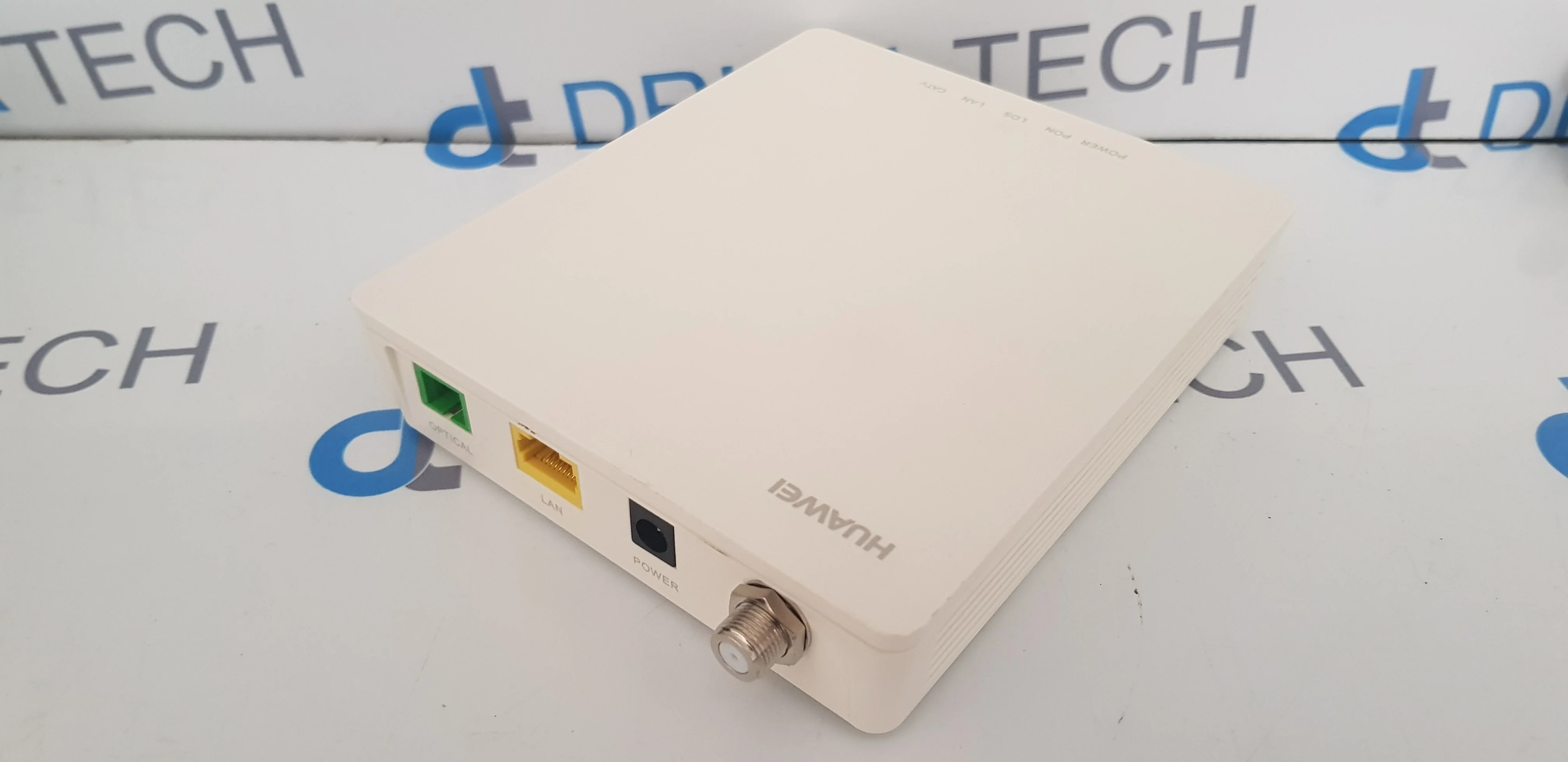

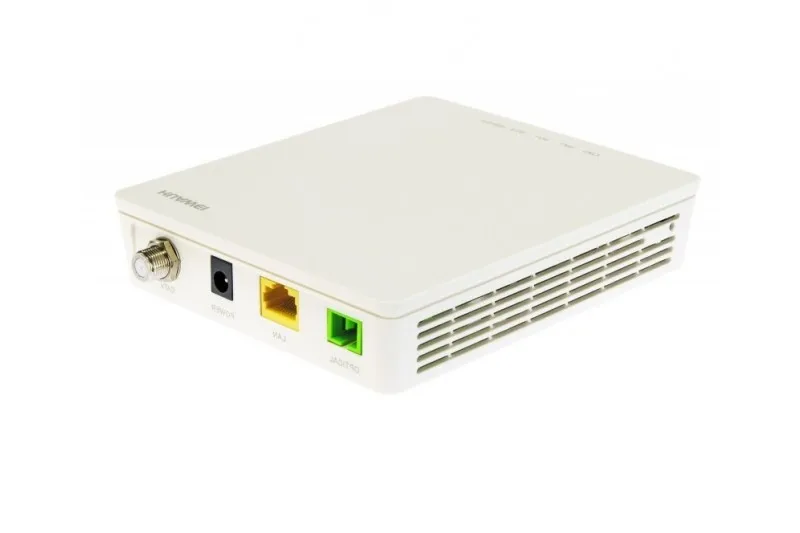

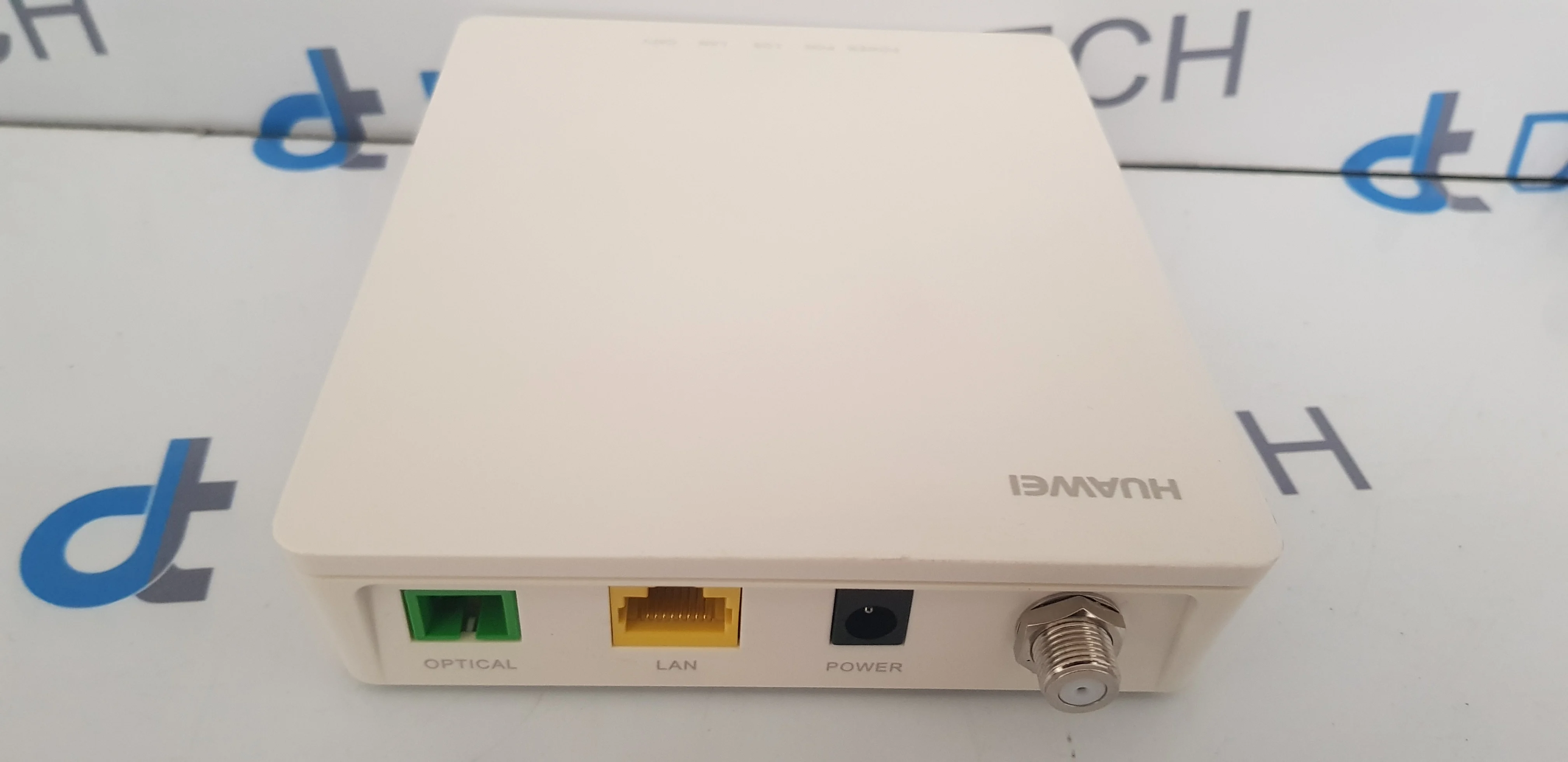

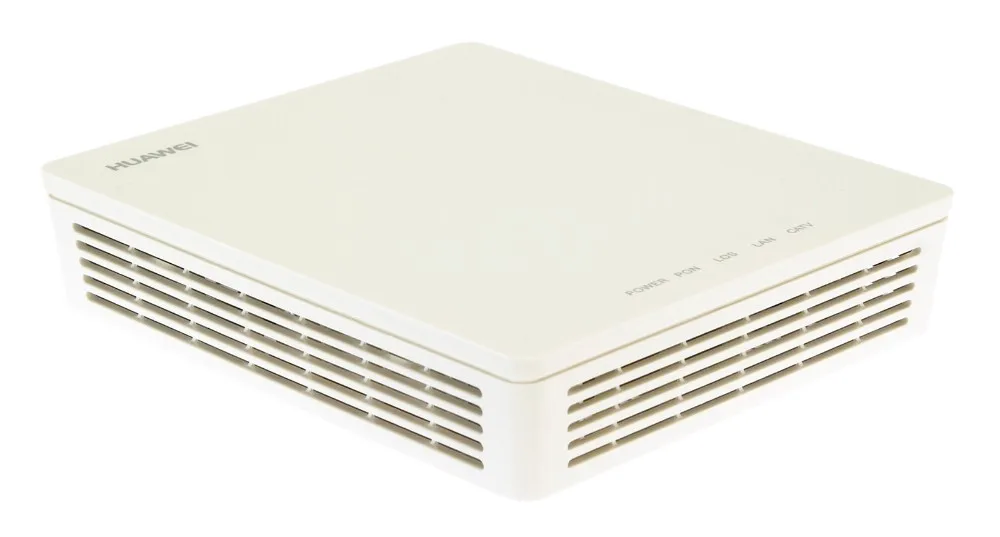

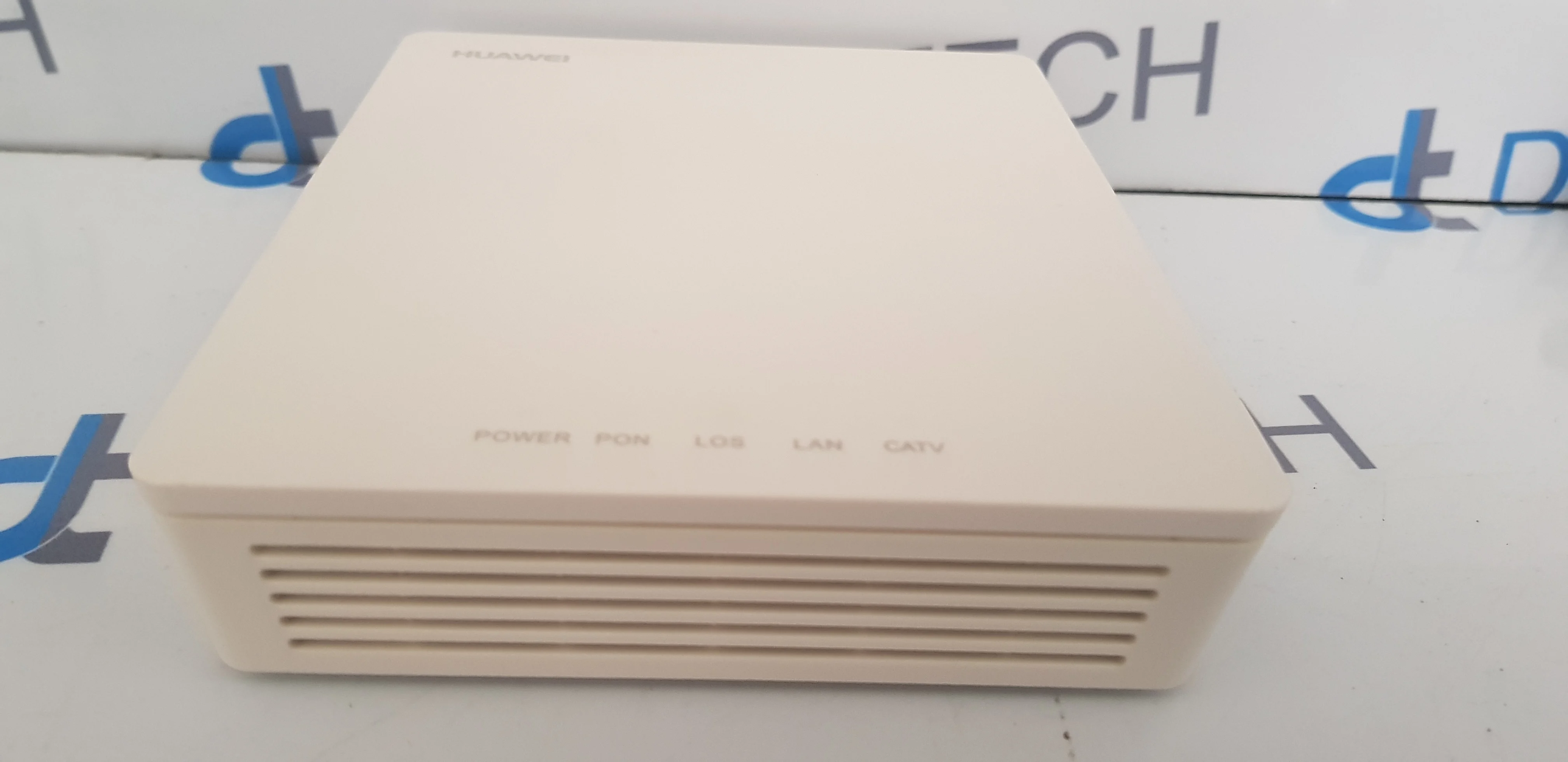

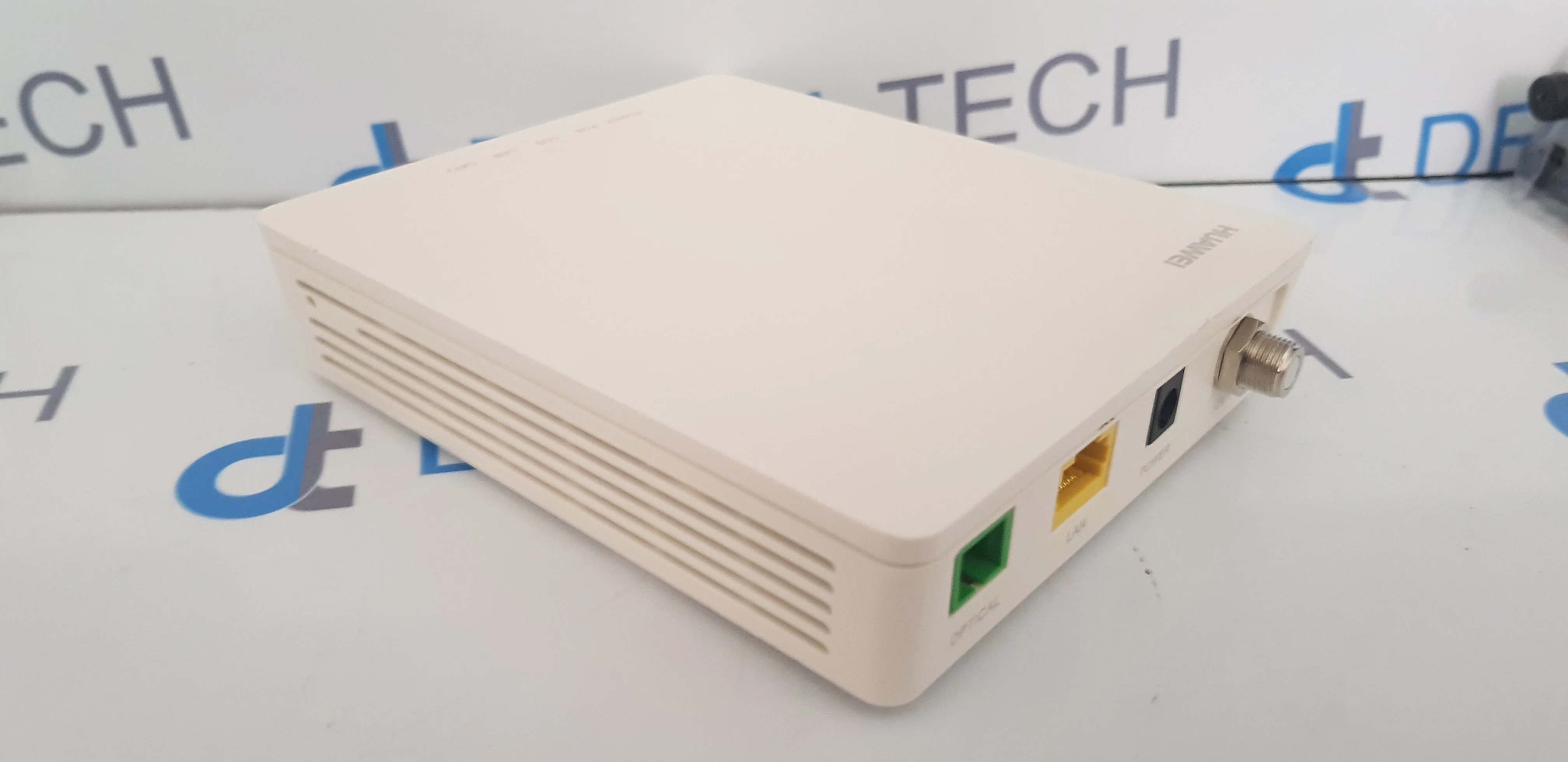

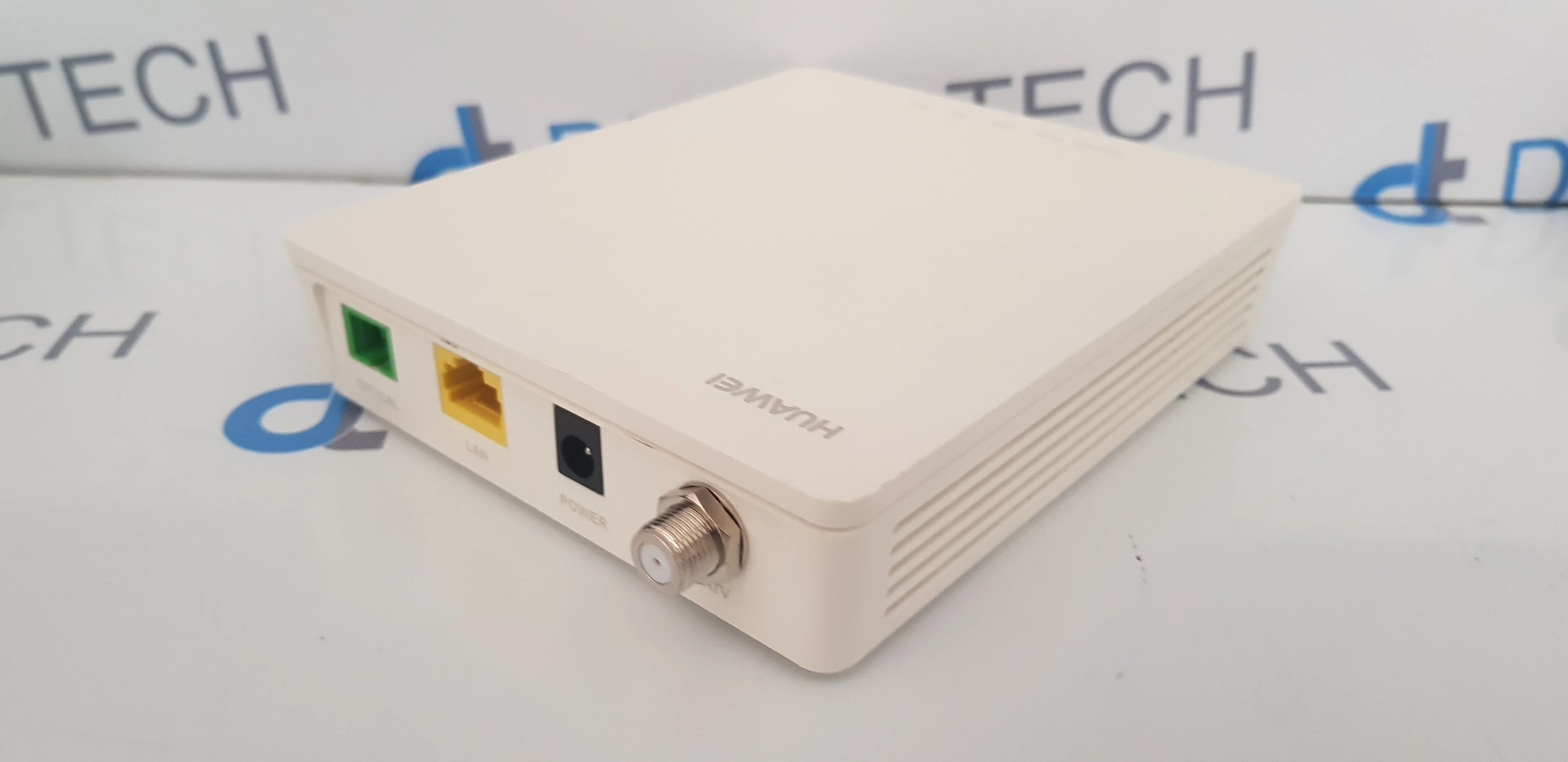

The Huawei EchoLife HG8012H is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology. It provides 1 GE port and 1 RF port. The high-performance forwarding capability ensures the service experience of CATV, data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

GPON Port

• Class B+;
• Receiver sensitivity: -27dBm;
• Wavelengths: US 1310nm, DS 1490nm;
• Wavelength blocking filter (WBF);
• Flexible mapping between GEM Port and TCONT;
• GPON: consistent with the SN or password authentication defined in G.984.3;
• Bi-directional FEC;
• SR-DBA and NSR-DBA.

Ethernet Port                                                                                                          CATV Port

• Ethernet port-based VLAN tags and tag removal;                                                     • Bandwidth 54-870 MHz;
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission;                                       • Output resistance 75 ohms.
• QinQ VLAN;
• Limit on the number of learned MAC addresses;
• MAC address learning;
• Local switching/isolation based on Ethernet ports;
• Transparent transmission of IPv6 packets at Layer 2.

Product Function


Smart O&M

·Variable-length OMCI messages;
·Active/Passive rogue ONT detection and isolation;
·PPPoE/DHCP simulation testing


QoS

·Ethernet port rate limitation;
·802.1p priority;
·SP/WRR/SP+WRR;
·Broadcast packet rate limitation;
·Flow mapping based on the VLAN ID, port ID, or/and 802.1p.


Power Saving

·Indicator power saving;
·Power consumption reduction of idle components in power-saving state;
·COCV4.


Security

·MAC address filtering.


Common O&M

·OMCI/Web UI;
·Dual-system software backup and rollback;
·802.1ag Ethernet OAM;
·Optical link measurement and diagnosis;
·Loopback check.


Multicast

·IGMP v2/v3 snooping;
·MLD v1/v2 snooping;
·Fast leave;
·VLAN tag translation, transparent transmission, and removal for downstream multicast packets;
·IGMP/MLD protocol packet rate limitation.



Packing & Delivery

Packing:

The ONU can be packed in ways according to customer needs:
- Bulk packing

- Individual boxed

Delivery:

Shipping way: By air, by sea or express (UPS, DHL, Fedex...)
