China trailers manufacture shipping container utility 20ft 40ft cargo skeleton container semi trailer truck
- Category: Truck Trailers >>>
- Supplier: Shandong Yuncheng Xinya Trailer Manufacturing Co. Ltd.
Share on (62001147192):
Product Overview
Description
Products Description

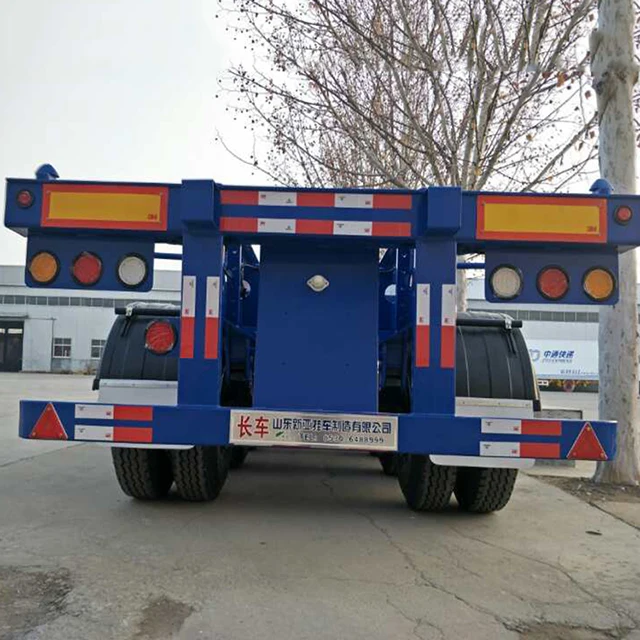

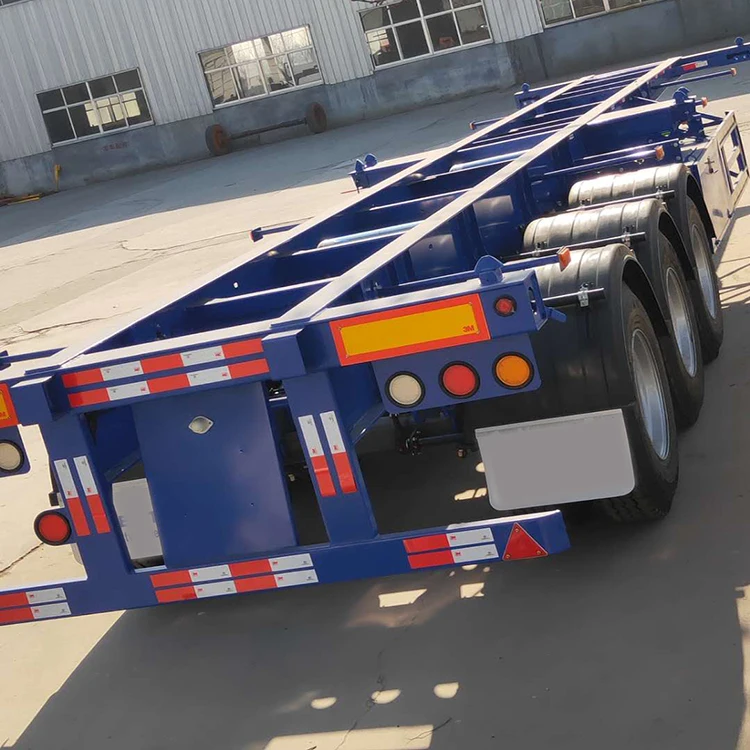

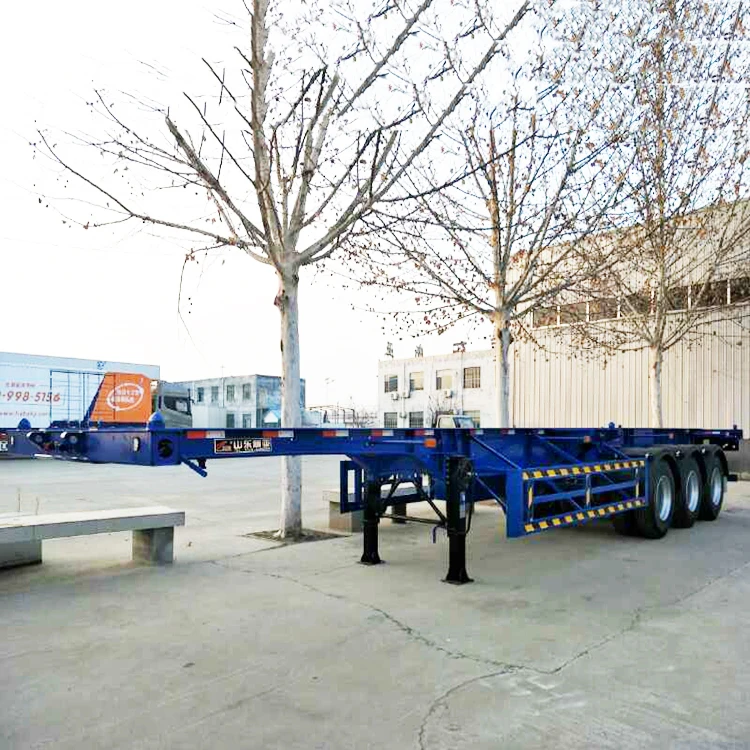

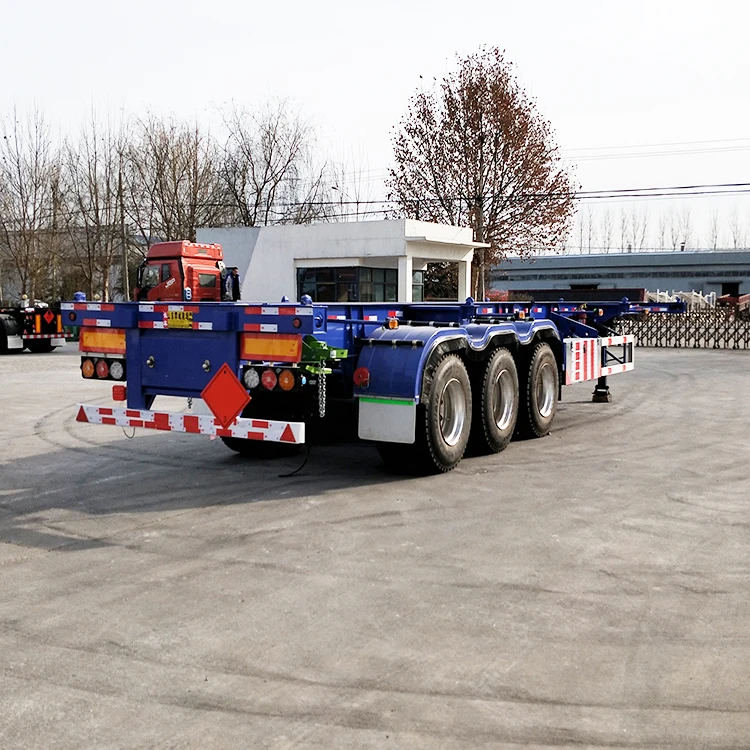

China trailers manufacture shipping container utility 20ft 40ft cargo skeleton container semi trailer truck
Skeletal Container Chassis Trailer
We are available to supply 20ft 40ft 45ft 48ft container chassis trailers.
Technique Dates & Characteristics：
1, Skeleton semi trailer uses the high strength international steel material.
2, The whole trailer has small dead weight, and ensures its anti-distortion
Overall Dimension(L*W*H) | 12400*2500*1520 |
Tare Weight | 5700KG |
Loading Weight | 30-45Ton |
Main beam | Material: Q345B fabricated carbon steel; Type: straight type; Height: 480mm; Upper plate: 14mm； Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
Cross beam | 10# C type; Q235 |
Twist lock | 12 units |
King pin | 50# |
Axle | Brand: Xinya; Capacity: 13T16P QTY: 3 units |
Tyre | Brand: Linglong; Type: 12R22.5-18PR; double mounted; QTY: 12 units |
Rim | 22.5*9.0-14, 12 units |
Landing gear | 28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
Suspension | Mechanical system with beams equaliser |
Leaf spring | Germany type; 90*13mm Qty: 10+10+10 |
Brake system | Brand: Xinya Type: Dual line braking system Brake air chamber: 6 in total, T30/30*4 + T30*2 Air tank: 40L*2 unit ABS: none |
Electric system | 24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
China trailers manufacture shipping container utility 20ft 40ft cargo skeleton container semi trailer truck
4Axles container Skeleton Semi Trailer in Shandong company 70 T container trailer.
Skeleton Chassis Trailer Function:
1, skeleton container semi trailer widely used, which is mainly used for long-haul freight transport, ex: 20 ft or 40 ft container.
2, We can design and manufacture skeleton truck trailer according to your exact requirements, ex: You can required promote front axle or use the air suspension or choose the straightness type or goose neck type.
Container Twist Lock 8pcs or 4 pcs
skeleton production
Break System
double tyres
skeleton trailer protectors
3 axle with double tyres
Company Profile
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. was established in June 2010. It is the "bulletin" enterprise of the Ministry of industry
Main Semi Trailers: container Chassis trailer, van trailer, flatbed trailer, fence semi trailer, self-unloading trailer, dump trailer, wing open trailer, tank trailer, car trailer, glass fiber plate trailer, and spare parts.
Workshop I: Chassis production line 1
Chassis trailer, flatbed semi trailer, low bed trailer
Workshop 2: Chassis production line 2
Van box semi trailer, Curtain Semi Trailer
Workshop 3: Chassis production line
Fence semi trailer, sidewall semi trailer
Workshop 4: Chassis production Line 4
skeletal container chassis trailer
Workshop 5 : Powder tanker semi trailer production
cement tanker trailer V shape and W shape Trailer
Workshop 6: fuel tanker semi trailer production line
Fuel tanker trailers
Workshop 7: Van box trailer production line
Van box trailer , curtain semi trailer
Workshop 8: Curtain Trailer, Van trailer production line
Warehouse Show
Warehouse Corner 1: Center Pin
Warehouse Corner 2: U Shape Rod
Warehouse Corner 3: Suspensions
Warehouse Corner 4: Alexs
Warehouse Corner 5: Painted Suspension
Warehouse Corner 6: Suspensions
Ready for ship to Clients
Customer Photos
We exported the flatbed trailers, sidewall trailers, Fence trailer, dump trucks, tipper trailers,Low bed trailer to all over the world, especially for the Africa Market and Mid east markets, the clients come from Djibouti, Ghana, Mozambique, Mauritania, Saudi Arabia, Tanzania, Benin, Indonesia, Thailand and so on.
