Taidacent 2.4 inch graphic dot matrix module lcd character display 10016E dot matrix module WS0010 OLED graphic lcd module

Product Overview

Description

Taidacent 2.4 inch graphic dot matrix module lcd character display 10016E dot matrix module WS0010 OLED graphic lcd module

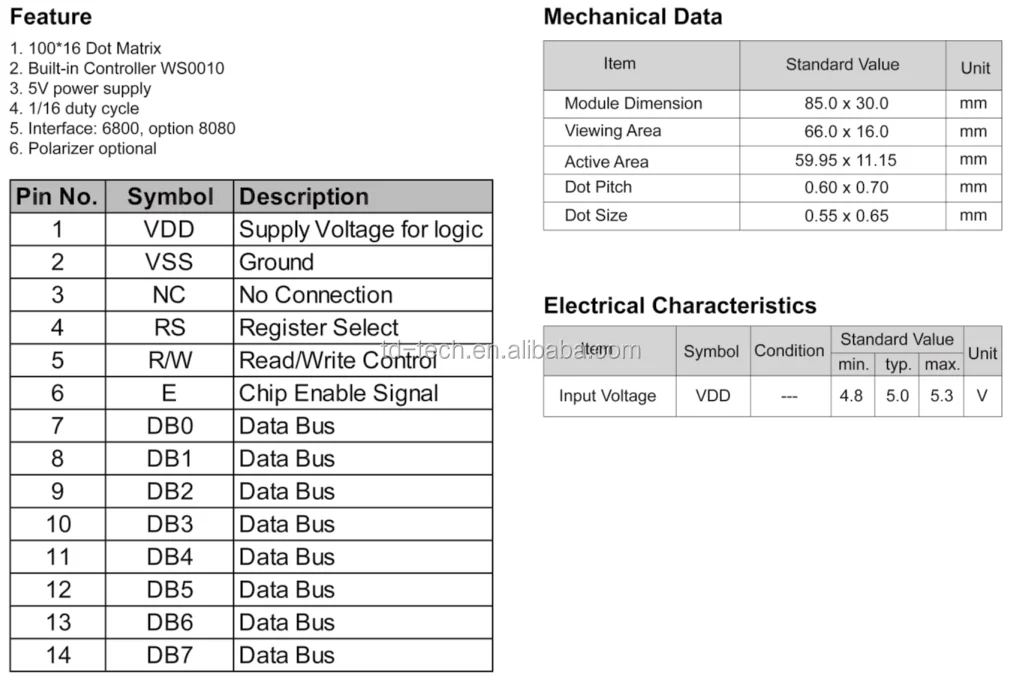

Model	QTG010016E
Type 78	Graphic OLED
78 structure	COB

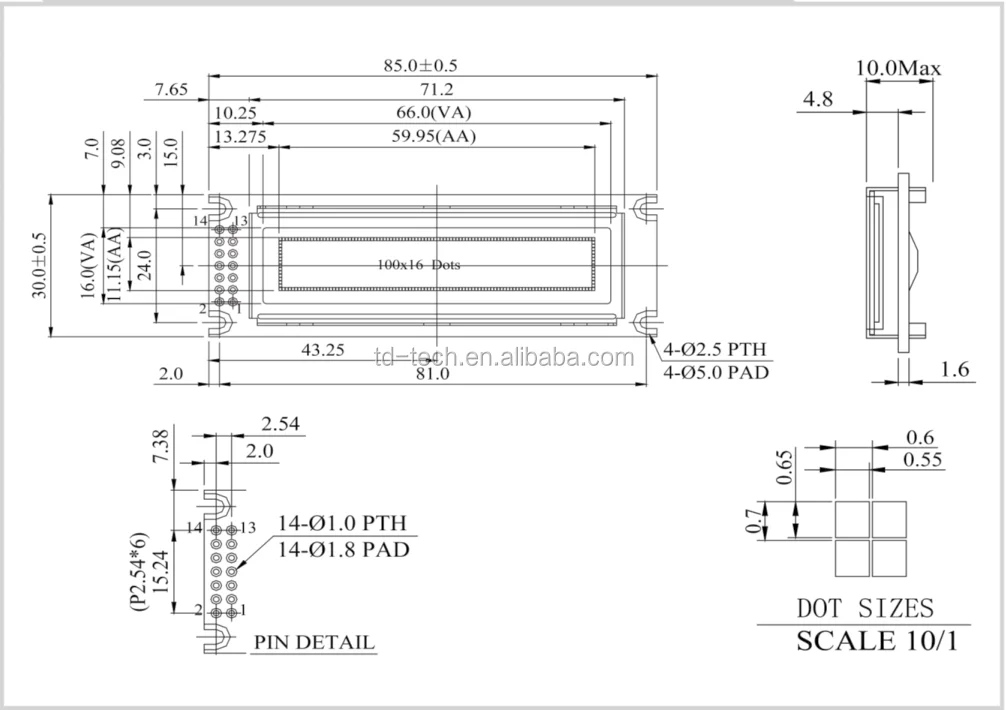

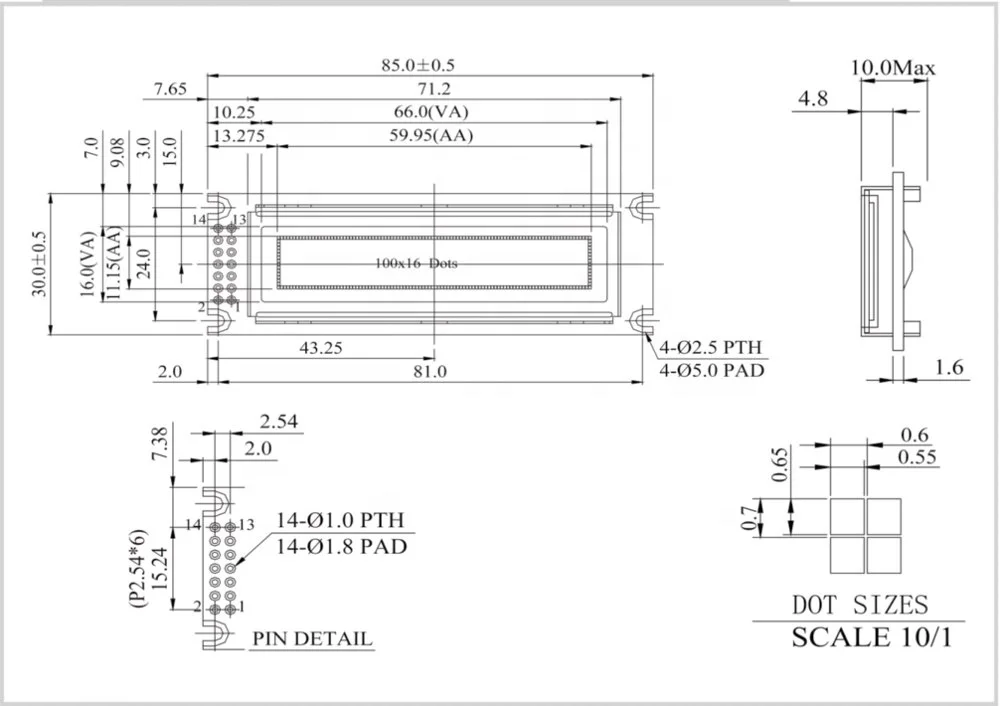

78 size: 2.4"
78100 x 16 dot matrix
78 built-in controller WS0010
785V power supply voltage
781/16 duty cycle
78 interface: preset 6800, optional 8080



Product description

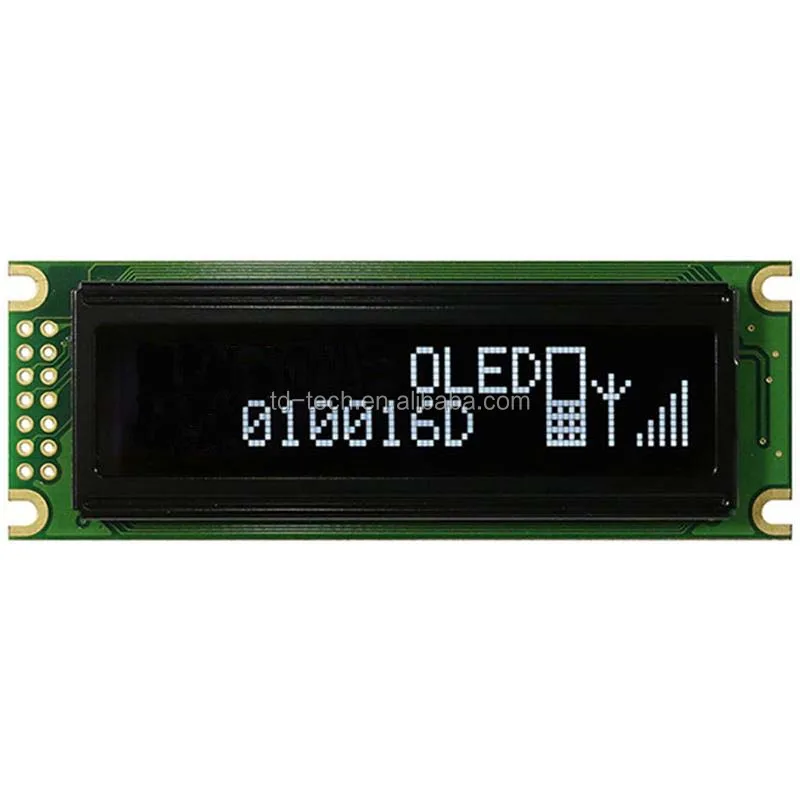

QTG010016E is a 2.4-inch graphic OLED module. This OLED module has built-in WS0010 IC. This QT self-developed IC can be driven by 4bit or 8 bit. The module interface is preset to 6800 and can be replaced with 8080. OLED displays have brighter, higher contrast ratios, wider viewing angles, and faster response than traditional displays. OLEDs are more power efficient because they do not require a backlight. The QTG010016E and QTG010016A/QTG010016C/QTG010016D have the same panel specifications, but the PCB version is different from the pinout design. Customers can choose the right product according to the design.

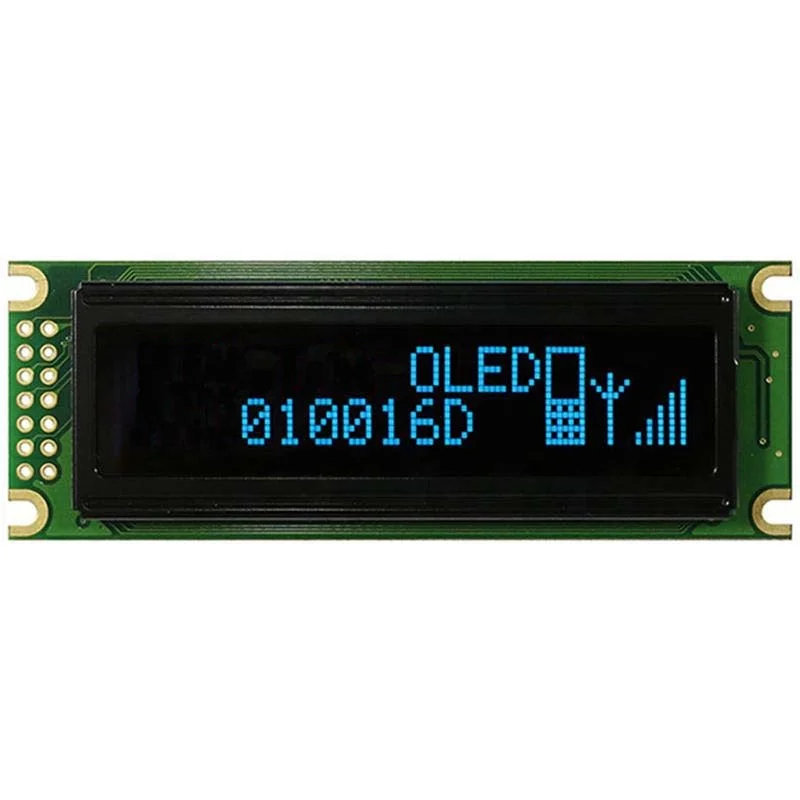

QTG010016EB : Blue

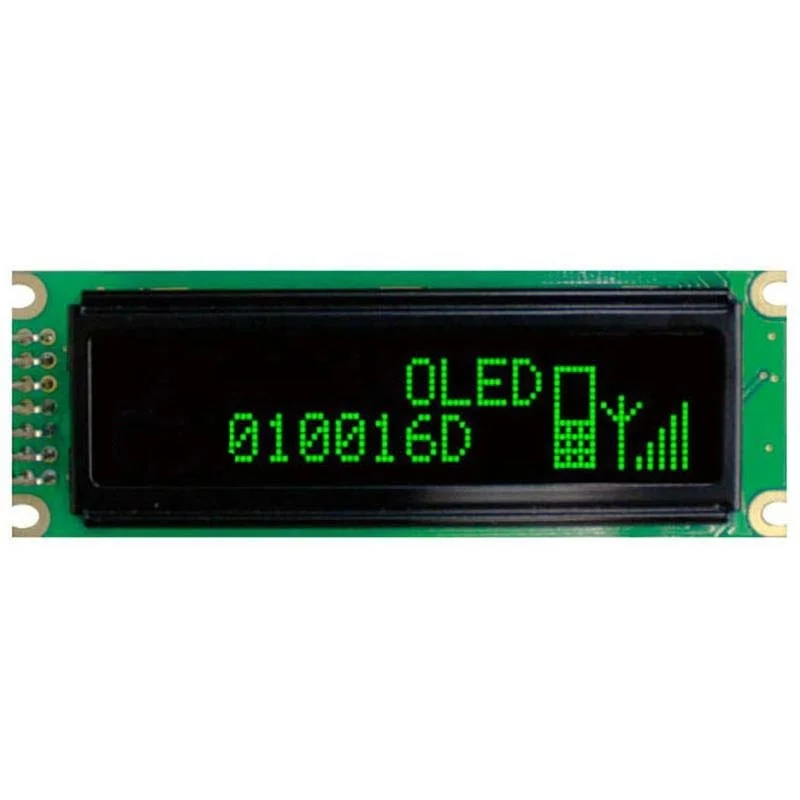

QTG010016EG : Green

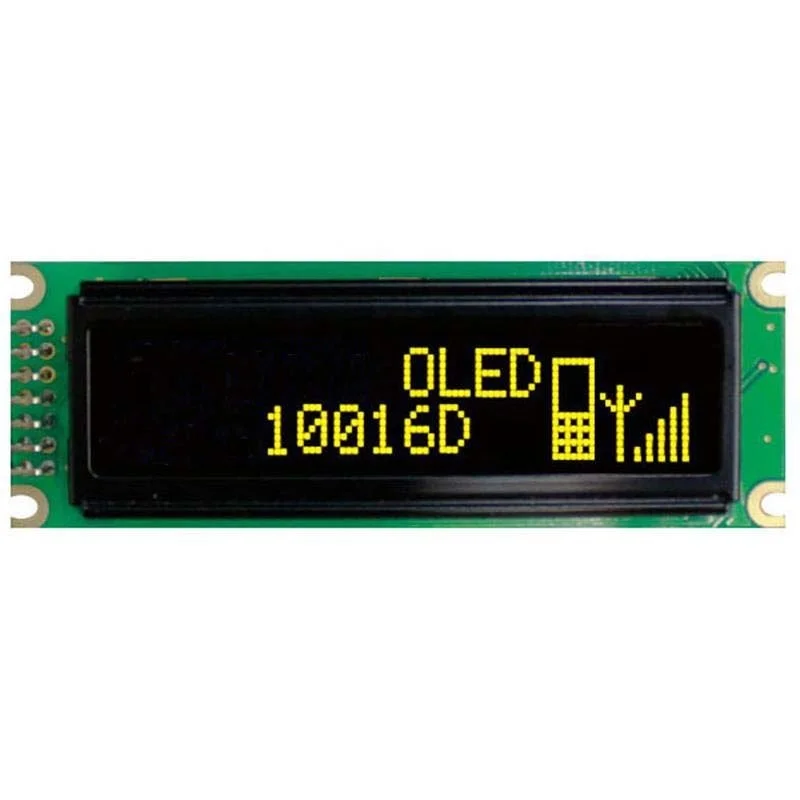

QTG010016EL : yellow
QTG010016ER : Red

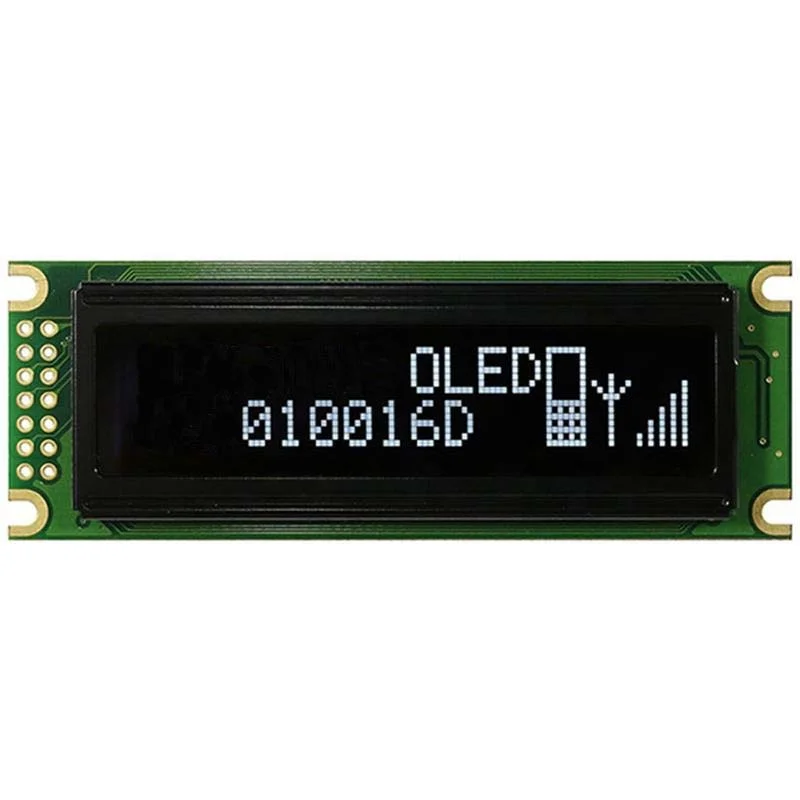

QTG010016EW : White



CHIP FEATURES

CMOS technology

Low power consumption

Microprocessor Interface

 -- High-speed 8-bit parallel bi-directional interface with 6800-series or 8080-series

 -- Serial interface available 4-bit or 8-Bit MPU interface

High speed MPU interface: 2MHz (VDD=5V)

128 x 8-bit display RAM (128 characters max.)

Auto reset function • 5 x 8 and 5 x 10 dot matrix

Built-in oscillator with external resistors

Programmable duty cycle: - 1/8 duty: (1 display line, 5 x 8 dots with cursor) - 1/11 duty: (1 display line, 5 x 10 dots with cursor) - 1/16 duty: (2 display lines, 5 x 8 dots with cursor)

Build-in selectable four sets of character generator ROM (CGROM) - English Japanese Character - Western European Character-I - English Russian Character - Western European Character-II

64 x 8-bits character generator RAM (CGRAM) - Either 8 character fonts (5 x 8 dot matrix) - or 4 character fonts ( 5 x 10 dot matrix)

16 common x 100 segment OLED drivers

Support graphic mode

Cascade application

Embedded DC-DC voltage converter

Package : bare die
