Guangzhou Building Construction Steel Ladder Frame Scaffolding For Sale
US $300.00-$900.00
TECON Acrow Prop
- Category: >>>
- Supplier: Suzhou Tecon Construction Technology Co. Ltd.
Share on (62001219045):
Product Overview
Description
Product Overview
TECON Steel Acrow Props

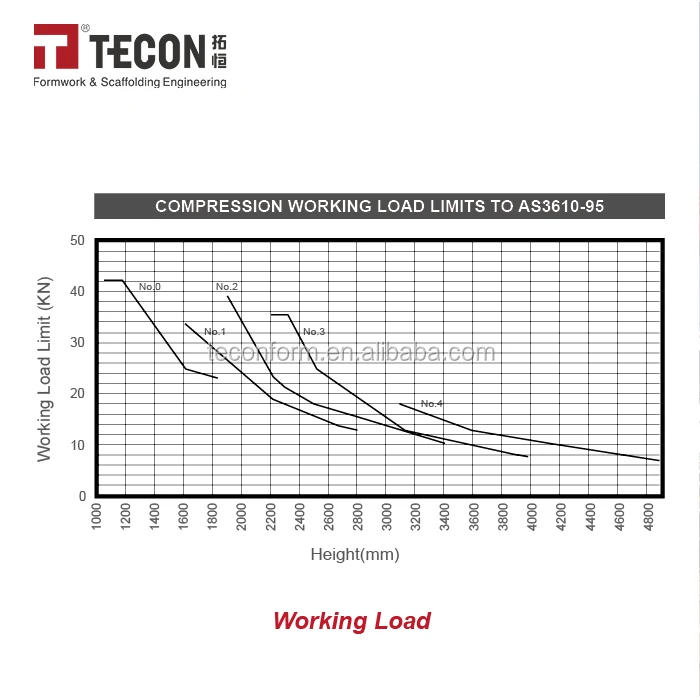

TECON Acrow Props, as one main prop serie among all TECON shoring props, is available in 5 sizes ranging from 1060mm to 4900mm with axial bearing load limits from 7kN to 42.5kN.
FEATURES AT A GLANCE
* Fully rolled thread on outer tube without welding maintains its strength
* Wide shoring application thanks to its big ranging in length and strong bearing capacity
* Hot dip galvanization treatment prevent the prop from corrosion

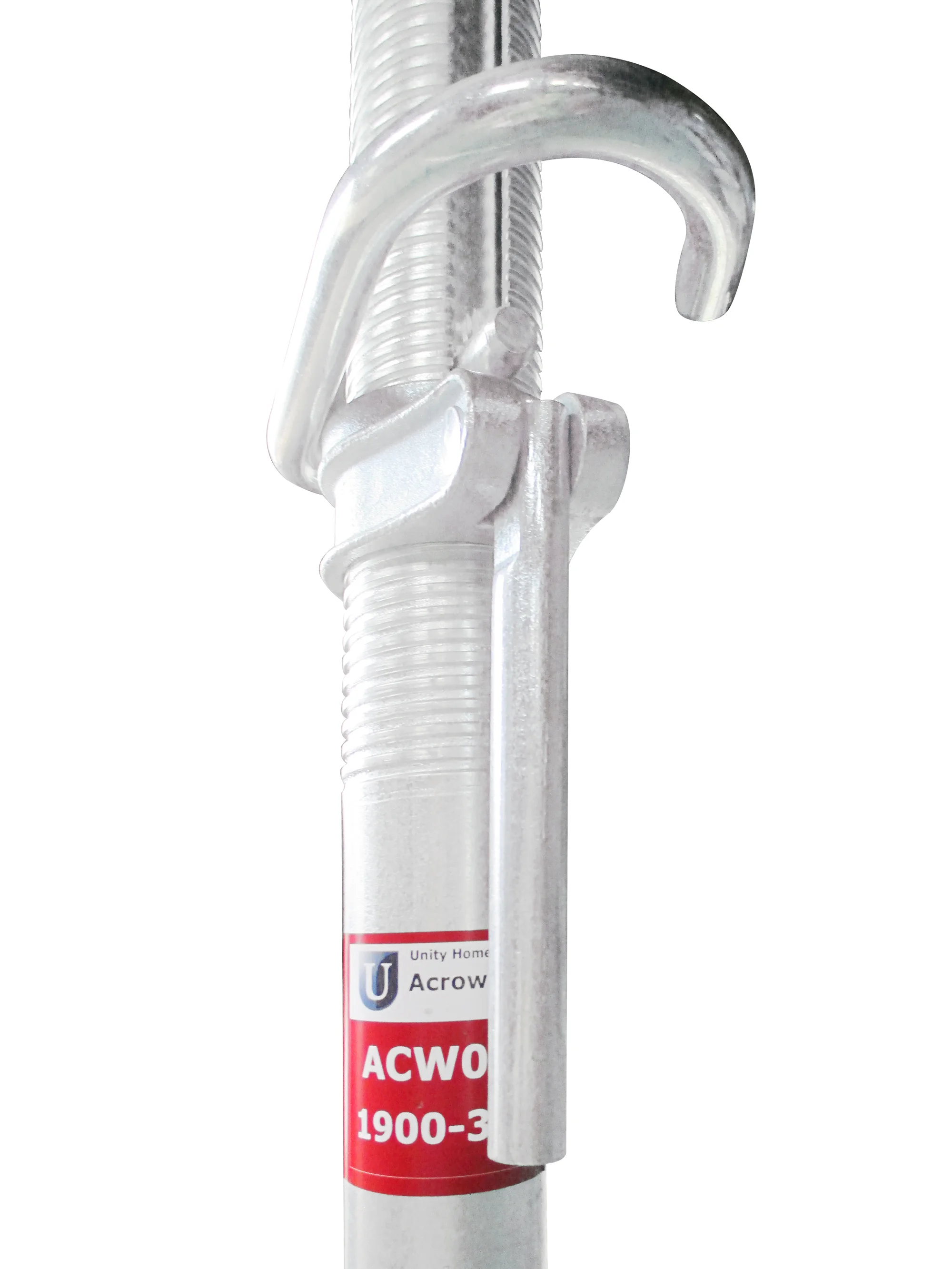

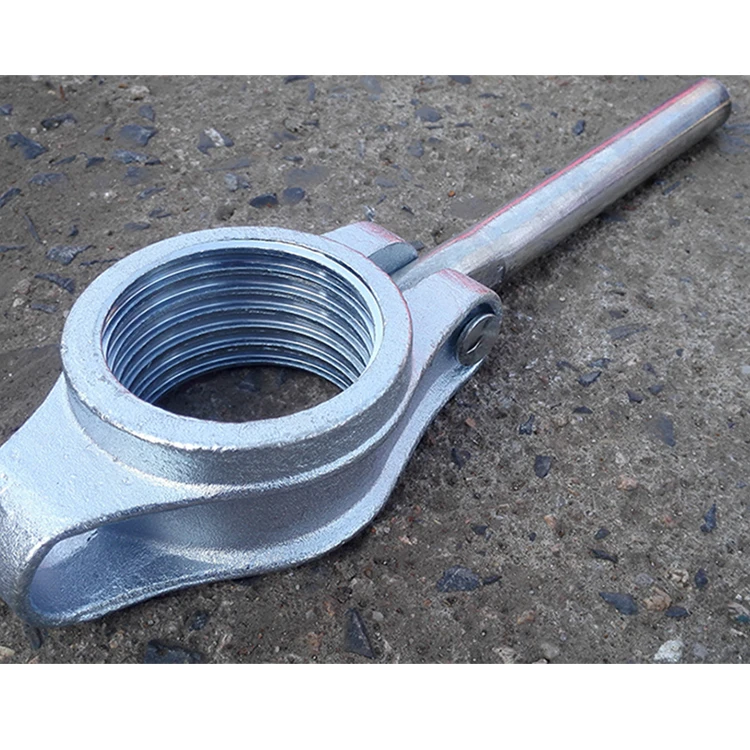

* Convenient erection lead by its specially desinged chainless prop pin with nut and handle
* Easy connection with scaffolding tubes by couplers thanks to its O.D.48.3mm and O.D.60.3mm tubes
* According to AS3610 standard

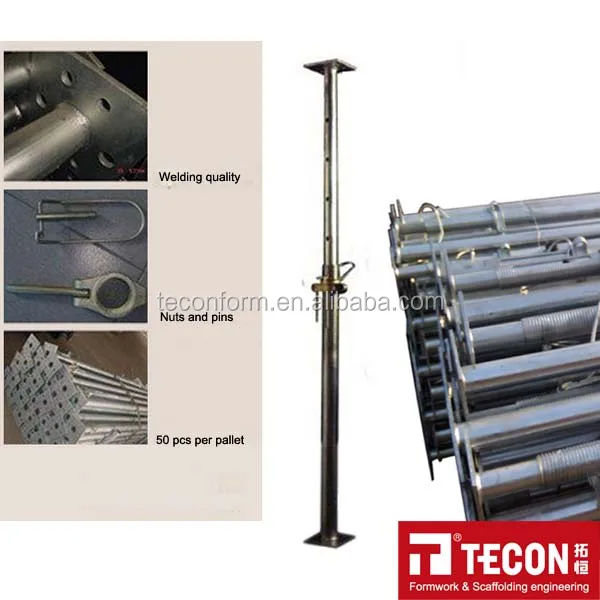

Details

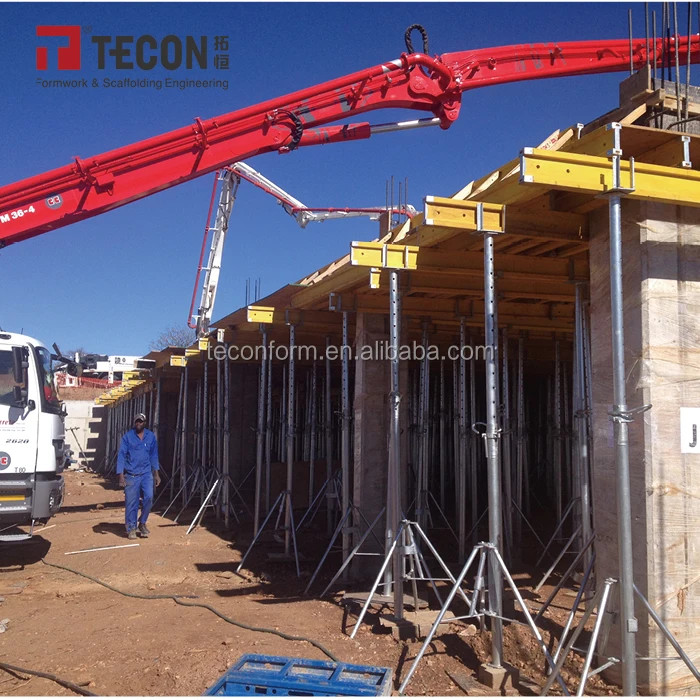

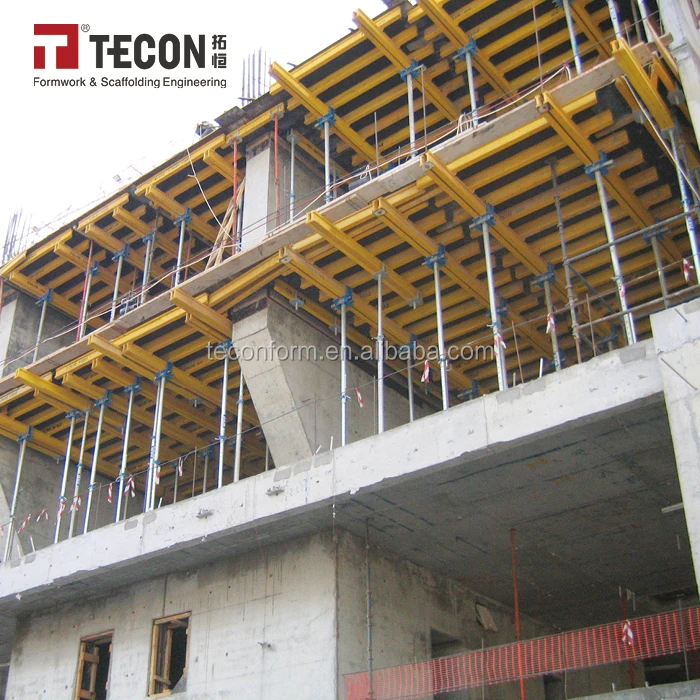

Application

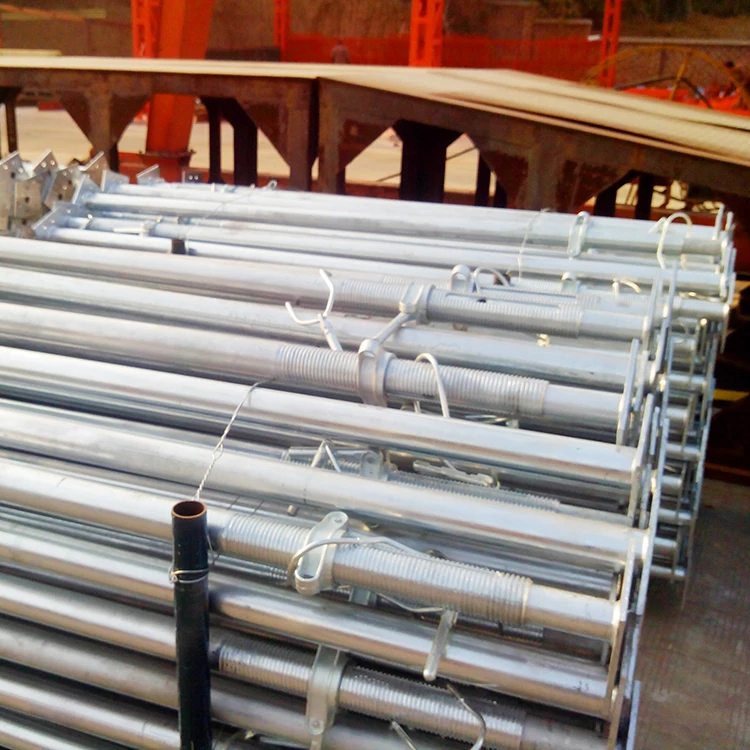

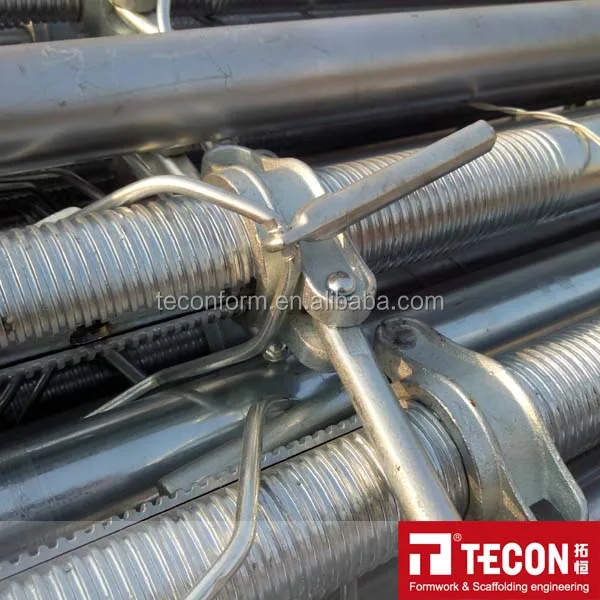

Product packaging
PRODUCT SPECIFICATIONS
ITEM No. | CLOSED LENGTH (mm) | OPEN LENGTH (mm) | REFERENCE WEIGHT (kg) |
ACP00 | 1050 | 1830 | 13.5 |
ACP01 | 1600 | 2800 | 18 |
ACP02 | 1900 | 3400 | 20.6 |
ACP03 | 2170 | 3975 | 23.2 |
ACP04 | 3100 | 4900 | 30.5 |

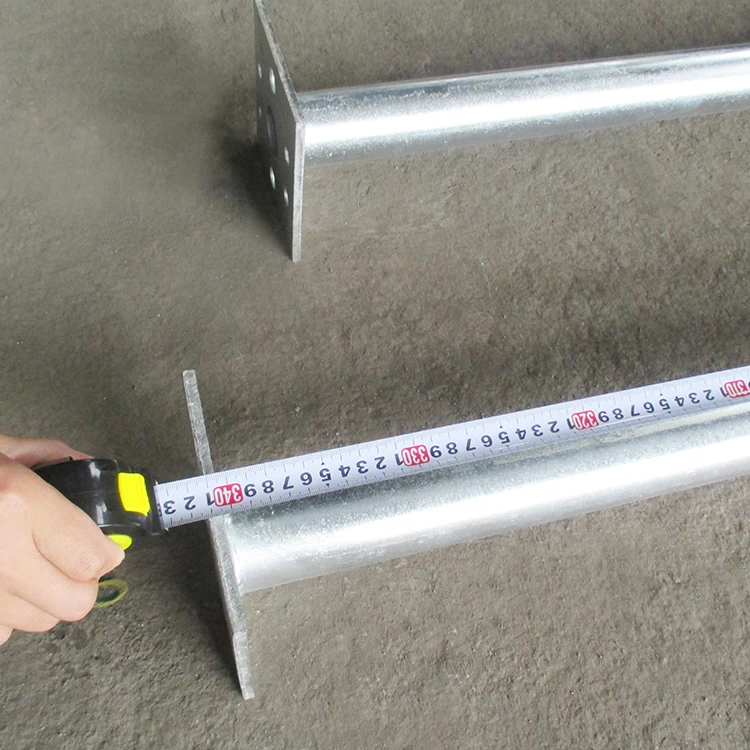

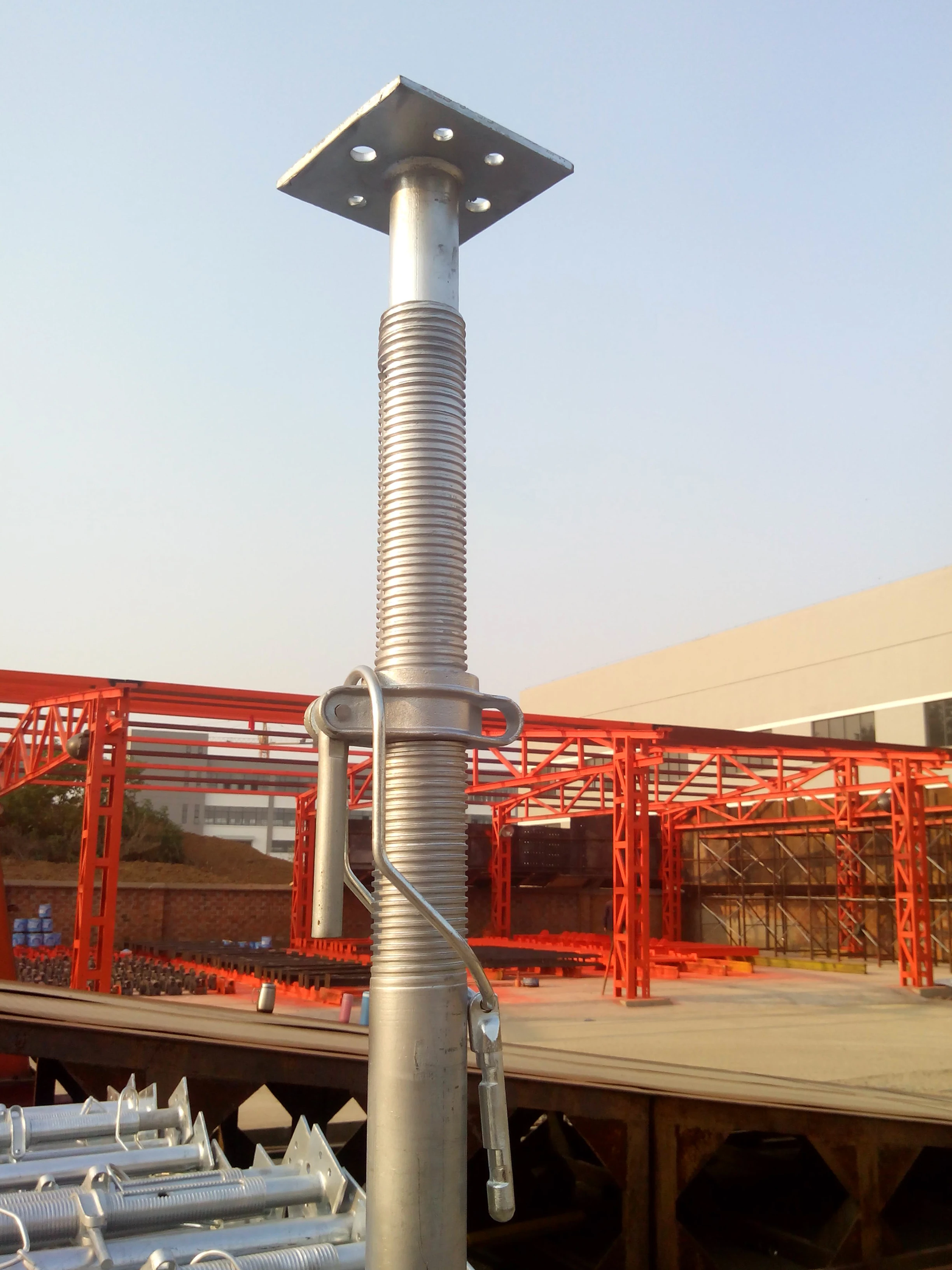

*Prop head and base plate: 150mm x 150mm steel plates with holes for securing to timber beams or facilitating the use of
accessories
*Prop inner tube: 48.3mm OD tube with holes at 152.5mm centres, easy connection with scaffolding tube by couplers

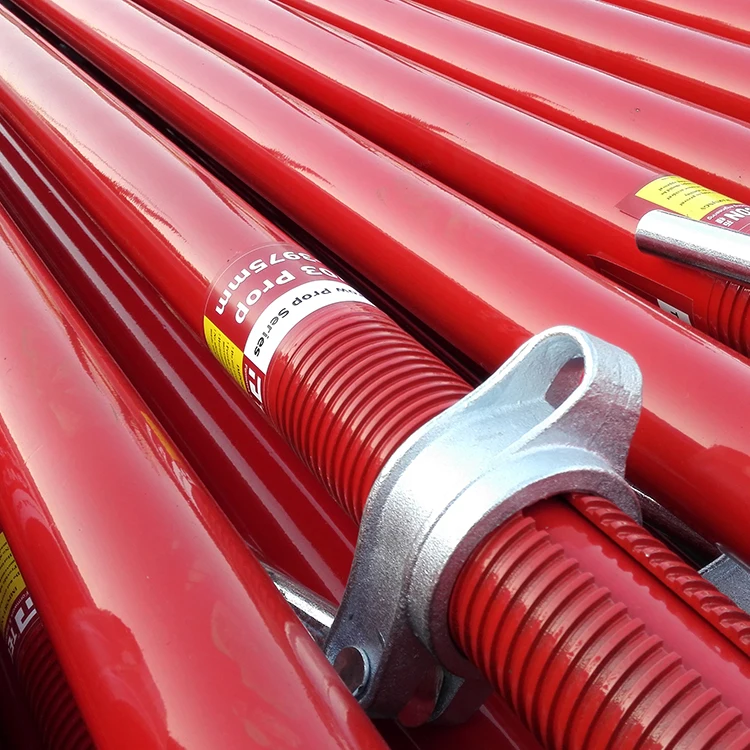

*Prop outer tube: 60.3mm OD tube with rolled thread, easy connection with scaffolding tube by couplers
accessories
*Prop inner tube: 48.3mm OD tube with holes at 152.5mm centres, easy connection with scaffolding tube by couplers
*Prop outer tube: 60.3mm OD tube with rolled thread, easy connection with scaffolding tube by couplers
FAQ
1. How to get a quotation?
You can send us your material list to request for a quotation, or you can also simply send us the structural drawing and project
information for complete formwork & scaffolding proposal via below contacts.
Phone: +86-512-65650586
Mobile: +86-18151096613
2. What is the payment term?
By T/T or L/C.
3. What is the lead time?
For climbing formwork, self-climbing platform, plastic formwork we have stock in our warehouse. The preparation of loading will be
within 10 to 15 days.
For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.
For other system, the lead time is from 30 to 45 days.
For more accurate lead time, please contact us for specific product based on your quantity.
4. What is the package method?
We have standard steel pallet, wooden pallet etc. which suits to container transportation.
5. Do you have any guarantee on the quality?
We have guarantees on the quality on different product basis.
6. Do you offer buy back system or rental business?
We offer buy back system on some of medium and big scale projects, but we do not have any rental business yet.
7. Do you have on-site supervision service?
Yes, we have on-site supervision service for most of our projects across the world except for a few restriction regions.
8. What benefit we can get from TECON?
From TECON, you can get full range of advanced system with excellent quality, our know-how and in-time service. They will lead to
increased productivity, labor saving and great cost down on your site as a result.
9. Are you looking for agent or distributor in our country?
Yes, we are looking for agent or distributor worldwide based on win-win relationship. If you have such experience, capability of
investment, as well as business plan & goal, we’d be glad to discuss with you in details. TECON has its special agent and
distributor policy waiting to support your success in formwork & scaffolding industry.
10. How to purchase your formwork and scaffolding?
For any order you proceed with TECON will basically follow below steps.
Step 01. Confirm the PI based on our proposal after technical & commercial communication – by Customer, TECON Overseas Sales team
and Technical team
Step 02. Make the deposit – by Customer
Step 03. Report on production schedule weekly until completion – by TECON Customer Care team
Step 04. Execute pre-shipment inspection – by Customer or Third Party Inspection company
Step 05. Effect the balance payment – by Customer
Step 06. Arrange the loading and shipment after balance payment – by TECON Customer Care team
Step 07. Submit the full set of shipping documents via courier after departure – by TECON Customer Care team
Step 08. Submit the full set of user manual, calculation, shop drawing and assembly drawings – by TECON Overseas Sales team
Step 09. Site supervision – By TECON Site Supervision team
