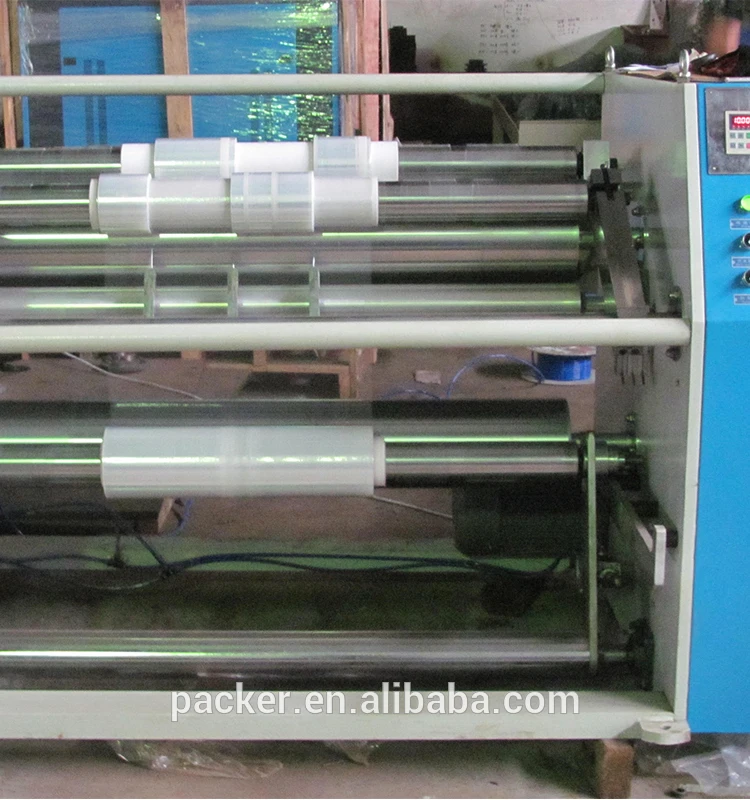

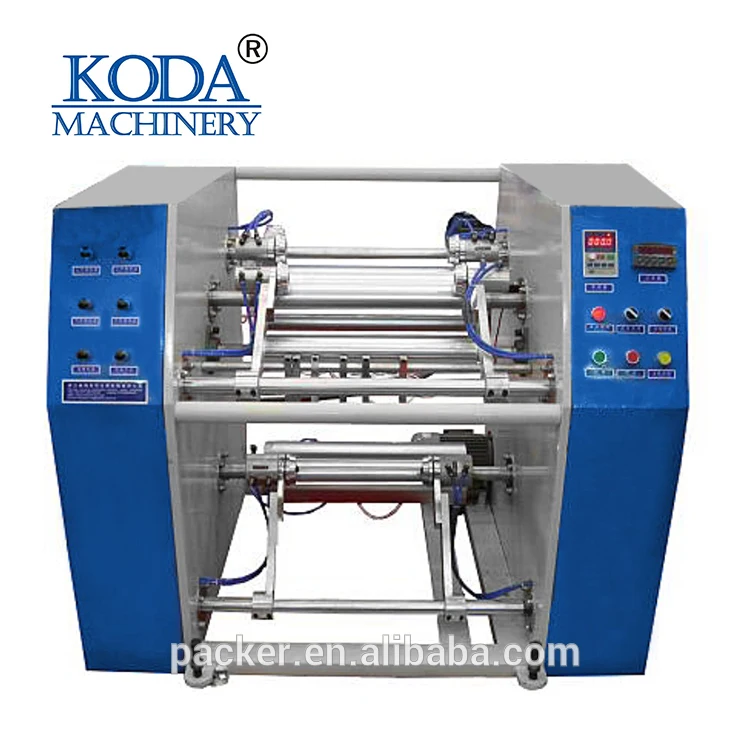

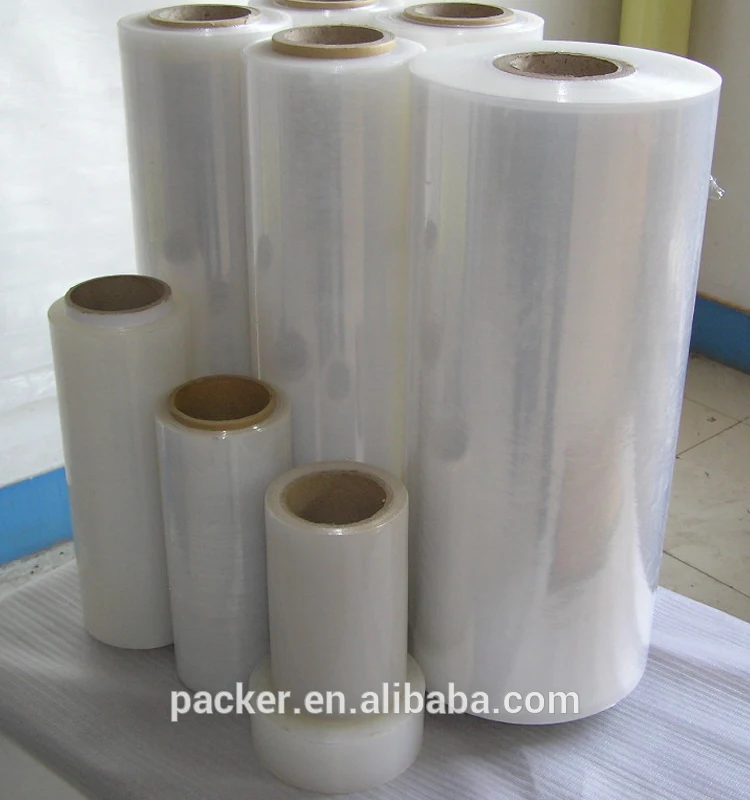

It is a kind of multi-functional machine integrated with slitting and rewinding. It mainly slits large-sized stretch film into small ones which avoids the split-level film and improves
the technical index of product ,such as level and appearance quality ect.
Item
KDRS-500
KDRS-1000
KDRS-1300
Width of finished products(mm)
500
1000
1300
Power of motor(kw)
1.5
3
3
Linear speed of machinery(m/min)
400
400
400
Roll laying mode
By hand
By hand
By hand
Diameter of parent roll(max)mm
φ400
φ400
φ400
Width of parent roll(max)mm
500
1000
1300
Core specification of parent roll
3"
3"
3"
Width of sub-roll(mm)
500
1000
1300
Diameter of sub-roll(max)mm
φ300
φ300
φ300
Core specification of sub-roll
3",2"
3",2"
3",2"
Overall dimensions (L*W*H)(m)
1.4*1.1*1.1
1.9*1.1*1.1
2.2*1.3*1.1
Weight(kg)
700
1000
1200
Production Process
