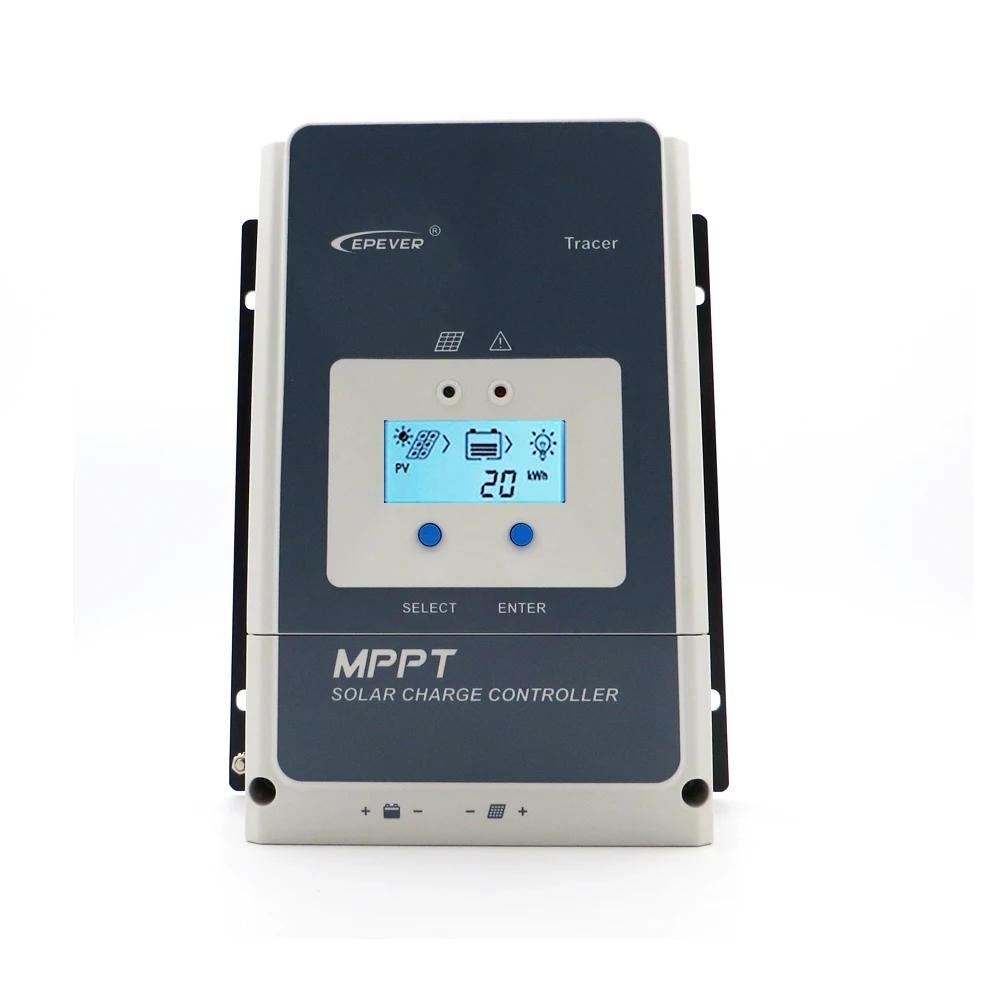

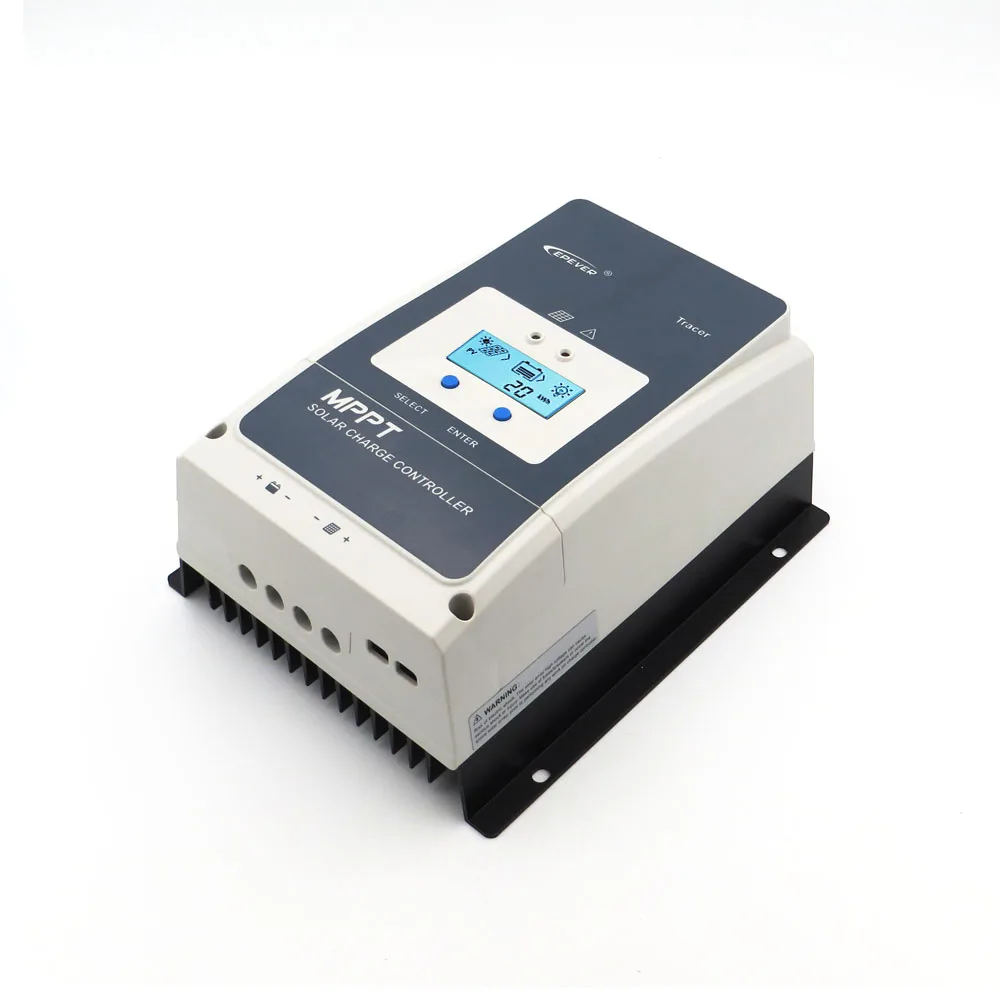

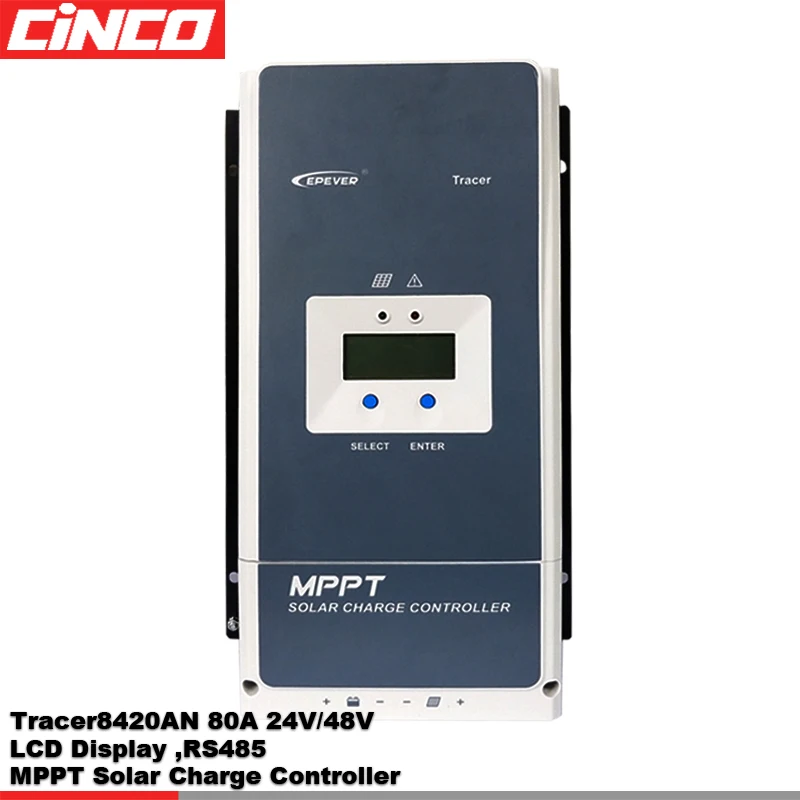

EPEVER Tracer8420AN 12/24V/36/48V MPPT Solar charge controller 80 amp battery fuse 200V solar panel input
EPEVER Tracer8420AN 12/24V/36/48V MPPT Solar charge controller 80 amp battery fuse 200V solar panel input
EPEVER Tracer8420AN 12/24V/36/48V MPPT Solar charge controller 80 amp battery fuse 200V solar panel input
EPEVER Tracer8420AN 12/24V/36/48V MPPT Solar charge controller 80 amp battery fuse 200V solar panel input
EPEVER Tracer8420AN 12/24V/36/48V MPPT Solar charge controller 80 amp battery fuse 200V solar panel input
EPEVER Tracer8420AN 12/24V/36/48V MPPT Solar charge controller 80 amp battery fuse 200V solar panel input
EPEVER Tracer8420AN 12/24V/36/48V MPPT Solar charge controller 80 amp battery fuse 200V solar panel input

EPEVER Tracer8420AN 12/24V/36/48V MPPT Solar charge controller 80 amp battery fuse 200V solar panel input

Share on (62001244944):


Price:$229.90 - $239.50

Quantity:


Product Overview

Description





Products Description


1.MPPT tracking efficiency above 99.5%
2.Maximum charge conversion efficiency as high as 98%
3.Battery type selection: Sealed, Gel, Flooded and User(programmable)
4.Common negative grounding, Charging current up to 100A
5.Charging power and current limitation function
6.High –temperature charging power derating function
7.3 relays design for different demand: utility, generator and load
8.Support up to 6 units in parallel
9.Remote temperature and voltage sensor design
10.Isolated RS-485 with 5VDC/200Ma with MODBUS protocol
11.CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)

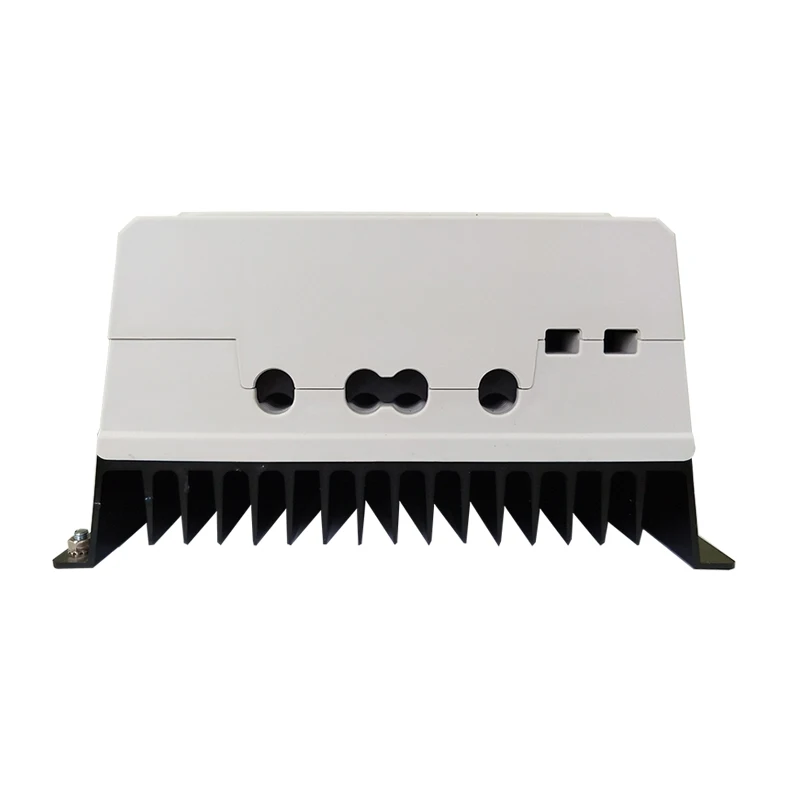

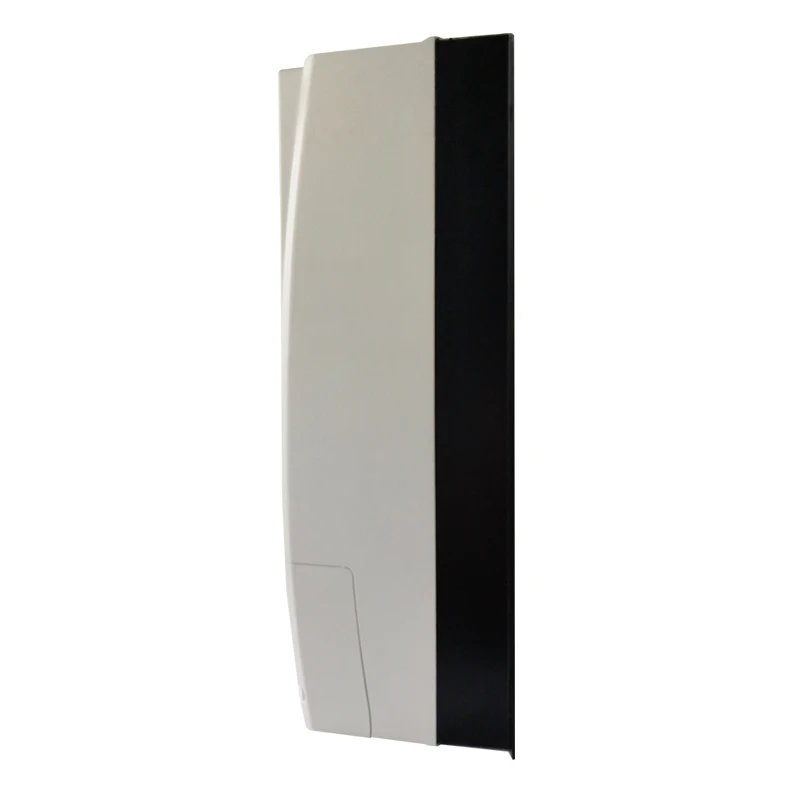

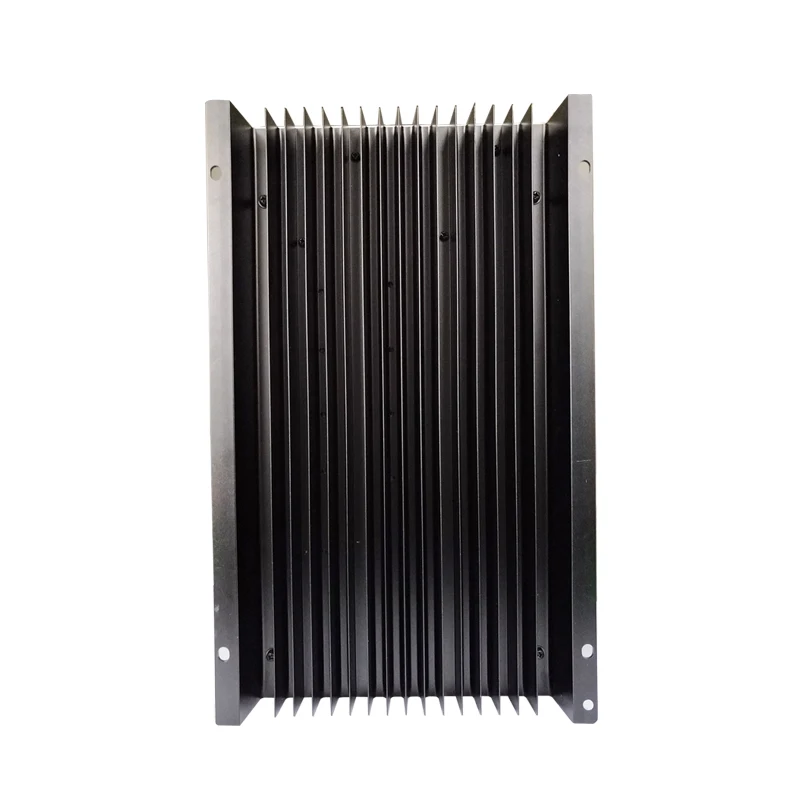

Details Images

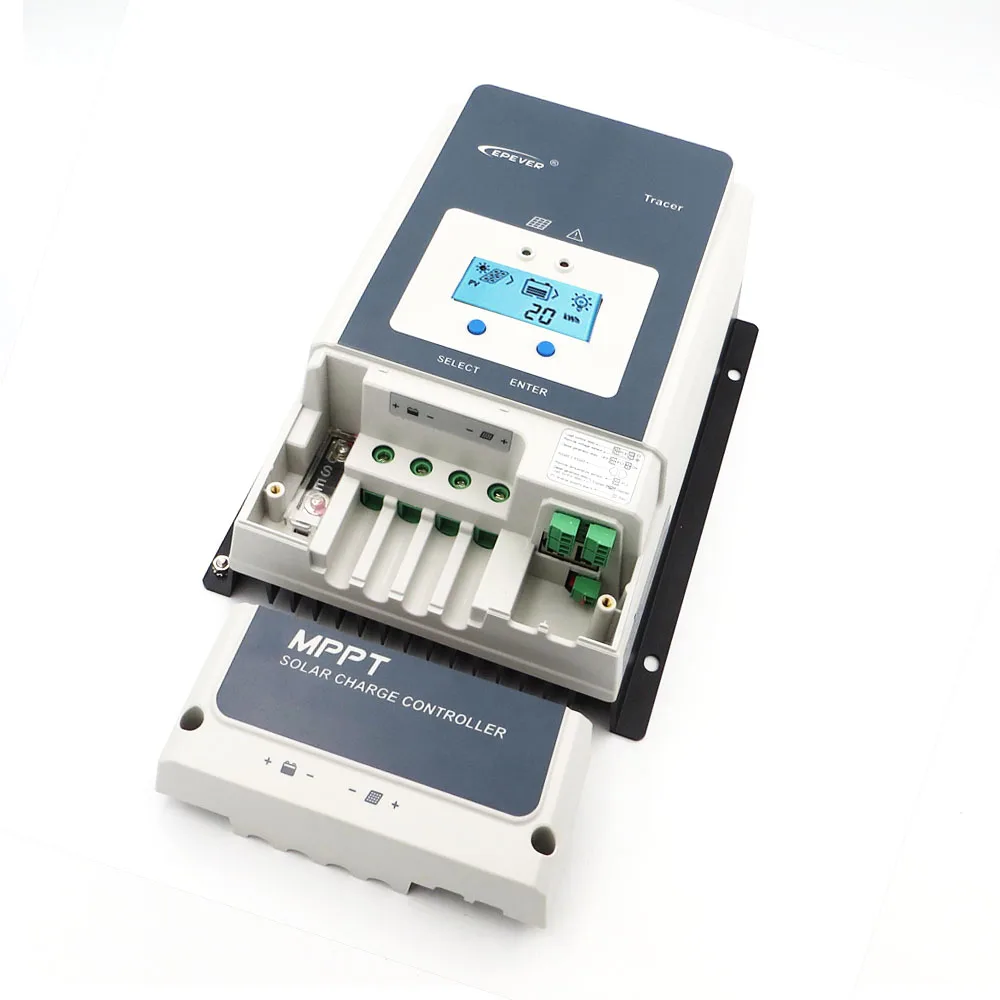

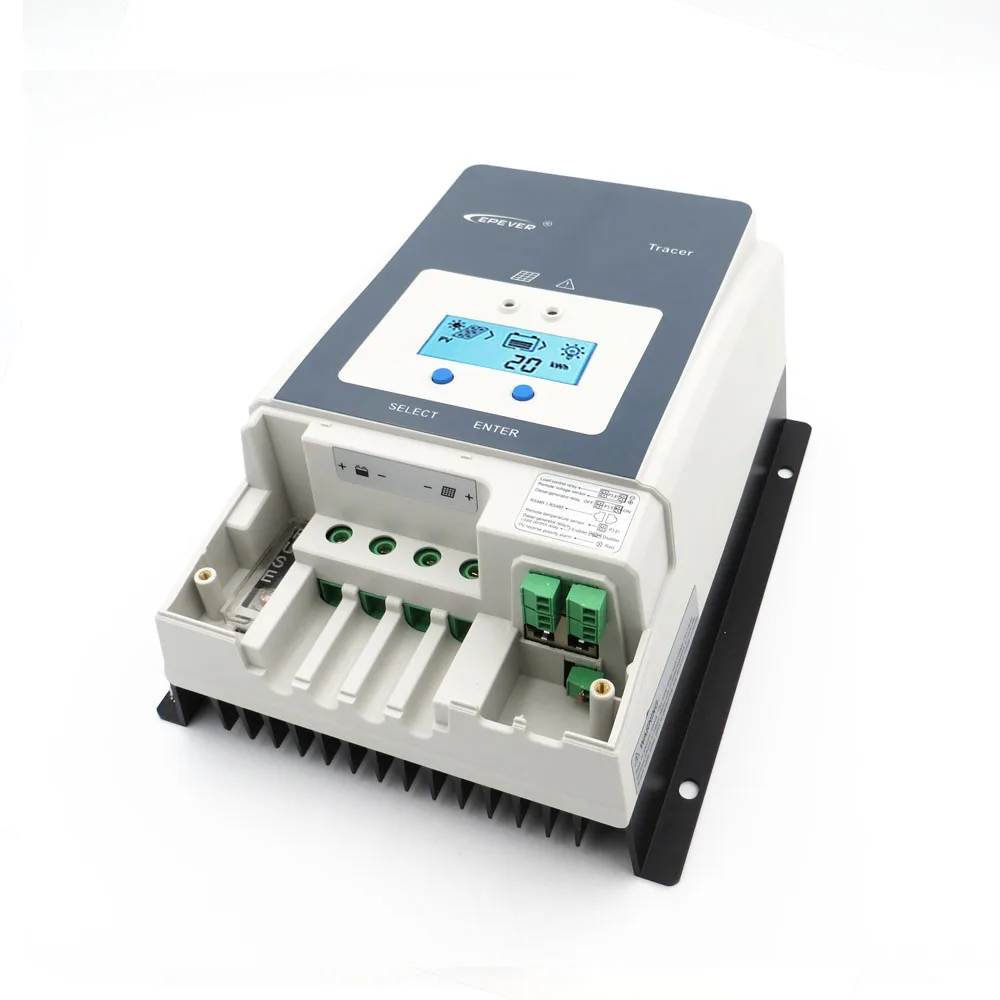

Wiring order & Accessories






Product Paramenters


Model
Tracer5415AN
Tracer6415AN
Tracer8415AN
Tracer10415AN
Nominal System Voltage
12/24/36/48VDC or Auto
Battery Input Voltage Range
8V～68V
Battery Type
Lead-acid Battery :Sealed(Default)/Gel/Flooded/User
Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User
Battery fuse
80A/58V

Rated charge current
50A
60A
80A
100A
Rated charge Power
625W/12V 1250W/24V 1875W/36V 2500W/48V
750W/12V 1500W/24V 2250W/36V 3000W/48V
1000W/12V 2000W/24V 3000W/36V 4000W/48V
1250W/12V 2500W/24V 3750W/36V 5000W/48V
Max. PV open circuit voltage
150V① 138V②
150V① 138V②
150V① 138V②
150V① 138V②
MPP Voltage Range
(Battery Voltage +2V) ～108V②
(Battery Voltage +2V) ～108V②
(Battery Voltage +2V) ～108V②
(Battery Voltage +2V) ～108V②
Tracking efficiency
≥99.5%
≥99.5%
≥99.5%
≥99.5%
Max. conversion efficiency
98.3%
98.6%
98.5%
98.6%
Full load efficiency
97.8%
98.0%
98.0%
98.0%
Temperature compensate coefficient
－3mV/℃/2V(Default)
Self-consumption
98mA/12V;60mA/24V;50mA/36V;46mA/48V
Grounding
Common negative grounding
Relay
Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
RS485 interface
RS485(5VDC/200mA, Two RJ45 ports in parallel) ③
LCD backlight time
Default:60S,Range:0～999S(0S:the backlight is ON all the time)
①At minimum operating environment temperature;
②At 25℃ environment temperature;
③When connect the controller to external devices,only one of the ports can be used; when use multiple controllers in parallel, the port are for cascaded use
Ambient temperature range
-25℃～+60℃(Derate above 45℃)
LCD temperature range
-20℃～+70℃
Storage temperature range
-30℃～+85℃
Relative humidity range
5% to 95% (N.C.)
Enclosure
IP20
Pollution degree
PD2
Dimension(mm)
261×216×119
340×236×119
394×240×134
394×242×143
Mounting dimension(mm)
180×204
260×224
300×228
300×230
Mounting hole size
Φ7



Terminal
6AWG/16mm2
2AWG/35mm2
2AWG/35mm2
2AWG/35mm2
Recommended cable
6AWG/16mm2
6AWG/16mm2
4AWG/25mm2
2AWG/35mm2
Weight
3.5kg
4.5kg
6.1kg
7.4kg
