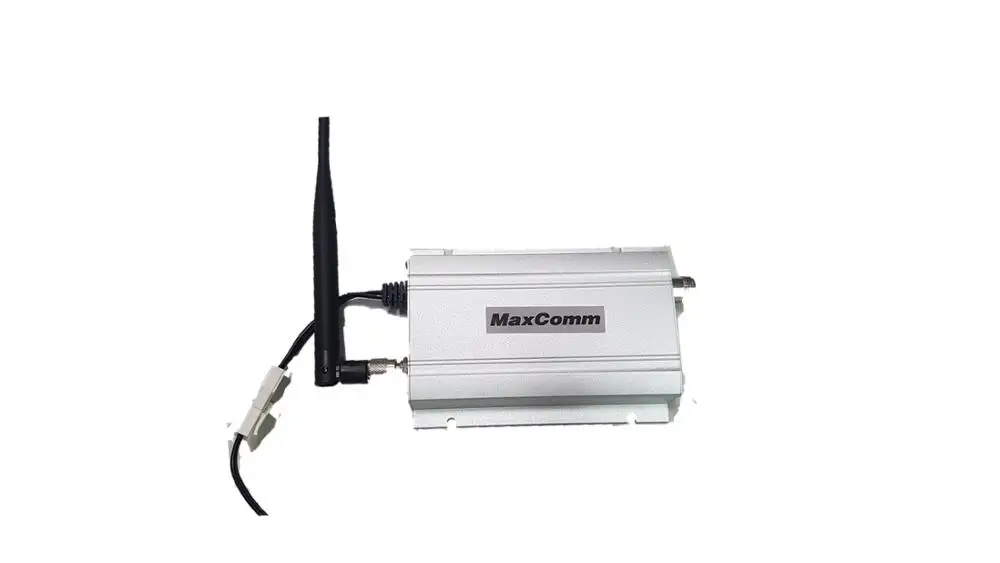

MARINE 4G/3G SIGNAL BOOSTER REPEATER for ships, Yacht. fishing boat

Product Overview

Description

MARINE 4G/3G SIGNAL BOOSTER REPEATER for ships, Yacht. fishing boat



l   The MaxComm Wireless Reception Amplifier is ideally suited for providing and/or improving cellular reception within cars, trucks and other motor vehicles. User could attach sensing antenna to car kit holder or leather case surface, no need to connect to the cellphone directly (just near by sensing antenna).

l   Moreover, we have brand-new and close design for the model. Once the installation is finished, user could make an outgoing call to check if the installation is correct or not. As long as the installation is correct, the power indicator will change color from red to blue.



Features

l   Extend cellphone communication range up to 100km (60mile)

l   Reduce radiation from cellphone, helpful for human health

l   Extend lifespan of cellphone battery

l   Built-in AGC, free of interference

l   One time install, the sensing antenna attach to the phone holder or leather case surface

Specifications

Model No. Cell Phone System	MG30 Cellular    900LTE     2100
Frequency Range           Uplink           Downlink	824~849MHZ 890~915MHZ 1920~1980MHZ 869~894MHZ 935~960MHZ 2110~2170MHZ
Bandwidth	25MHZ
Gain	Uplink 28dB /Downlink 28dB (nom.)
Gain Variation Over	±3db
Freq. and Temp.
Noise Figure	6.0dB
RF Power Output	Uplink 2W Downlink 1.0mW
Power Supply	12.6VDC Car Battery via Cigarette Jack or Tip Wire
Power Consumption	12W
AGC Range	15dB
Size Dimensions	3.3×10.6×16.5cm (H×W×D); 1.3×4.2×6.5 in
RF Connector	Outdoor ANT side: FME(M), Indoor ANT side : TNC(F)
Weight	0.5kg (approx)
Case	Alloy aluminum

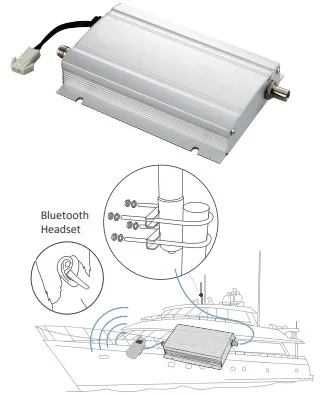

Installation	In the car trunk or under the seat
Accessories	3m Cigar jack power cord or tip wire; RG58 coaxial cable
Fastening	4 screw holes
