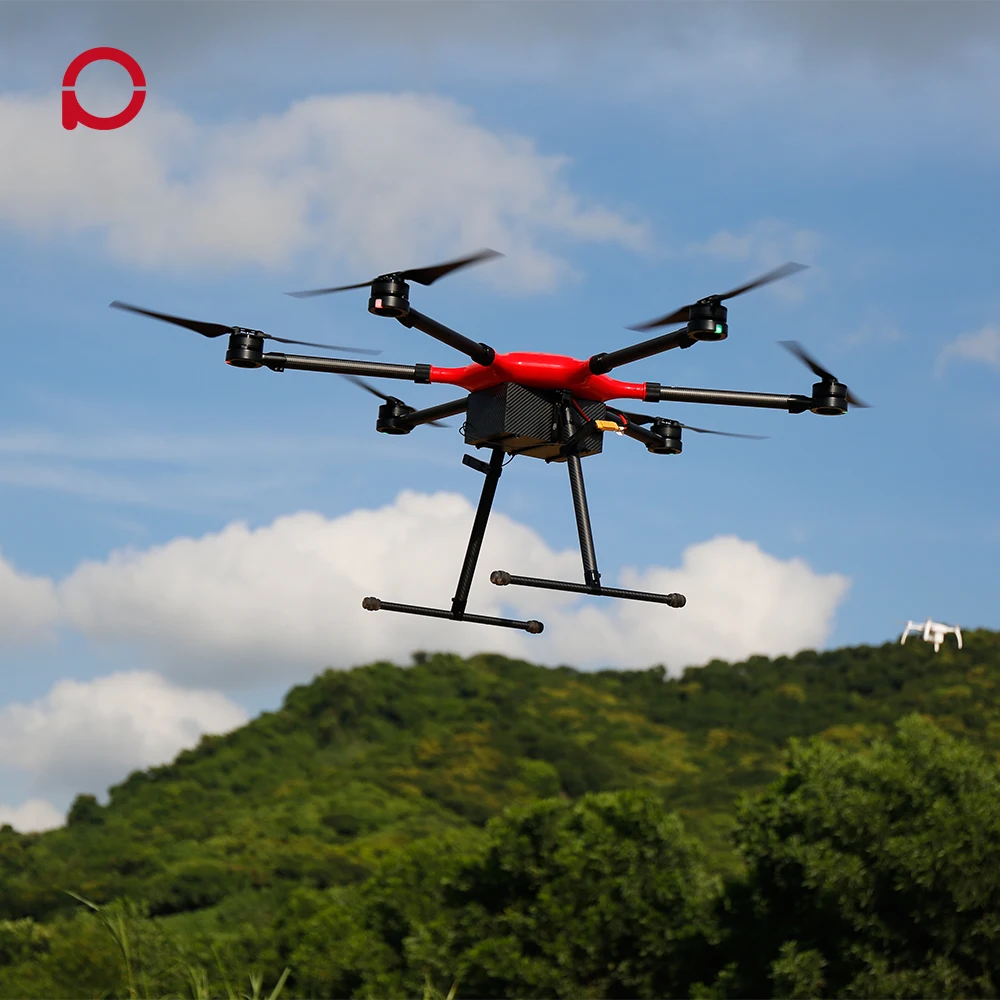

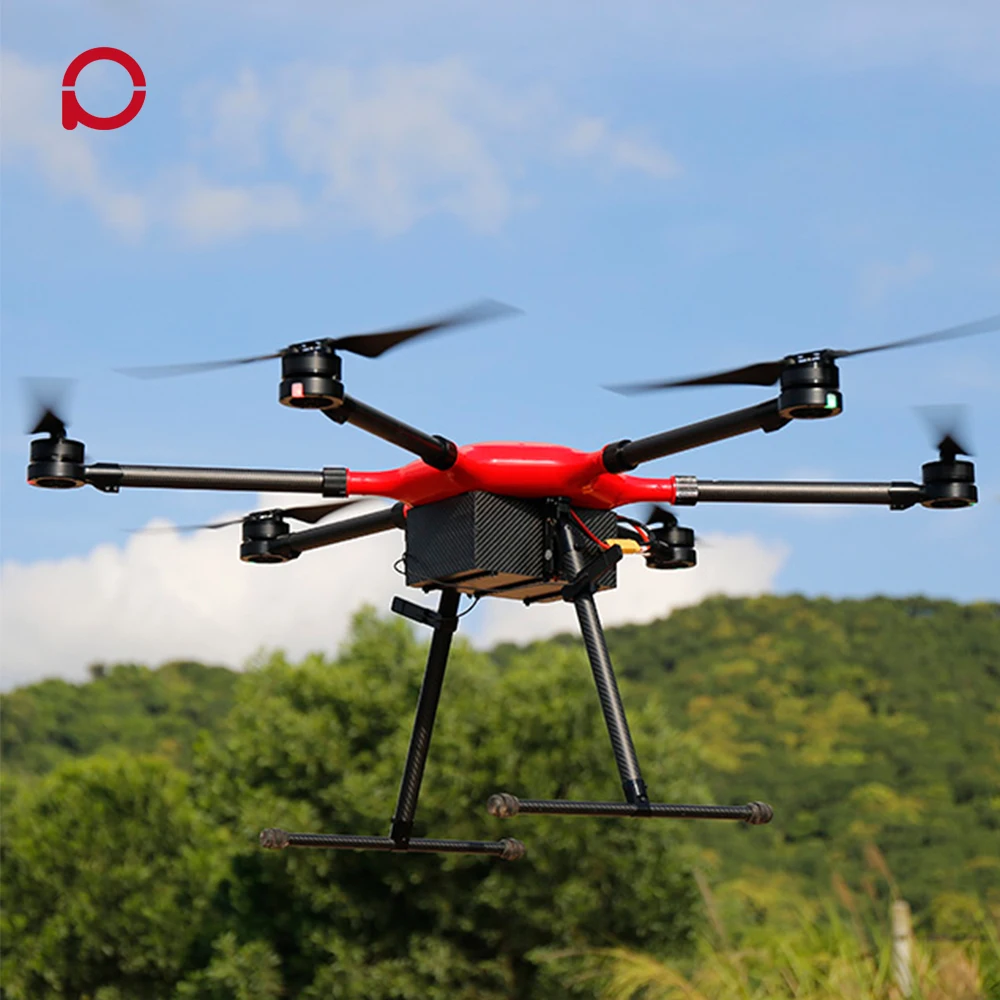

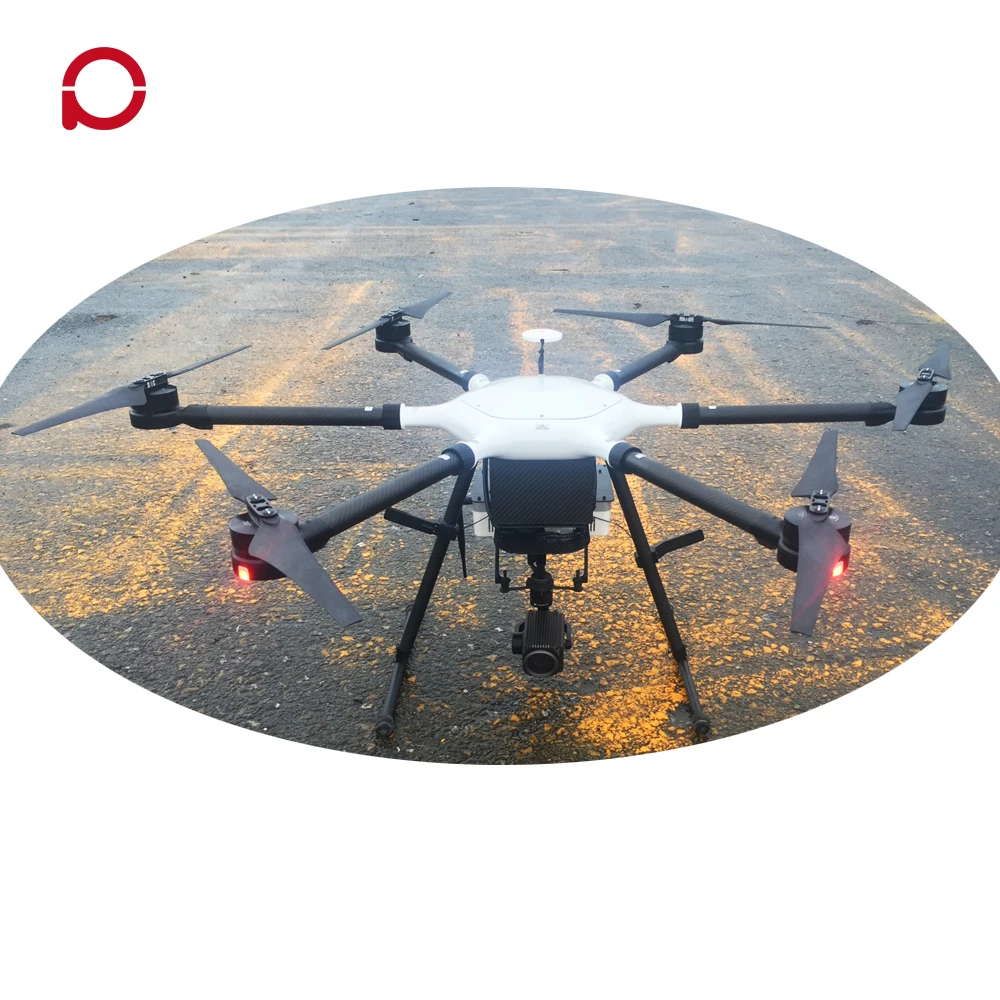

Viewpro 6 axis Waterproof Rotary Wing Aircraft / Unmanned Aerial Vehicle Drone Folding Carbon Fiber Body Frame for survey / ins

Share on (62001295239):


Price:$3,499.00

Quantity:


Product Overview

Description


Product Description

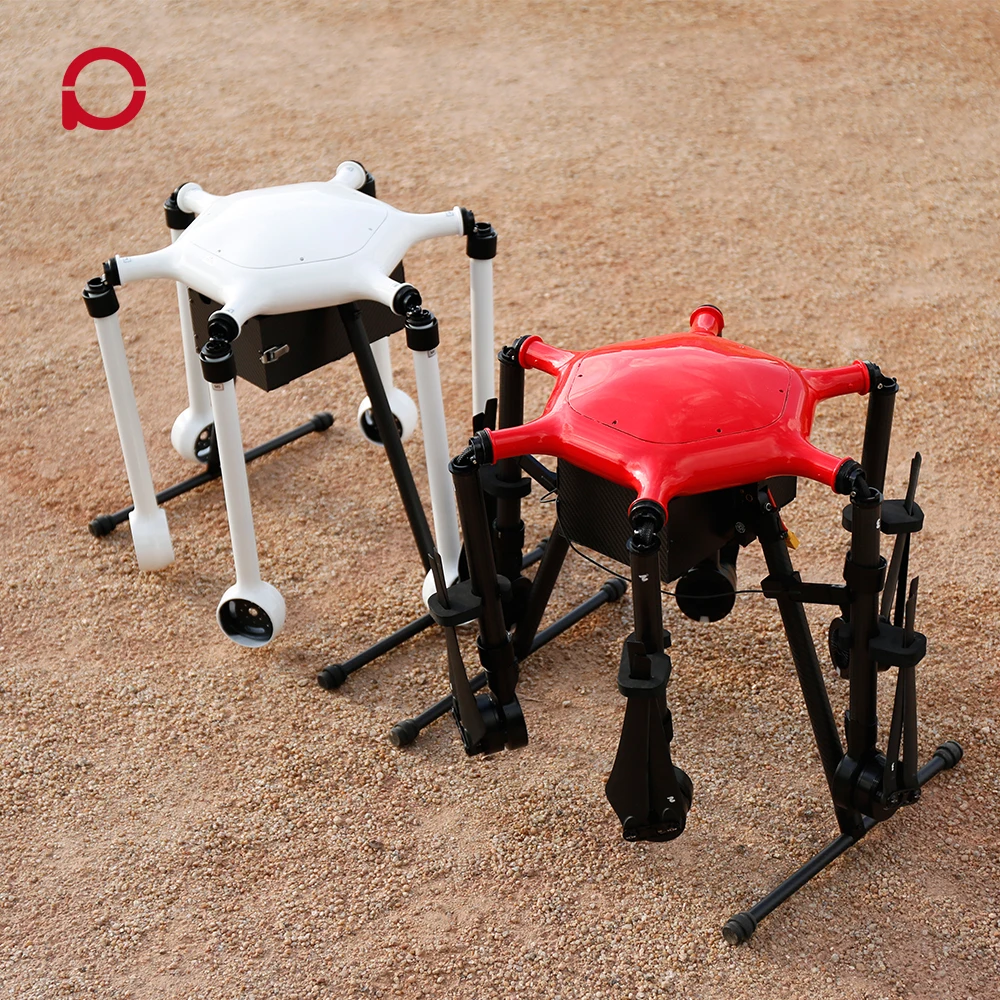

Viewpro S1133 is one piece carbon fiber body frame and a robust industry-grade fuselage. The fuselage ensure rain, dust and wind resistance. Using integral molding (vacuum hot pressing tank technology), S1133 is portable , robust and easy to operate. The main materials are glass fiber and 3K carbon fiber.

*Notice: This model S1133 is only one body frame, not including propeller and propulsion system, if you need these, please leave messages to us.

Applicatioins

Viewpro S1133 is invented for survey, inspection, rescue, tracking. It's equipped with high efficient power system to ensure long flight time. If our gimbal cameras mounted on, It could fly over the area such as highway traffic jam, fire place, flood stricken region, mountain, lake and coal area, where people can not reach and find out the amergency situation.

Specifications
\t
Material
\t
Glass fiber + 3K carbon fiber, integral molding (Vacuum hot pressing tank technology)
\t
Unfolding Size
\t
1202mm*1050mm*430mm
\t

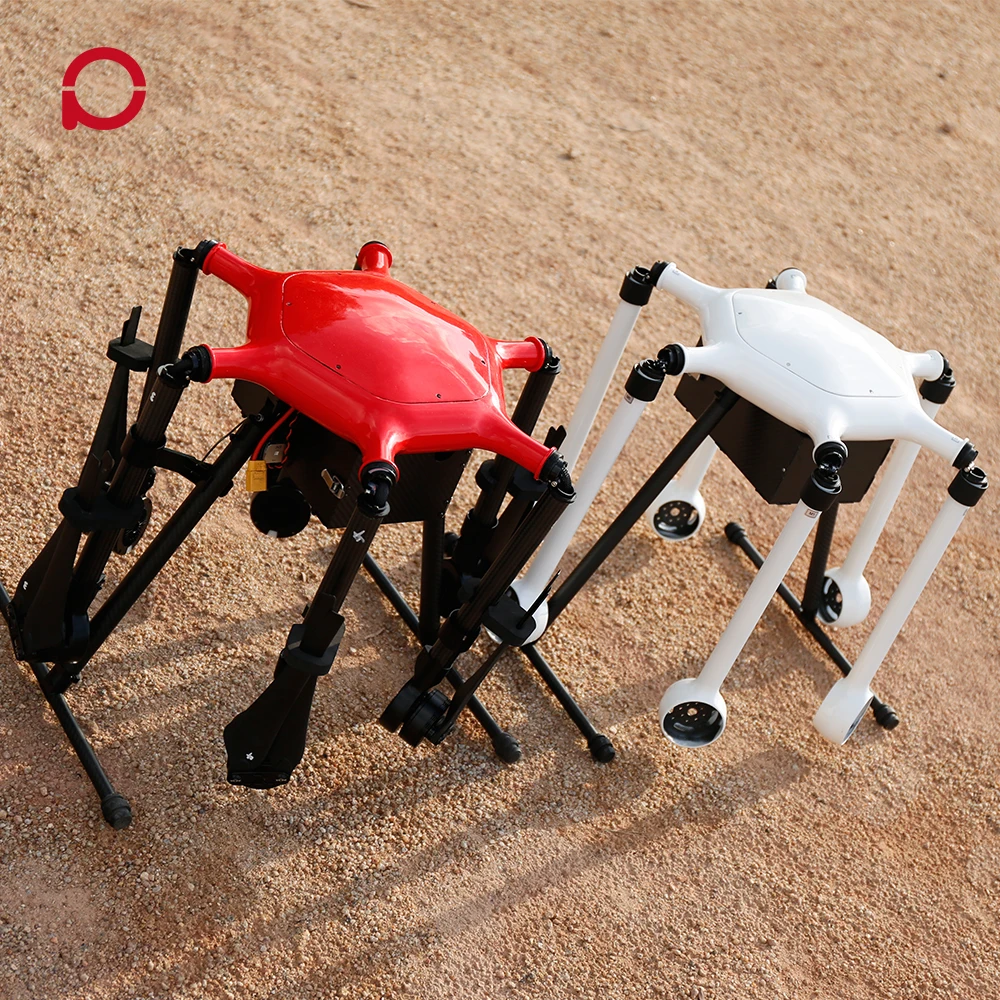

Folding size
\t
490mm*420mm*430mm
\t
Wheelbase
\t
1135mm
\t
Propeller
\t
21inch Composite carbon paddles
\t
Propulsion system
\t
E2000 pro (no logo) FOC Integrated waterproof and dust-proof propulsion system
\t
Battery
\t
6S 22000mAh * 2pcs (not included)
\t
Max payload
\t
7kgs
\t
Undercarriage
\t
Quick release
\t
Endurance
\t
No-load ≥60min, Payload ≥2kg 40min
\t
Colors
\t
Black, white and red
Our Company

Shenzhen Viewpro Technology Co., Ltd established in 2005, located in the Hi-tech park of Shenzhen - the " Chinese Silicon Valley", is a Hi-tech manufacturer, specialized in Unmanned Aerial Vehicle ( UAV ) zoom gimbal cameras R&D and manufacturing. It is a leader in the UAV payload industry.

Certifications
Packing & Delivery

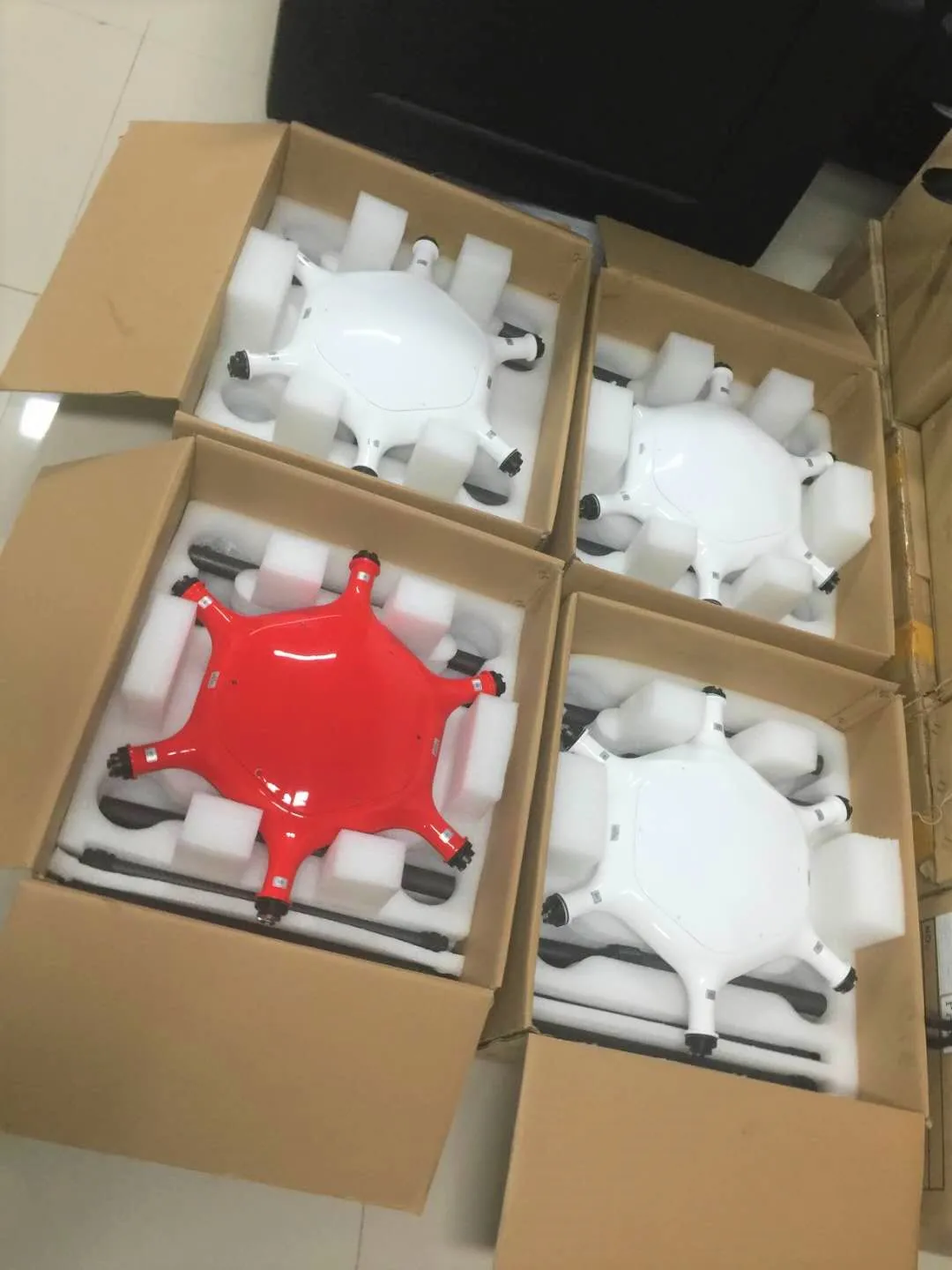

Packing

N.W.: 9.3kgs(with batteries 5.2kgs)
In the package:

UAV Frame + 6sets propulsion system (optional) / Carton

G.W.: 10.3kgs (with propulsion system)
Package size:\t500*450*250mm (with propulsion system)

Delivery

Any shipping method is available.
