Automatic low cost plastic pouch book / a4 paper packing machine
- Category: >>>
- Supplier: Foshan Hongshuo Packaging Machinery Co. Ltd.
Share on (62001316908):
Product Overview
Description
Automatic low cost plastic pouch book / a4 paper packing machine
Technical Paramters | ||||||
Model | HS-600 | HS-650 | HS-700 | |||
Film Width | Max.600mm | Max.650mm | Max.700mm | |||
Bag Length | 160-500mm | 170-500mm | 180-500mm | |||
Bag Widht | 80-270mm | 90-270mm | 100-330mm | |||
Product Height | Max.110mm | Max.110mm | Max.110mm | |||
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | |||
Packing Speed | 20-80bags/min | 20-80 bags/min | 20-80 bags/min | |||
Power Specification | 220V,50/60Hz,3.2KW | 220V,50/60Hz,3.2KW | 220V,50/60Hz,3.2KW | |||
Machine Size | 4020*970*1500mm | 4025*1020*1500 mm | 4030*1070*1500mm | |||
Machine Weight | 700KG | 700KG | 750KG | |||
Main performance and structure features of automatic packing machine :

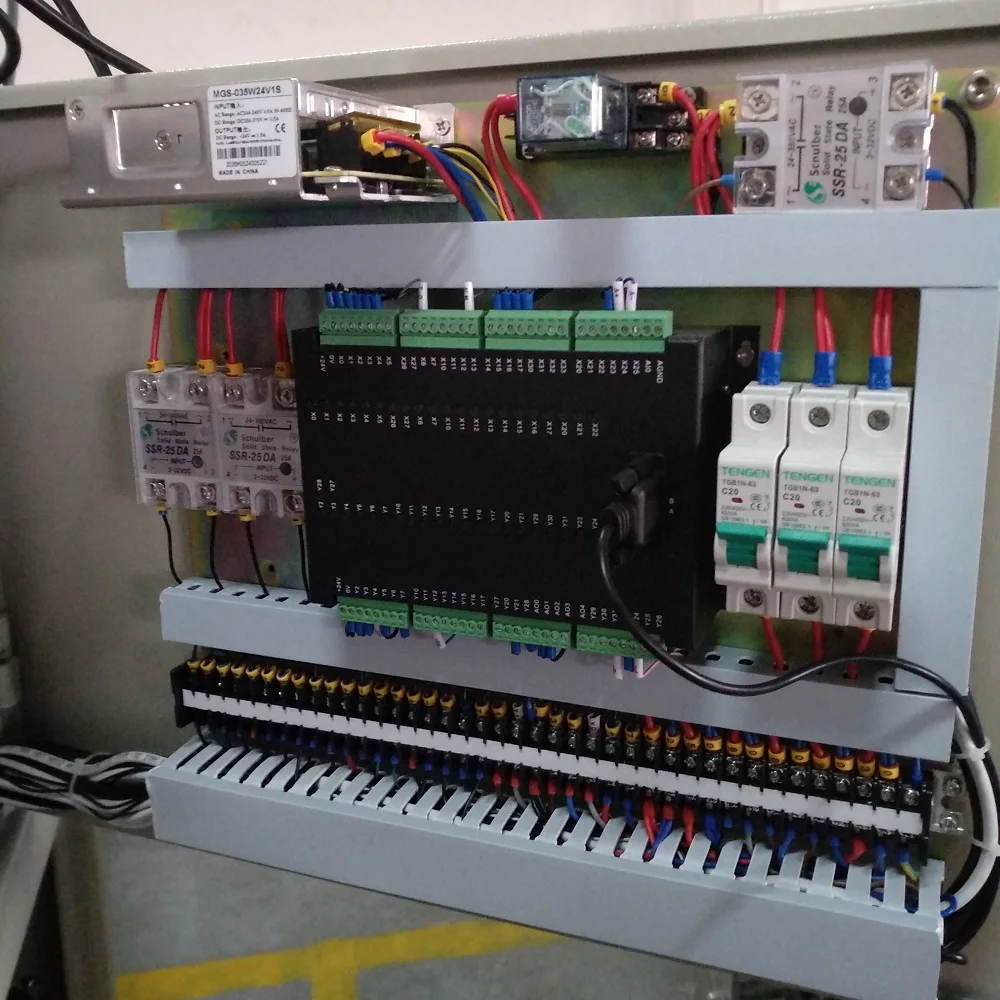

1. Double motor, double Panasonic transducer and PLC controller, flexible bag length setting and cutting,saving time and film.

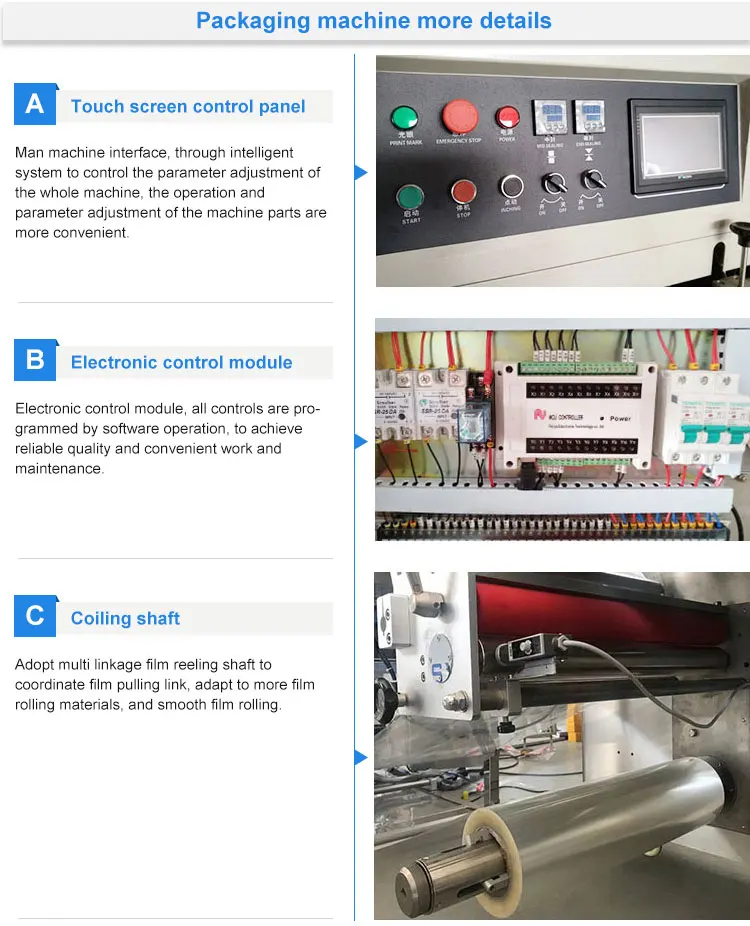

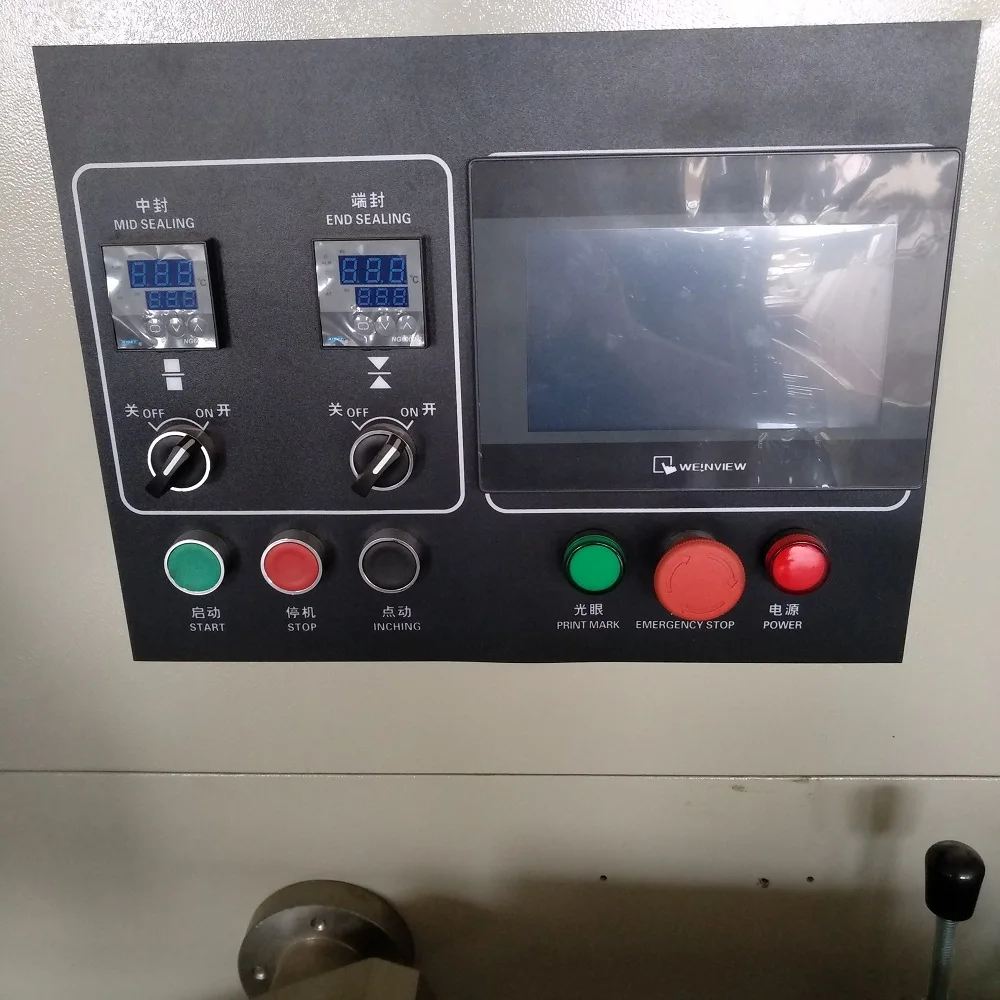

2. Human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.

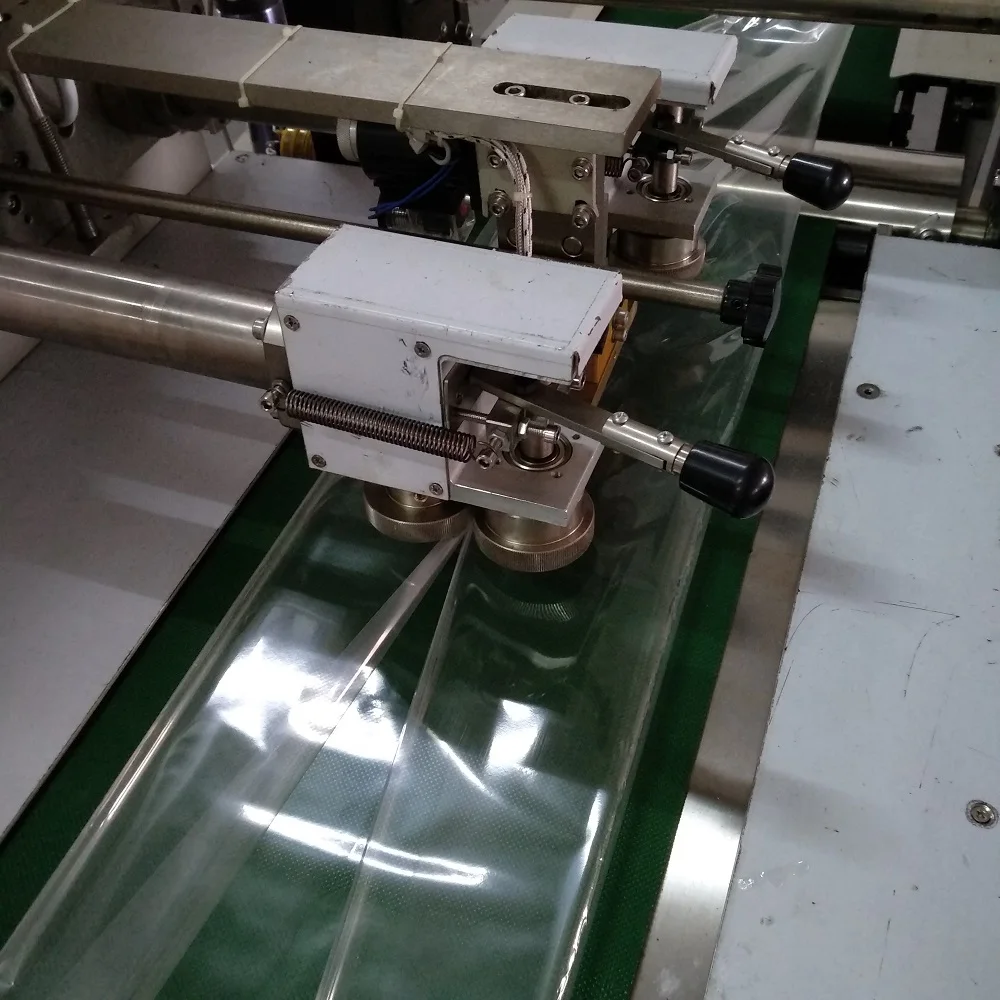

4. High sensitive optical electric color mark tracking system and digital input cut position, with make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controlled by program, convenient for adjusting and upgrading.
AFTER-SALE SERVICES
1.Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3.Hongshuo engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5.Hongshuo has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3.Hongshuo engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5.Hongshuo has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
