ULlisted 3 Hour Fire Rated ANSI grade 1 Commercial Door Mortise Lock/aluminum front door
- Category: >>>
- Supplier: SECUTOR CORPORATION
Share on (62001359065):
Product Overview
Description
Product Description

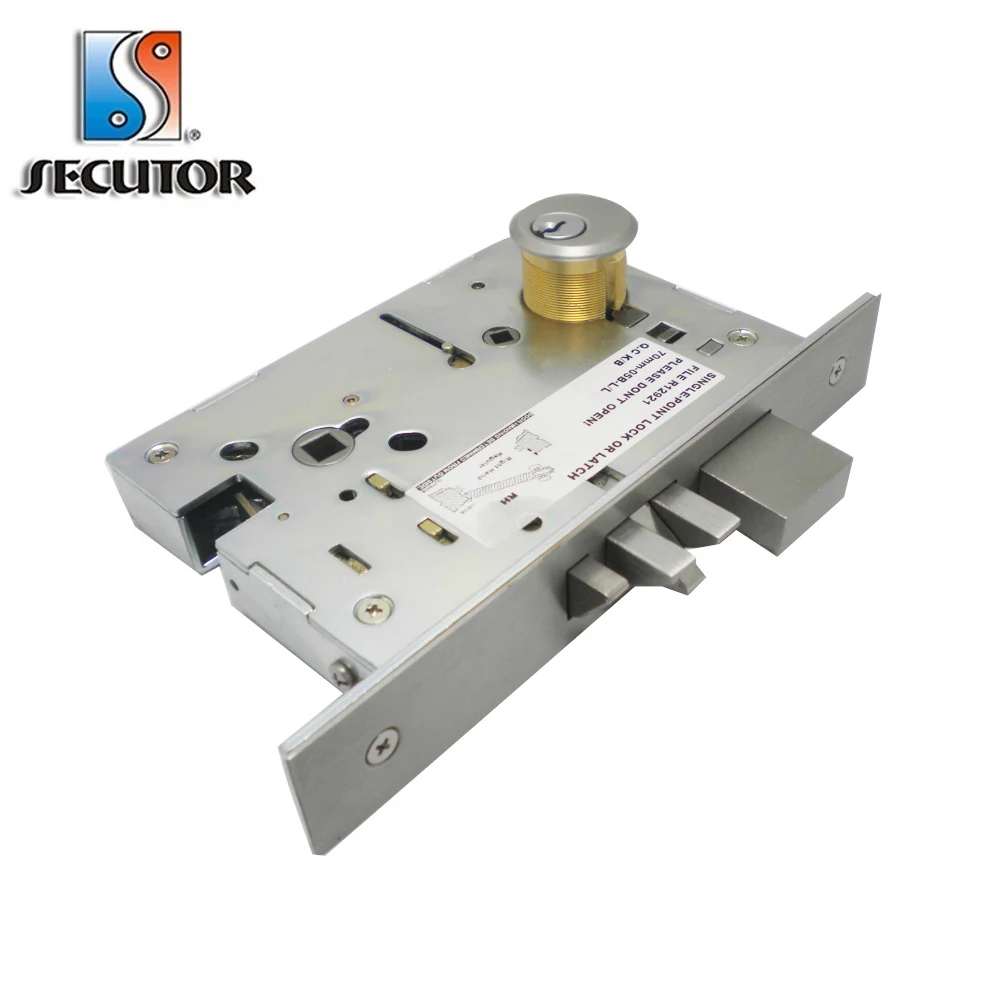

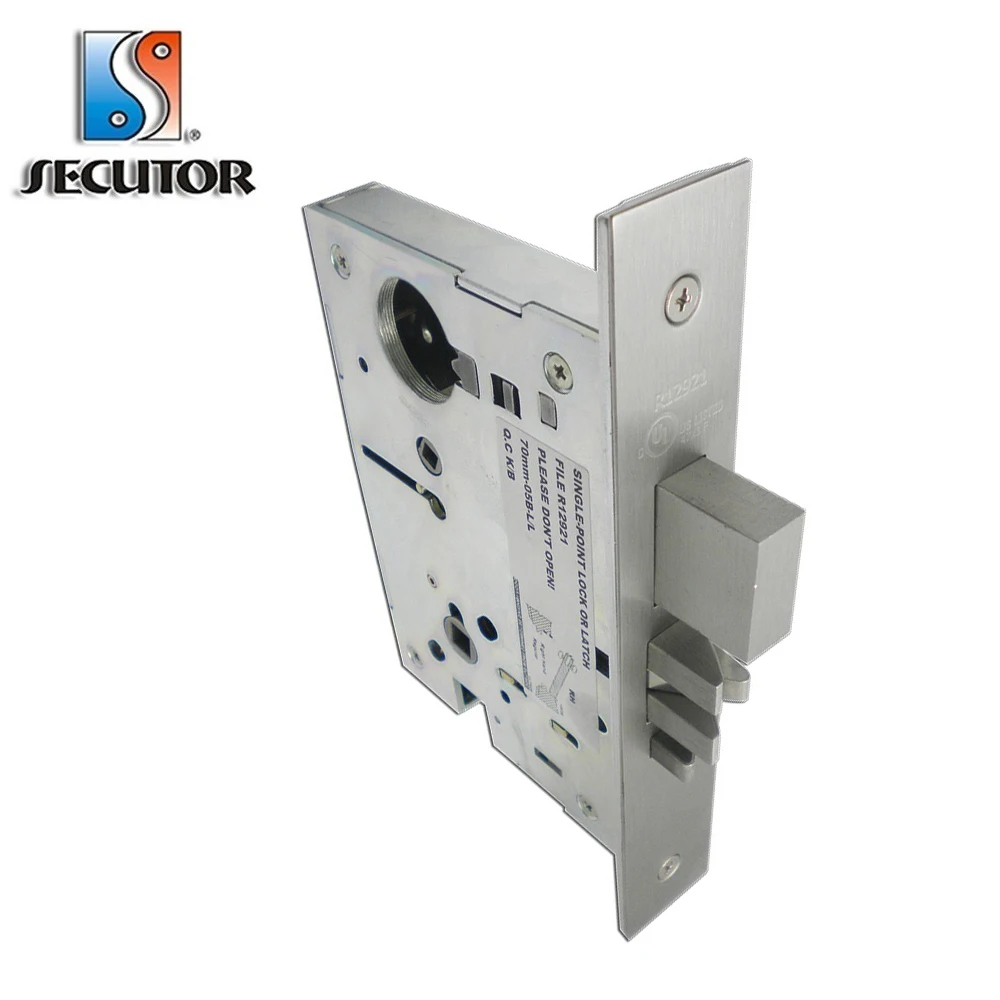

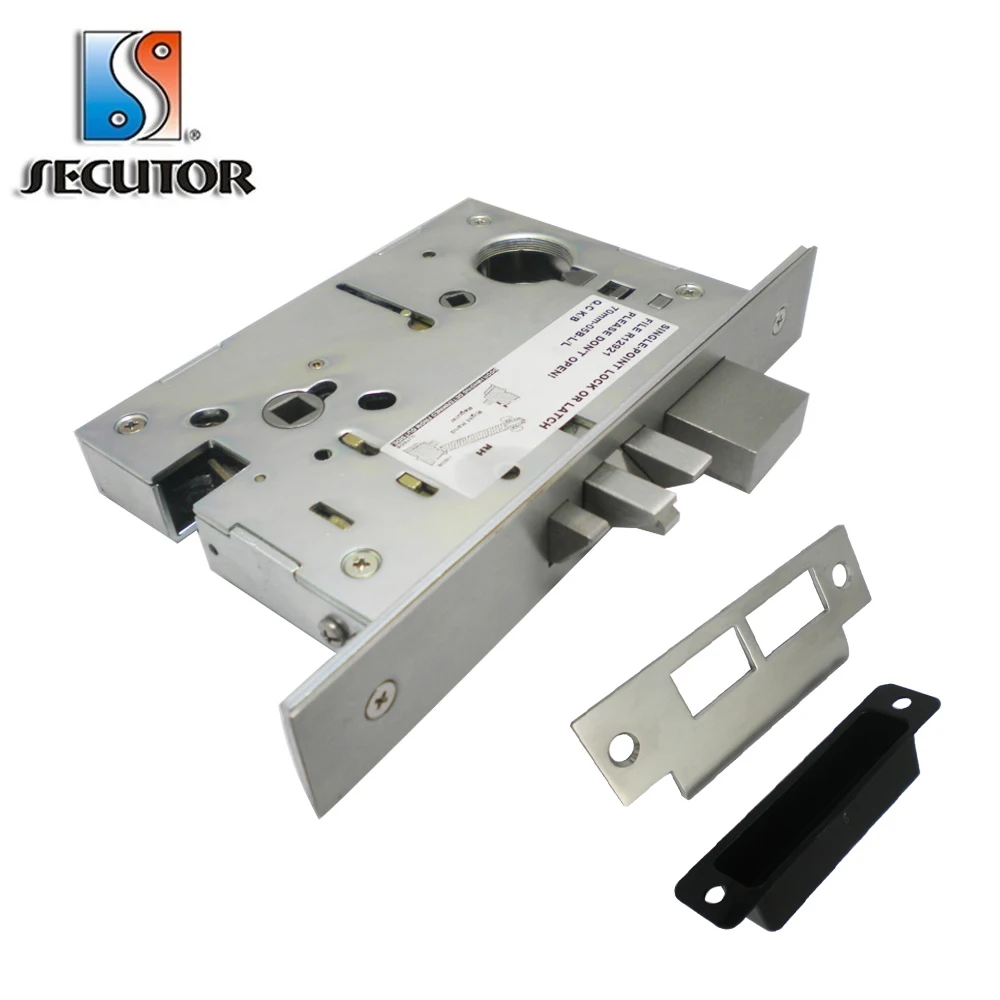

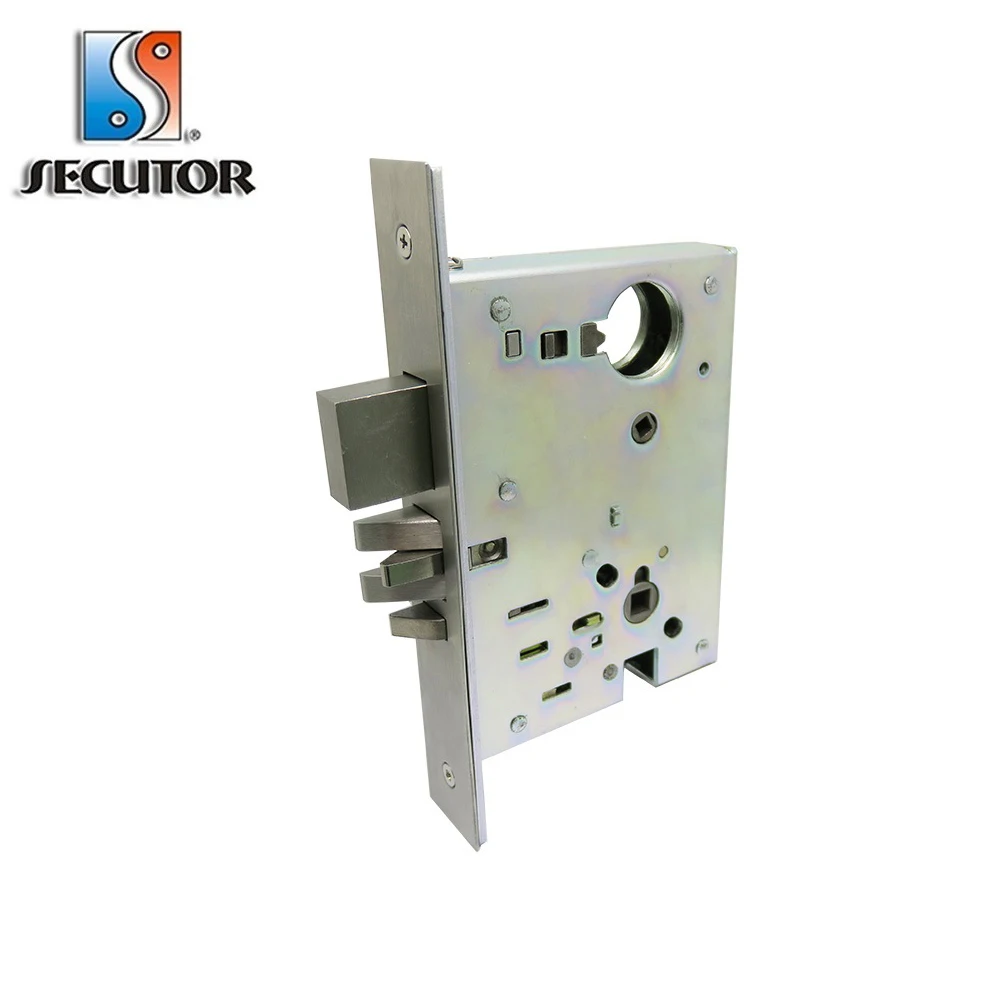

* UL listed 3 Hour Fire Rated ANSI grade 1 Commercial Door Mortise Lock
* Backset: 2-3/4” (70mm)
* C-C Distance : 91mm
* Steel Lock Case Sized : 108 × 150 × 22mm
* with Stainless Steel parts inside of the lock case
* US32D Finish
* Deadbolt : Stainless steel material
* Latchbolt : Stainless steel material, with heavy duty anti-friction tongue
* Guardbolt : Powder Metallurgy
* Faceplate : Stainless steel material
* Strike plate : Stainless steel material
* With plastic anti-dust box
* Hand : Field reversible
* Function : Passage / Entry / Entrance / Storeroom / Office / Dormitory / Hotel / Deadlock
* For Commercial, Industrial, and Institutional buildings
* UL listed, ANSI Grade 1, 3 hours Fire rated
* 1,000,000 life cycle guaranteed
ANSI No.
Available ANSI No. of UL listed 3 Hour Fire Rated ANSI grade 1 Commercial Door Mortise Lock
ANSI No. | Function / Location | Description / Operation |
F01 | Passage / Closet | A non-keyed function. Latchbolt operated by lever from either side at all times.
|
F04 | Entry / Office | Latch bolt operated by lever either side except when outside lever is made inoperative by push button rocker. When outside lever is lock, latch bolt may be retracted by key from outside or by rotation inside lever.
|
F07 | Storeroom / Closet | Latch bolt by lever inside and by key outside. Outside lever is always inoperative. * Auxiliary latch deadlocks latch bolt. Inside lever always free.
|
F13 | Dormitory / Exit | Latchbolt operated by lever from either side. Deadbolt projected by key from outside and thumbturn from inside. Rotating inside lever retracts both bolts (simultaneous retraction). Extended deadbolt automatically deadlocks latchbolt.
|
F15 | Hotel / Motel | Latch bolt by lever inside and by guest key or master key outside. Outside lever always rigid. Deadbolt by thumb turn inside or by emergency key outside. Inside lever will retract both bolts (simultaneously retracts)
|
F16 | Deadlock | Deadbolt by key either side.
|
F17 | Deadlock | Deadbolt by key outside or by thumb turn inside.
|
F20 | Apartment Corridor | Latch retracted by knob or lever from either side except when outside knob / lever is locked by stop works of thumbturn. Deadbolt extended or retracted by key from outside or thumbturn from inside. Outside knob / lever is locked when deadbolt is extended. Auxiliary deadlatch deadlocks latch when door is closed. Inside knob / lever retracts latch and deadbolt simultaneously.
|
F21 | Entrance | Latch by lever either side. Deadbolt by key outside, turn piece inside. Deadbolt deadlocks latch. |
Dimension
Drawing of UL listed 3 Hour Fire Rated ANSI grade 1 Commercial Door Mortise Lock

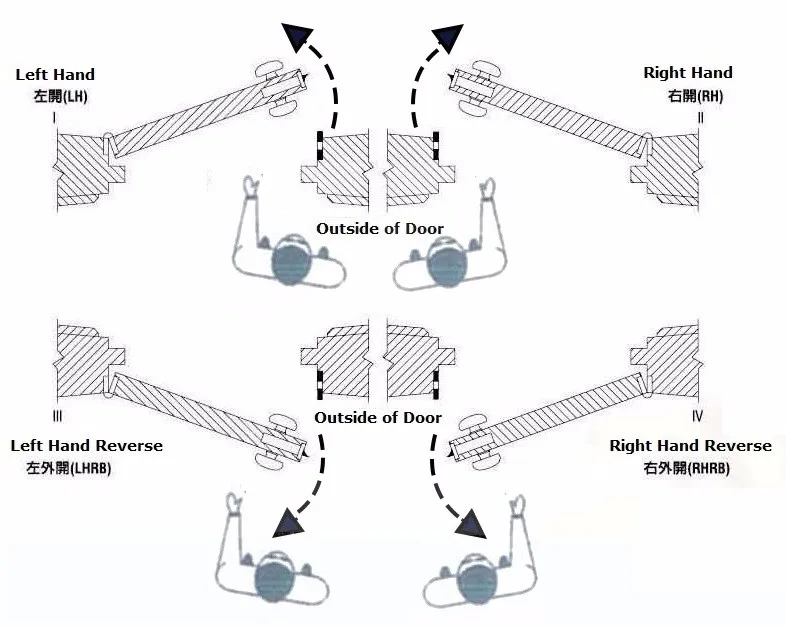

Handing of UL listed 3 Hour Fire Rated ANSI grade 1 Commercial Door Mortise Lock
Related Products
Thumburun and Moritse Cylinder for UL listed 3 Hour Fire Rated ANSI grade 1 Commercial Door Mortise Lock

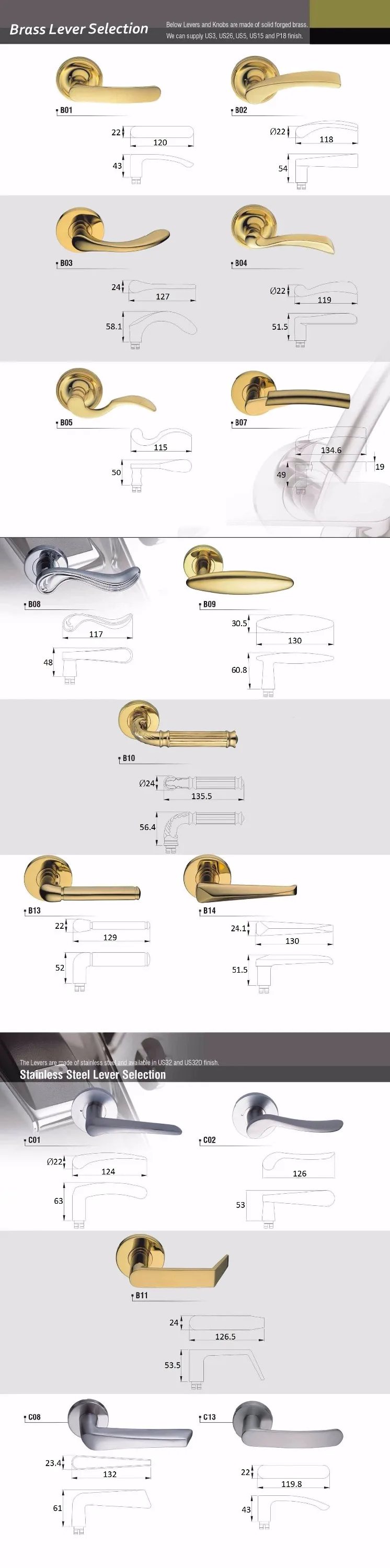

Handle Selection
Handle Selection for UL listed 3 Hour Fire Rated ANSI grade 1 Commercial Door Mortise Lock
