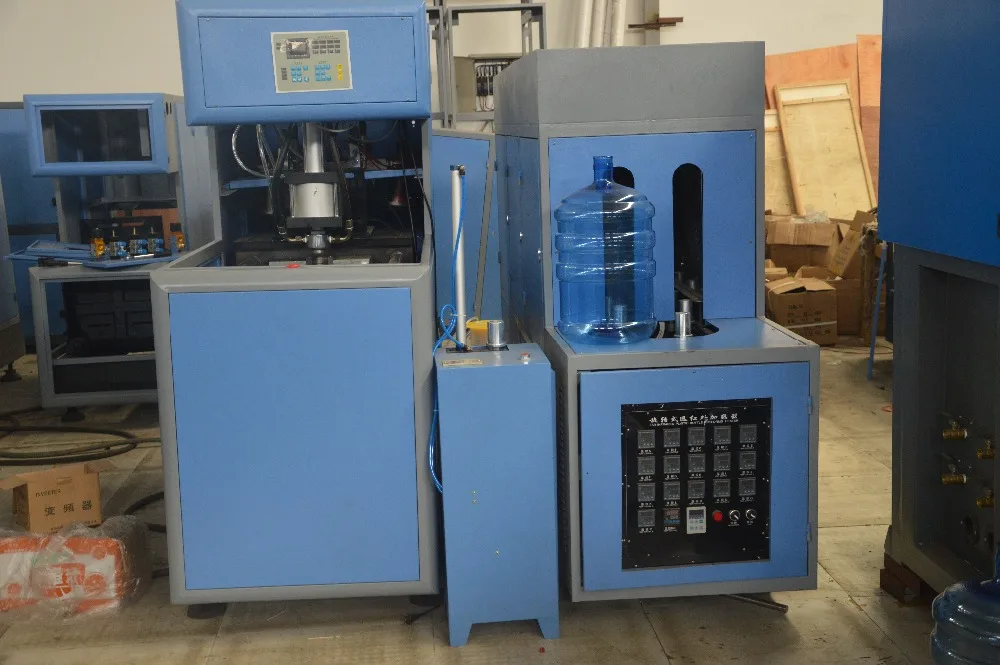

Manual Preform Loading 5 Gallon Bottle Blowing Machine

Product Overview

Description

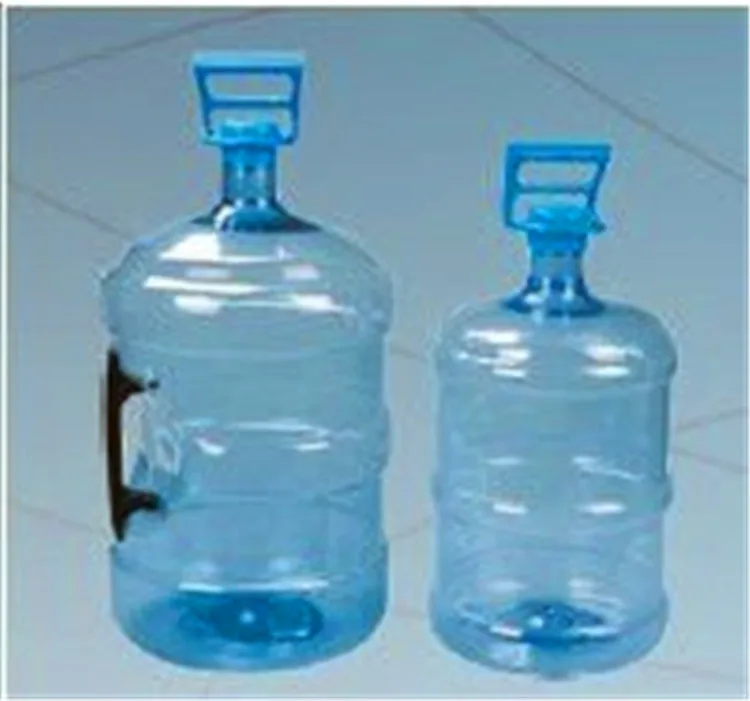

3 to 5 gallon pet bottle Blowing molding machine, 5L 10L 15L 20L 5 Gallon water bottle container blow
Product Description
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

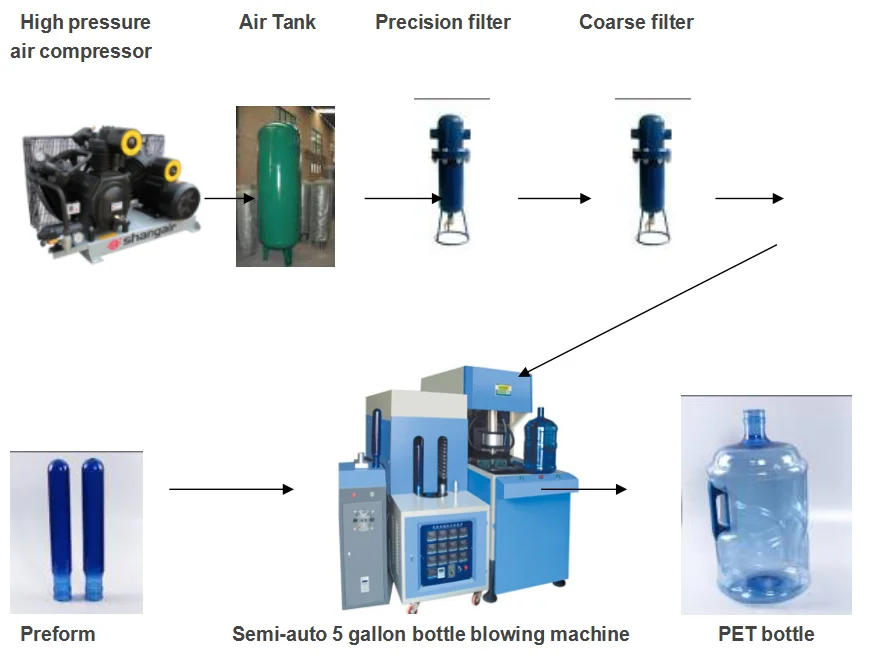

              NC120 air supply flow chart



Item	Name	Brand
Pneumatic components	Cylinder	YONGCHENG
	Valve	YONGCHENG
Electrical components	Main computer	DELTA
	Human machine interface (HMI)	DELTA
	Circuit breaker	LS
	Photoelectric switch	AUTONICS
Remark	All the components are selected with Internationally applied high-tech products.

Ⅲ. Description:

Technology Parameters:

Type	NC-100
Output	According to bottle type	100-120PCS/H
Product species	Bottle diameter	150mm-300mm
	bottle height	250mm-550mm
	Bottle mouth diameter	15mm-100mm
Mold	cavity	1 cavity
	mould thickness	200~450mm
	Effective area of mold	600*600mm
Main power	Power	127v monophase  50/60HZ
	install power/actual power	30kw/10kw
Air source
	High pressure air compressor	1.2m3/min 3.0MPa
	Cold dry machine	2.0m3/min 3.0MPa 1set
cooling water	Cooling water quantity	15L/min
Main machine size	Length width height/weight	2150*730*1700mm/950kg
Oven size	Length width height /weight	2650*680*1580mm/750kg



Machine components

Item	Name of the main spare parts	Brand Name
1	Closing cylinder	Yongcheng
2	Stretching/sliding cylinder	Yongcheng
3	Sealing cylinder	Yongcheng
4	High Pressure Blowing cylinder	Yongcheng
5	Closing magnetic valve	Yongcheng
6	Stretching magnetic valve	Yongcheng
7	High pressure Blowing magnetic valve	Delta Taiwan
8	Pre-blow magnetic valve	Yongcheng
