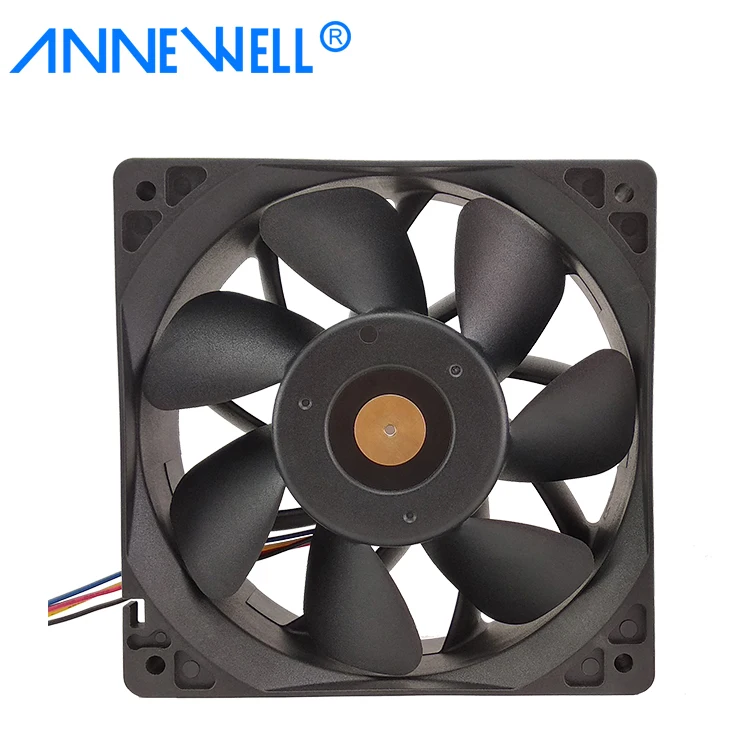

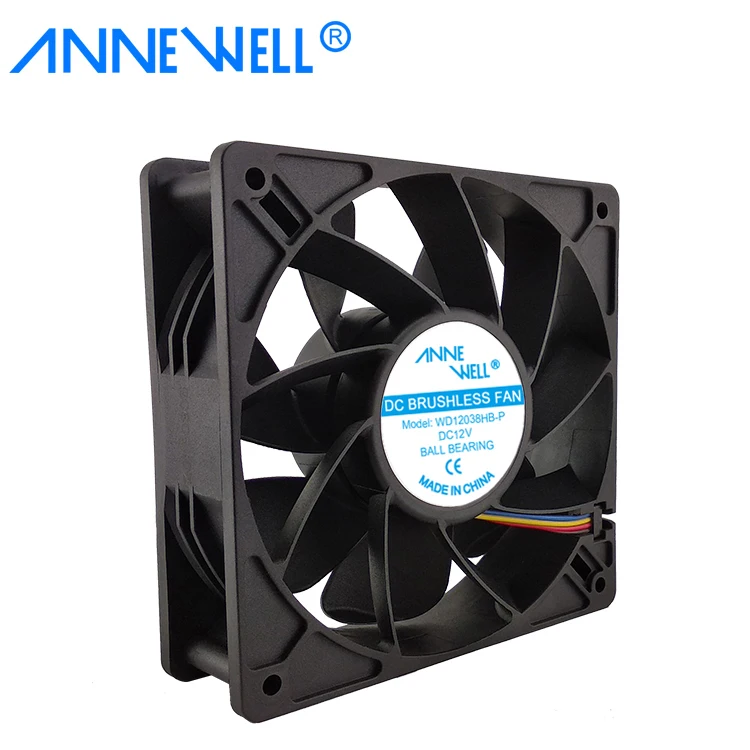

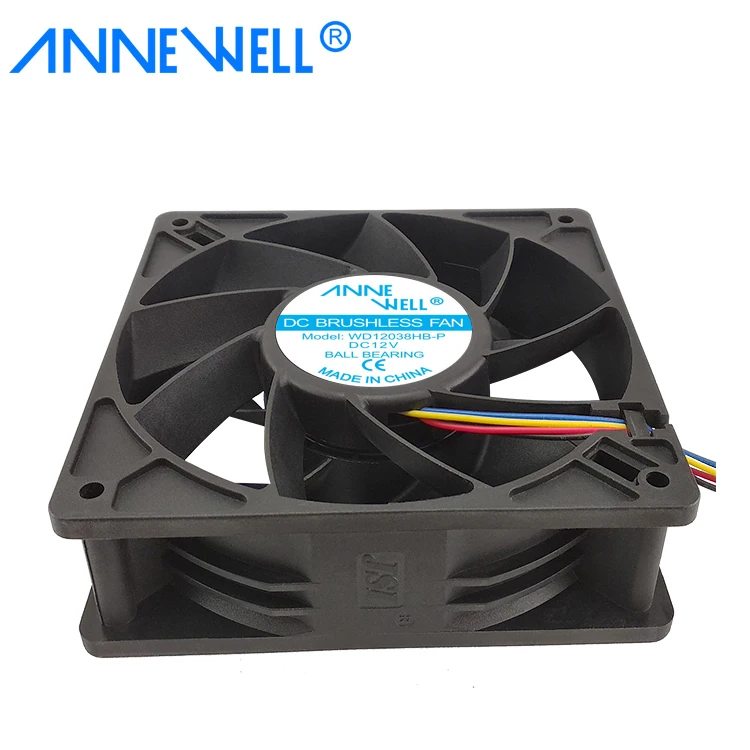

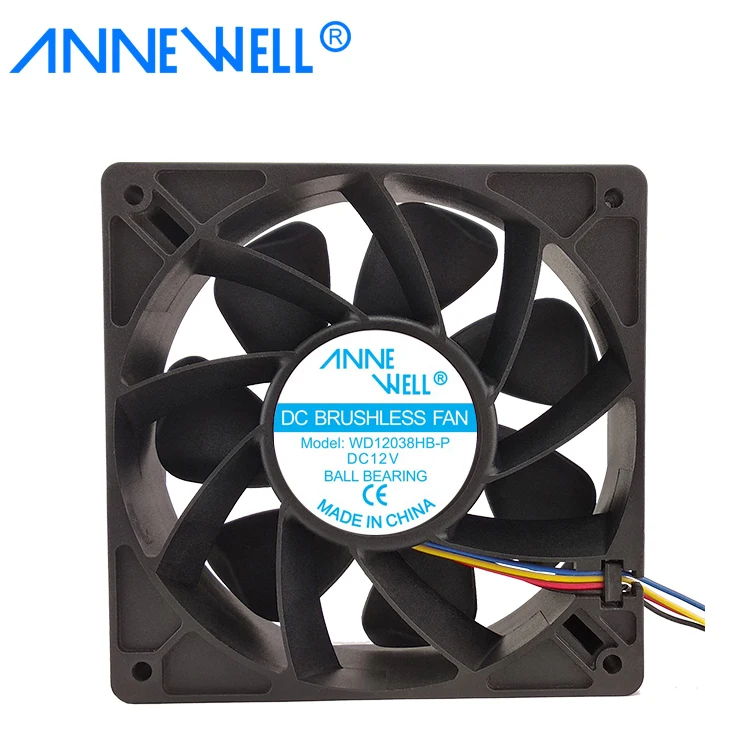

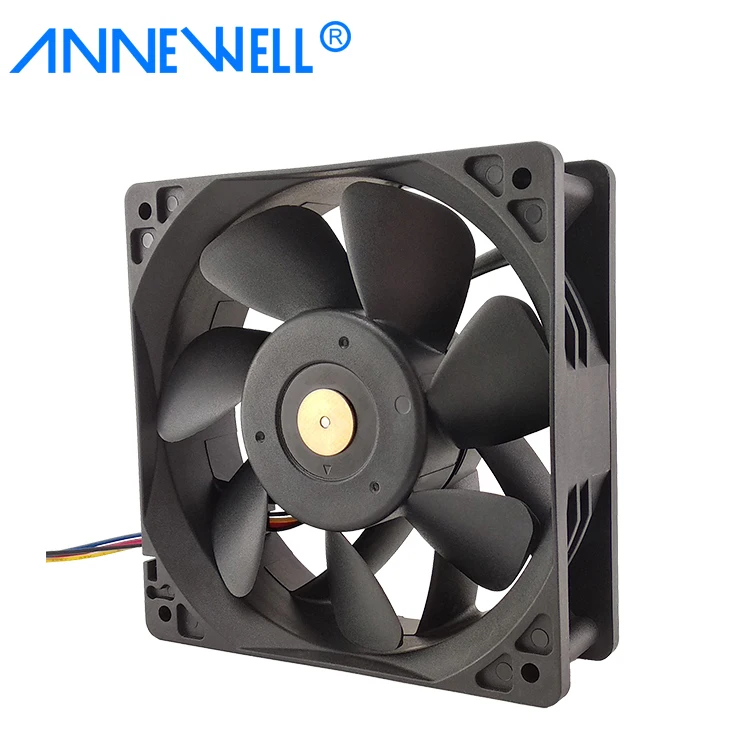

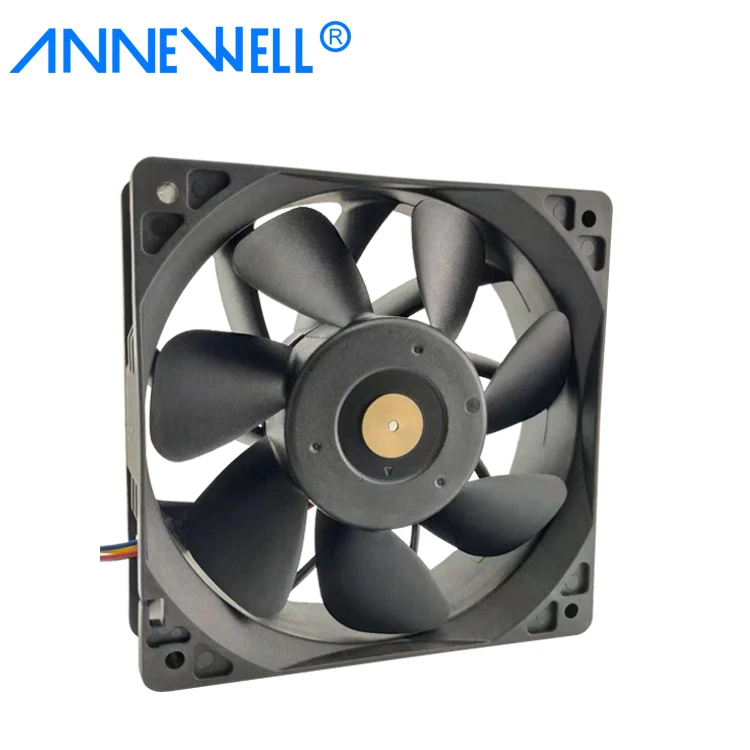

12~48V Waterproof IP67 Axial Cooler Industrial Cabinet Case Exhaust Fan High CFM 12038 DC Brushless Cooling Fan 120mm
- Category: >>>
- Supplier: Xuchang Wonderful Electric Co. Ltd.
Share on (62001703814):
Product Overview
Description
DC
12~48V Waterproof IP67 Axial Cooler Industrial Cabinet Case Exhaust Fan High CFM 12038 DC Brushless Cooling Fan 120mm

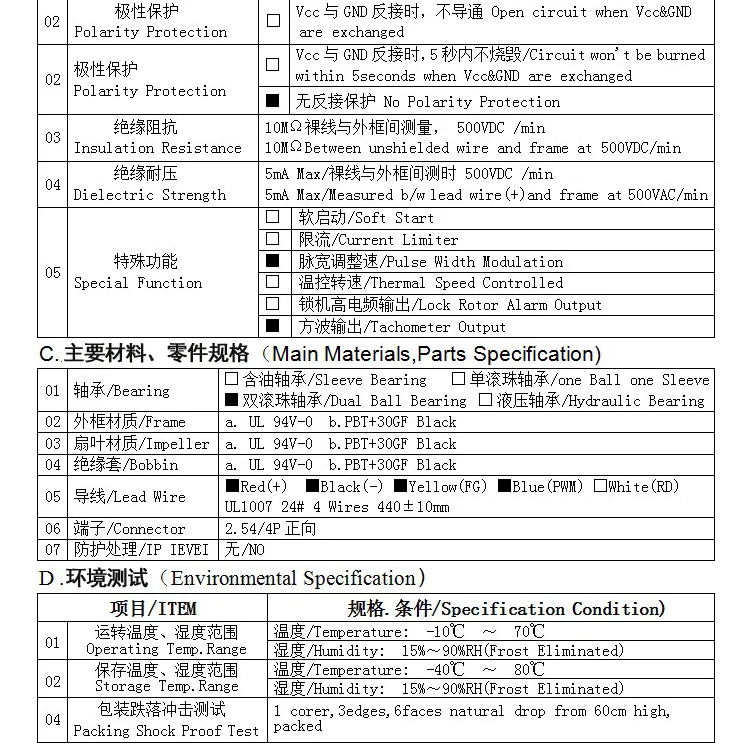

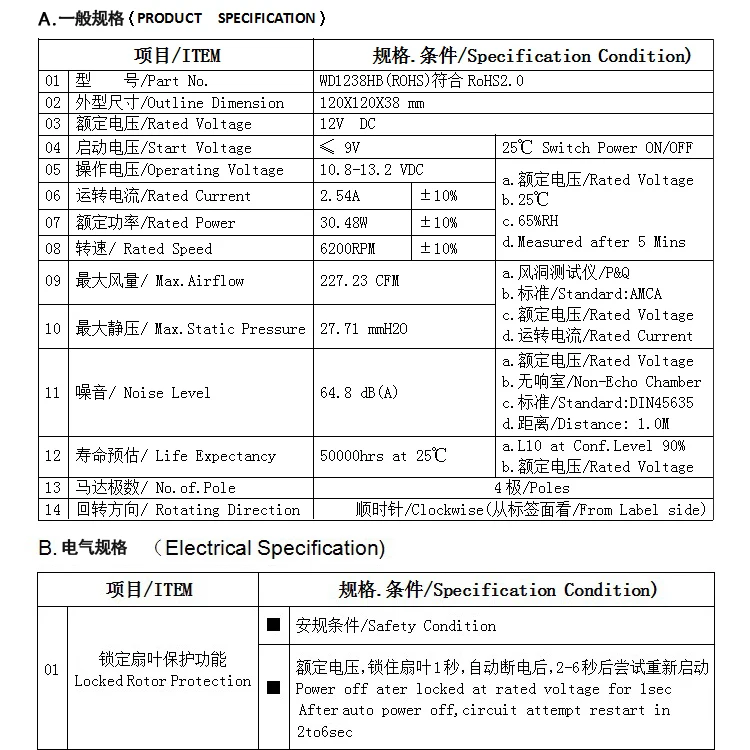

| 1 | Model Number | WD12038HB12-P |

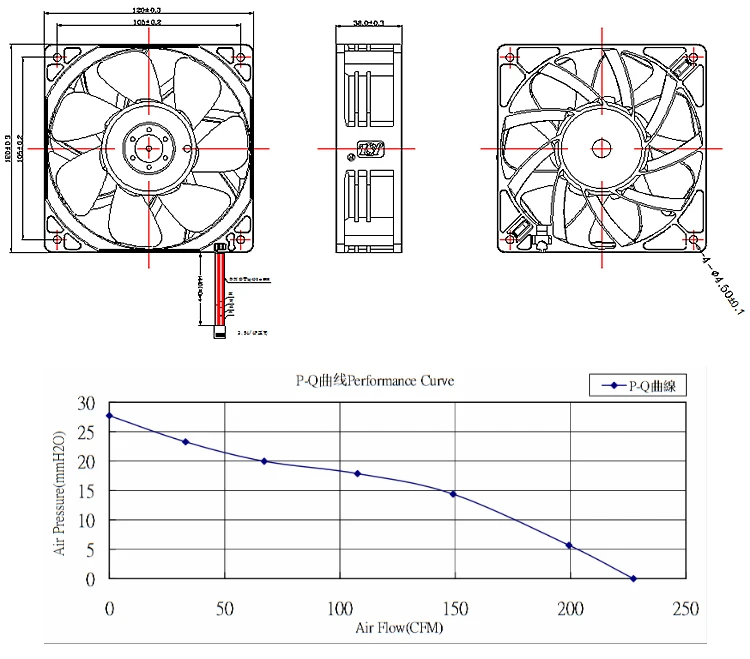

| 2 | Frame Size | 120x120x38 mm |
| 3 | Bearing Type | Dual-ball Bearing |
| 4 | Rated Voltage | 12 VDC |
| 5 | Operation Voltage | 5.0~14.0 VDC |
| 6 | Rated Power | 30.48 W |
| 7 | Norminal Speed | 6200 RPM |
| 8 | Max. Air Flow | 227.23 CFM |
| 9 | Max. Static Air Pressure | 27.71 mmH2O |
| 10 | Noise Level | 64.8 dBA |
| 11 | Frame Material | Black Thermal Plastic, UL94V-0 |
| 12 | Impeller Material | Black Thermal Plastic, UL94V-0 |
| 13 | Lead Wire | 440mm, AWG#24 UL1007 (+)Red (-)Black (FG)Yellow (PWM)Blue |
| 14 | Connector | 2.54/4pin |
| 15 | Motor | 4 Pole DC Brushless Motor |
| 16 | Motor Protection | Impedance Protected, Thermal Protected, Reverse Polarity Protected (Auto Restar) |
| 17 | Insulation Resistance | Above 100MΩ, DC 500V (Between Lead Wire And Frame) |
| 18 | Insulation | Class A |
| 19 | Life Expectancy | Sleeve Bearing Fan:30,000 Hrs at 25 Degree C/L10 (RH65%±20%) Ball Bearing Fan:50,000 Hrs at 25 Degree C/L10 (RH65%±20%) |
| 20 | Temperature | Storage Temperature: -40℃~80℃ (20%~85% RH) Oeration Temperature: -10℃~70℃ (20%~85% RH) |
| 21 | Available Function | FG, RD, PWM, Thermal Control, IP55~IP68 |
| 22 | Free Sample Service | Availble, Please Contact Our Customer Service Executive |
| 23 | Quality Assurance | Sleeve Bearing Fan: 12 Months Ball Bearing Fan: 24 Months |
| 24 | Item Conditon | Brande New |
| 25 | OEM/ODM | Acceptable |
| 26 | Application | 1.Household: Refrigerator, Freezer, Freeze Cabinet, Dishwasher, Dishdryer, Oven, Barbecue Fryer, Coffee Machine, Intelligent Household Lampblack Machine, Smart Toilet, Set-up Box, LCD TV, Projector, Game Entertainments/Console, Ruuing Machine, Vacuum Cleaner, Robot Sweeper, Copy Machine, 3D Printer, Air Purifier/freshener/Cleaner, Humidifier, Nebulizer, Aromatherapy Machine, 2.Vehicle: Car Automotive Seat, Car Stereo Amplifier/Audio,GPS, Car Heater,Car Lamp, Vehicle Navigator, Electric Vehicle Charger, Vehicle Power Charging Station, 3.Automotive Industry: Unmanned Aerial, UAV Application, POS, ATM, Kiosk, Intelligent Manicure Machine, High-Speed Camera, 4.Virtual Reality: VR Equipment, Head Mounted Display, 5.Computer: Notebook, Laptop, PC Cabinet, UPS/CPU Cooler, 6.Medical Electronics, Laparoscope, Supersonic, Electrocaidiograph, X-Ray Machine, 7.Industry: Welding Machine, Carving Machine, Molding Machine, Bitcoin Mining Machine/Miner, Air Detector, Electric Forklift, Inverter, Server,Frequency Conversion,LED, Stage Lighting, 8.Telecom/Networking: Cabinet/Case etc. |
